Model # 917351061 Official Craftsman chainsaw

Here are the diagrams and repair parts for Official Craftsman 917351061 chainsaw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

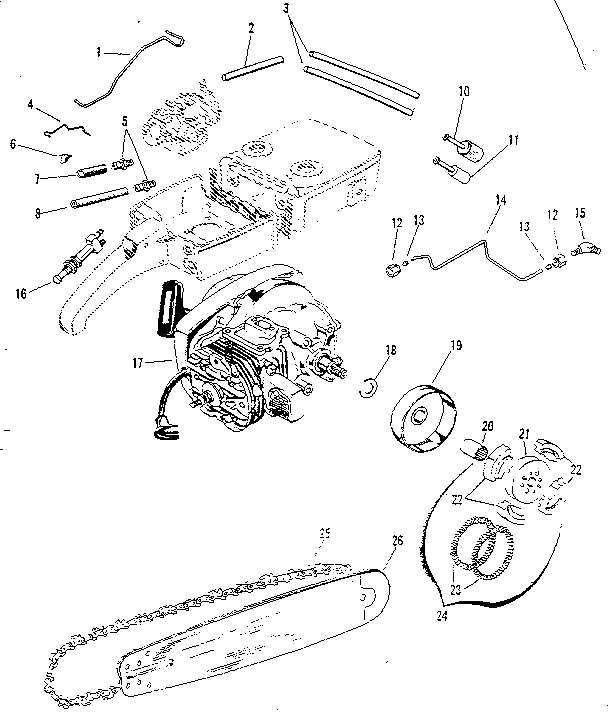

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 205 parts  |
Diaphragm 630978
#22

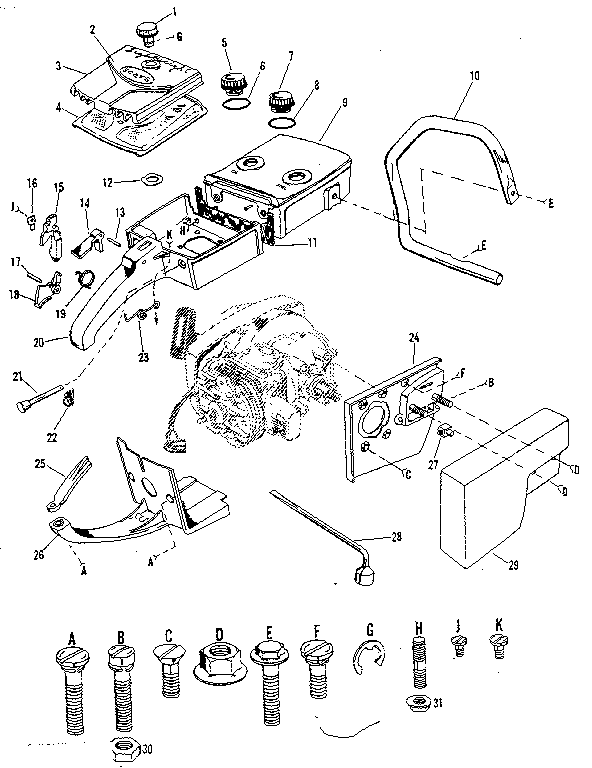

Replacement parts diagram

Diaphragm

Part #630978

Replaced by #49-002

?
Manufacturer substitution
This part replaces 630978. Substitute parts can look different from the original.
This item is not returnable
$6.30 |
14% OFF Phone Price : $7.30
In Stock
Oil Seal 510105
#12

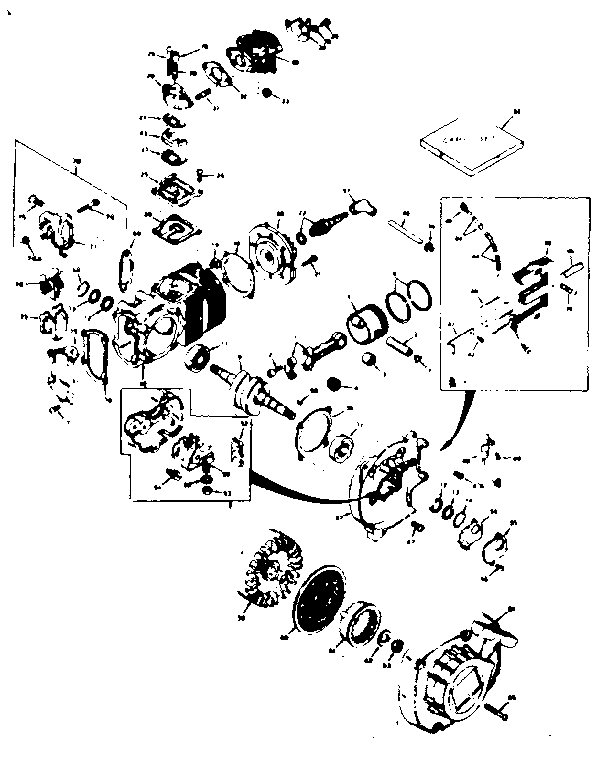

Engine diagram

Oil seal

Part #510105

Replaced by #510319

?
Manufacturer substitution
This part replaces 510105. Substitute parts can look different from the original.
$8.20
In Stock
Washer 630739
#12

Replacement parts diagram

Washer

Part #630739

Replaced by #630739

?
Manufacturer substitution
This part replaces 630739. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Spring Retainer 510109
#14

Engine diagram

Spring retainer

Part #510109

Replaced by #510109A

?
Manufacturer substitution
This part replaces 510109. Substitute parts can look different from the original.
This item is not returnable
$4.14
In Stock
Nut 650577
#63

Engine diagram

Nut

Part #650577

Replaced by #650390

?
Manufacturer substitution
This part replaces 650577. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Cover 630751
#23

Replacement parts diagram

Cover

Part #630751

Replaced by #630751

?
Manufacturer substitution
This part replaces 630751. Substitute parts can look different from the original.
This item is not returnable
$10.62 |
16% OFF Phone Price : $12.62
In Stock
Retainer 510106
#13

Engine diagram

Retainer

Part #510106

Replaced by #510106A

?
Manufacturer substitution
This part replaces 510106. Substitute parts can look different from the original.
This item is not returnable
$4.14
In Stock
Gasket 510241
#32

Engine diagram

Gasket

Part #510241

Replaced by #510241A

?
Manufacturer substitution
This part replaces 510241. Substitute parts can look different from the original.
This item is not returnable
$4.86
In Stock
Spring 590391
#9

Rewind starter diagram

Spring

Part #590391

Replaced by #590391

?
Manufacturer substitution
This part replaces 590391. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Screw 650544
#39

Engine diagram

Screw

Part #650544

Replaced by #650544

?
Manufacturer substitution
This part replaces 650544. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
