GE
Electric Wall Oven

Model # ZET1038BF4BB Official GE wall oven

Here are the diagrams and repair parts for Official GE ZET1038BF4BB wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

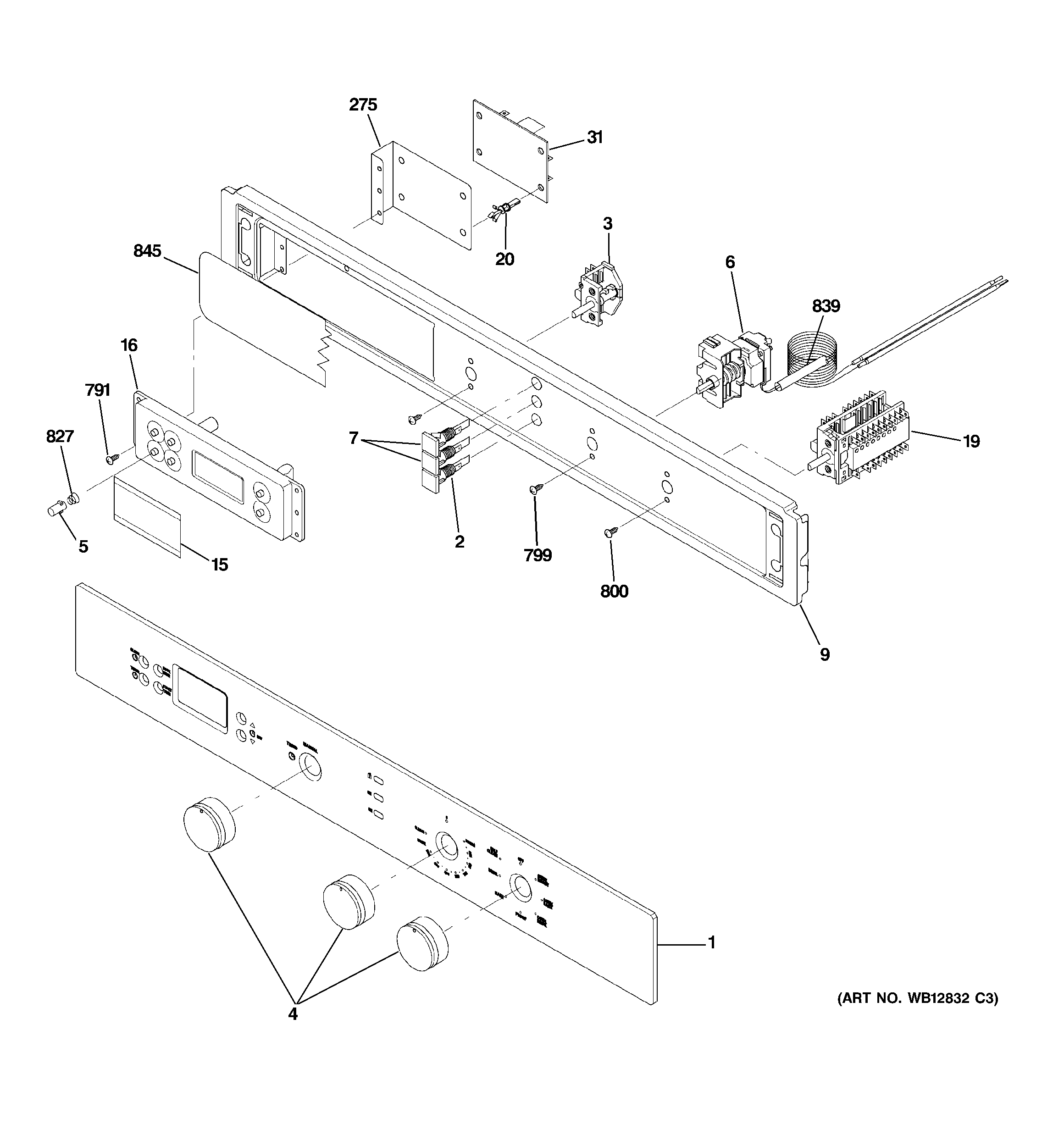

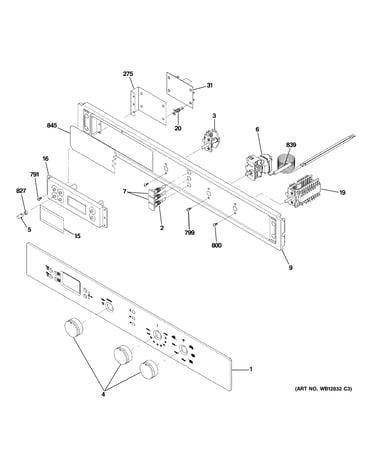

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Cooking Appliance Halogen Light Bulb (replaces Wb08x10045, Wb36x10176, Wr02x11184) WB01X10239
#257

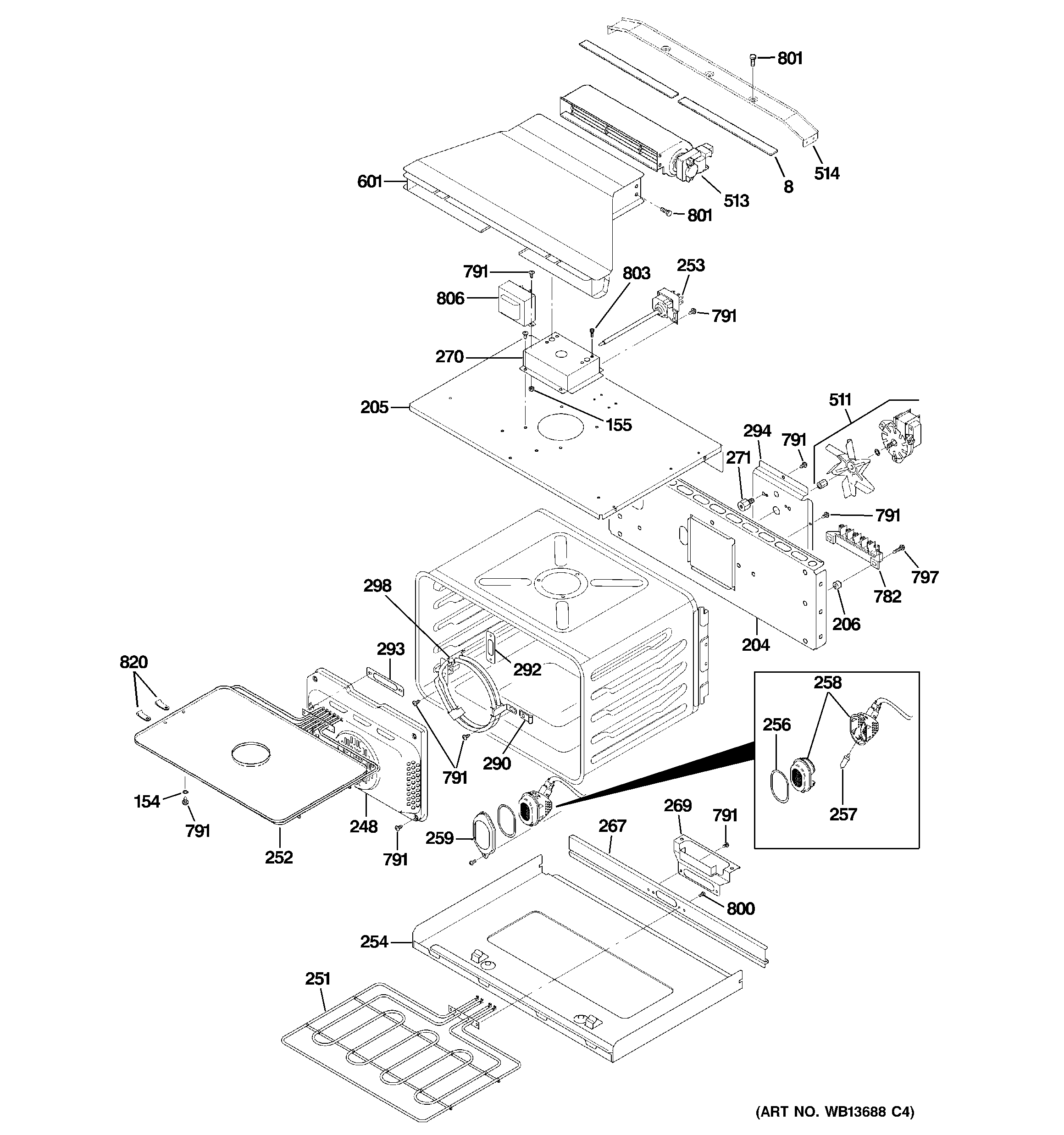

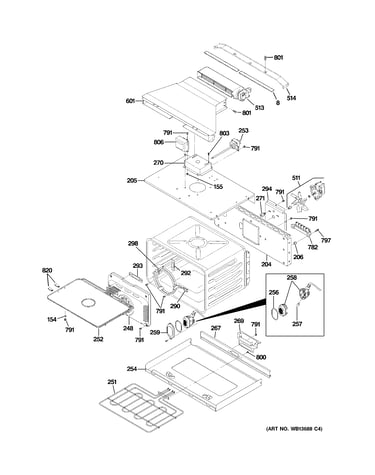

Body parts (1) diagram

Cooking appliance halogen light bulb (replaces wb08x10045, wb36x10176, wr02x11184)

Part #WB01X10239

$27.25 |
18% OFF Phone Price : $33.25
In Stock
Wall Oven Door Hinge WB10X10028
#141

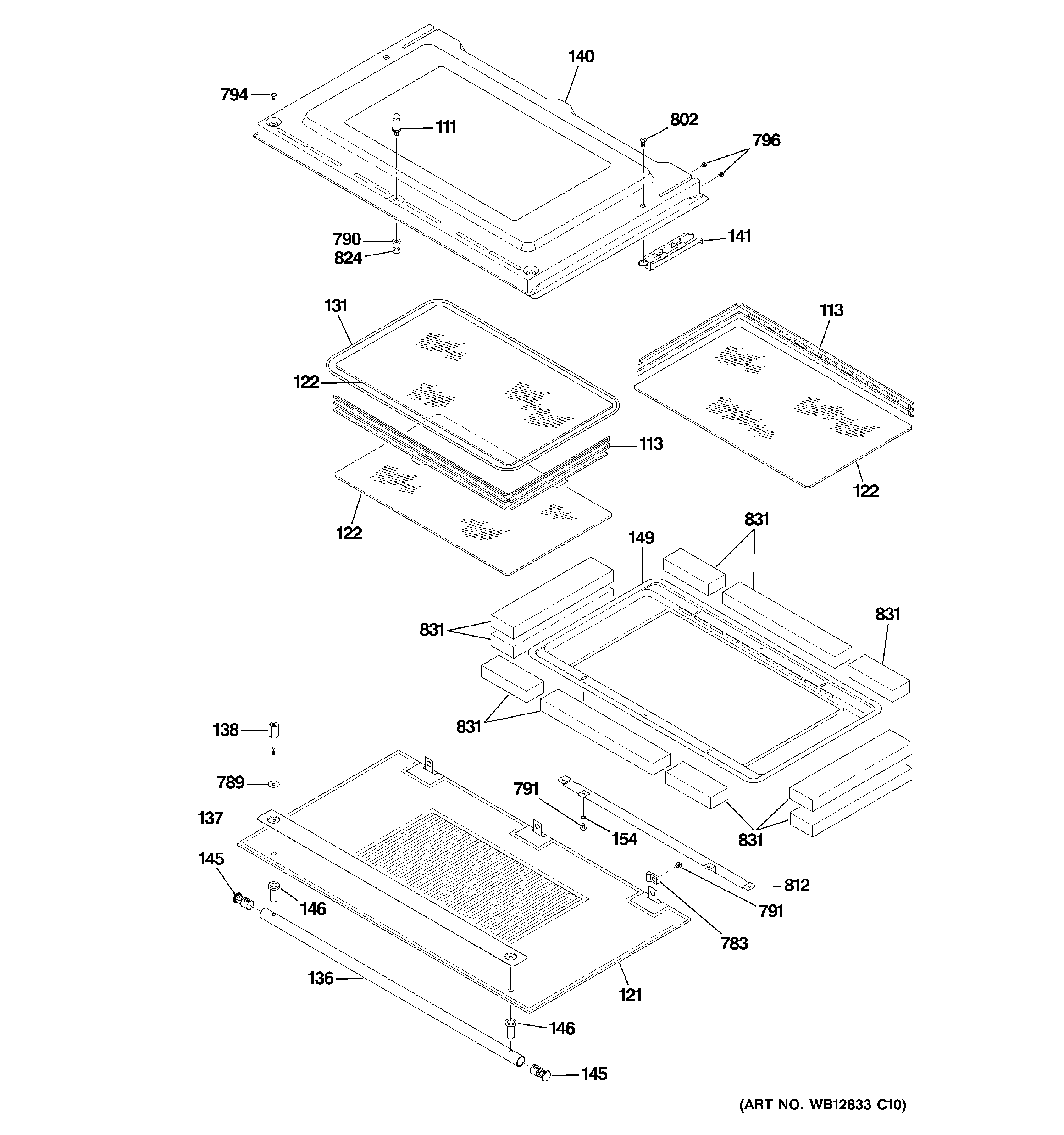

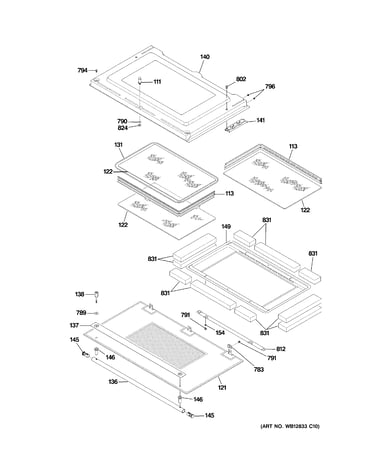

Door diagram

Wall oven door hinge

Part #WB10X10028

$33.02 |
15% OFF Phone Price : $39.02
In Stock
Convection R WB48X10012
#242

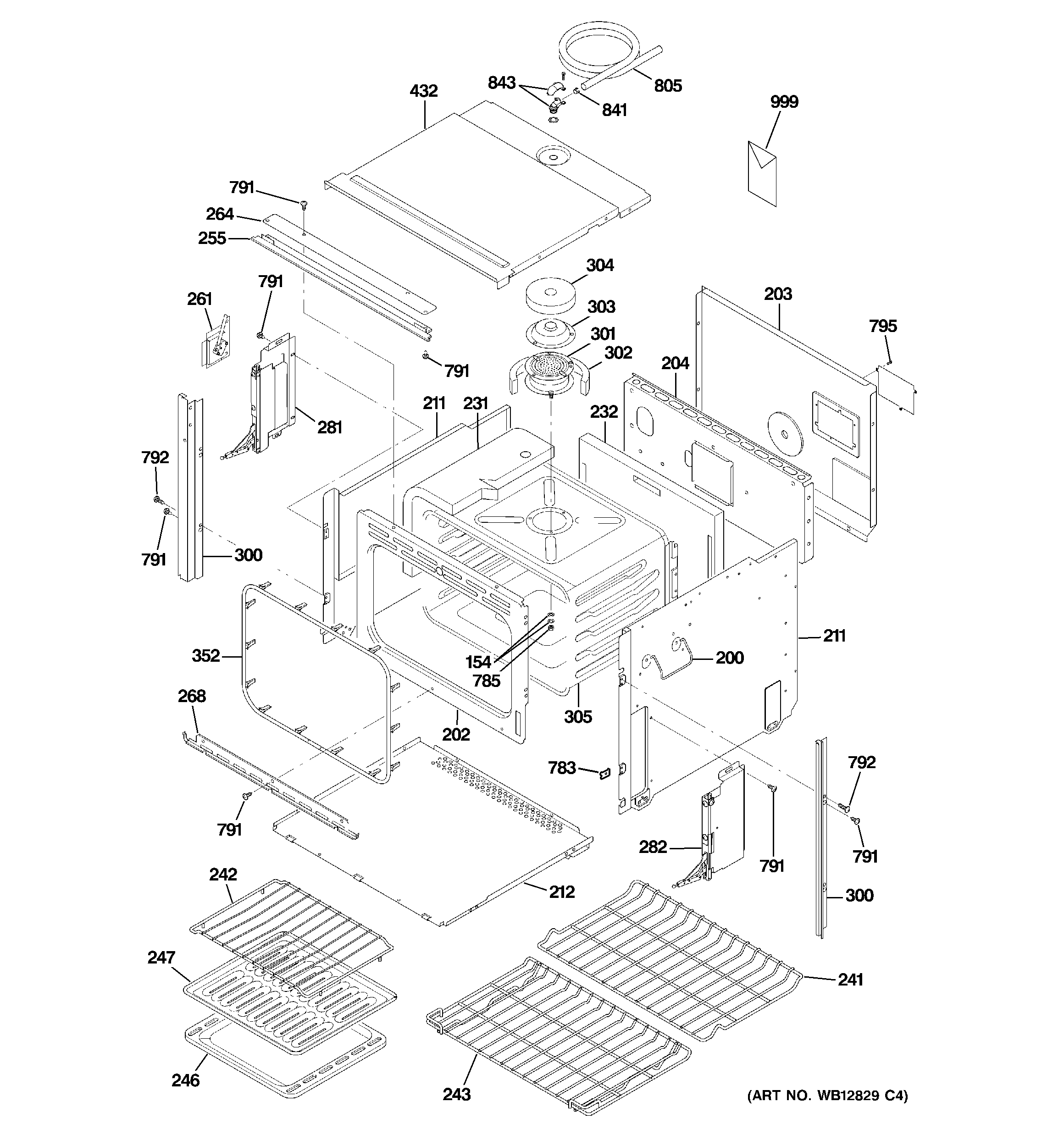

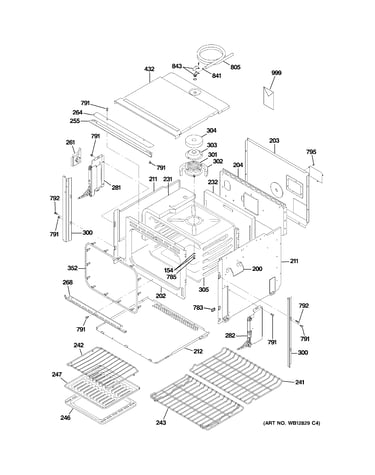

Body parts (2) diagram

Convection r

Part #WB48X10012

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB48X10012. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
Element Ring WB44X10047
#298

Body parts (1) diagram

Element ring

Part #WB44X10047

Replaced by #WB44X10012

?
Manufacturer substitution
This part replaces WB44X10047. Substitute parts can look different from the original.
$282.17 |
$12.00 OFF Phone Price : $294.17
In Stock
Wall Oven Cooling Fan WB26X10022
#513

Body parts (1) diagram

Wall oven cooling fan

Part #WB26X10022

The manufacturer no longer makes this part, and there's no substitute part

Wall Oven Door Lock Motor WB14X10005
#151

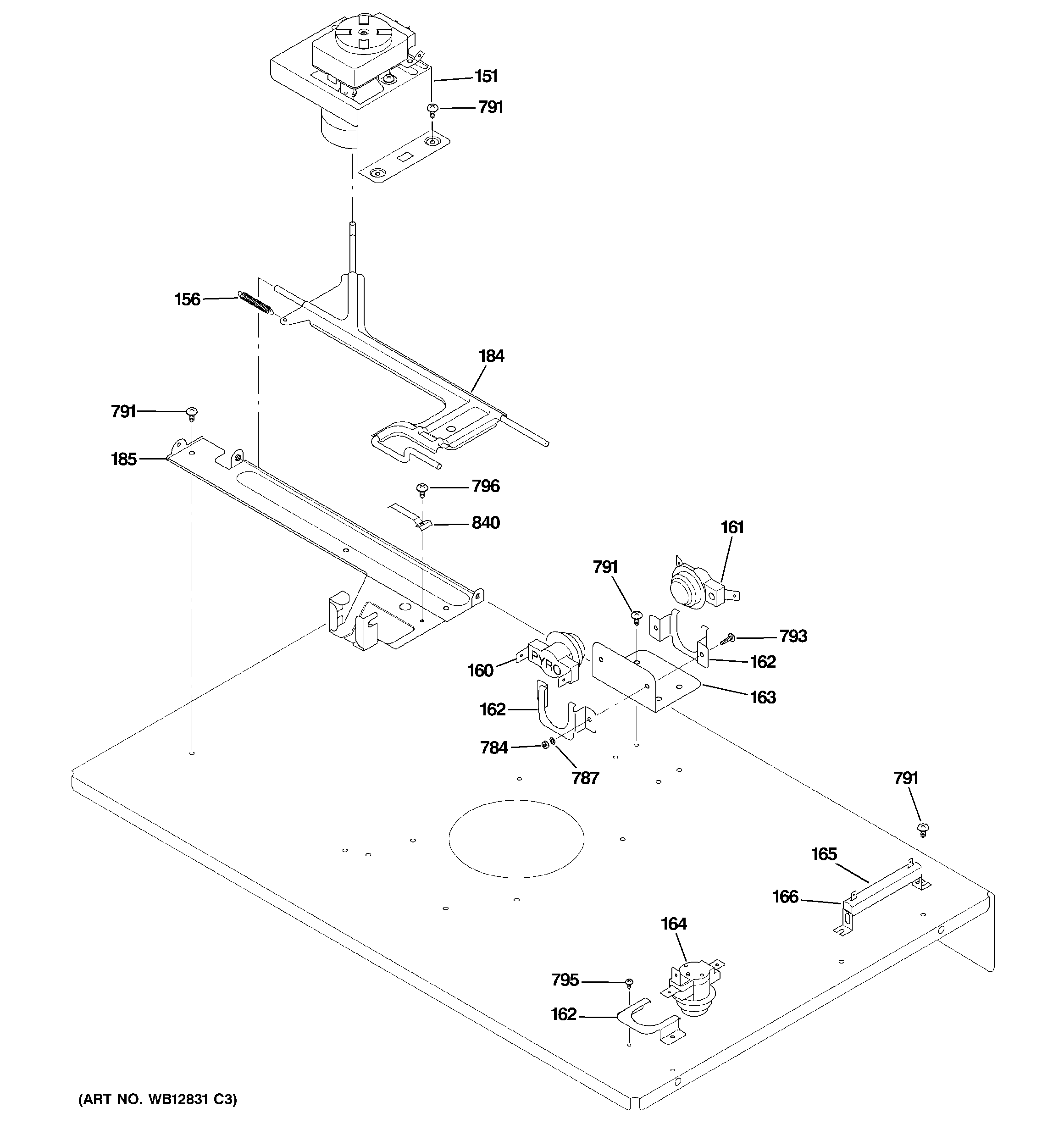

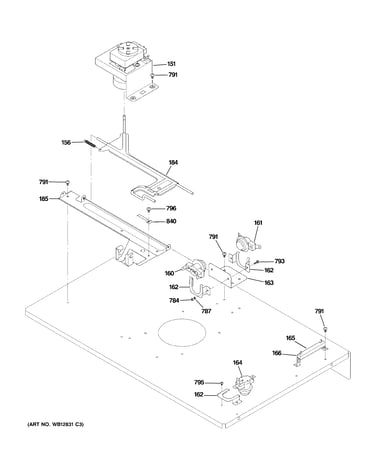

Door lock diagram

Wall oven door lock motor

Part #WB14X10005

Replaced by #WB00X7310

?
Manufacturer substitution
This part replaces WB14X10005. Substitute parts can look different from the original.
$111.86
In Stock
Wall Oven Door Hinge Assembly, Left WB10X10054
#281

Body parts (2) diagram

Wall oven door hinge assembly, left

Part #WB10X10054

Replaced by #WB10X10078

?
Manufacturer substitution
This part replaces WB10X10054. Substitute parts can look different from the original.
$135.45 |
8% OFF Phone Price : $147.45
In Stock
Insulation WB05X10001
#302

Body parts (2) diagram

Insulation

Part #WB05X10001

Replaced by #WB5X10001

?
Manufacturer substitution
This part replaces WB05X10001. Substitute parts can look different from the original.
$13.49
In Stock
Wall Oven Door Hinge Assembly, Right WB10X10055
#282

Body parts (2) diagram

Wall oven door hinge assembly, right

Part #WB10X10055

Replaced by #WB10X10078

?
Manufacturer substitution
This part replaces WB10X10055. Substitute parts can look different from the original.
$135.45 |
8% OFF Phone Price : $147.45
In Stock
Oven Broiler Grid WB49X10169
#247

Body parts (2) diagram

Oven broiler grid

Part #WB49X10169

Replaced by #WB48X5108

?
Manufacturer substitution
This part replaces WB49X10169. Substitute parts can look different from the original.
$21.30 |
22% OFF Phone Price : $27.30
In Stock
