Model # 315175310 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 315175310 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Sub-base 612191-004
#2

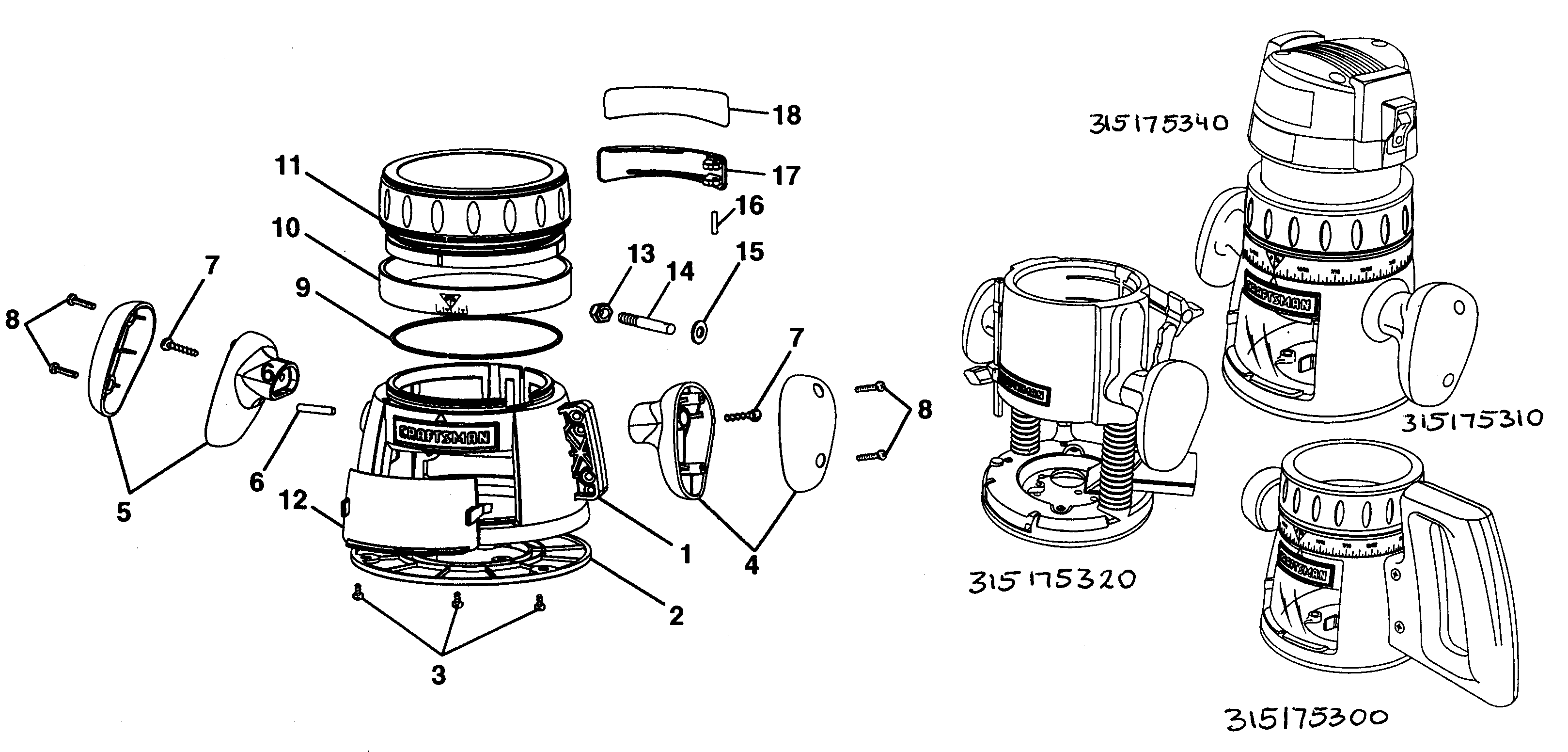

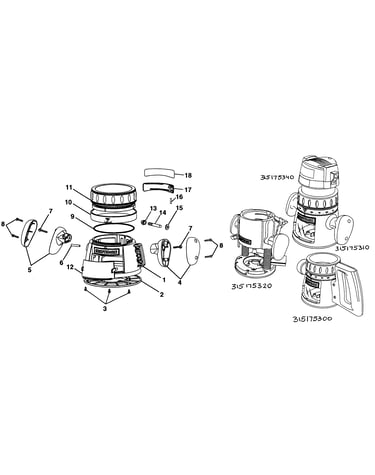

Cabinet parts diagram

Sub-base

Part #612191-004

The manufacturer no longer makes this part, and there's no substitute part

Base Assembly 982993-002
#1

Cabinet parts diagram

Base assembly

Part #982993-002

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 983449-001
#18

Cabinet parts diagram

Data plate

Part #983449-001

The manufacturer no longer makes this part, and there's no substitute part

Hex Lock Nut 703477-057
#13

Cabinet parts diagram

Hex lock nut

Part #703477-057

The manufacturer no longer makes this part, and there's no substitute part

Screw 617966-009
#8

Cabinet parts diagram

Screw

Part #617966-009

The manufacturer no longer makes this part, and there's no substitute part

Arm 983451-202
#17

Cabinet parts diagram

Arm

Part #983451-202

The manufacturer no longer makes this part, and there's no substitute part

Washer 706382-357
#15

Cabinet parts diagram

Washer

Part #706382-357

The manufacturer no longer makes this part, and there's no substitute part

Pin 982948-032
#16

Cabinet parts diagram

Pin

Part #982948-032

The manufacturer no longer makes this part, and there's no substitute part

Handle 983474-001
#4

Cabinet parts diagram

Handle

Part #983474-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 982500-131
#7

Cabinet parts diagram

Screw

Part #982500-131

The manufacturer no longer makes this part, and there's no substitute part
