Model # JUGFL242HM01 Official Jenn-Air under counter beverage center
Here are the diagrams and repair parts for Official Jenn-Air JUGFL242HM01 under counter beverage center, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
JUGFL242HM01 UNDER COUNTER BEVERAGE CENTER
#11

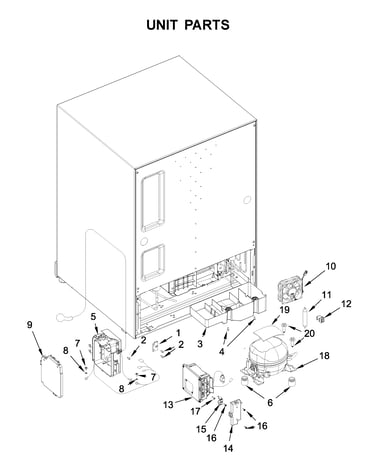

Unit parts diagram
Drier tube
Part #W10163273
$63.83
In Stock
#13
Unit parts diagram
Beverage cooler control box assembly
Part #W11360589
$167.99 |
7% OFF Phone Price : $179.99
In Stock
#14
Unit parts diagram
Side cover
Part #W11360590
$42.98
In Stock
#14

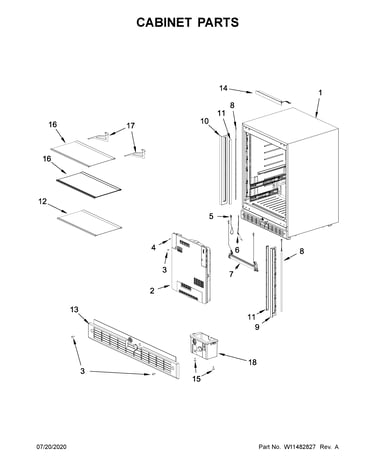

Cabinet parts diagram
Assembly, control
Part #W11424751
$267.51
In Stock
#NI
Door parts diagram
Screw, custom overlay door (m4 x 30)
Part #W11415674
$14.77
In Stock
#17
Cabinet parts diagram
Shelf holder
Part #W11359432
$119.22
In Stock
#3
Unit parts diagram
Whirlpool pan water ev
Part #W11360241
$59.58
In Stock
#10
Unit parts diagram
Fan motor as
Part #W11360536
$89.16
In Stock
#20
Unit parts diagram
Bolt
Part #W11375771
$11.78
In Stock
#4
Unit parts diagram
Screw
Part #W11375763
$11.78
In Stock
