Snapper
Gas Walk-Behind Mower

Model # 13037123 Official Snapper gas lawn mower

Here are the diagrams and repair parts for Official Snapper 13037123 gas lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

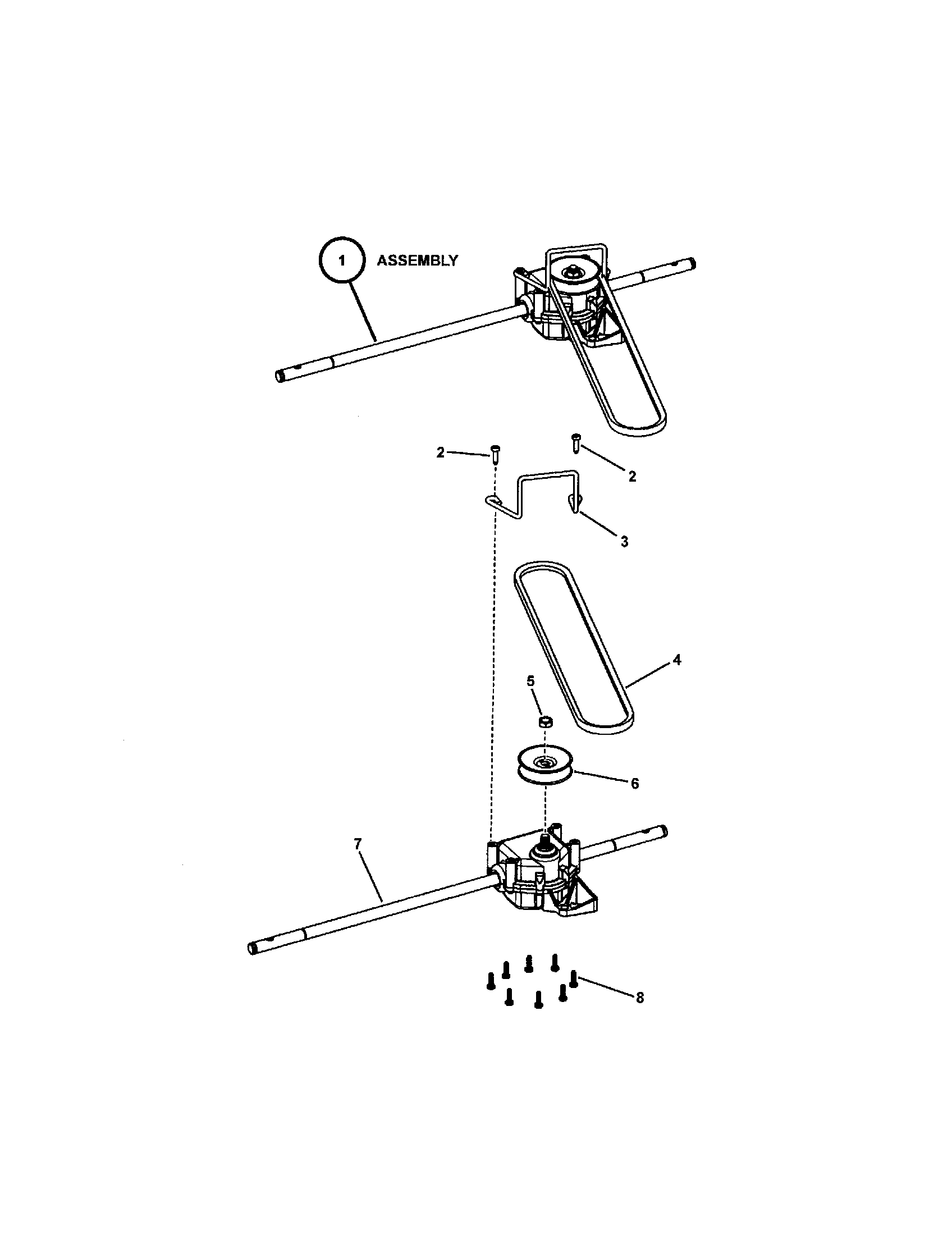

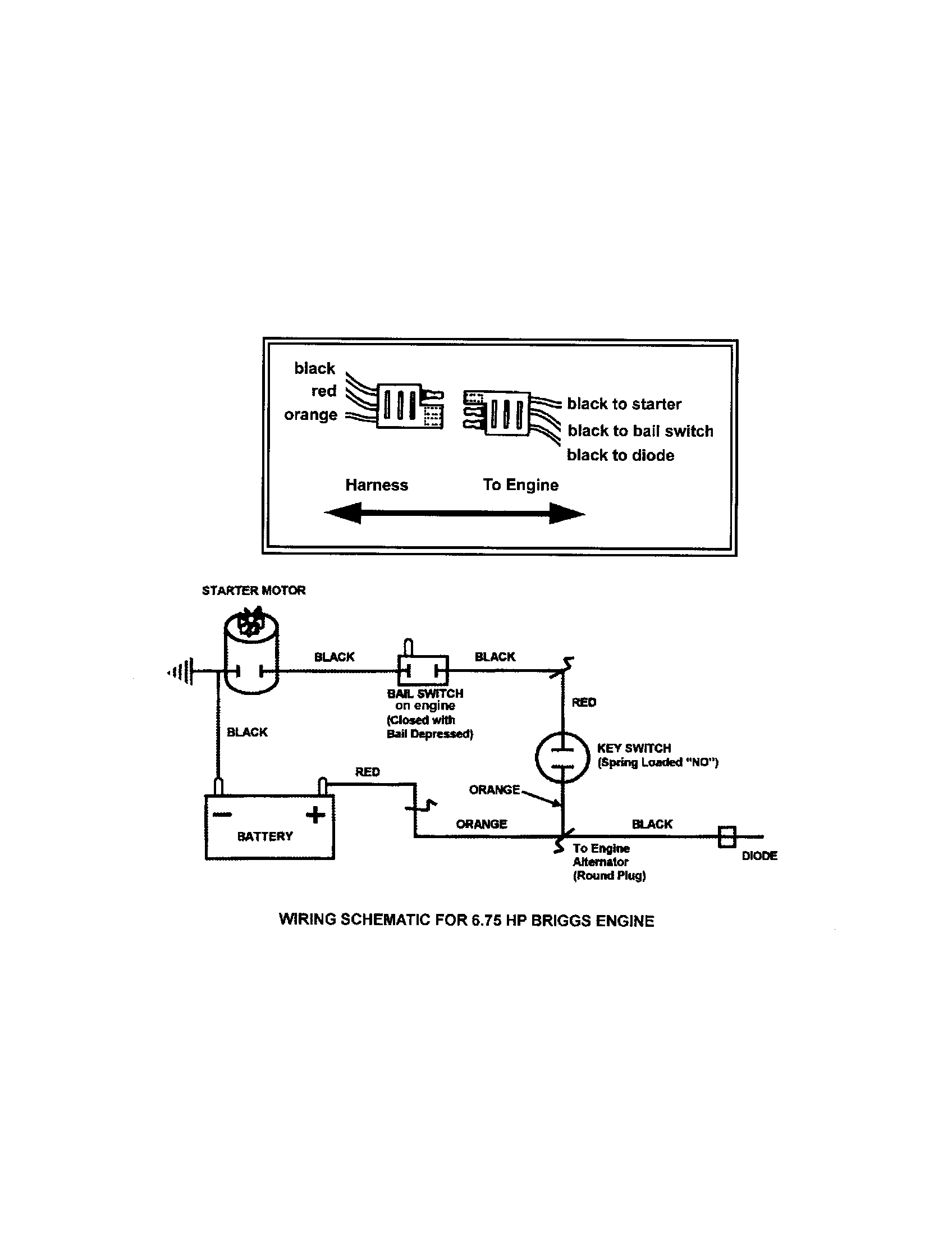

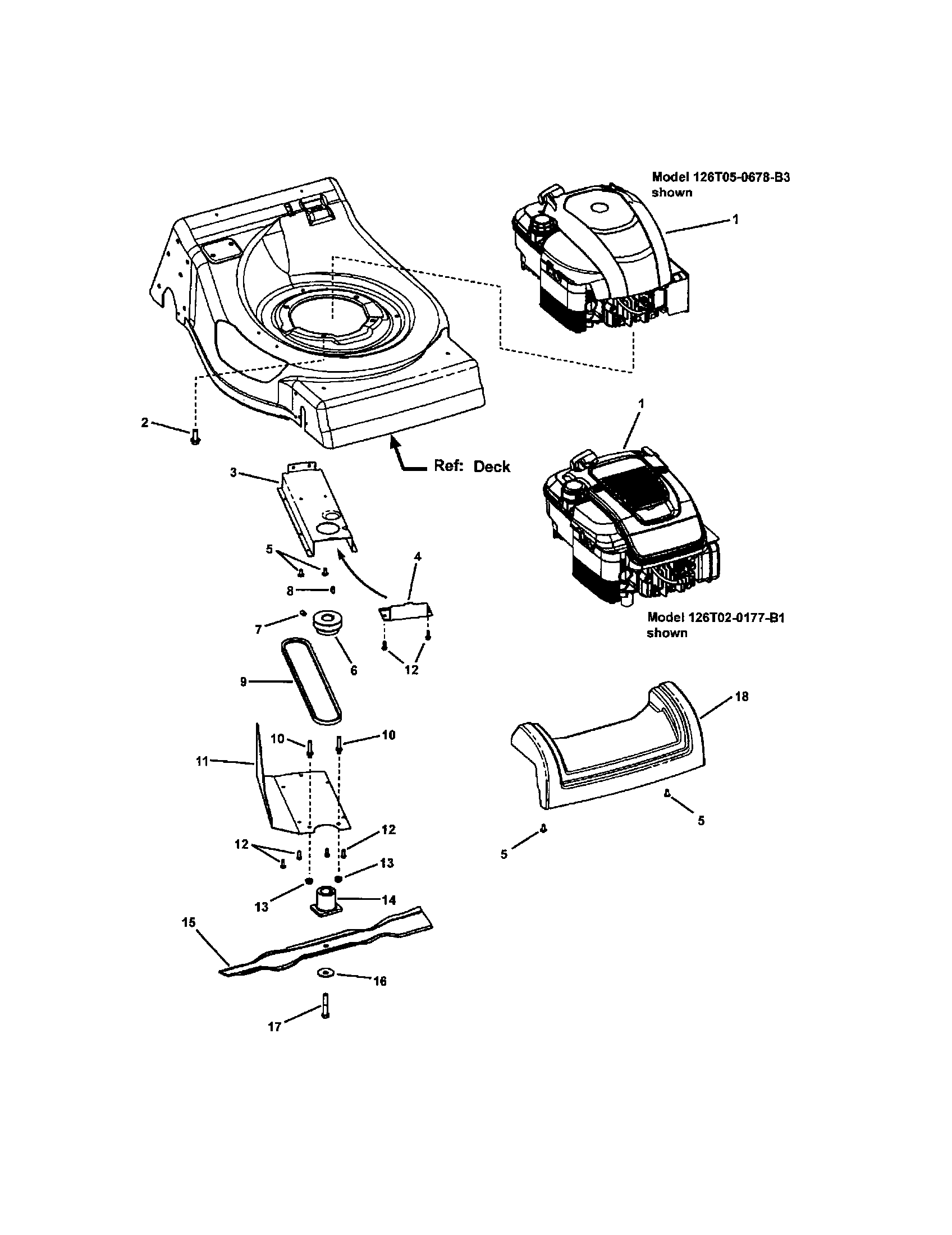

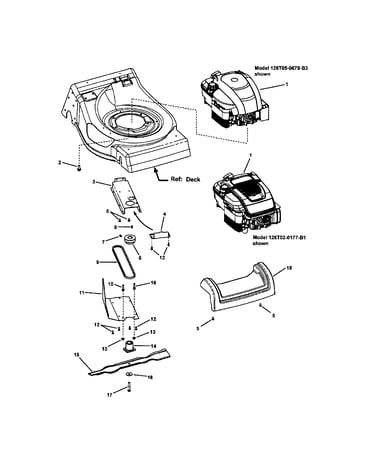

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 427 parts  |
Pushnut 1/4 7091020
#2

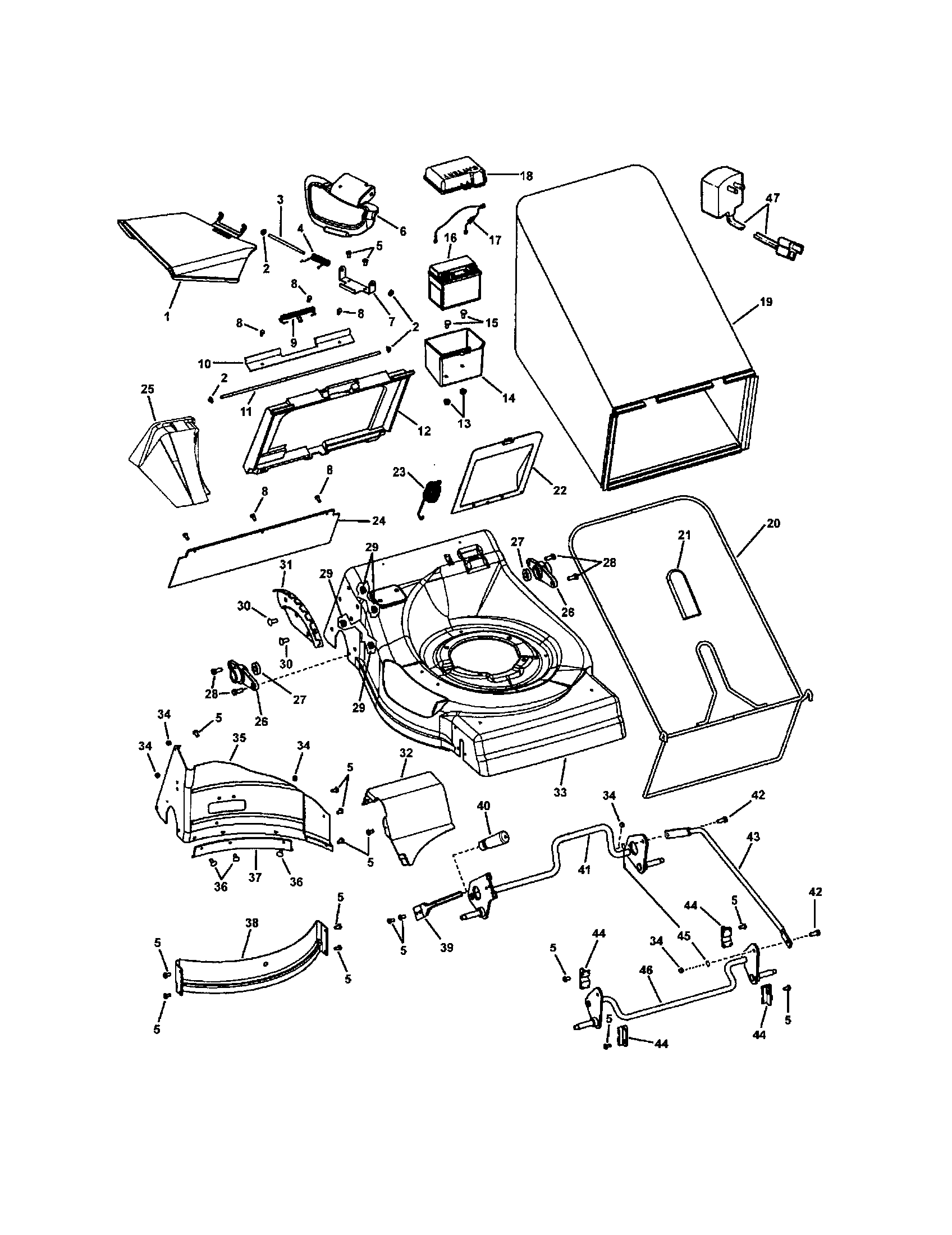

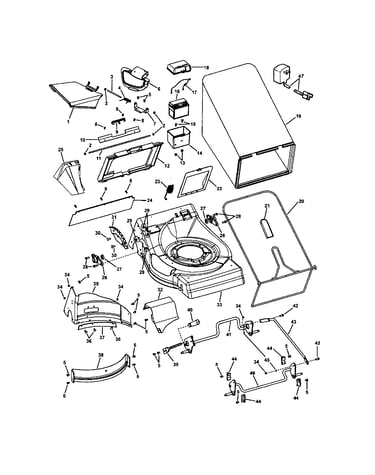

Deck diagram

Pushnut 1/4

Part #7091020

Replaced by #704005

?
Manufacturer substitution
This part replaces 7091020. Substitute parts can look different from the original.
This item is not returnable
$7.29 |
12% OFF Phone Price : $8.29
In Stock
Rhssnb, 5/16-18 X 3/4 Gr5 Yz 7091508
Rhssnb, 5/16-18 x 3/4 gr5 yz

Part #7091508

Replaced by #703185

?
Manufacturer substitution
This part replaces 7091508. Substitute parts can look different from the original.
This item is not returnable
$5.63 |
15% OFF Phone Price : $6.63
In Stock
Hln 10 7091290
#34

Deck diagram

Hln 10

Part #7091290

Replaced by #703412

?
Manufacturer substitution
This part replaces 7091290. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Belt 7100883
Belt

Part #7100883

Replaced by #7100883YP

?
Manufacturer substitution
This part replaces 7100883. Substitute parts can look different from the original.
This item is not returnable

Get free shipping with Automatic Reorder

$27.07
In Stock
Knob 7035744
#23

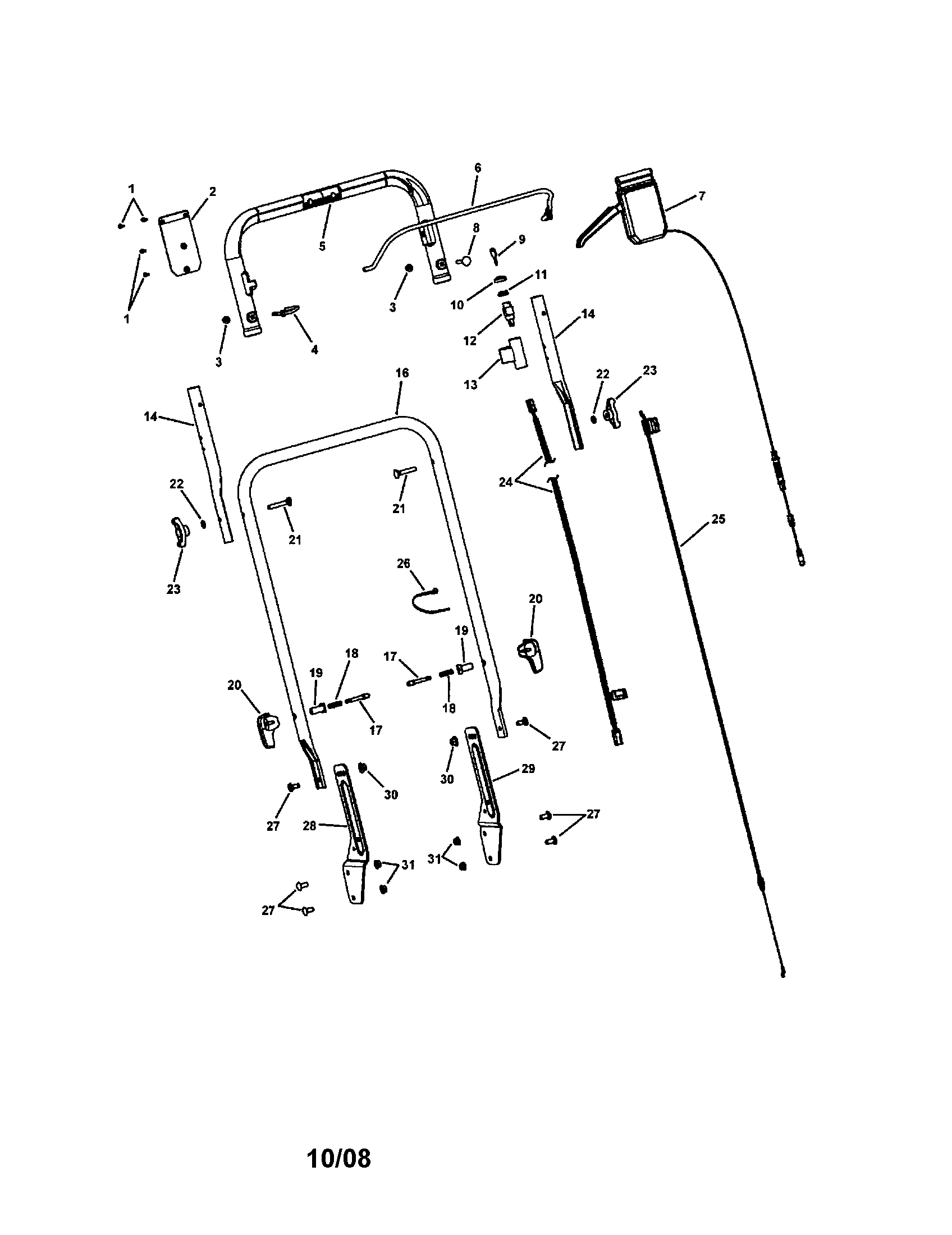

Handles/controls diagram

Knob

Part #7035744

Replaced by #703065

?
Manufacturer substitution
This part replaces 7035744. Substitute parts can look different from the original.
This item is not returnable
$11.89 |
14% OFF Phone Price : $13.89
In Stock
Retaining Ring 7014341
#6

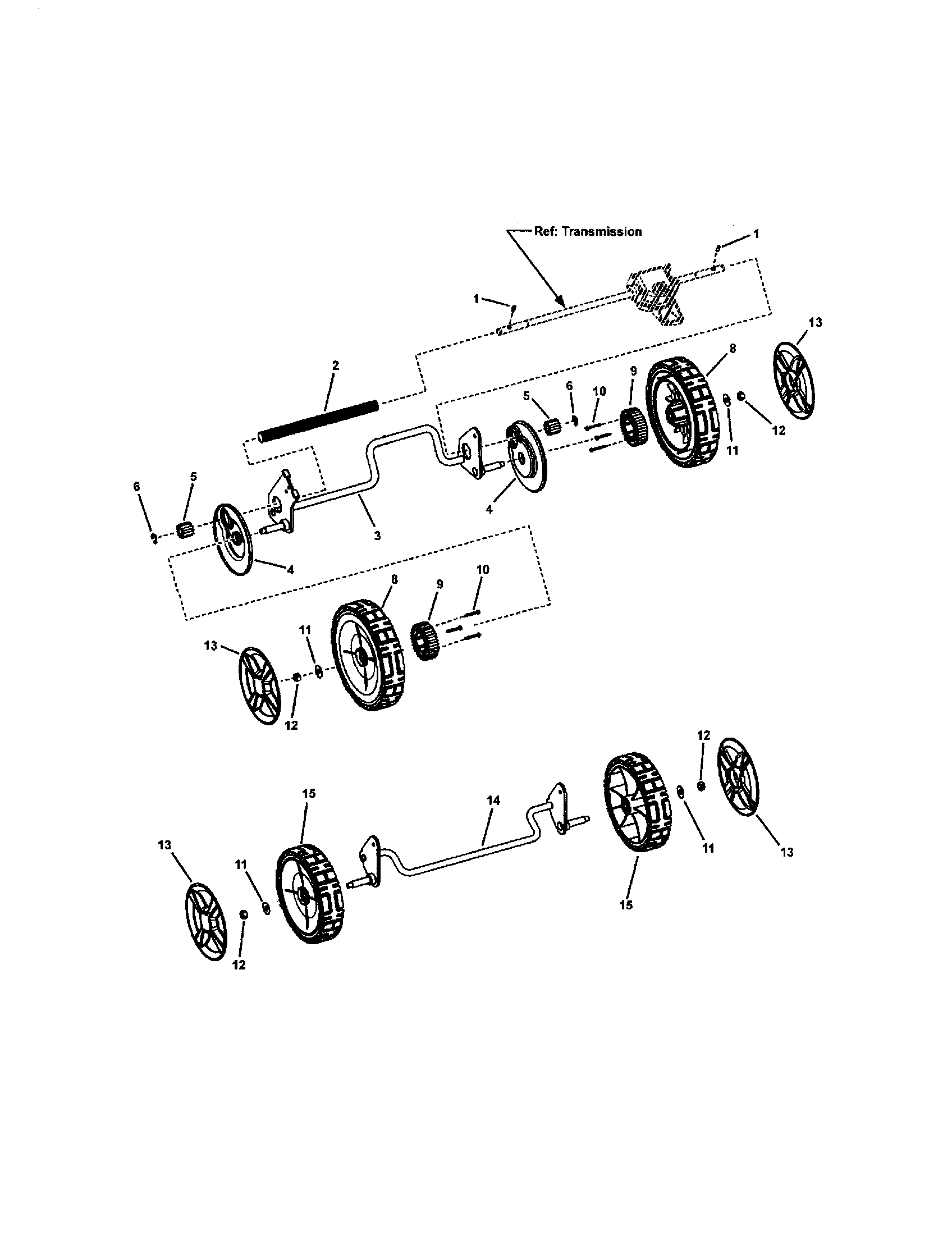

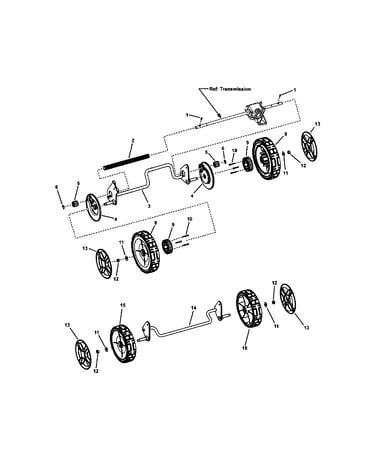

Front and rear wheels diagram

Retaining ring

Part #7014341

Replaced by #703976

?
Manufacturer substitution
This part replaces 7014341. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Lawn Mower Decal 7101536
#5

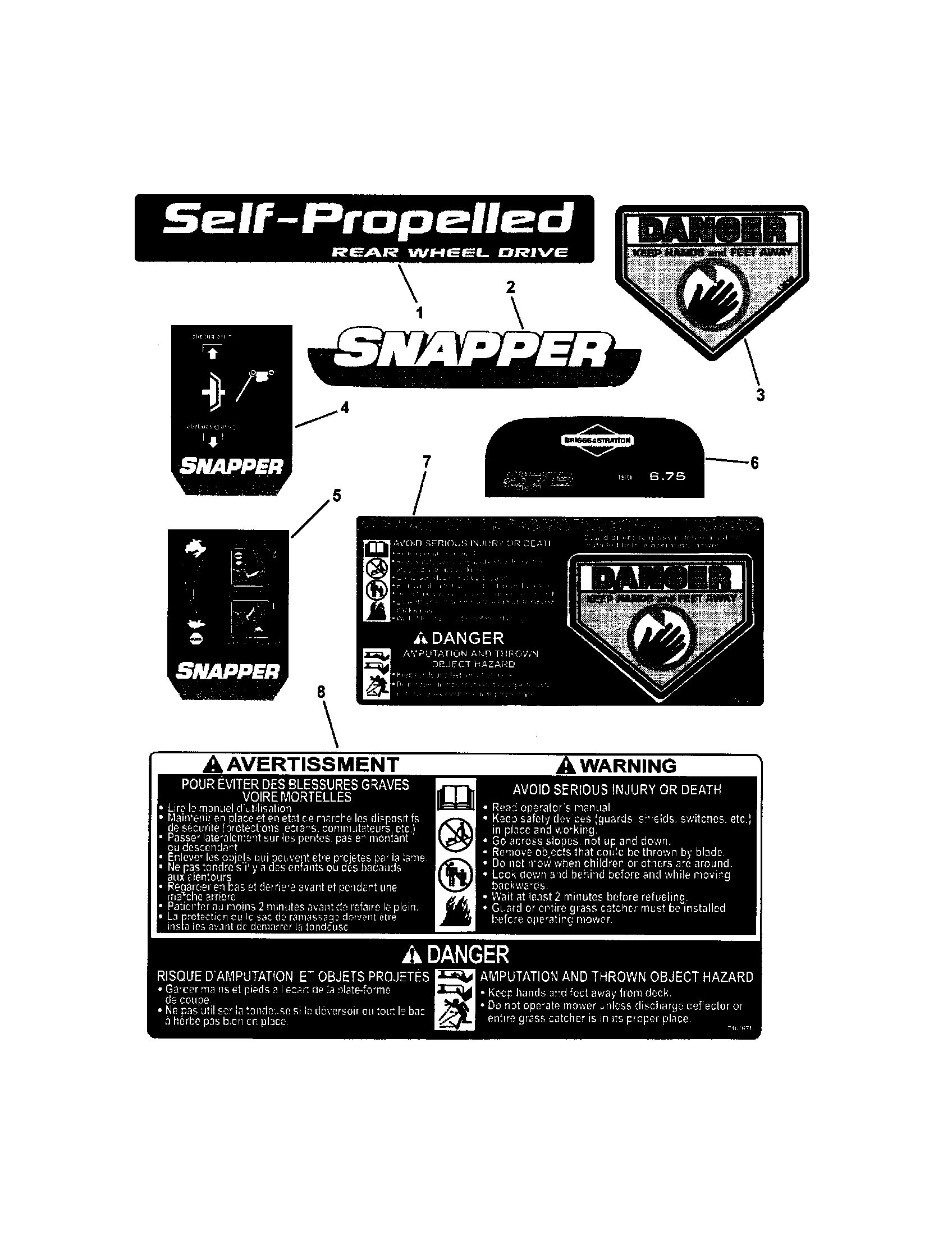

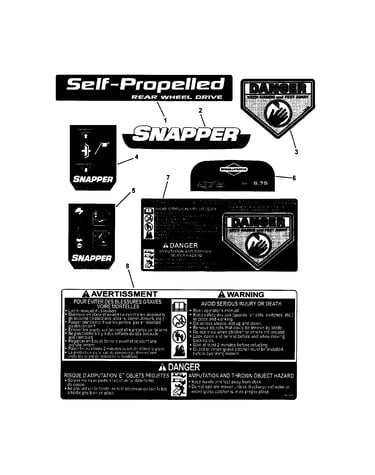

Decals (21") diagram

Lawn mower decal

Part #7101536

Replaced by #7101536YP

?
Manufacturer substitution
This part replaces 7101536. Substitute parts can look different from the original.
$18.34
In Stock
Itlw 5/16 7090391
#22

Handles/controls diagram

Itlw 5/16

Part #7090391

Replaced by #703588

?
Manufacturer substitution
This part replaces 7090391. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Lawn Mower Wheel 7500540
#15

Front and rear wheels diagram

Lawn mower wheel

Part #7500540

Replaced by #7500540YP

?
Manufacturer substitution
This part replaces 7500540. Substitute parts can look different from the original.
$50.28 |
11% OFF Phone Price : $56.28
In Stock
Lawn Mower Cover 7101437
#6

Deck diagram

Lawn mower cover

Part #7101437

Replaced by #7101437YP

?
Manufacturer substitution
This part replaces 7101437. Substitute parts can look different from the original.
$28.73
In Stock
