Craftsman
Power Drill

Model # 315105090 Official Craftsman drill

Here are the diagrams and repair parts for Official Craftsman 315105090 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Cap Screw 617595-004
#5

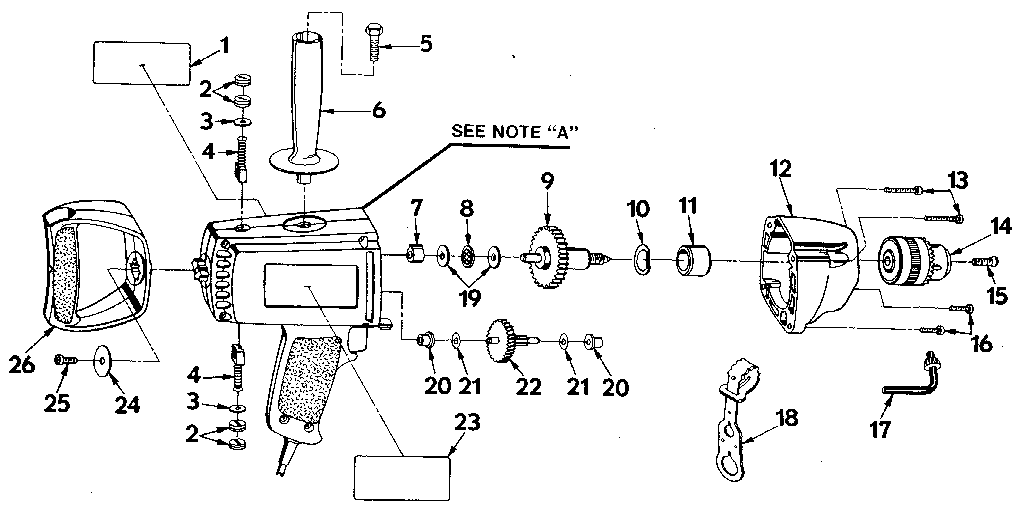

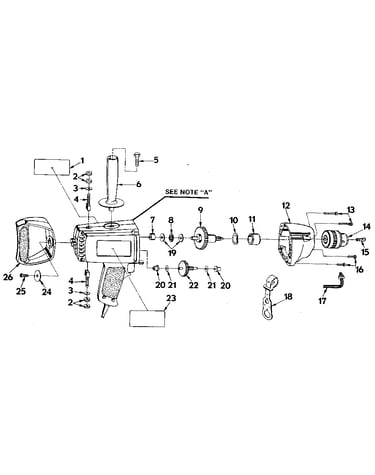

Gear assembly diagram

Cap screw

Part #617595-004

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 968693-001
#1

Gear assembly diagram

Logo plate

Part #968693-001

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 968692-001
#23

Gear assembly diagram

Data plate

Part #968692-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 613150-003
#15

Gear assembly diagram

Screw

Part #613150-003

The manufacturer no longer makes this part, and there's no substitute part

Chuck Key 606858-000
#17

Gear assembly diagram

Chuck key

Part #606858-000

The manufacturer no longer makes this part, and there's no substitute part

Washer 703493-817
#21

Gear assembly diagram

Washer

Part #703493-817

The manufacturer no longer makes this part, and there's no substitute part

Sleev Bearng 606704-001
#11

Gear assembly diagram

Sleev bearng

Part #606704-001

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 611570-000
#3

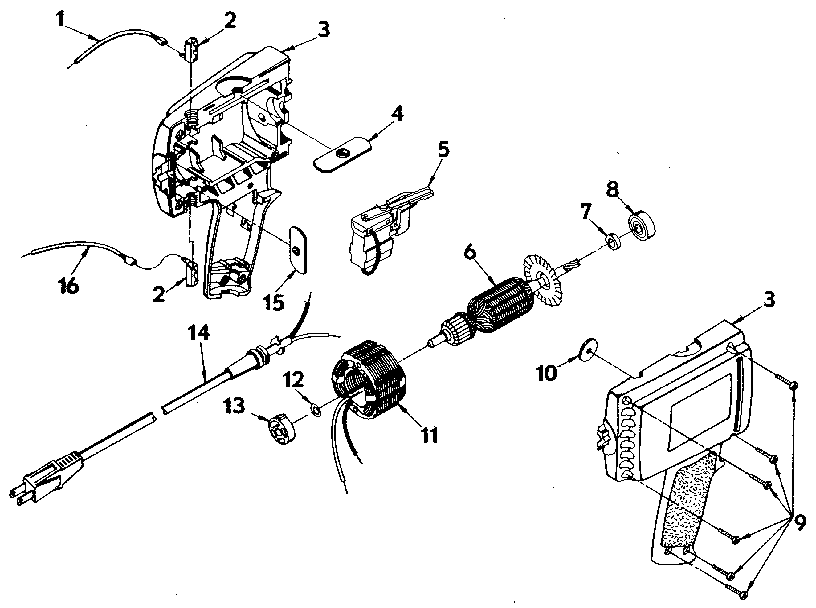

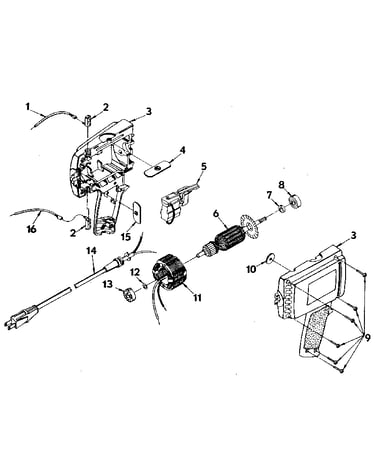

Housing assembly diagram

Housing assembly

Part #611570-000

The manufacturer no longer makes this part, and there's no substitute part

Lead 990618-006
#16

Housing assembly diagram

Lead

Part #990618-006

The manufacturer no longer makes this part, and there's no substitute part

Gear Cover 611468-004
#12

Gear assembly diagram

Gear cover

Part #611468-004

The manufacturer no longer makes this part, and there's no substitute part
