Craftsman
Lawn & Garden Engine

Model # 143640060 Official Craftsman carburetor

Here are the diagrams and repair parts for Official Craftsman 143640060 carburetor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

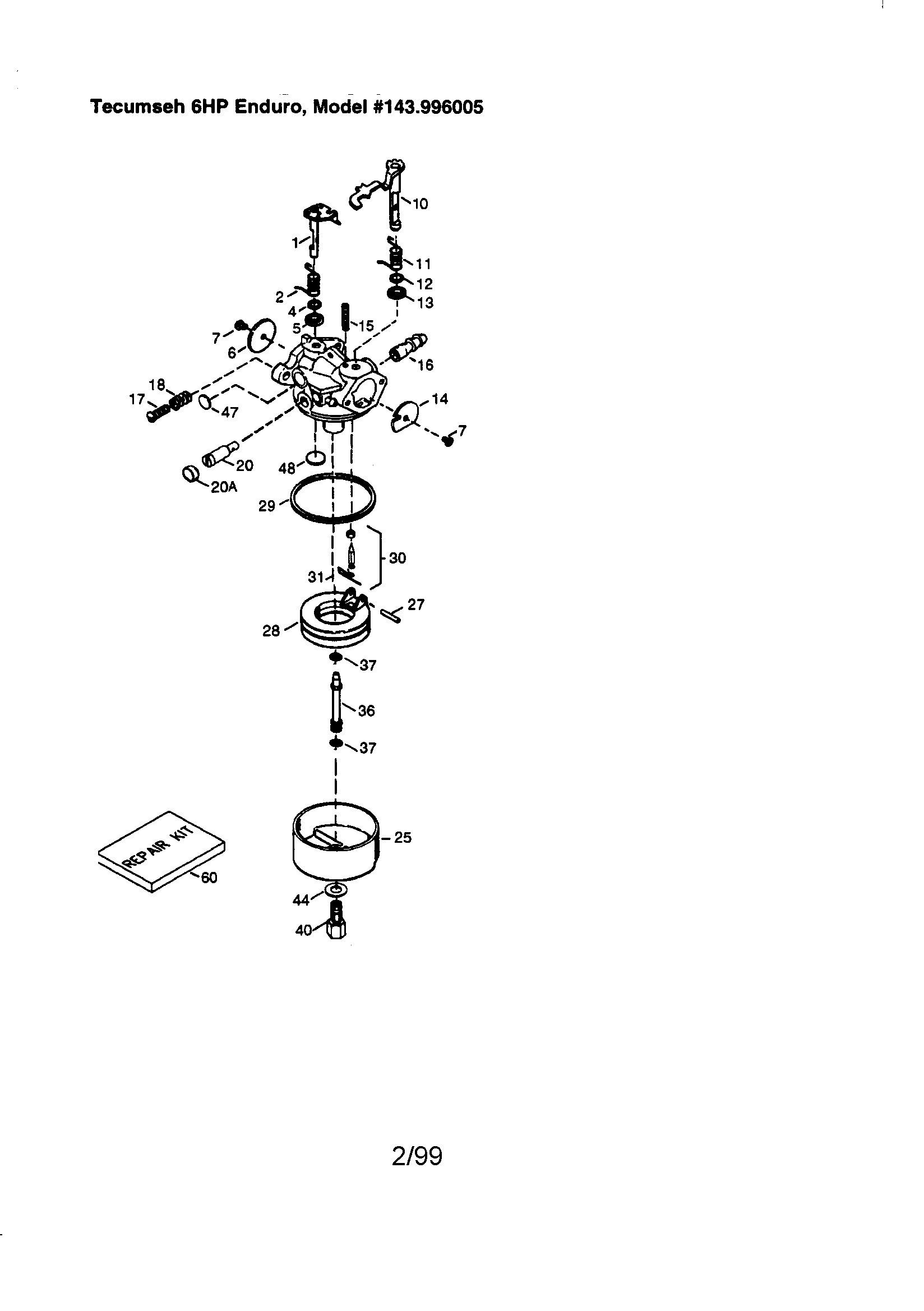

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Lawn Mower O-ring 631028
#29

Replacement parts diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Carburetor Float Bowl Washer (replaces 49-084) 27110A
#44

Replacement parts diagram

Lawn & garden equipment engine carburetor float bowl washer (replaces 49-084)

Part #27110A

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Carburetor Float Bowl (replaces 631025, 632808) 631867
#25

Replacement parts diagram

Troybilt lawn & garden equipment engine carburetor float bowl (replaces 631025, 632808)

Part #631867

This item is not returnable
$3.49 |
22% OFF Phone Price : $4.49
In Stock
Lawn & Garden Equipment Throttle Shaft Return Spring (replaces 630731, 631279, 631279a, 631279l, 632016) 631767
#2

Replacement parts diagram

Lawn & garden equipment throttle shaft return spring (replaces 630731, 631279, 631279a, 631279l, 632016)

Part #631767

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Engine Throttle Shaft Seal 631183
Lawn & garden equipment engine throttle shaft seal

Part #631183

This item is not returnable
$2.16
In Stock
Troybilt Lawn & Garden Equipment Engine Welch Plug (replaces 53-005) 631027
#48

Replacement parts diagram

Troybilt lawn & garden equipment engine welch plug (replaces 53-005)

Part #631027

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Engine Choke Spring 630735
#15

Replacement parts diagram

Lawn & garden equipment engine choke spring

Part #630735

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Engine Carburetor Float Pin 631022
#31

Replacement parts diagram

Lawn & garden equipment engine carburetor float pin

Part #631022

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Screw 640027
#20

Replacement parts diagram

Lawn & garden equipment screw

Part #640027

This item is not returnable
$4.14
In Stock
Cap 640053
#20A

Replacement parts diagram

Cap

Part #640053

The manufacturer no longer makes this part, and there's no substitute part
