Craftsman
Angle Grinder

Model # 172417730 Official Craftsman angle grinder

Here are the diagrams and repair parts for Official Craftsman 172417730 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Craftsman Angle Grinder Rotor Bearing, Front PGA115SU-3
#3

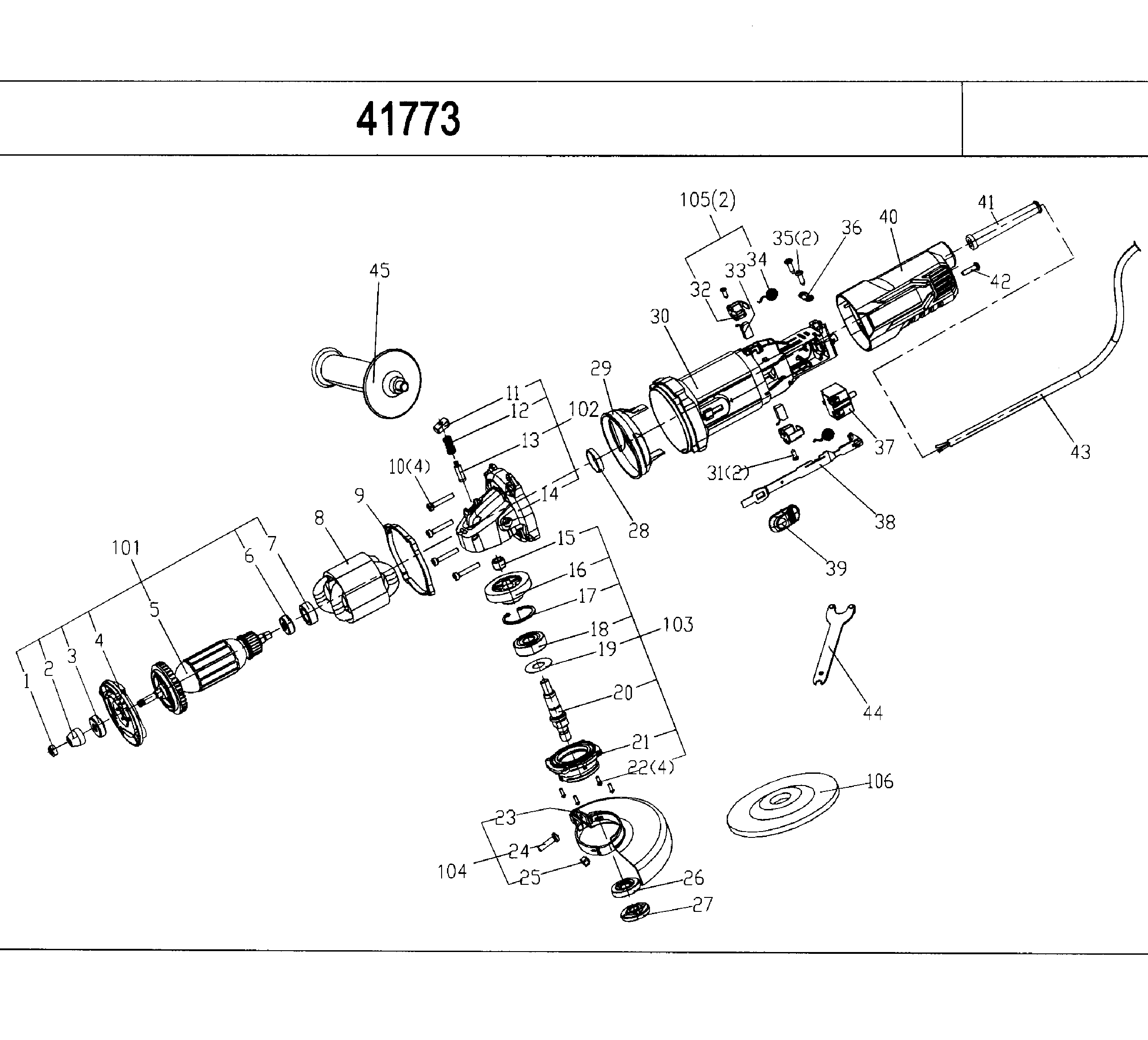

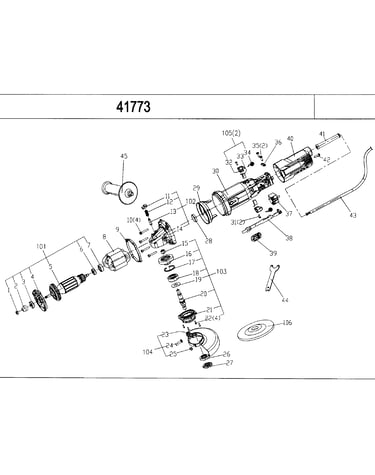

Main asy diagram

Craftsman angle grinder rotor bearing, front

Part #PGA115SU-3

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Motor Housing Baffle PGA115SU-4
#4

Main asy diagram

Craftsman angle grinder motor housing baffle

Part #PGA115SU-4

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Motor Brush Set PGA115SU-33
#33

Main asy diagram

Craftsman angle grinder motor brush set

Part #PGA115SU-33

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Metal Grinding Disc PGA115SU-106
#106

Main asy diagram

Craftsman angle grinder metal grinding disc

Part #PGA115SU-106

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Power Switch Link Arm PGA115SU-38
#38

Main asy diagram

Craftsman angle grinder power switch link arm

Part #PGA115SU-38

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Screw PGA115SU-22
#22

Main asy diagram

Craftsman angle grinder screw

Part #PGA115SU-22

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Sleeve PGA115SU-7
#7

Main asy diagram

Craftsman sleeve

Part #PGA115SU-7

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Owner's Manual OM-417730EN
#NI

Main asy diagram

Craftsman owner's manual

Part #OM-417730EN

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Spindle Bearing PGA115SU-15
#15

Main asy diagram

Craftsman angle grinder spindle bearing

Part #PGA115SU-15

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Lock Nut PGA115SU-25
#25

Main asy diagram

Craftsman angle grinder lock nut

Part #PGA115SU-25

The manufacturer no longer makes this part, and there's no substitute part
