Craftsman
Bench Grinder

Model # 257191601 Official Craftsman ihp grinder

Here are the diagrams and repair parts for Official Craftsman 257191601 ihp grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Ft/scrw Asm 5219033
#55

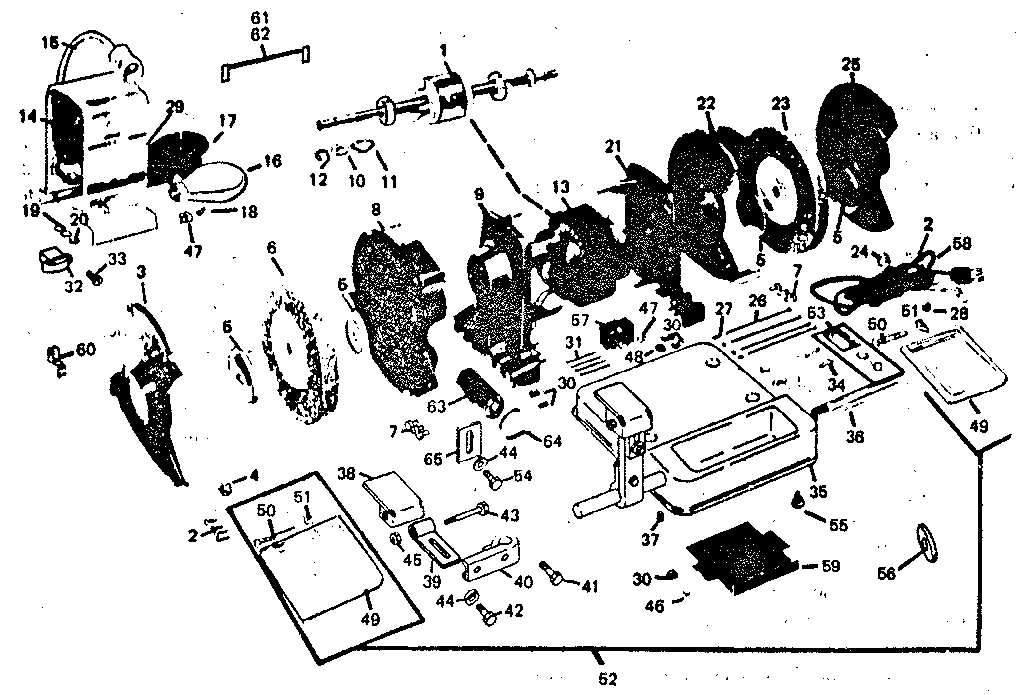

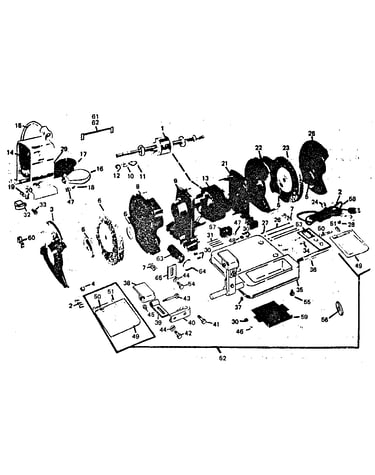

Unit parts diagram

Ft/scrw asm

Part #5219033

The manufacturer no longer makes this part, and there's no substitute part

End Frame Rh 4686-1-16
#21

Unit parts diagram

End frame rh

Part #4686-1-16

The manufacturer no longer makes this part, and there's no substitute part

Retaing Ring 9418441
#12

Unit parts diagram

Retaing ring

Part #9418441

The manufacturer no longer makes this part, and there's no substitute part

Felt Washer 3167424
#10

Unit parts diagram

Felt washer

Part #3167424

The manufacturer no longer makes this part, and there's no substitute part

Lead 5558855
#61

Unit parts diagram

Lead

Part #5558855

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Bolt, 5/16-18 X 1-in, 5-pack STD523110
#41

Unit parts diagram

Hex head bolt, 5/16-18 x 1-in, 5-pack

Part #STD523110

The manufacturer no longer makes this part, and there's no substitute part

Screw 4505
#7

Unit parts diagram

Screw

Part #4505

The manufacturer no longer makes this part, and there's no substitute part

Adapter 4945969
#60

Unit parts diagram

Adapter

Part #4945969

The manufacturer no longer makes this part, and there's no substitute part

Grinding Wheel 964236
#6

Unit parts diagram

Grinding wheel

Part #964236

The manufacturer no longer makes this part, and there's no substitute part

Screw 22014035
#46

Unit parts diagram

Screw

Part #22014035

The manufacturer no longer makes this part, and there's no substitute part
