GE
Gas Range

Model # ZGP366NR2SS Official GE gas range

Here are the diagrams and repair parts for Official GE ZGP366NR2SS gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

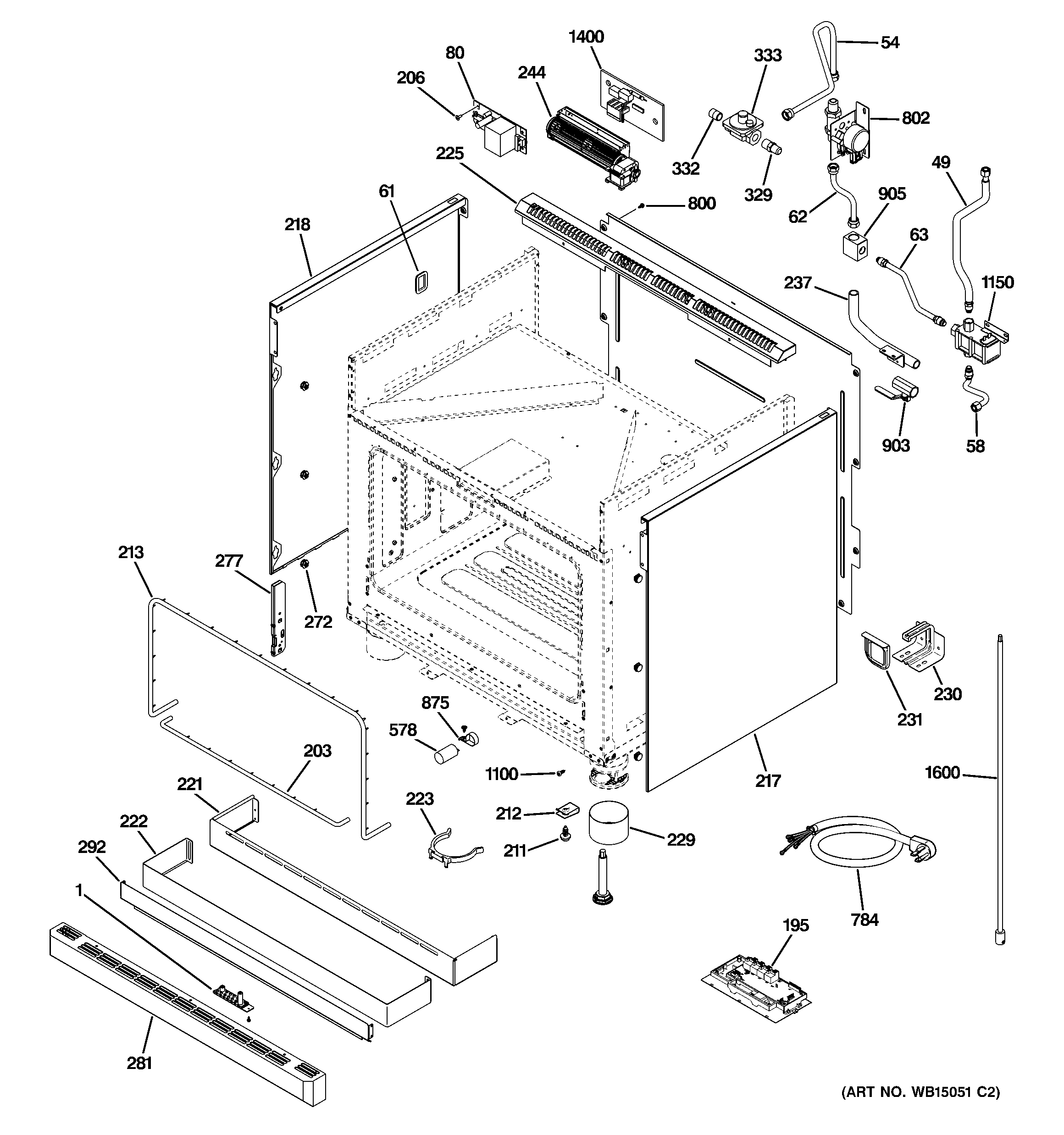

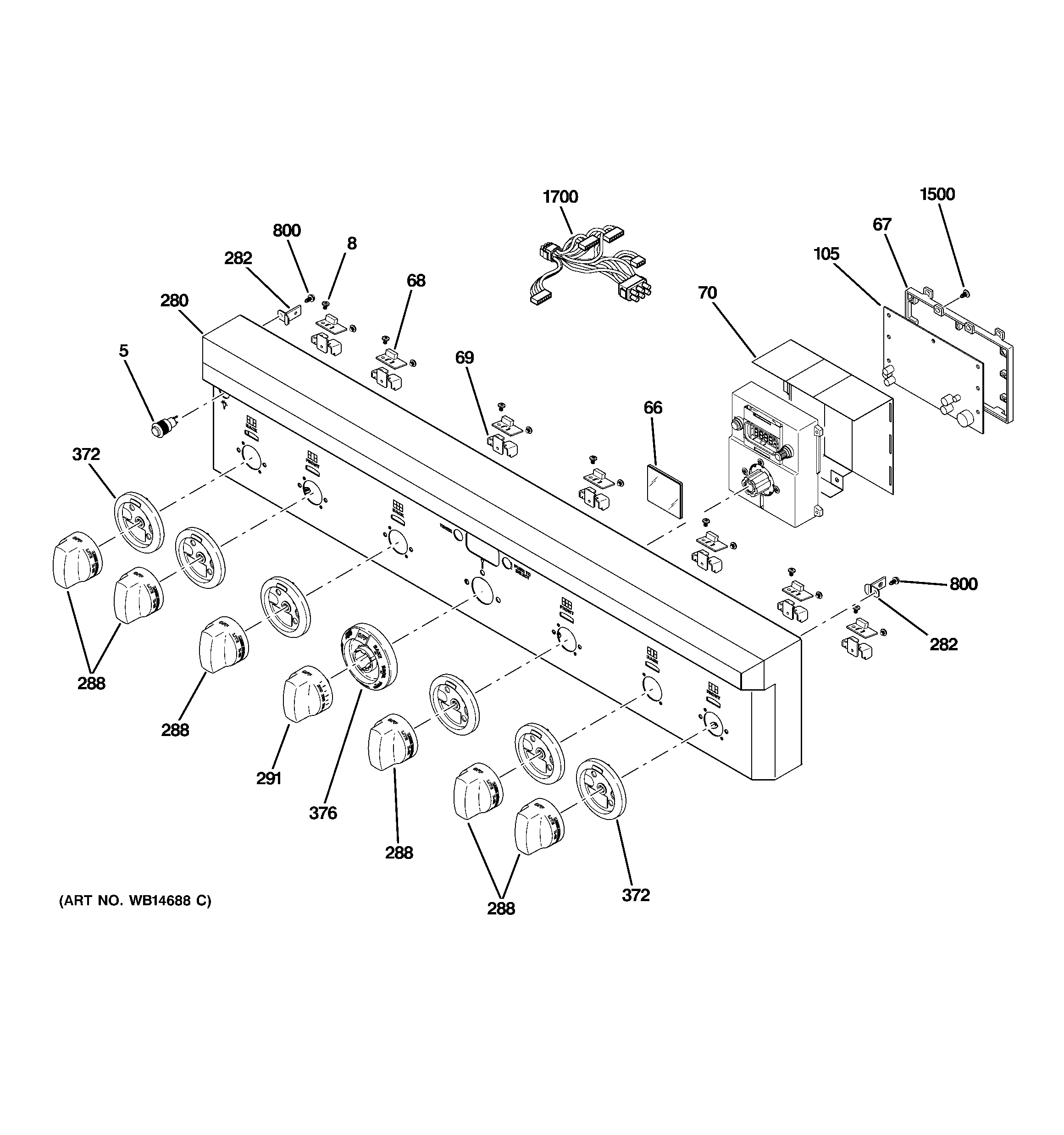

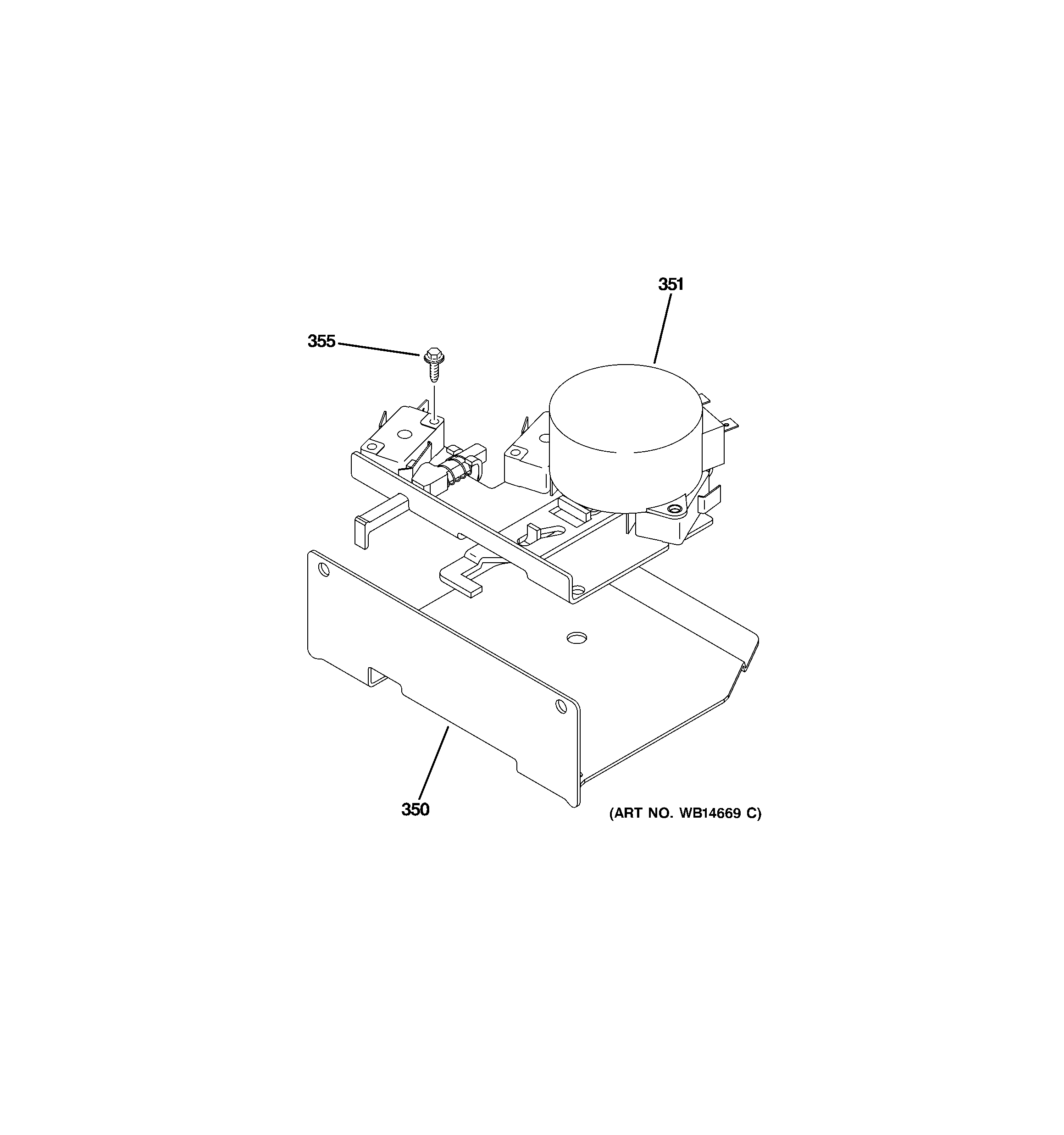

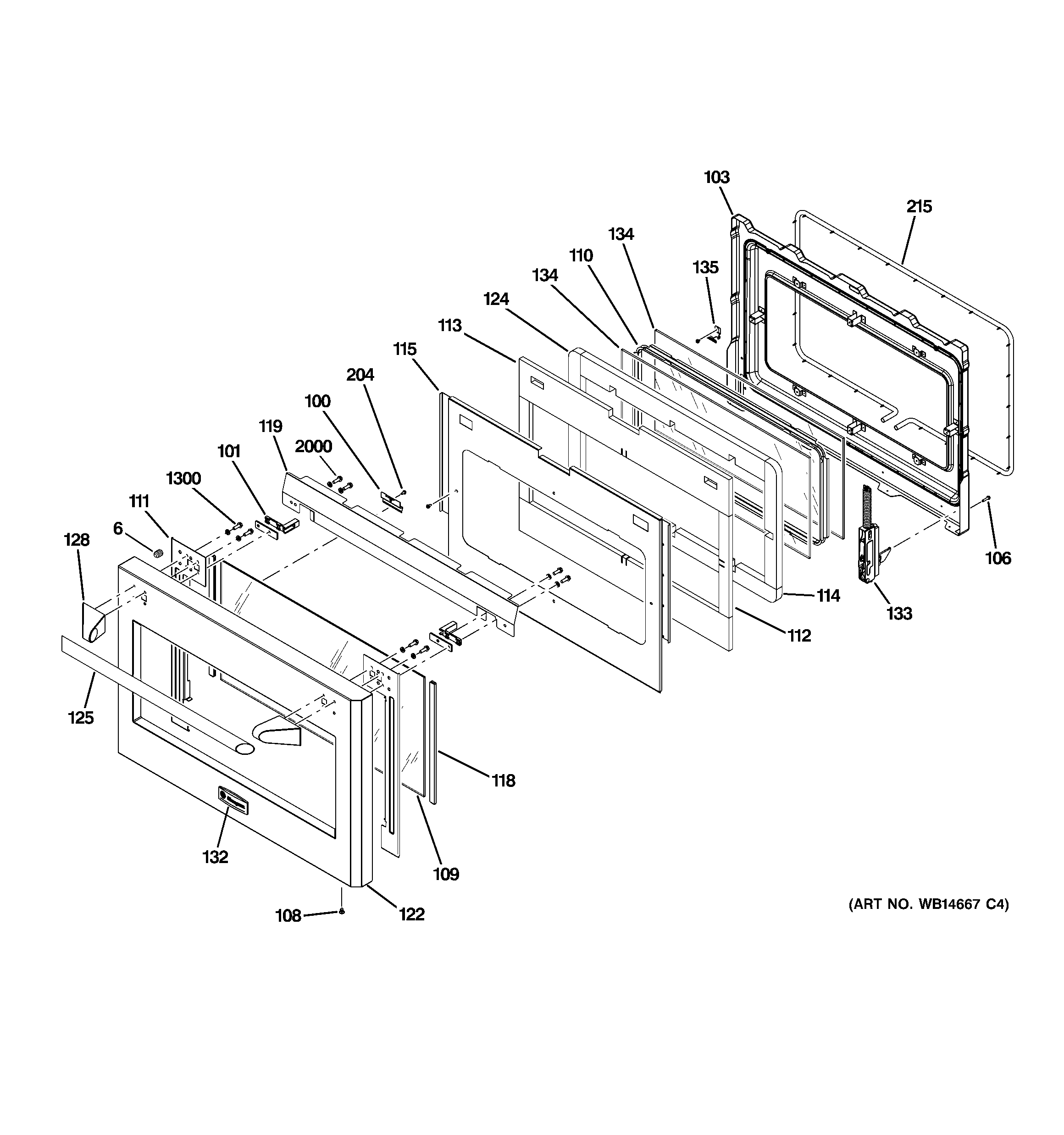

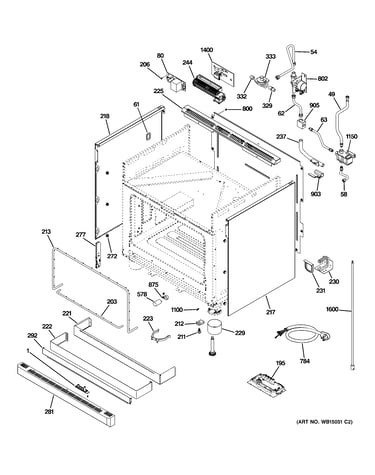

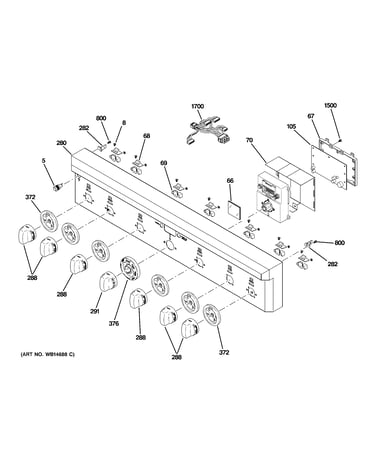

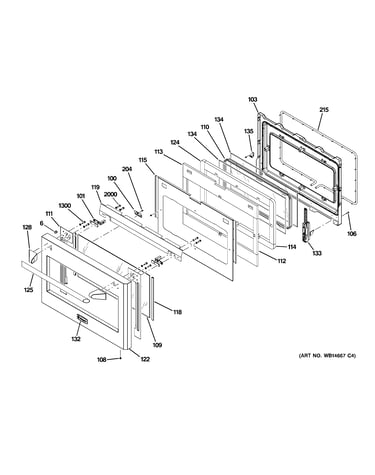

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 190 parts  |
Glow Bar Igniter WB13K10040
#241

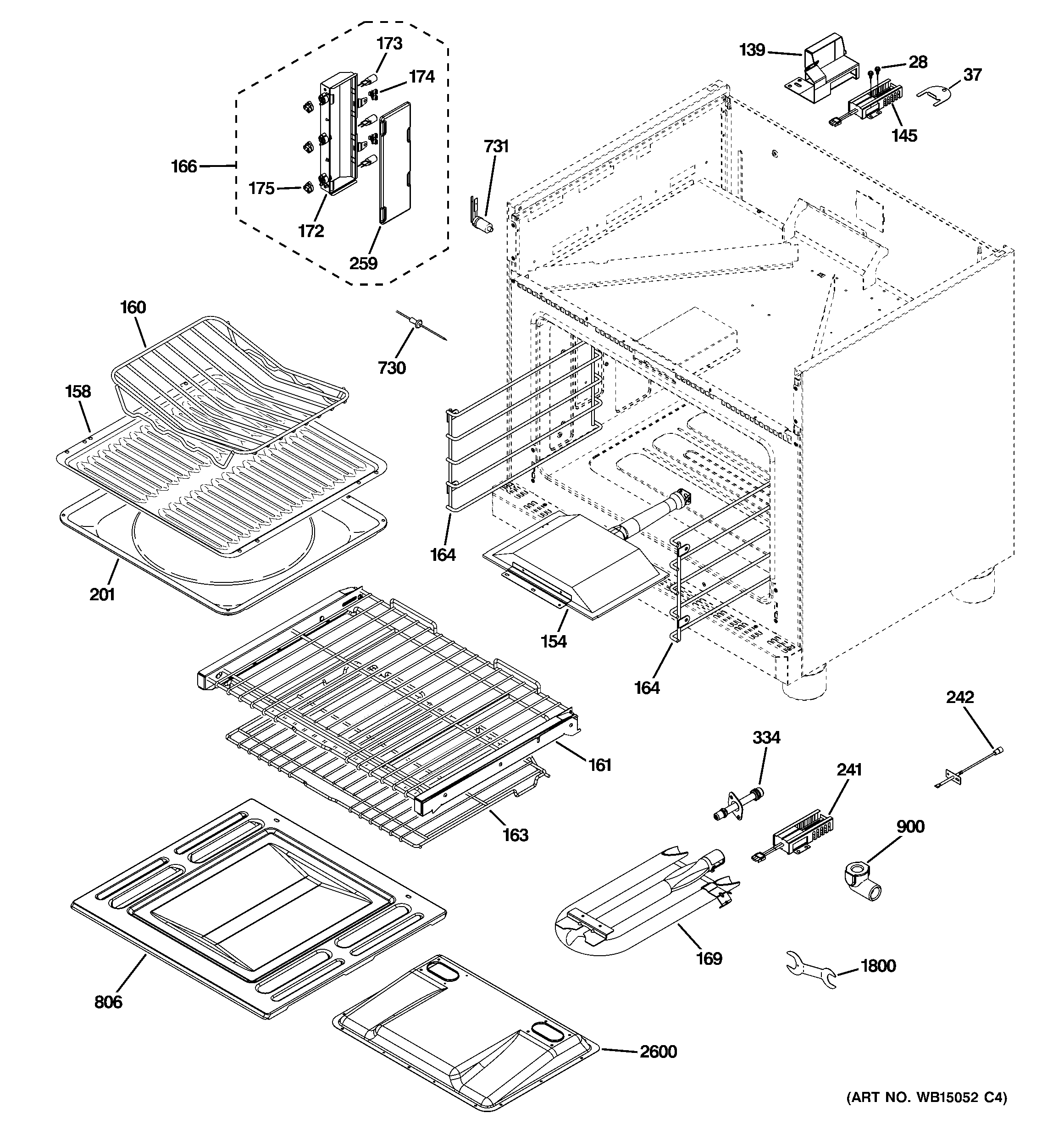

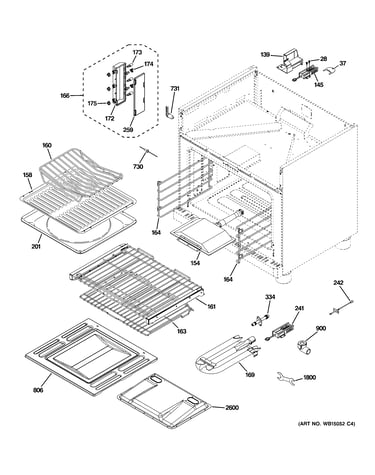

Oven cavity parts diagram

Glow bar igniter

Part #WB13K10040

Replaced by #WB13X25264

?
Manufacturer substitution
This part replaces WB13K10040. Substitute parts can look different from the original.
BEST SELLER
$76.66 |
7% OFF Phone Price : $82.66
In Stock
Cooking Appliance Oven Rack Lubricant WB02T10303
Cooking appliance oven rack lubricant

Part #WB02T10303

BEST SELLER
$35.29 |
15% OFF Phone Price : $41.29
In Stock
Range Surface Burner Igniter WB13T10065
#450

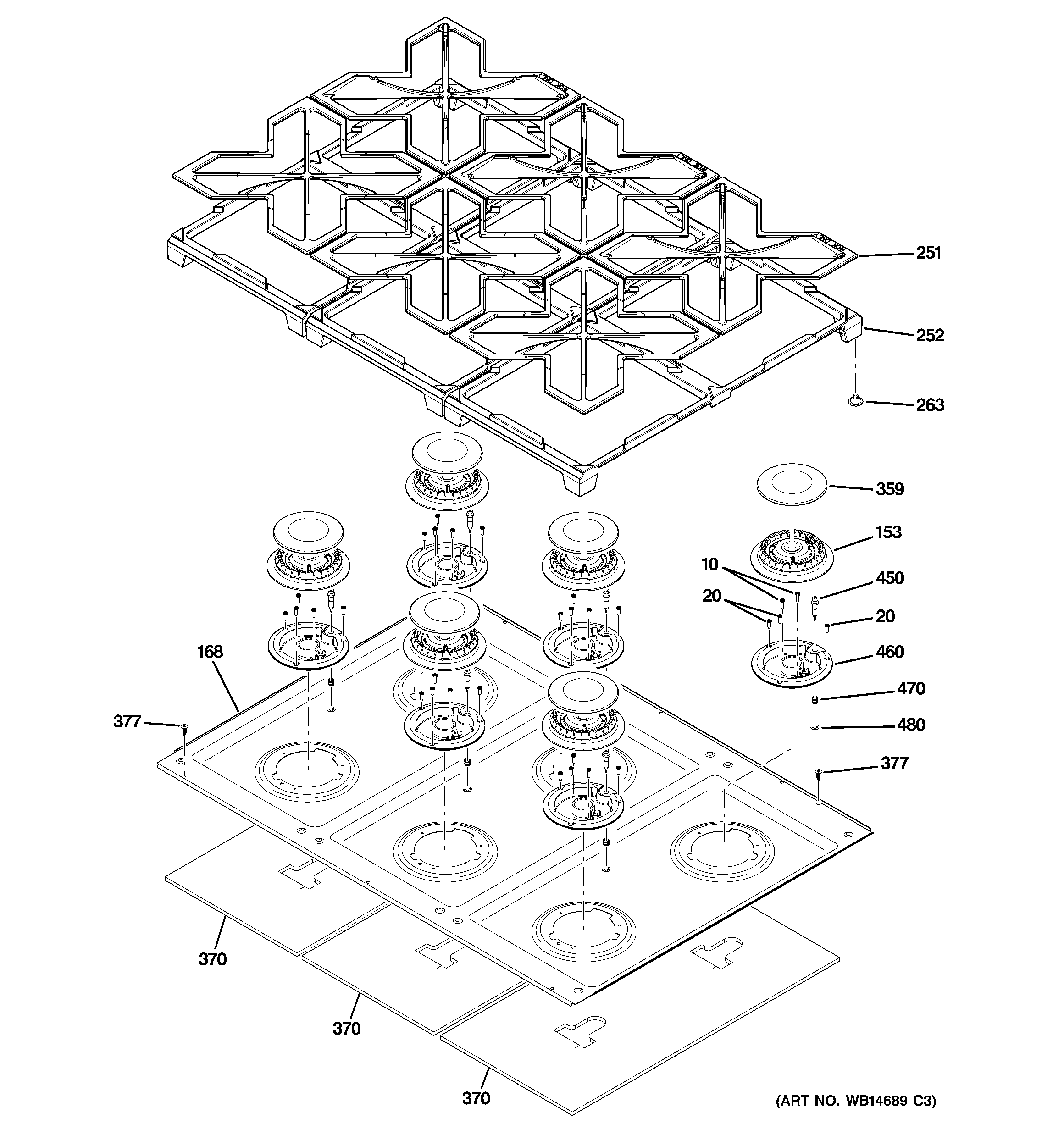

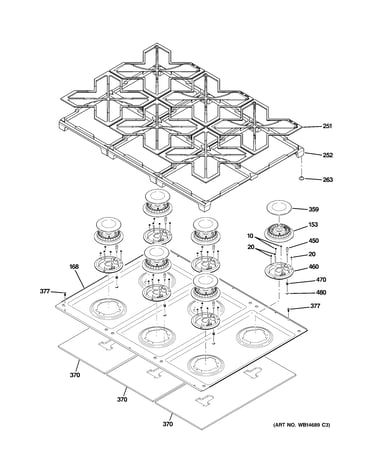

Cooktop diagram

Range surface burner igniter

Part #WB13T10065

This item is not returnable
$26.21 |
19% OFF Phone Price : $32.21
In Stock
Hex Washer Head Screw WB01K0050
#28

Oven cavity parts diagram

Hex washer head screw

Part #WB01K0050

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01K0050. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Convection Fan Blade WB02T10289
#403

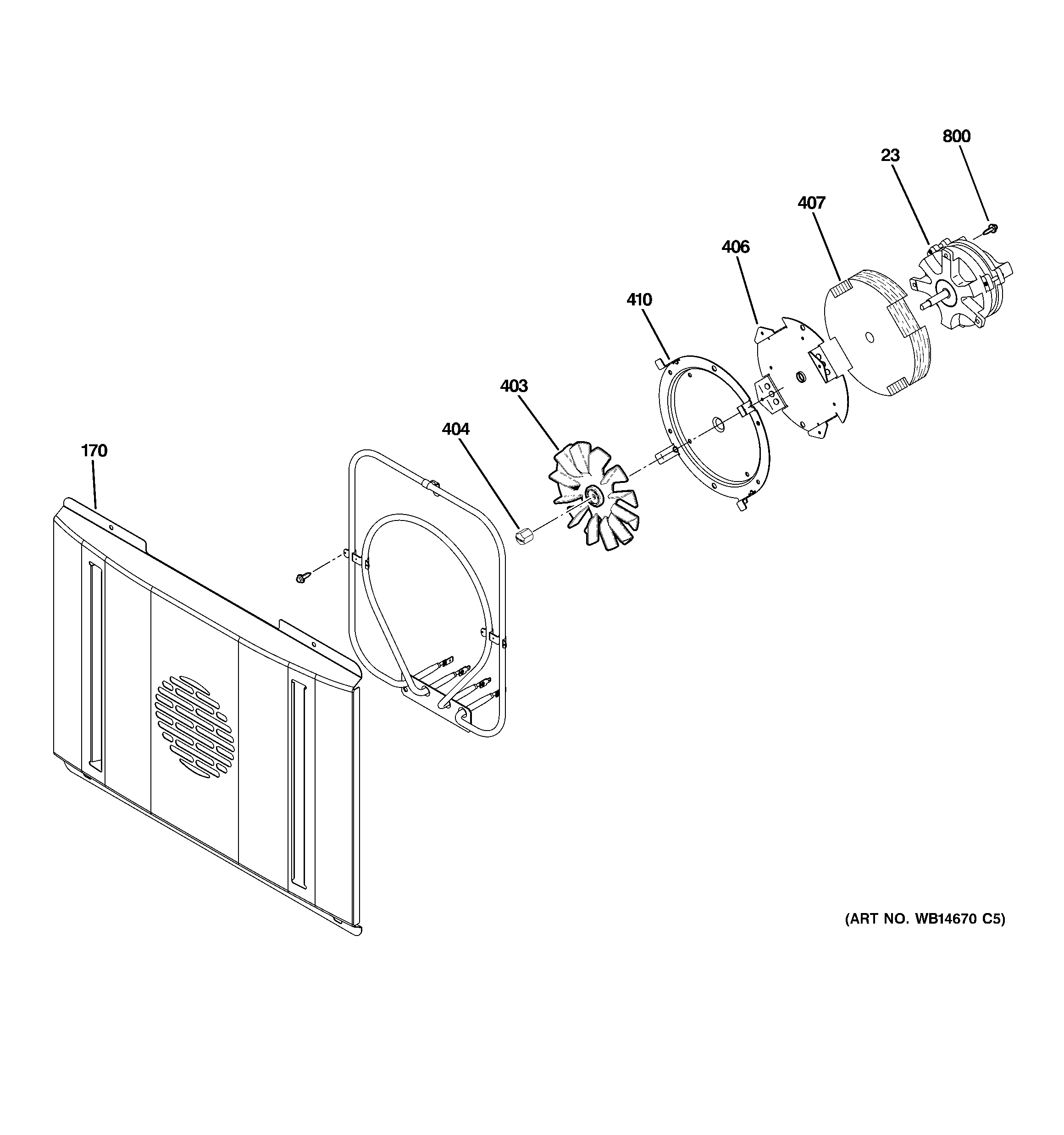

Convection fan diagram

Range convection fan blade

Part #WB02T10289

This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
Range Grill Surface Burner Igniter WB13K10030
#145

Oven cavity parts diagram

Range grill surface burner igniter

Part #WB13K10030

$107.39 |
10% OFF Phone Price : $119.39
In Stock
Range Surface Burner Cap WB13T10067
#359

Cooktop diagram

Range surface burner cap

Part #WB13T10067

$61.29 |
9% OFF Phone Price : $67.29
In Stock
Scr 8 Hd 1/4 WB01K10067
#21

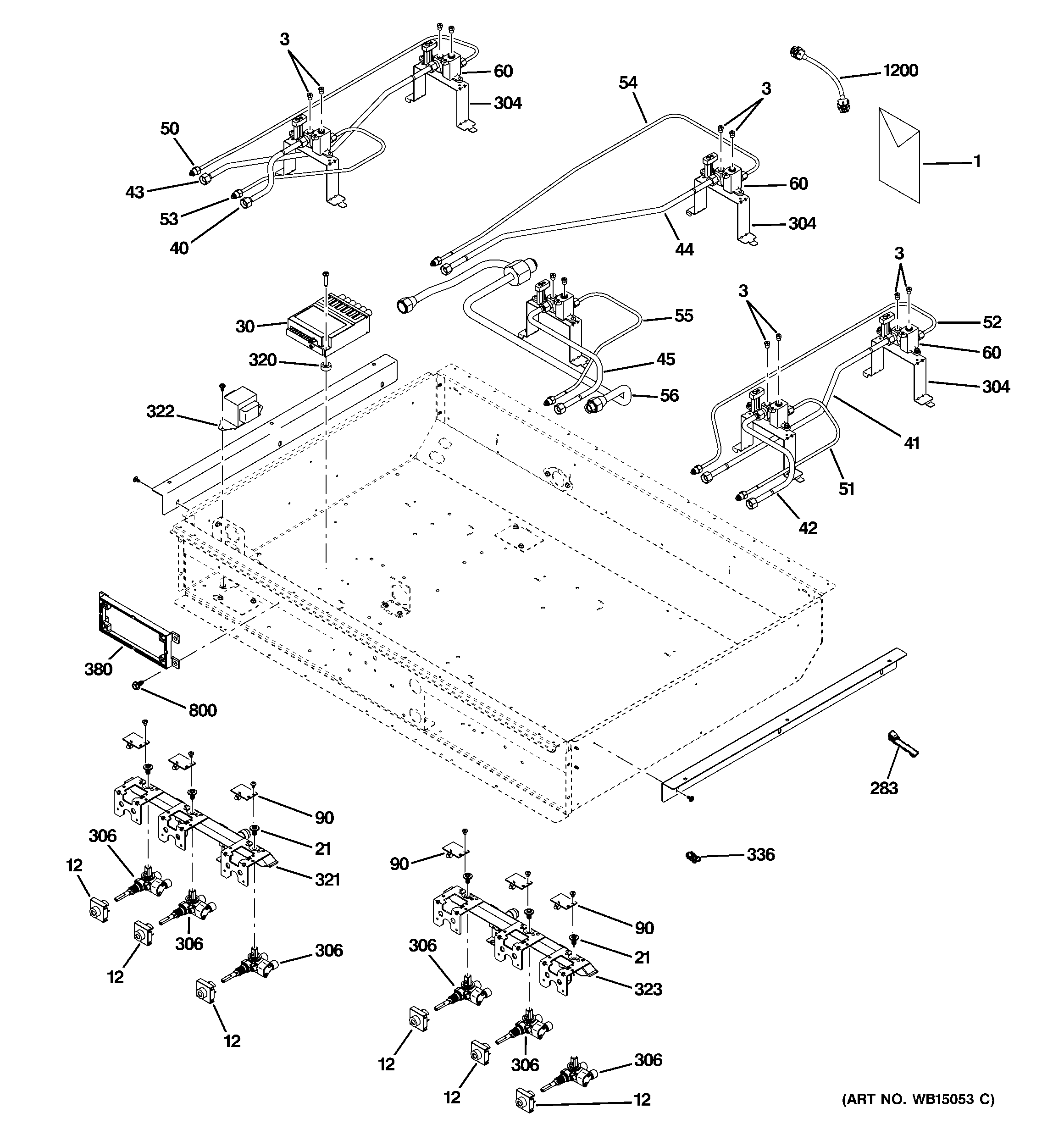

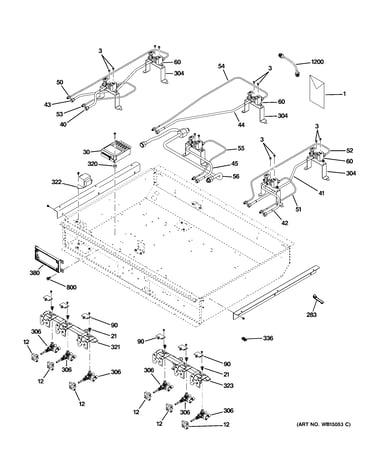

Gas & burner parts diagram

Scr 8 hd 1/4

Part #WB01K10067

This item is not returnable
$7.92 |
11% OFF Phone Price : $8.92
In Stock
Range Igniter Switch And Harness Assembly WB24K10086
#12

Gas & burner parts diagram

Range igniter switch and harness assembly

Part #WB24K10086

$122.67 |
9% OFF Phone Price : $134.67
In Stock
Range Surface Burner Base WB28T10114
#60

Gas & burner parts diagram

Range surface burner base

Part #WB28T10114

$69.69 |
8% OFF Phone Price : $75.69
In Stock
