Model # JVM1341WW03 Official GE microwave

Here are the diagrams and repair parts for Official GE JVM1341WW03 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Switch WB24X801
#1446

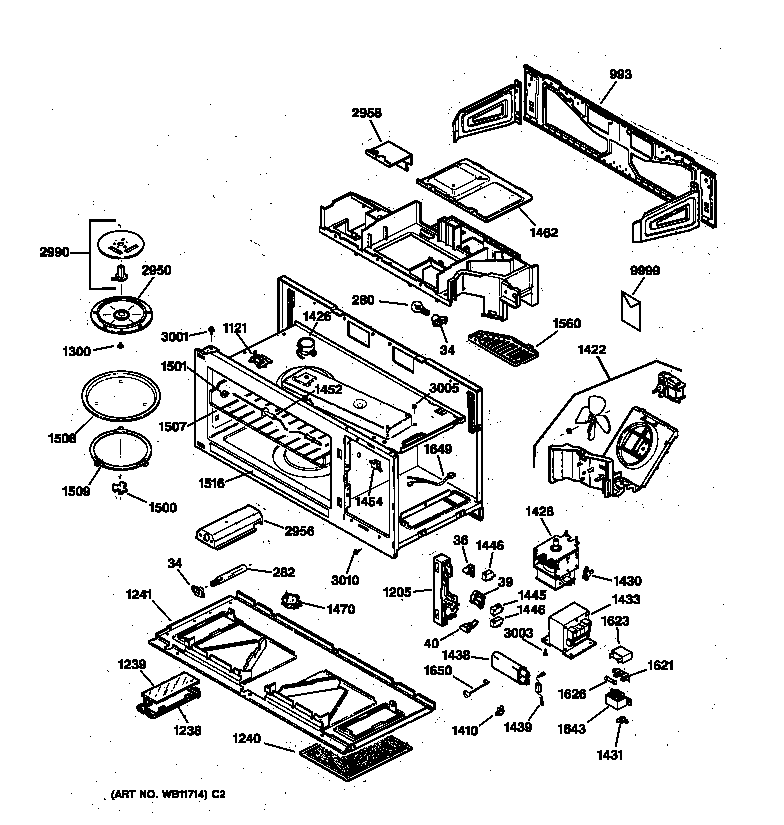

Bottom plate, internal parts & mounting bracket diagram

Switch

Part #WB24X801

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X801. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Switch WB24X800
#1445

Bottom plate, internal parts & mounting bracket diagram

Switch

Part #WB24X800

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X800. Substitute parts can look different from the original.
BEST SELLER
$26.26 |
19% OFF Phone Price : $32.26
In Stock
Maytag Microwave Thermostat (replaces Wb27x0709) WB27X709
#1431

Bottom plate, internal parts & mounting bracket diagram

Maytag microwave thermostat (replaces wb27x0709)

Part #WB27X709

BEST SELLER
This item is not returnable
$26.60 |
18% OFF Phone Price : $32.60
In Stock
Handle WB15X334
#1801

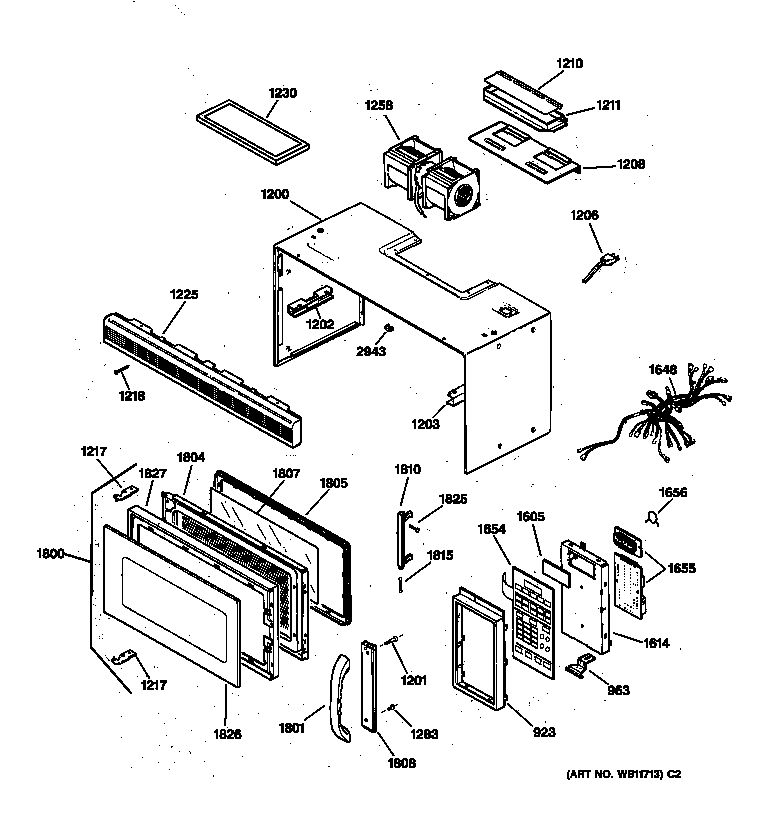

Door, control, grill & case diagram

Handle

Part #WB15X334

The manufacturer no longer makes this part, and there's no substitute part

Capacitor WB27X705
#1623

Bottom plate, internal parts & mounting bracket diagram

Capacitor

Part #WB27X705

Replaced by #WB27X10170

?
Manufacturer substitution
This part replaces WB27X705. Substitute parts can look different from the original.
$48.79 |
11% OFF Phone Price : $54.79
In Stock
Microwave Thermal Cut-off WB27X1127
#1410

Bottom plate, internal parts & mounting bracket diagram

Microwave thermal cut-off

Part #WB27X1127

$28.00 |
18% OFF Phone Price : $34.00
In Stock
Cook Tray WB39X78
#1508

Bottom plate, internal parts & mounting bracket diagram

Cook tray

Part #WB39X78

Replaced by #WB49X10097

?
Manufacturer substitution
This part replaces WB39X78. Substitute parts can look different from the original.
$76.69 |
7% OFF Phone Price : $82.69
In Stock
Screw WB1X861
#1283

Door, control, grill & case diagram

Screw

Part #WB1X861

Replaced by #WE02X10086

?
Manufacturer substitution
This part replaces WB1X861. Substitute parts can look different from the original.
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Microwave Grease Filter WB6X486
#1240

Bottom plate, internal parts & mounting bracket diagram

Microwave grease filter

Part #WB6X486

$59.99 |
9% OFF Phone Price : $65.99
In Stock
Template 49-8729
#9999D

Bottom plate, internal parts & mounting bracket diagram

Template

Part #49-8729

This item is not returnable
$2.16
In Stock
