GE
Top-Mount Refrigerator

Model # GTE18ISHGRSS Official GE refrigerator

Here are the diagrams and repair parts for Official GE GTE18ISHGRSS refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

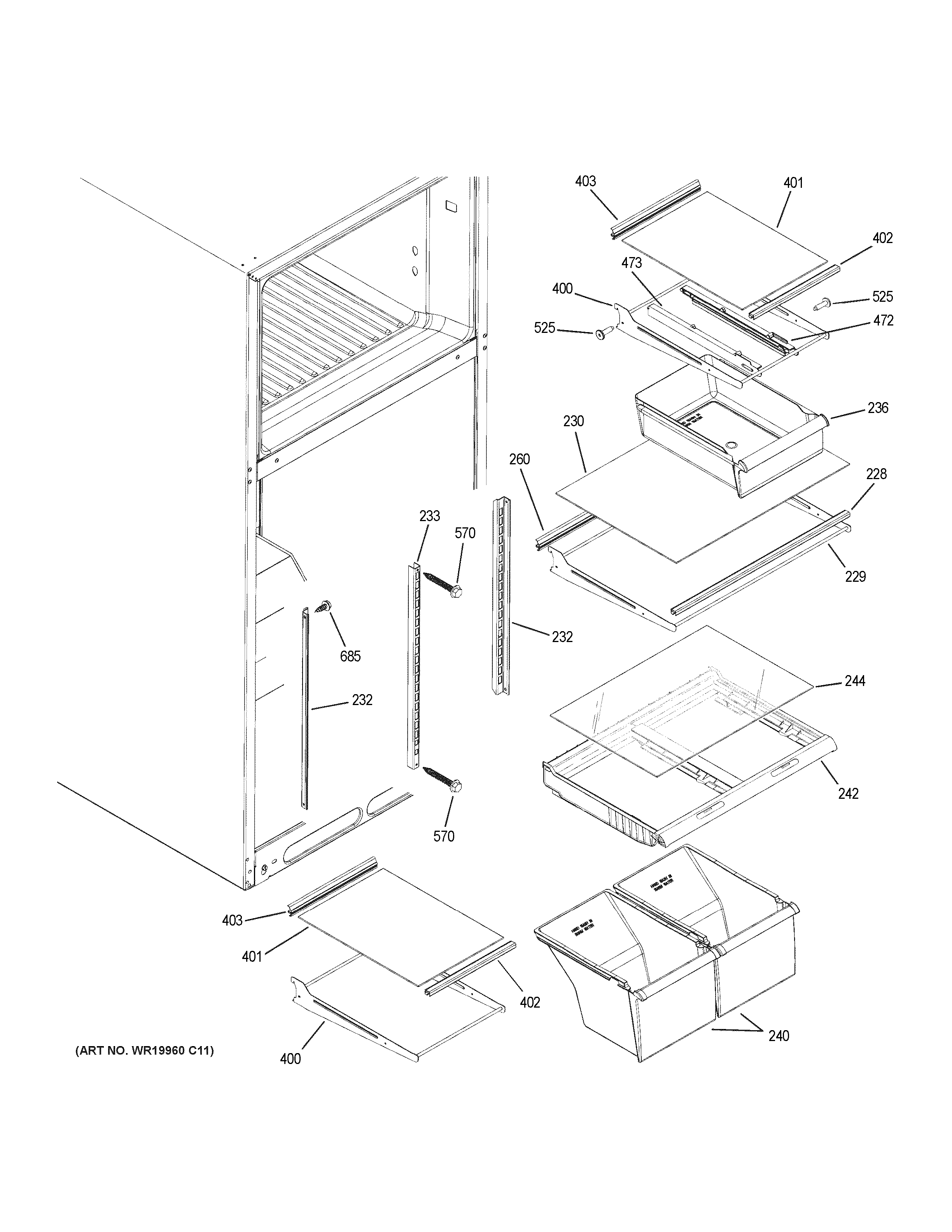

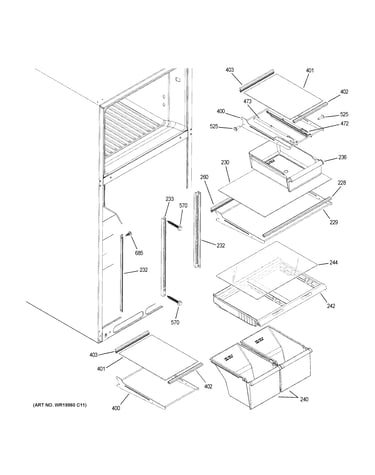

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Refrigerator Ice Maker Kit (replaces Wr29x10001, Wr29x10002, Wr29x10080, Wr29x157, Wr29x158, Wr29x160, Wr29x185, Wr29x27993, Wr29x5181, Wr30x10043, Wr30x10109, Wr30x28702, Wr30x30972) WR30X10093
#820

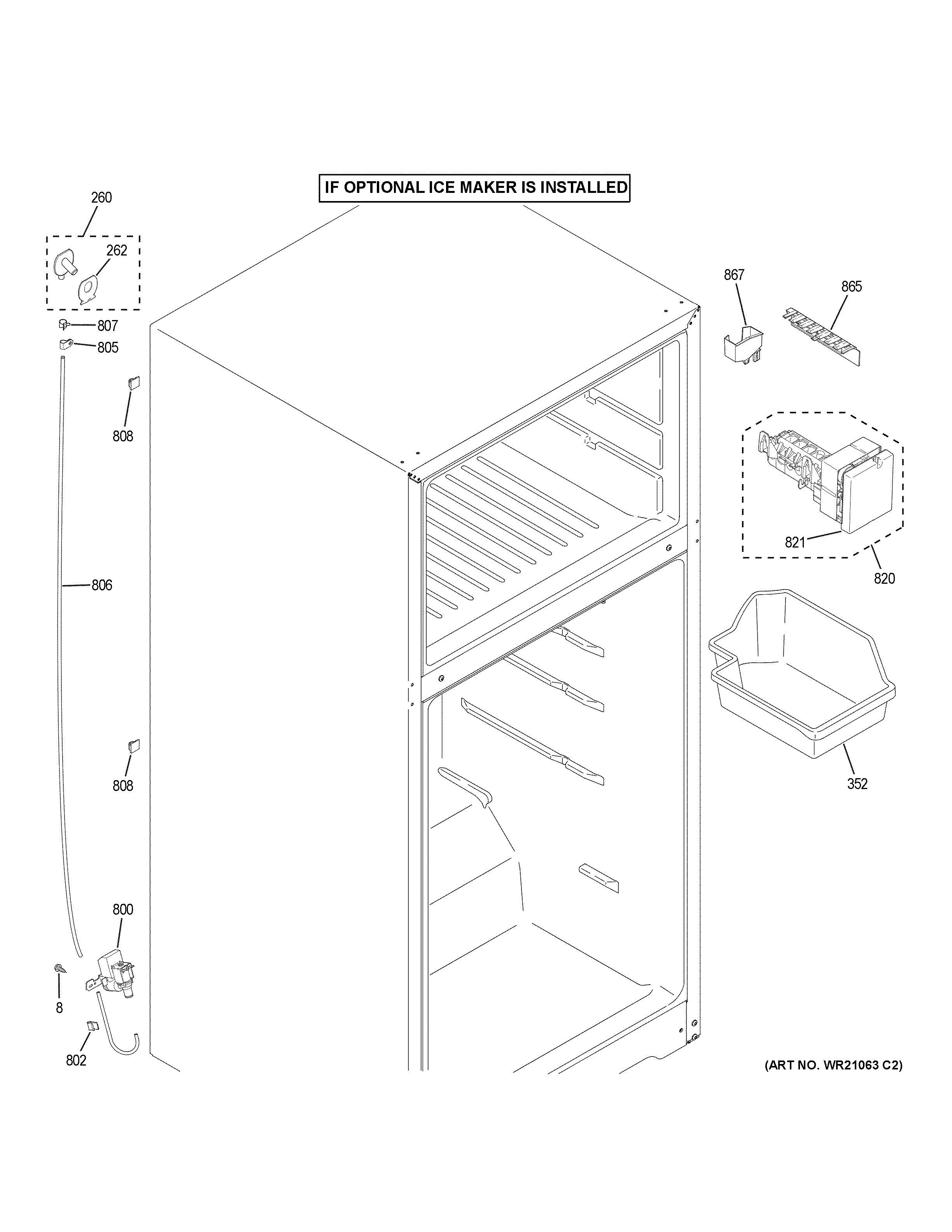

Ice maker diagram

Refrigerator ice maker kit (replaces wr29x10001, wr29x10002, wr29x10080, wr29x157, wr29x158, wr29x160, wr29x185, wr29x27993, wr29x5181, wr30x10043, wr30x10109, wr30x28702, wr30x30972)

Part #WR30X10093

BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Refrigerator Run Capacitor WR55X23731
#729

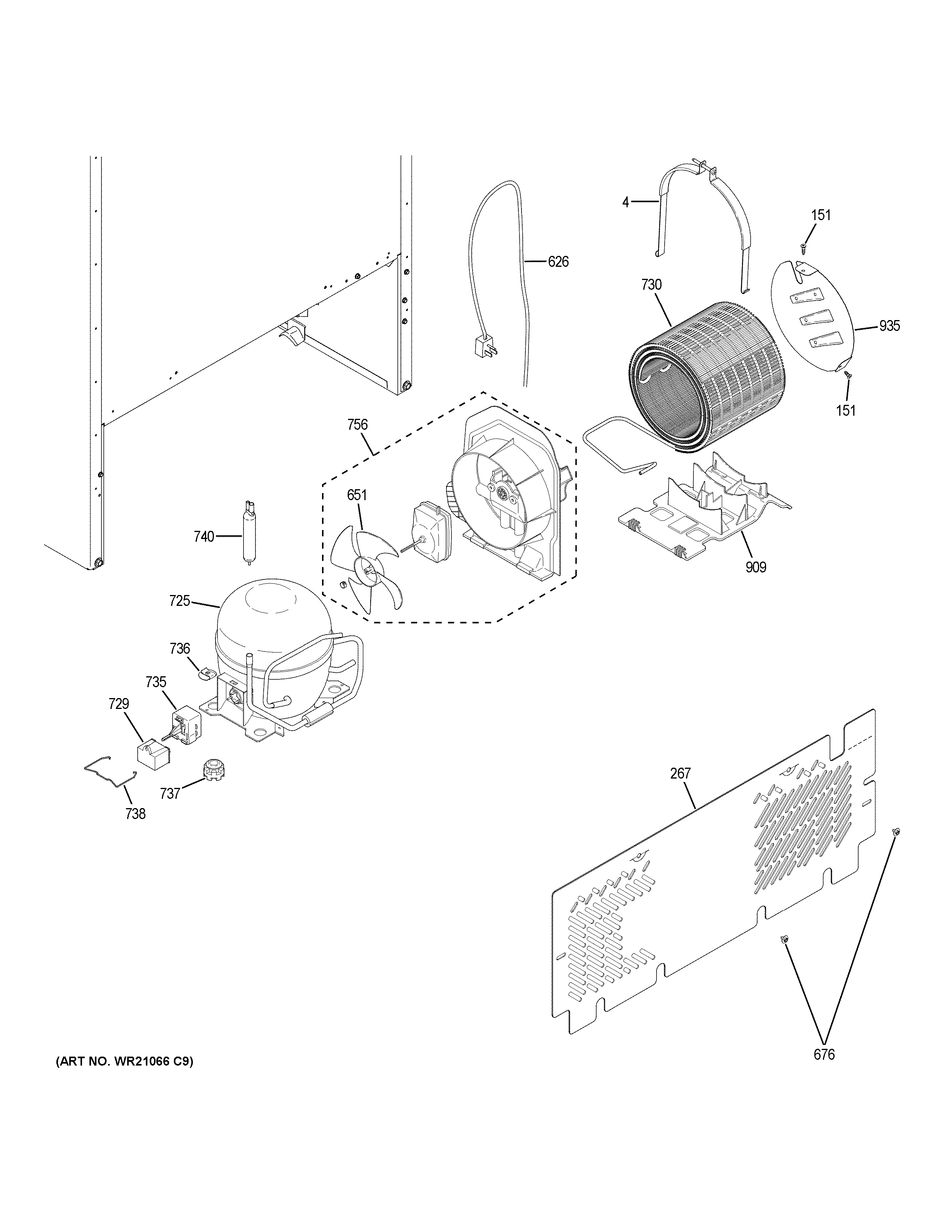

Machine compartment diagram

Refrigerator run capacitor

Part #WR55X23731

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR55X23731. Substitute parts can look different from the original.
BEST SELLER
$40.73 |
13% OFF Phone Price : $46.73
In Stock
Refrigerator Condenser Fan Motor Assembly WR17X21162
#756

Machine compartment diagram

Refrigerator condenser fan motor assembly

Part #WR17X21162

Replaced by #WR17X24348

?
Manufacturer substitution
This part replaces WR17X21162. Substitute parts can look different from the original.
BEST SELLER
$89.92 |
6% OFF Phone Price : $95.92
In Stock
Refrigerator Condenser Fan Blade (replaces Wr60x10088) WR60X10207
#651

Machine compartment diagram

Refrigerator condenser fan blade (replaces wr60x10088)

Part #WR60X10207

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Evaporator Fan Motor Grommet WR02X12008
#617

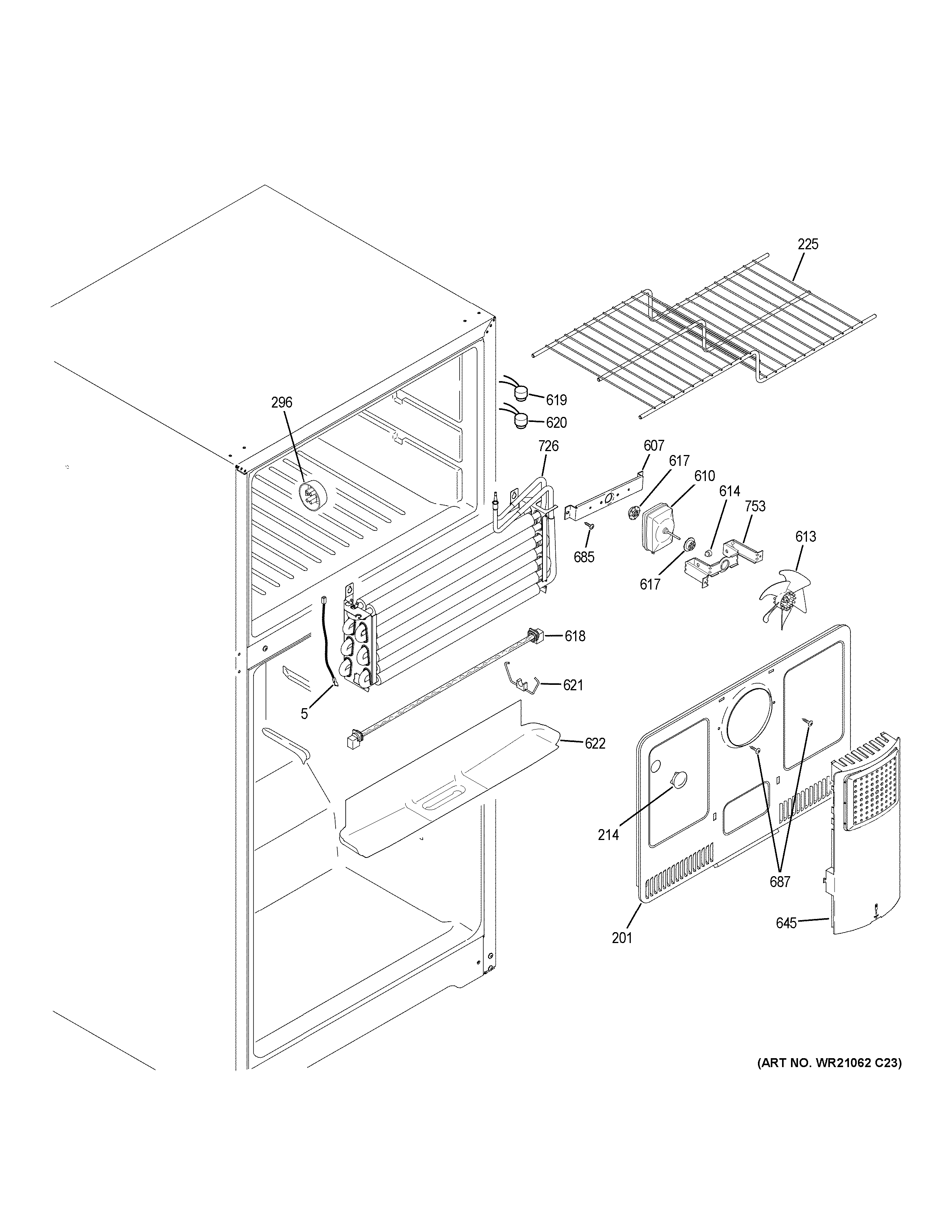

Freezer section diagram

Refrigerator evaporator fan motor grommet

Part #WR02X12008

BEST SELLER
$19.32
In Stock
Refrigerator Door Hinge Nylon Washer WR01X10146
#281

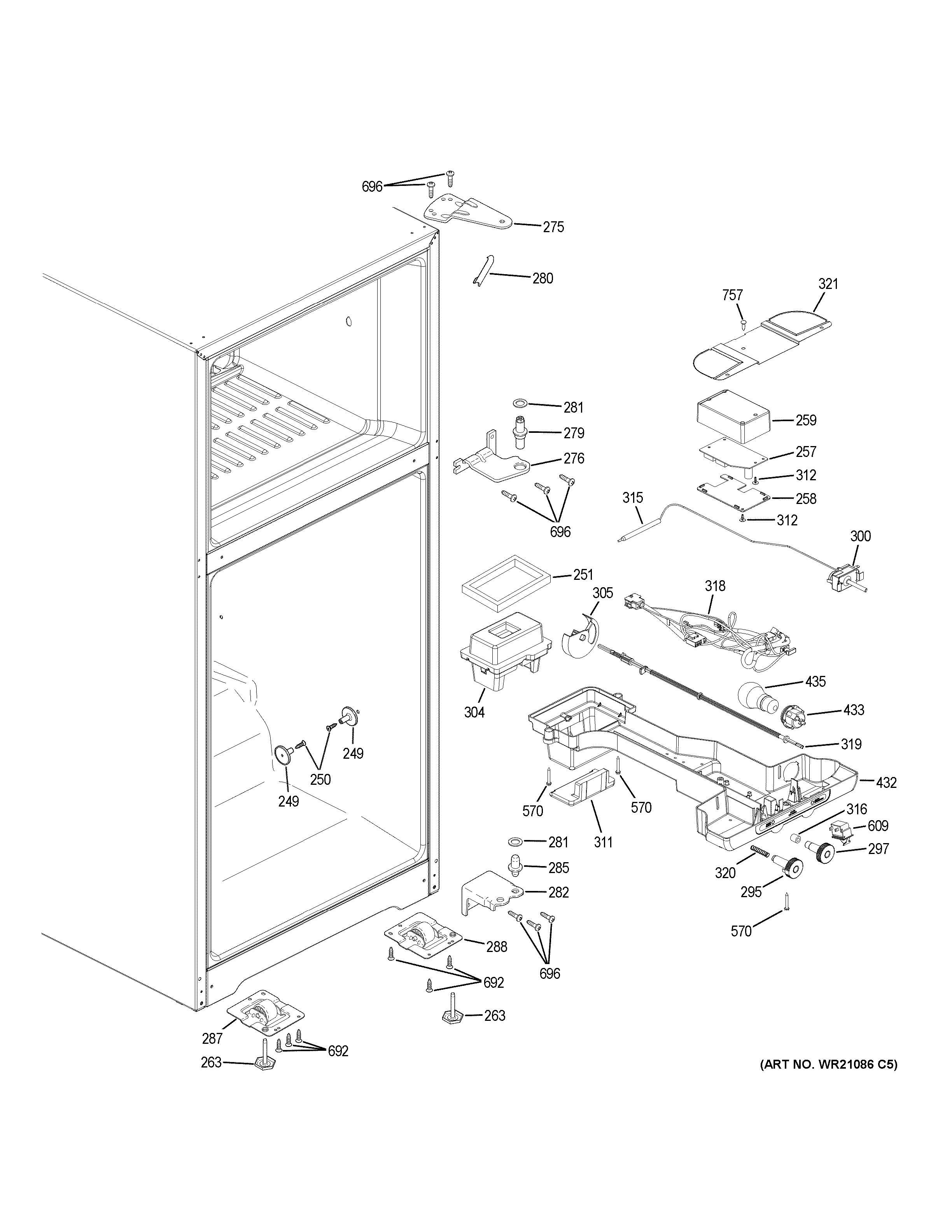

Fresh food section diagram

Refrigerator door hinge nylon washer

Part #WR01X10146

Replaced by #WR01X27364

?
Manufacturer substitution
This part replaces WR01X10146. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Refrigerator Compressor WR87X28656
#725

Machine compartment diagram

Refrigerator compressor

Part #WR87X28656

Replaced by #WR87X33165

?
Manufacturer substitution
This part replaces WR87X28656. Substitute parts can look different from the original.
BEST SELLER
$377.63 |
$12.00 OFF Phone Price : $389.63
In Stock
Refrigerator Door Handle Mounting Screw WR01X11014
#115

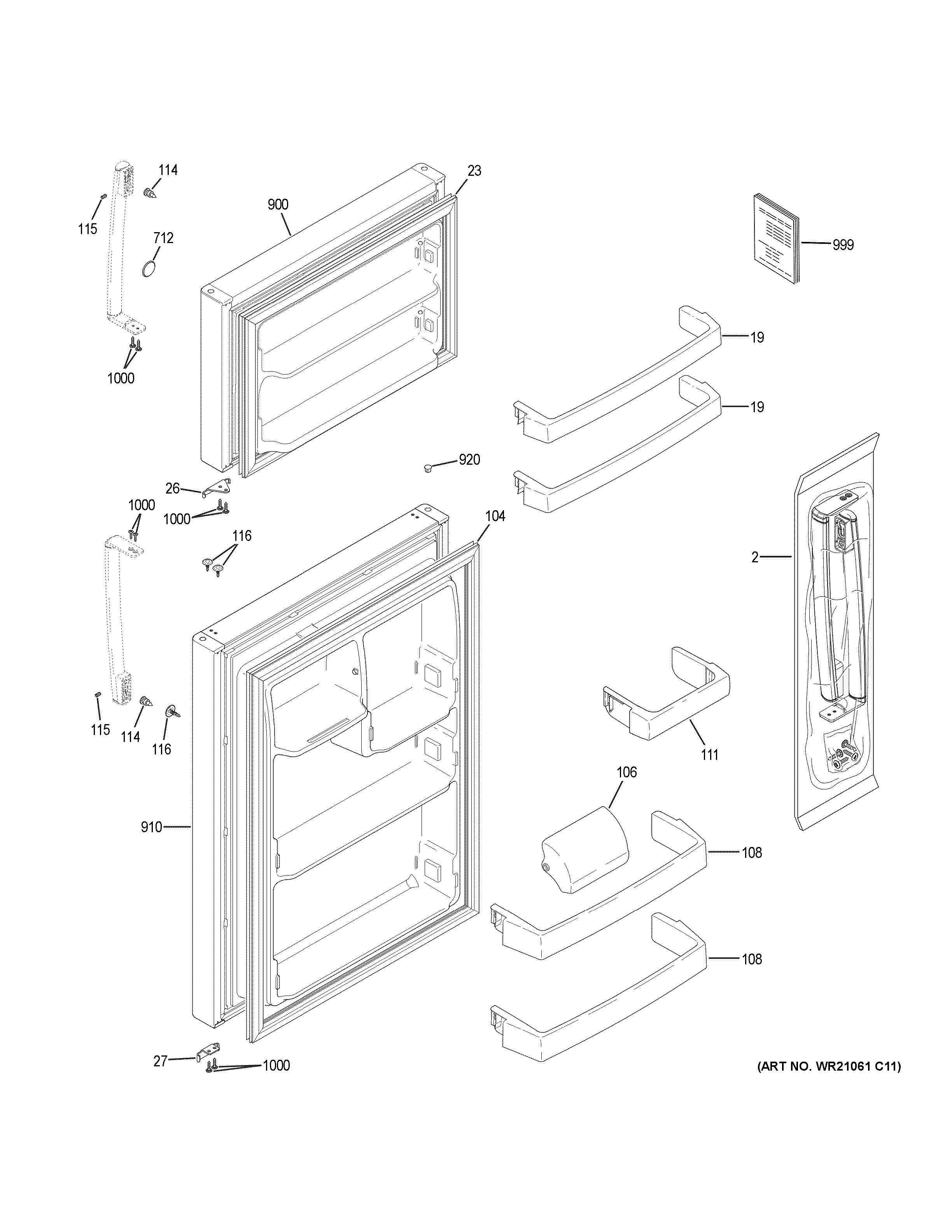

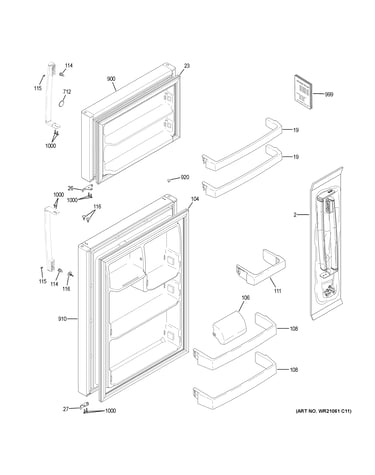

Doors diagram

Refrigerator door handle mounting screw

Part #WR01X11014

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Freezer Basket Bumper (replaces Wr02x11329) WR02X10540
#614

Freezer section diagram

Freezer basket bumper (replaces wr02x11329)

Part #WR02X10540

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Defrost Heater WR09X21107
#618

Freezer section diagram

Refrigerator defrost heater

Part #WR09X21107

$28.07 |
18% OFF Phone Price : $34.07
In Stock
