Amana
Side-By-Side Refrigerator

Model # ARS2365AB-PARS2365AB0 Official Amana side-by-side refrigerator

Here are the diagrams and repair parts for Official Amana ARS2365AB-PARS2365AB0 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

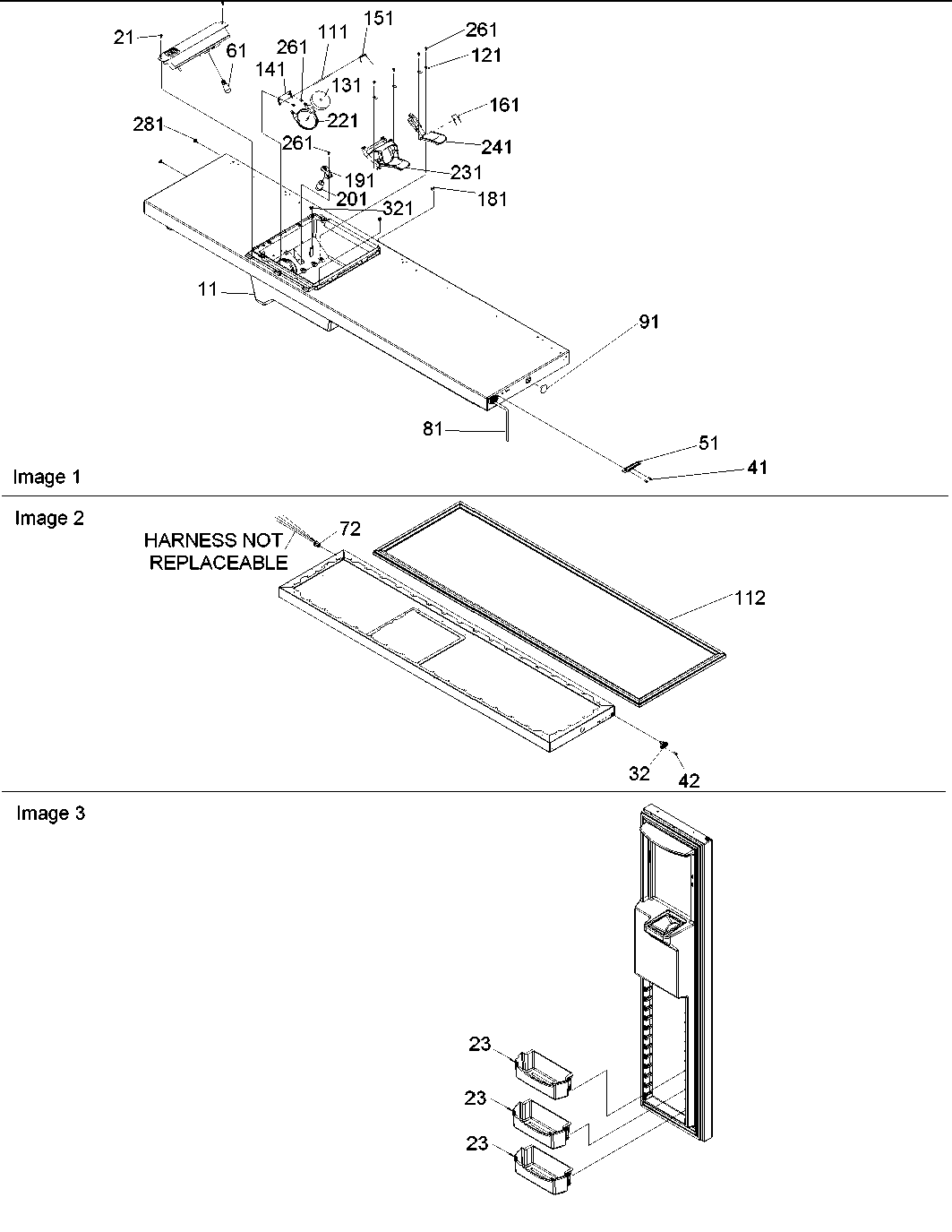

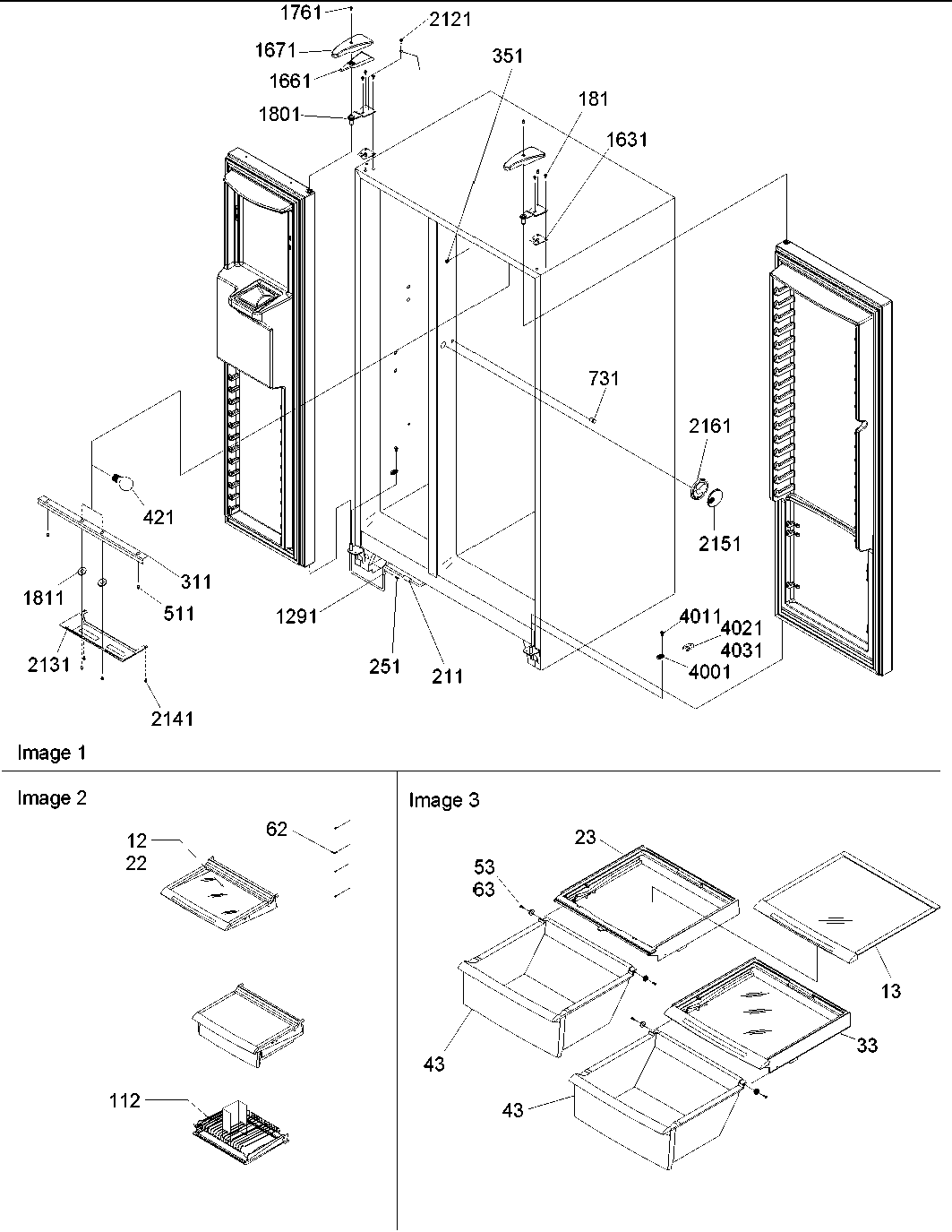

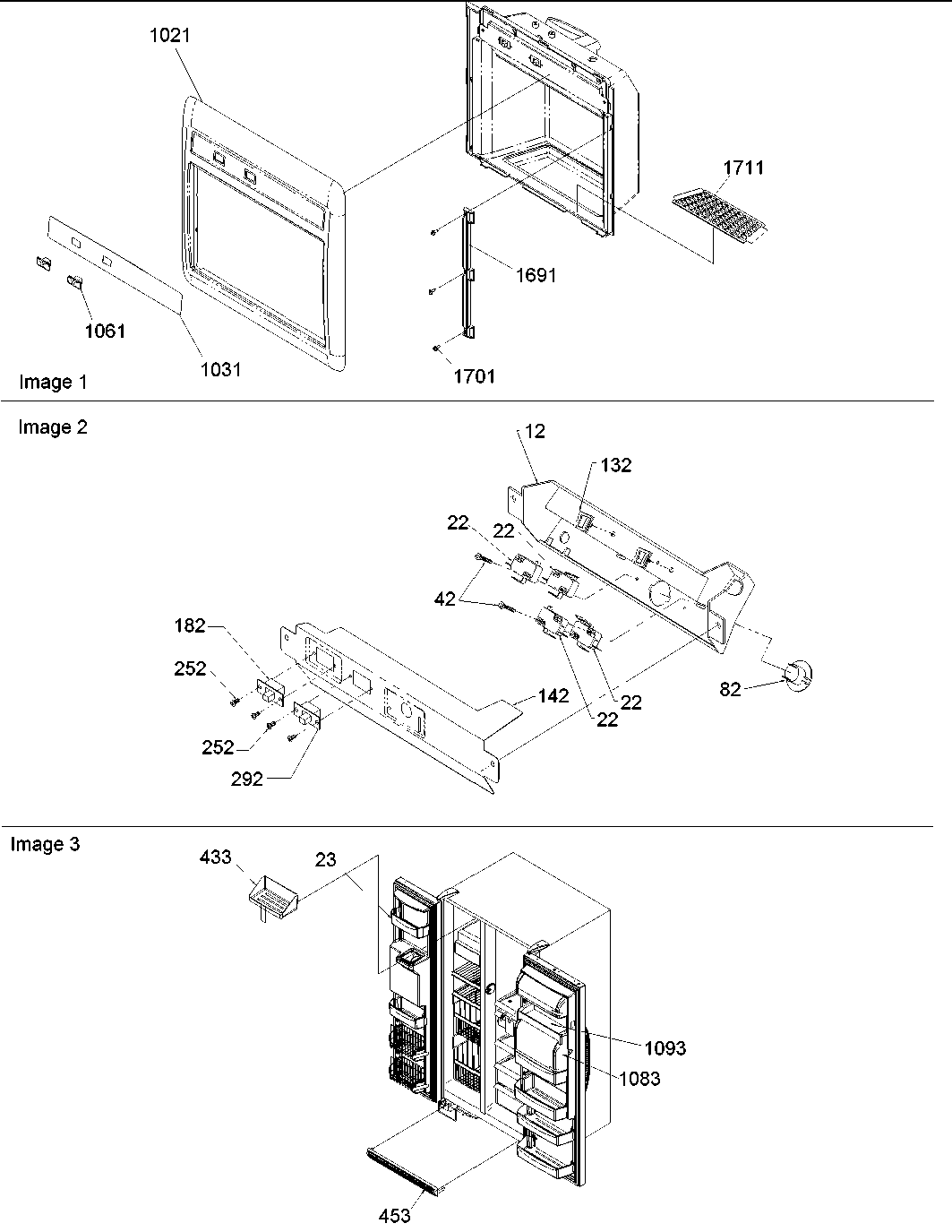

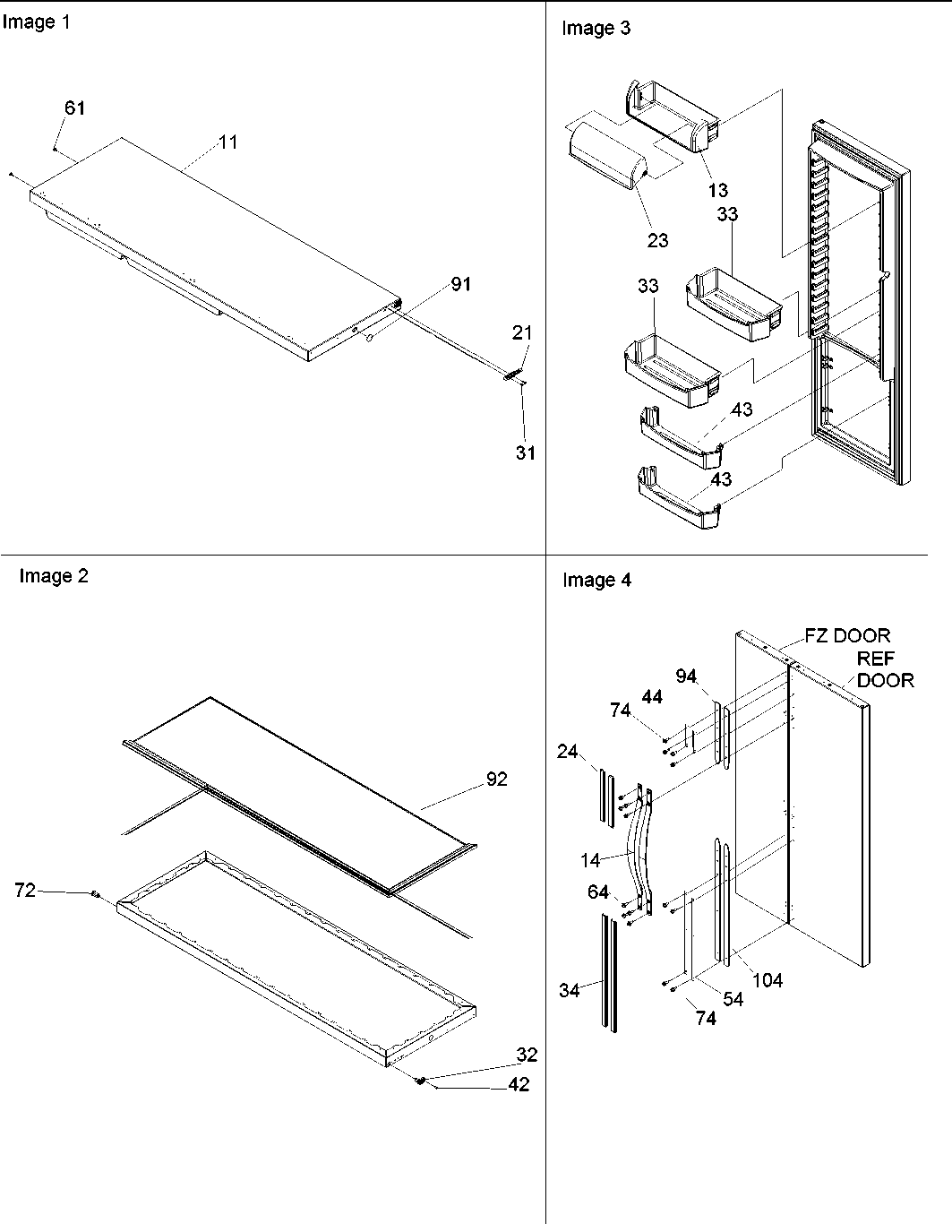

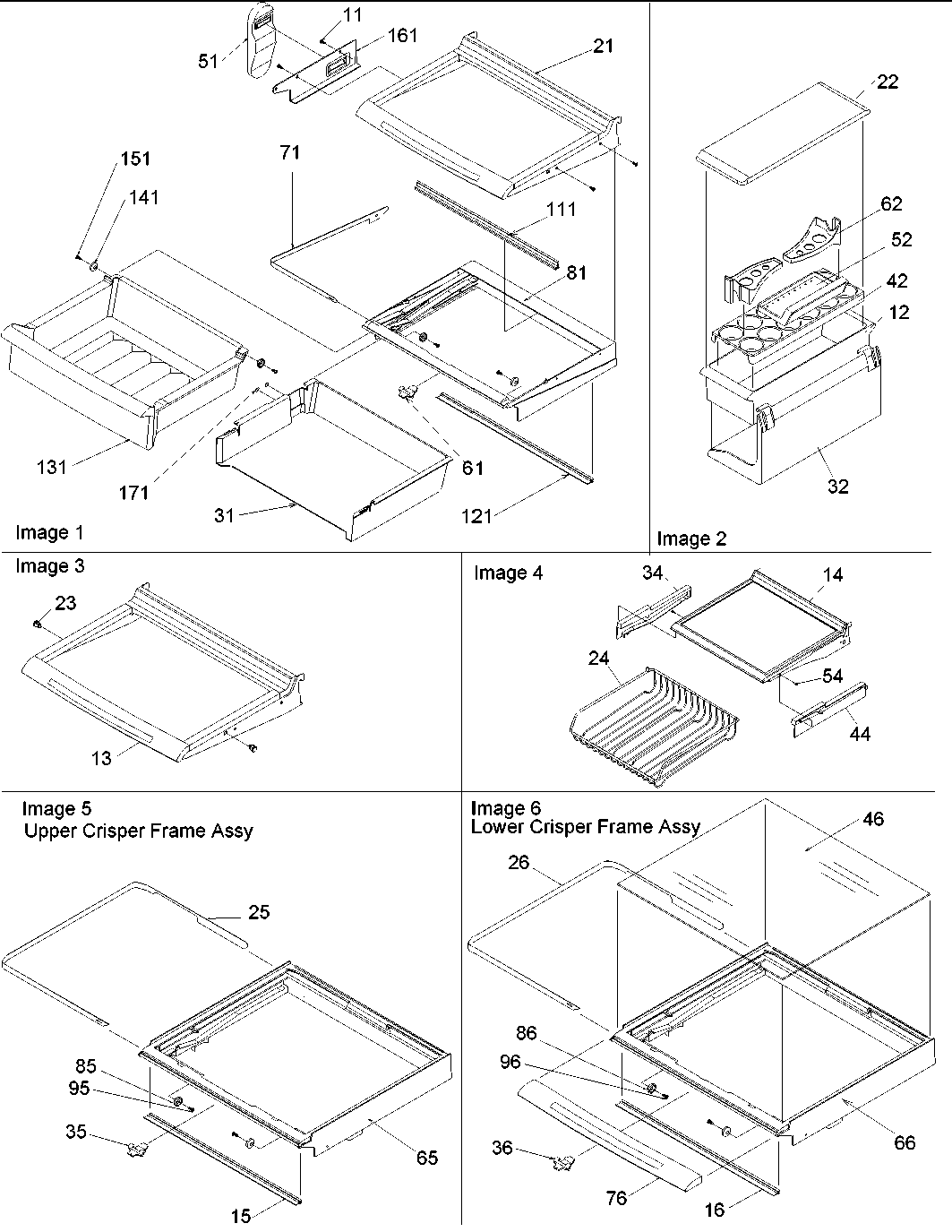

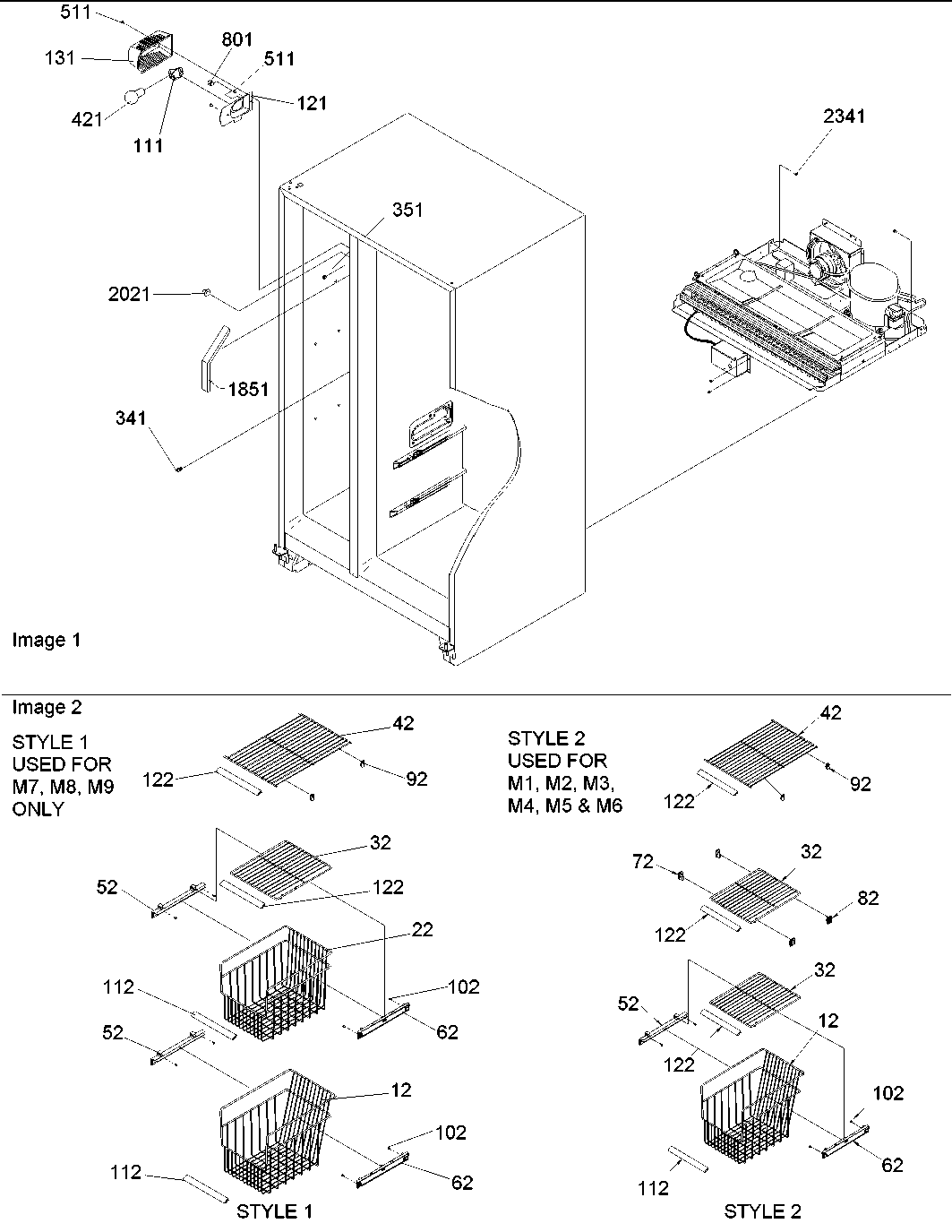

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 345 parts  |
Refrigerator Ice Maker D7824705
#261

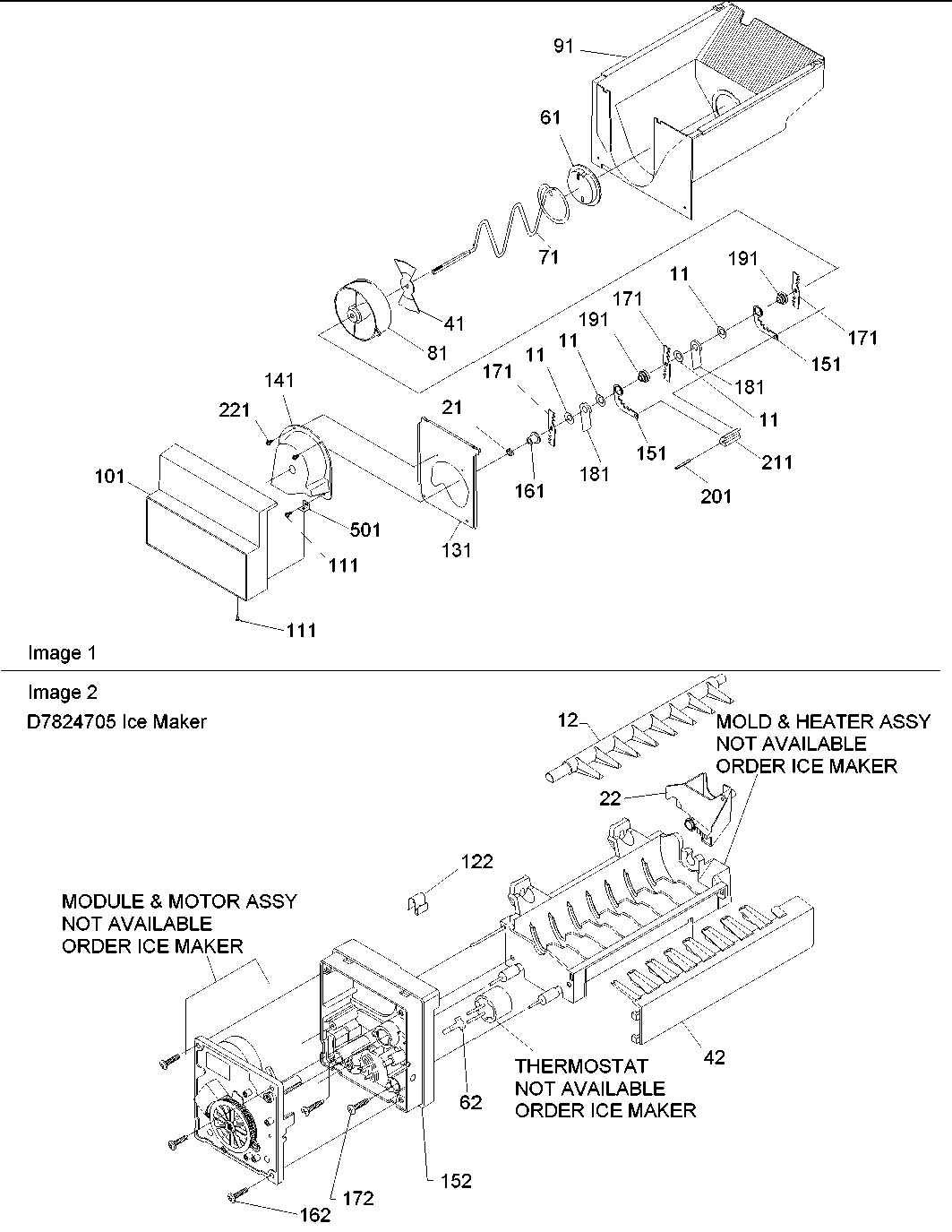

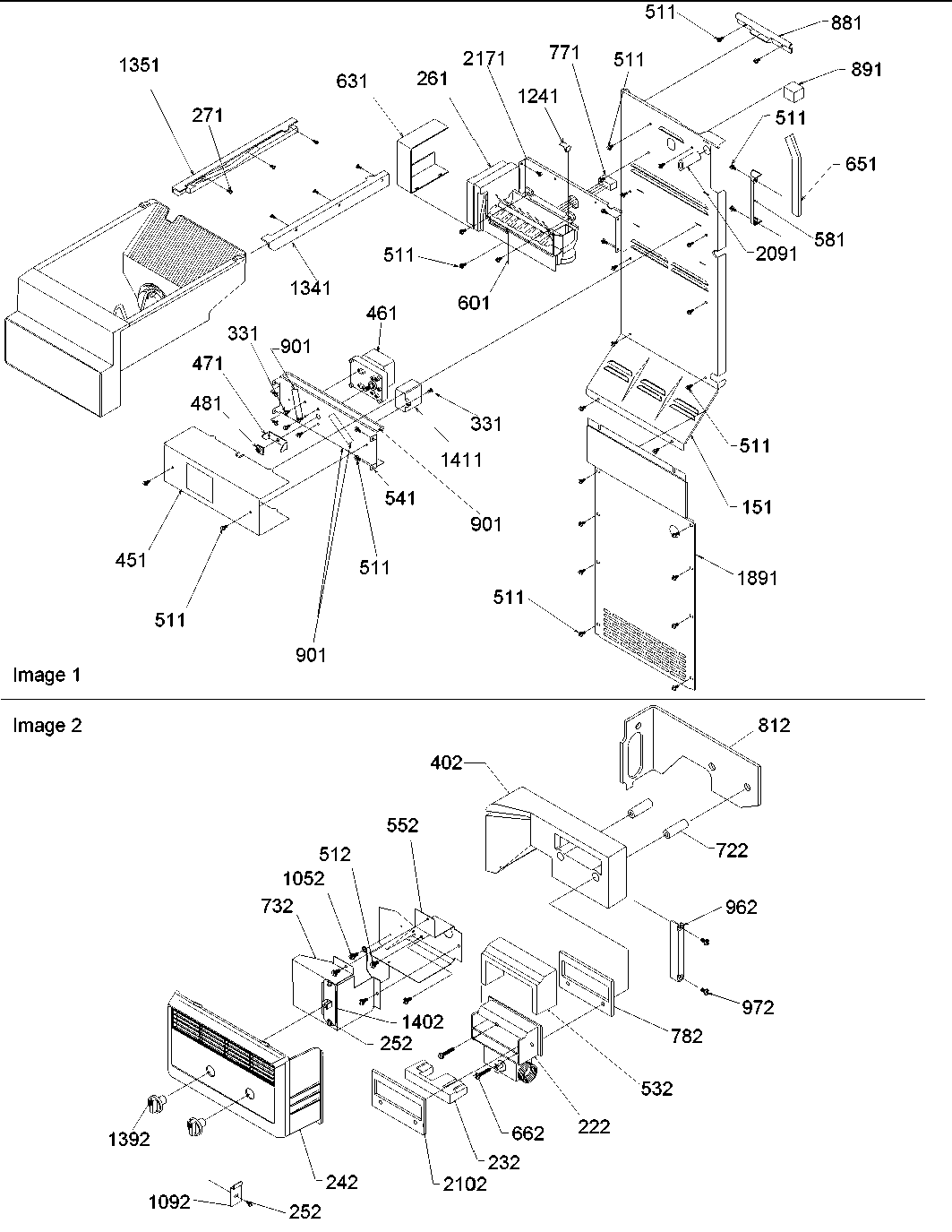

Ice maker/control assy diagram

Refrigerator ice maker

Part #D7824705

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces D7824705. Substitute parts can look different from the original.
BEST SELLER
$80.74 |
7% OFF Phone Price : $86.74
In Stock
Refrigerator Blade 12217201
#42

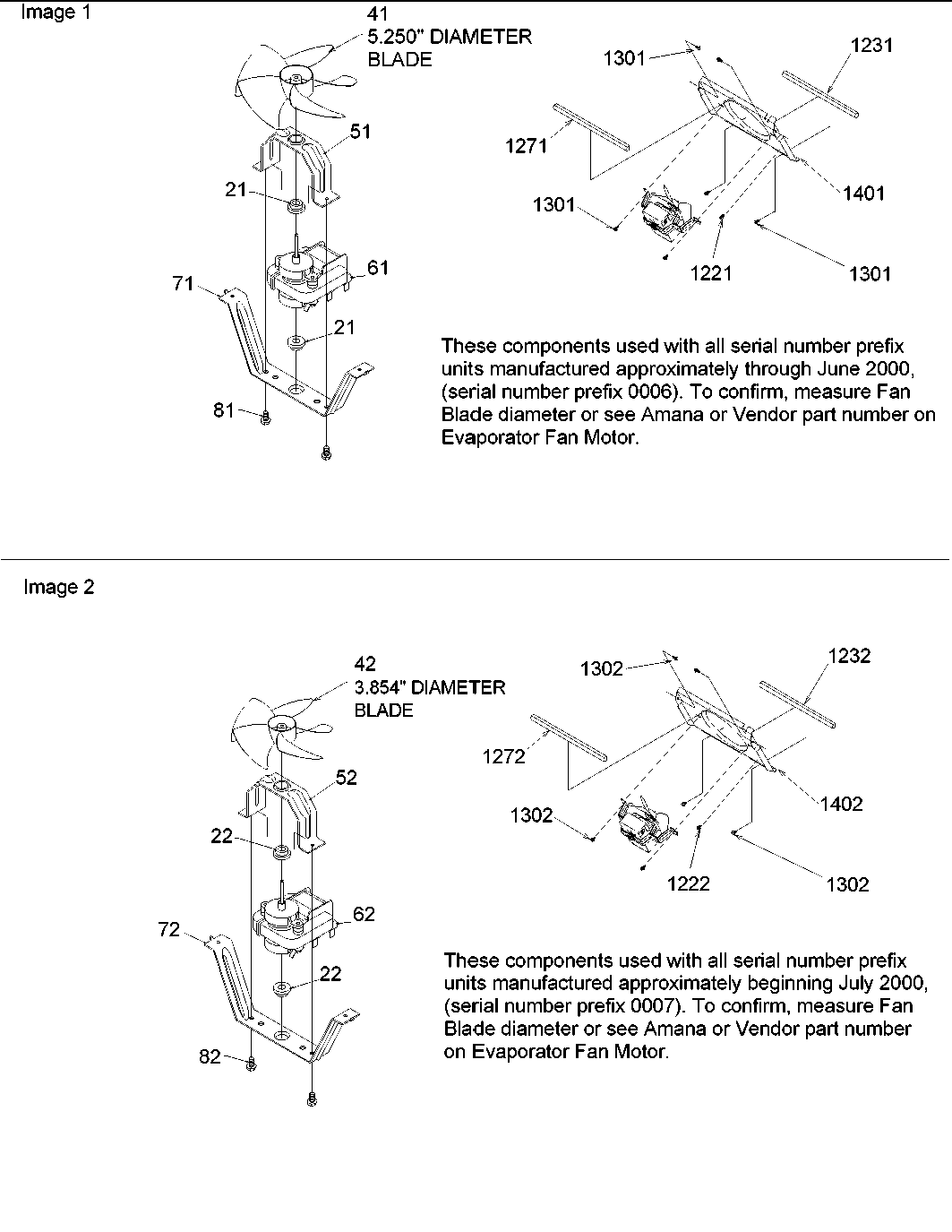

Evaporator fan shroud & motor assemblies diagram

Refrigerator blade

Part #12217201

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Compressor 12049711
#341

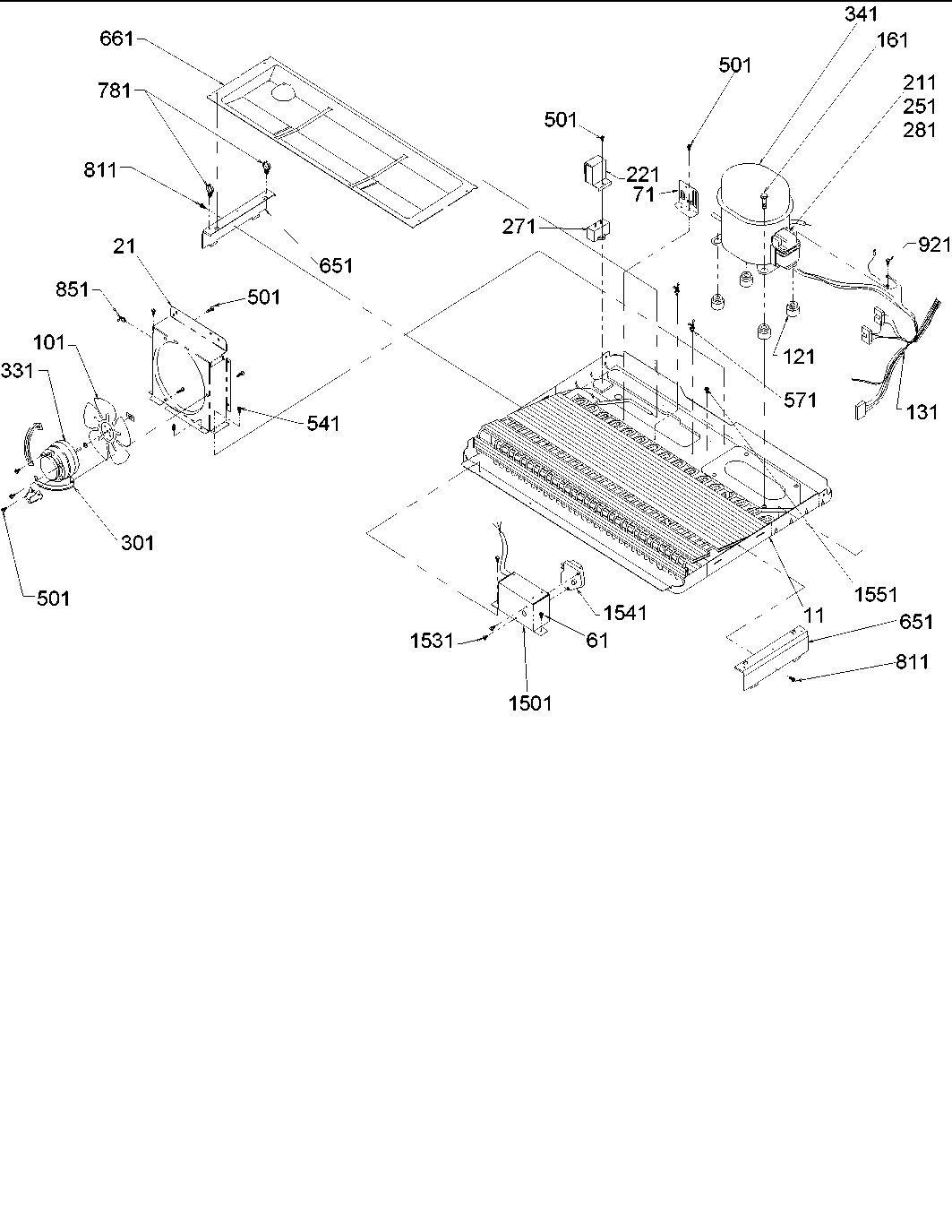

Machine compartment diagram

Refrigerator compressor

Part #12049711

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Switch 12466101
#511

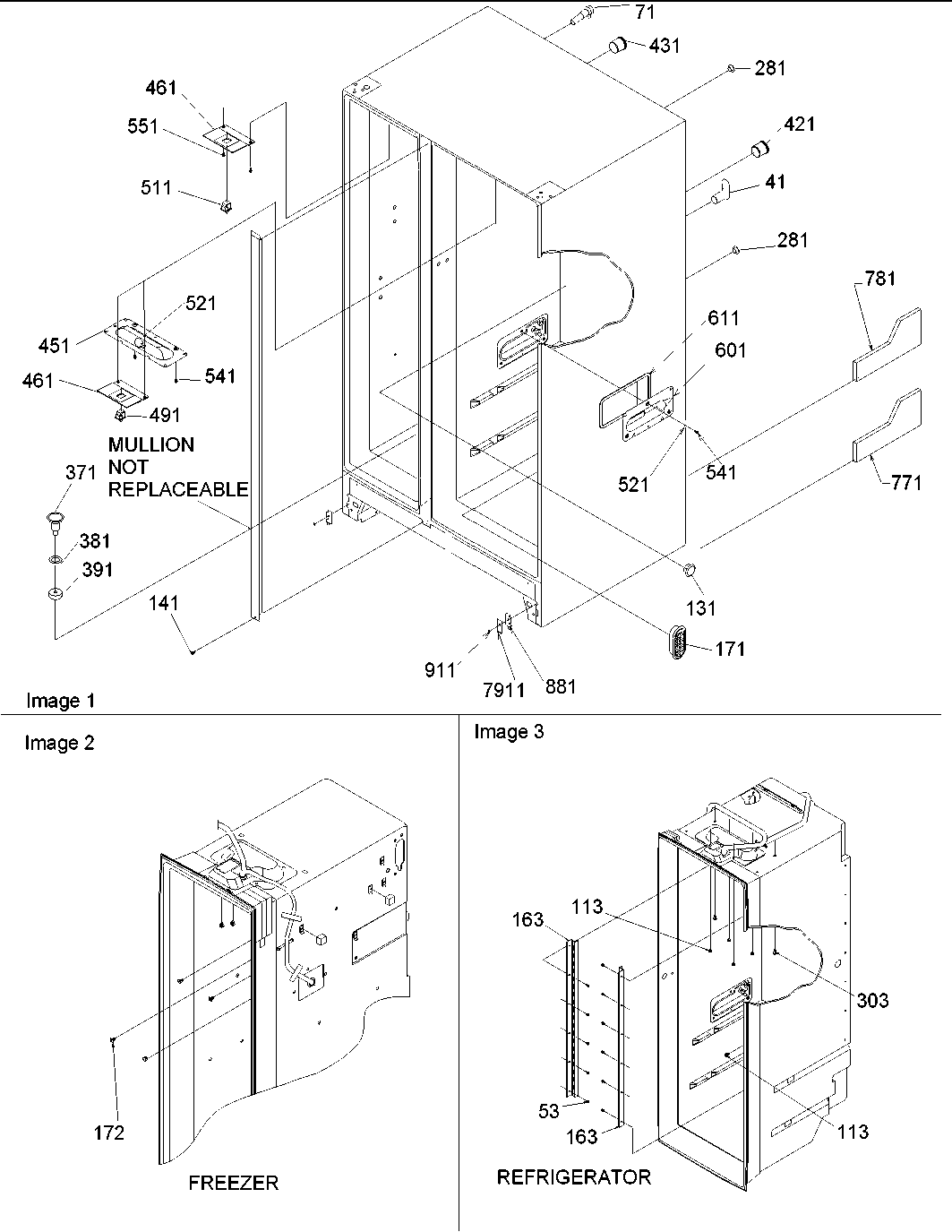

Cabinet parts diagram

Refrigerator switch

Part #12466101

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466101. Substitute parts can look different from the original.
BEST SELLER
$21.08 |
22% OFF Phone Price : $27.08
In Stock
Refrigerator Ptc Relay 10097202
#251

Machine compartment diagram

Refrigerator ptc relay

Part #10097202

Replaced by #WPW10189190

?
Manufacturer substitution
This part replaces 10097202. Substitute parts can look different from the original.
BEST SELLER
$68.97 |
8% OFF Phone Price : $74.97
In Stock
Drier B2150504
#230

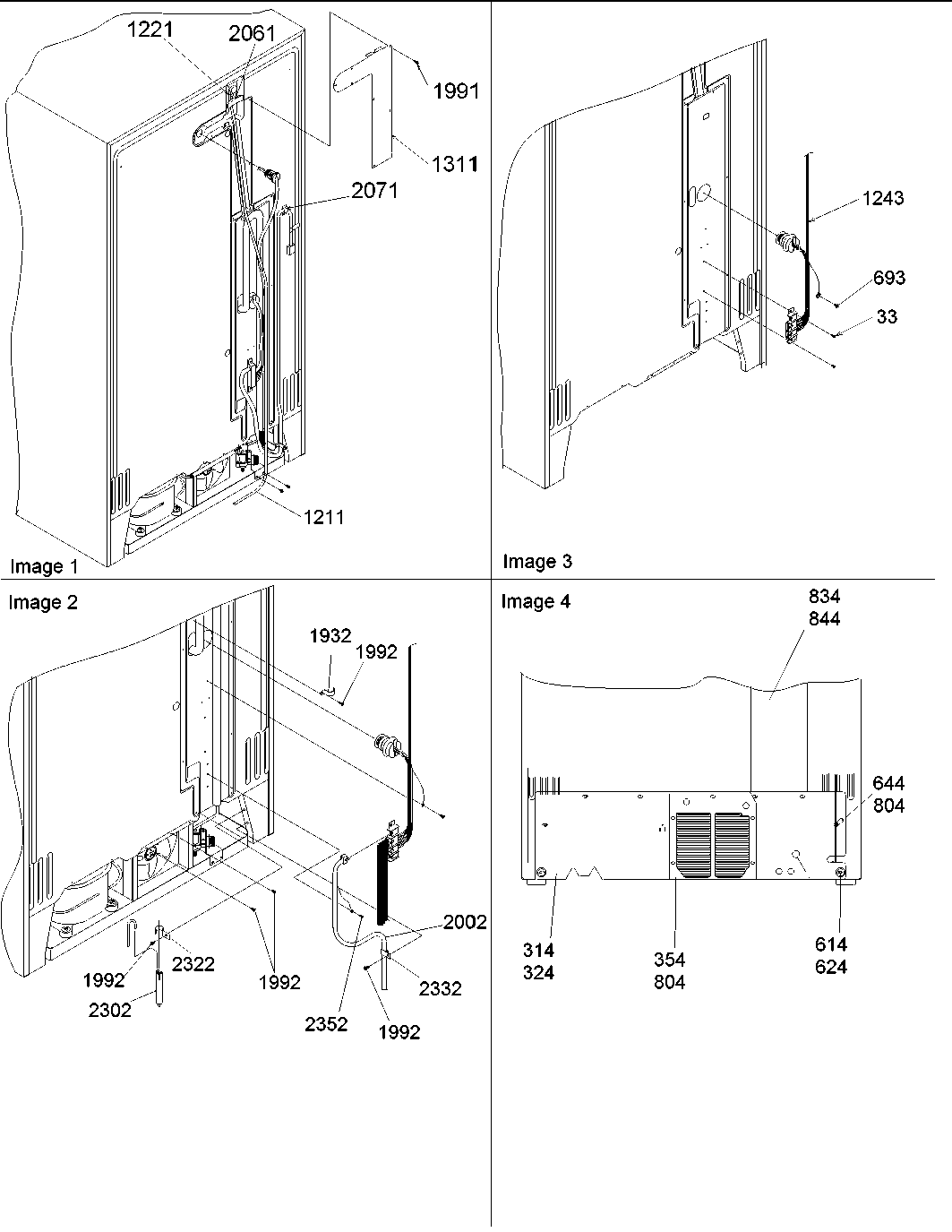

Cabinet back diagram

Drier

Part #B2150504

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B2150504. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Refrigerator Motor 10522102
#331

Machine compartment diagram

Refrigerator motor

Part #10522102

Replaced by #833697

?
Manufacturer substitution
This part replaces 10522102. Substitute parts can look different from the original.
BEST SELLER
$62.30 |
9% OFF Phone Price : $68.30
In Stock
Refrigerator Capacitor C8931608
Refrigerator capacitor

Part #C8931608

Replaced by #WP65889-4

?
Manufacturer substitution
This part replaces C8931608. Substitute parts can look different from the original.
BEST SELLER
$55.99 |
10% OFF Phone Price : $61.99
In Stock
Refrigerator Bulb A3079001
#137

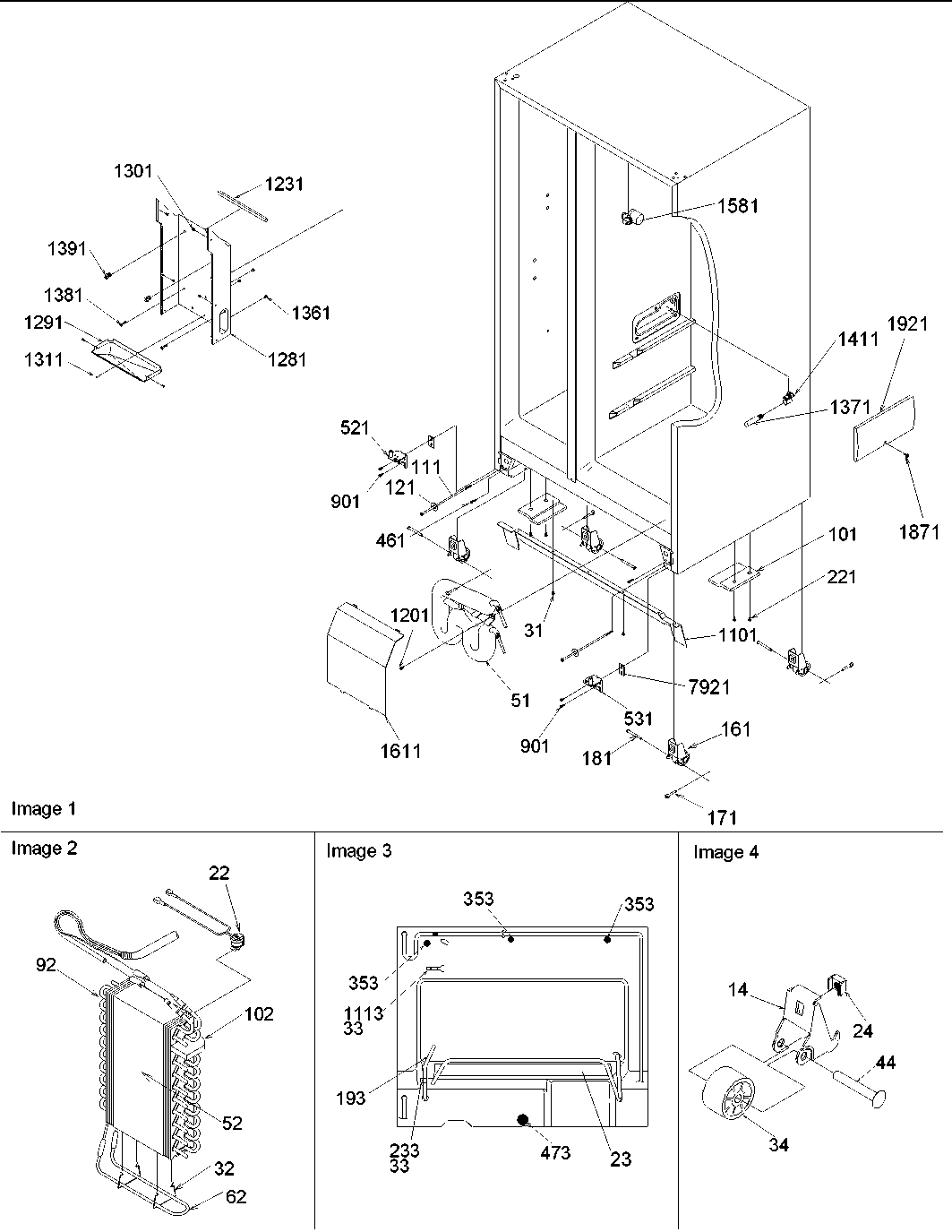

Drain, rollers & evap assy diagram

Refrigerator bulb

Part #A3079001

Replaced by #WPA3073101

?
Manufacturer substitution
This part replaces A3079001. Substitute parts can look different from the original.
BEST SELLER
$18.12 |
10% OFF Phone Price : $20.12
In Stock
Fitting M0753001
#133

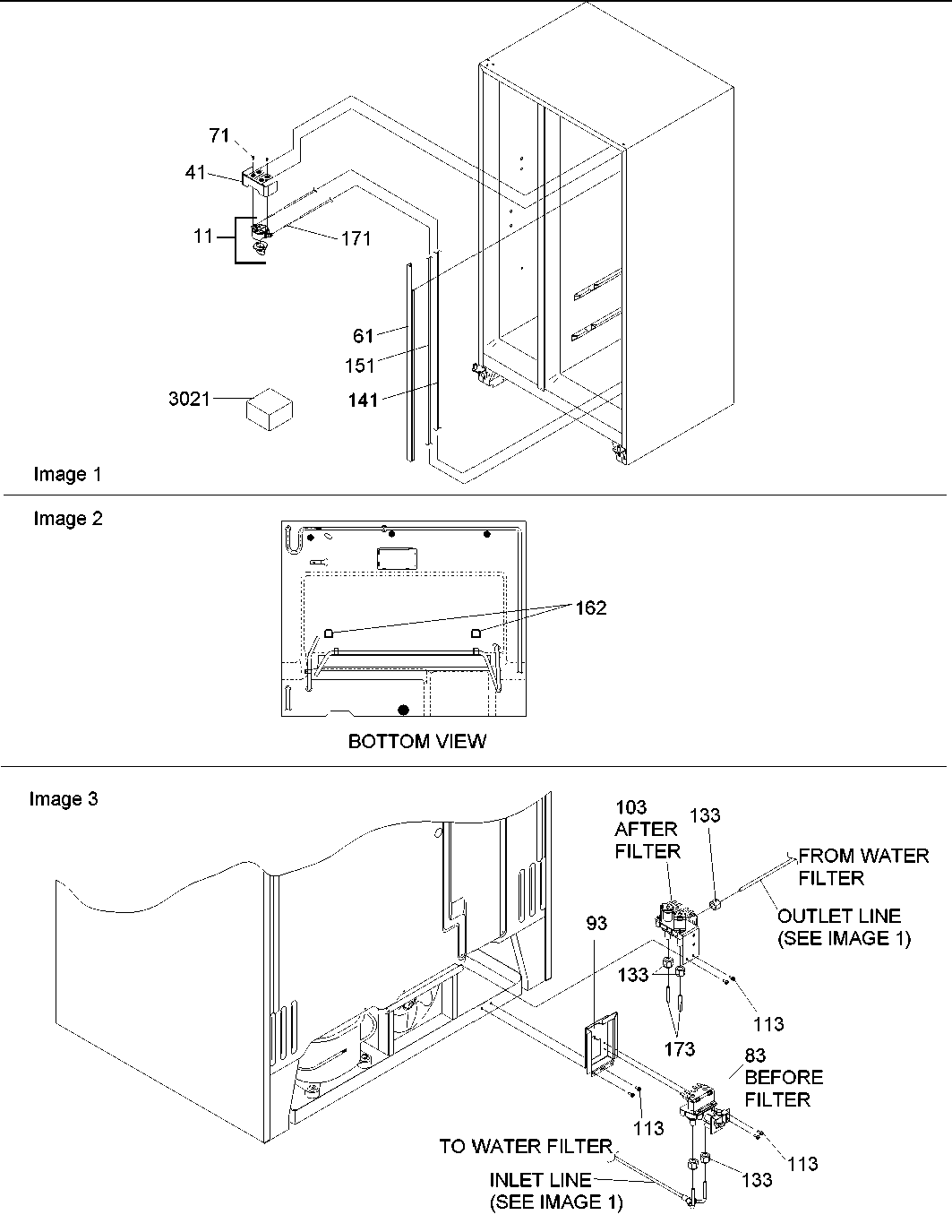

Water filter assy diagram

Fitting

Part #M0753001

The manufacturer no longer makes this part, and there's no substitute part
