Model # 9114534091 Official Kenmore 30" drop-in range

Here are the diagrams and repair parts for Official Kenmore 9114534091 30" drop-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

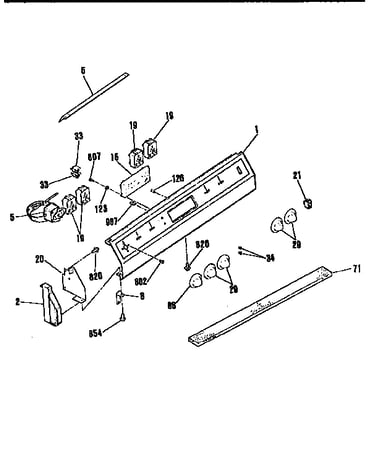

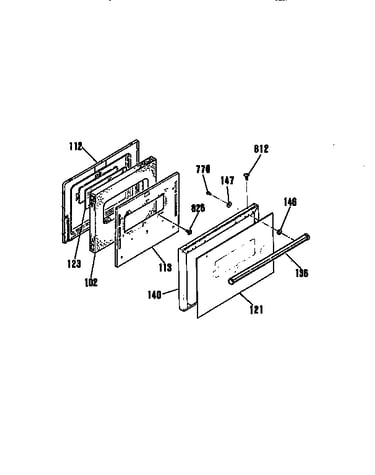

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
40a15bulb STD372401
#257

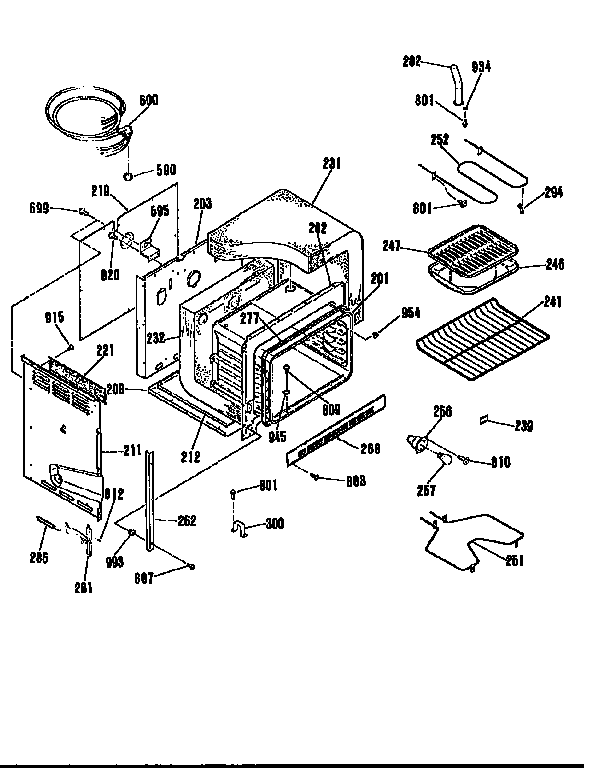

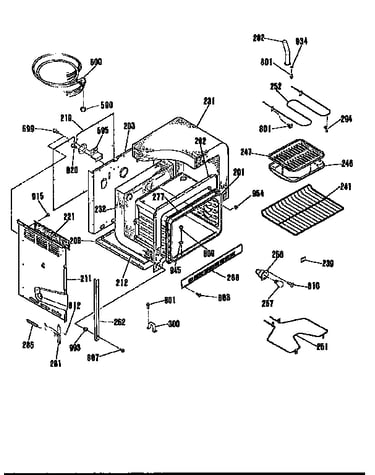

Body section diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
G.e. Range Bake Element (replaces 325883, 340521, 8029,e) WB44K5012
#251

Body section diagram

G.e. range bake element (replaces 325883, 340521, 8029,e)

Part #WB44K5012

BEST SELLER
$43.25 |
12% OFF Phone Price : $49.25
In Stock
Terminal Block Assembly WB17K5017
#82

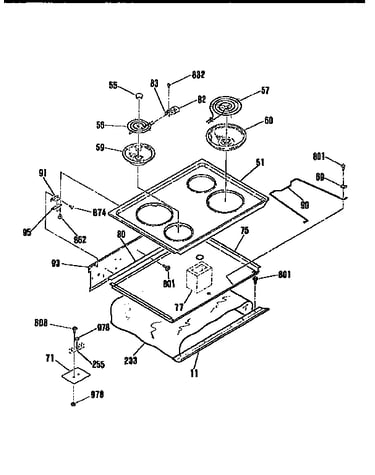

Top section diagram

Terminal block assembly

Part #WB17K5017

Replaced by #WB17X210

?
Manufacturer substitution
This part replaces WB17K5017. Substitute parts can look different from the original.
BEST SELLER
$22.97 |
21% OFF Phone Price : $28.97
In Stock
Drip Pan 8" WB31M0002
#60

Top section diagram

Drip pan 8"

Part #WB31M0002

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces WB31M0002. Substitute parts can look different from the original.
BEST SELLER
$15.00 |
12% OFF Phone Price : $17.00
In Stock
Broil Support WB02X9719
#294

Body section diagram

Broil support

Part #WB02X9719

Replaced by #WB2X9719

?
Manufacturer substitution
This part replaces WB02X9719. Substitute parts can look different from the original.
BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Surf Unit 8" WB30X0253
#57

Top section diagram

Surf unit 8"

Part #WB30X0253

Replaced by #WB30X253

?
Manufacturer substitution
This part replaces WB30X0253. Substitute parts can look different from the original.
BEST SELLER
$57.45 |
9% OFF Phone Price : $63.45
In Stock
Broil Element WB44M0005
#252

Body section diagram

Broil element

Part #WB44M0005

Replaced by #WB44M5

?
Manufacturer substitution
This part replaces WB44M0005. Substitute parts can look different from the original.
$68.07 |
8% OFF Phone Price : $74.07
In Stock
Brnr Bowl 6" WB31M0001
#59

Top section diagram

Brnr bowl 6"

Part #WB31M0001

Replaced by #WB31M1

?
Manufacturer substitution
This part replaces WB31M0001. Substitute parts can look different from the original.
This item is not returnable
$11.39 |
15% OFF Phone Price : $13.39
In Stock
Clip-term Bk WB17X0211
#83

Top section diagram

Clip-term bk

Part #WB17X0211

Replaced by #WB17X211

?
Manufacturer substitution
This part replaces WB17X0211. Substitute parts can look different from the original.
$8.87 |
10% OFF Phone Price : $9.87
In Stock
Screw WB01X1137
#809

Body section diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
