Model # 217586261 Official Craftsman outboard motor

Here are the diagrams and repair parts for Official Craftsman 217586261 outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

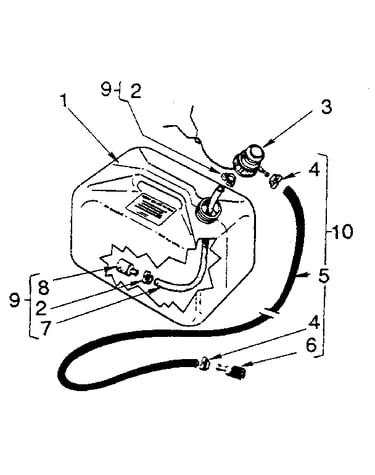

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 316 parts  |
Sealer 510304A
#62

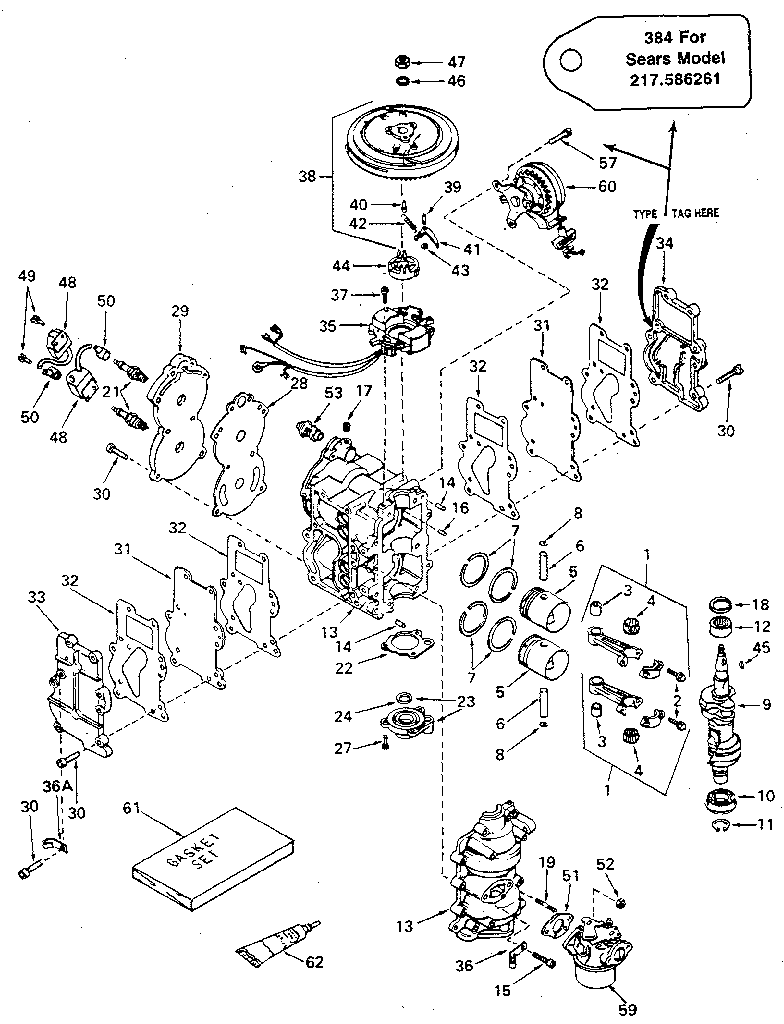

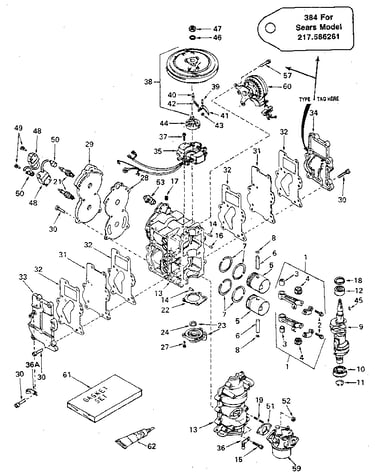

Engine type 384b diagram

Sealer

Part #510304A

The manufacturer no longer makes this part, and there's no substitute part

Spring 630735
#8A

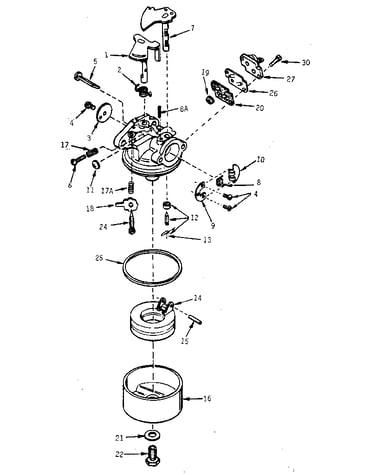

Carburetor nos. diagram

Spring

Part #630735

The manufacturer no longer makes this part, and there's no substitute part

Clip 631022
#13

Carburetor nos. diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

Preway Roll Pin 7058
#29

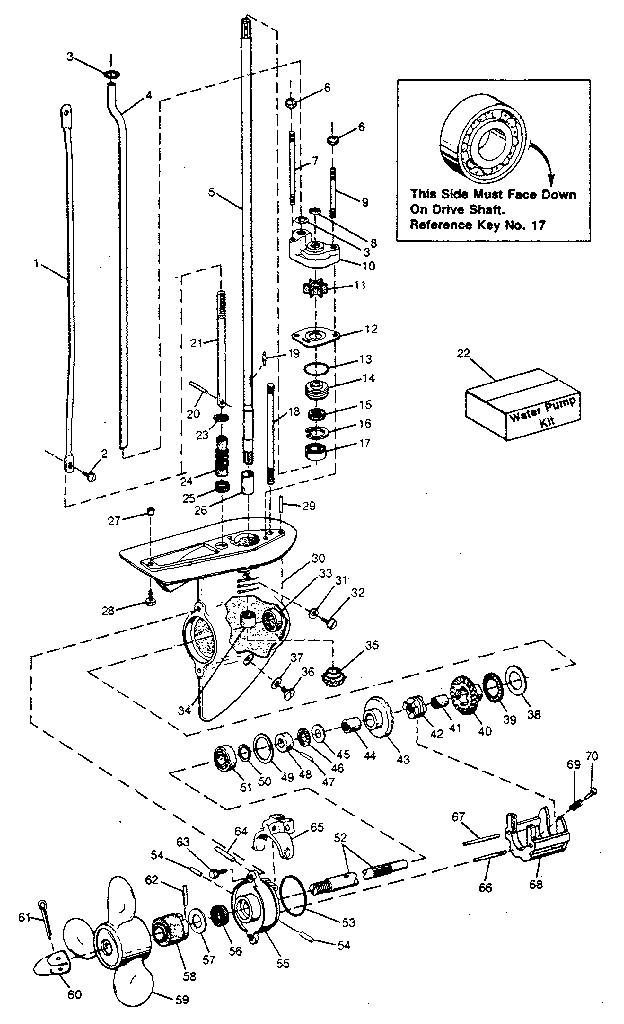

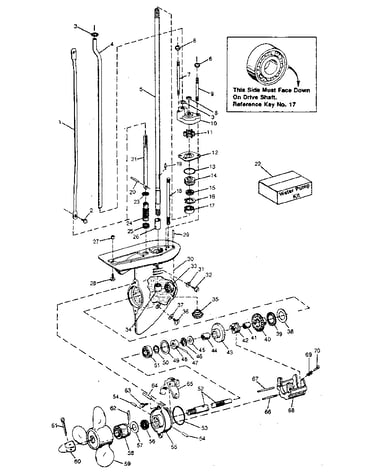

Gear housing assembly diagram

Preway roll pin

Part #7058

The manufacturer no longer makes this part, and there's no substitute part

Screw 699
#19

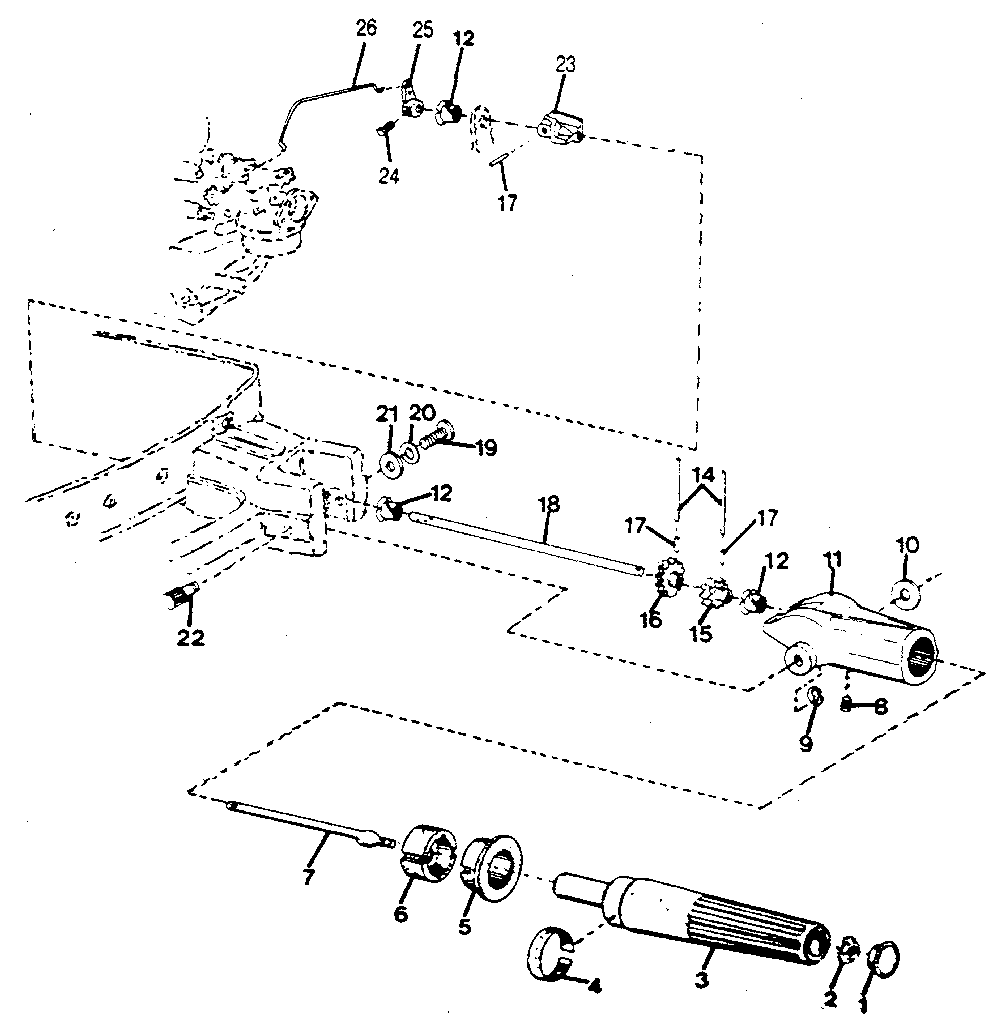

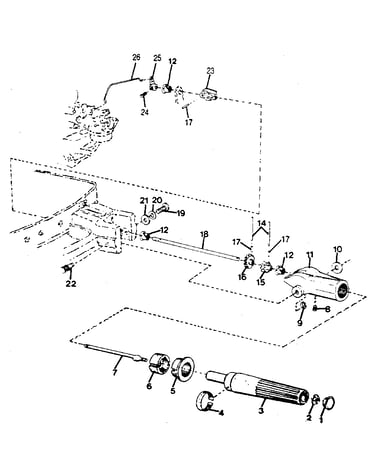

Twist grip assembly diagram

Screw

Part #699

The manufacturer no longer makes this part, and there's no substitute part

Preway Boat Motor Oil Seal 96009
#15

Gear housing assembly diagram

Preway boat motor oil seal

Part #96009

The manufacturer no longer makes this part, and there's no substitute part

Tecumseh Bearing 26314
#46

Gear housing assembly diagram

Tecumseh bearing

Part #26314

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Washer 5631
#41

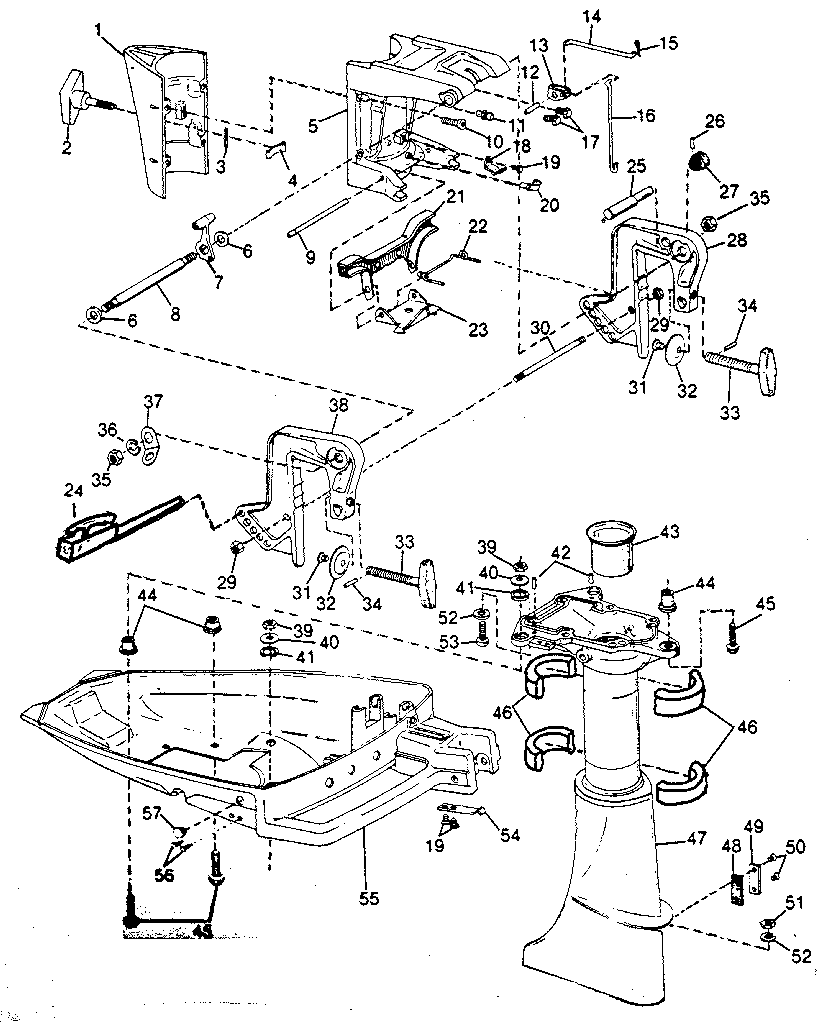

Column assembly diagram

Boat motor washer

Part #5631

The manufacturer no longer makes this part, and there's no substitute part

Tecumseh Gasket (gray) 26352
#48

Column assembly diagram

Tecumseh gasket (gray)

Part #26352

The manufacturer no longer makes this part, and there's no substitute part

Shift Lever Handle 76130
#63

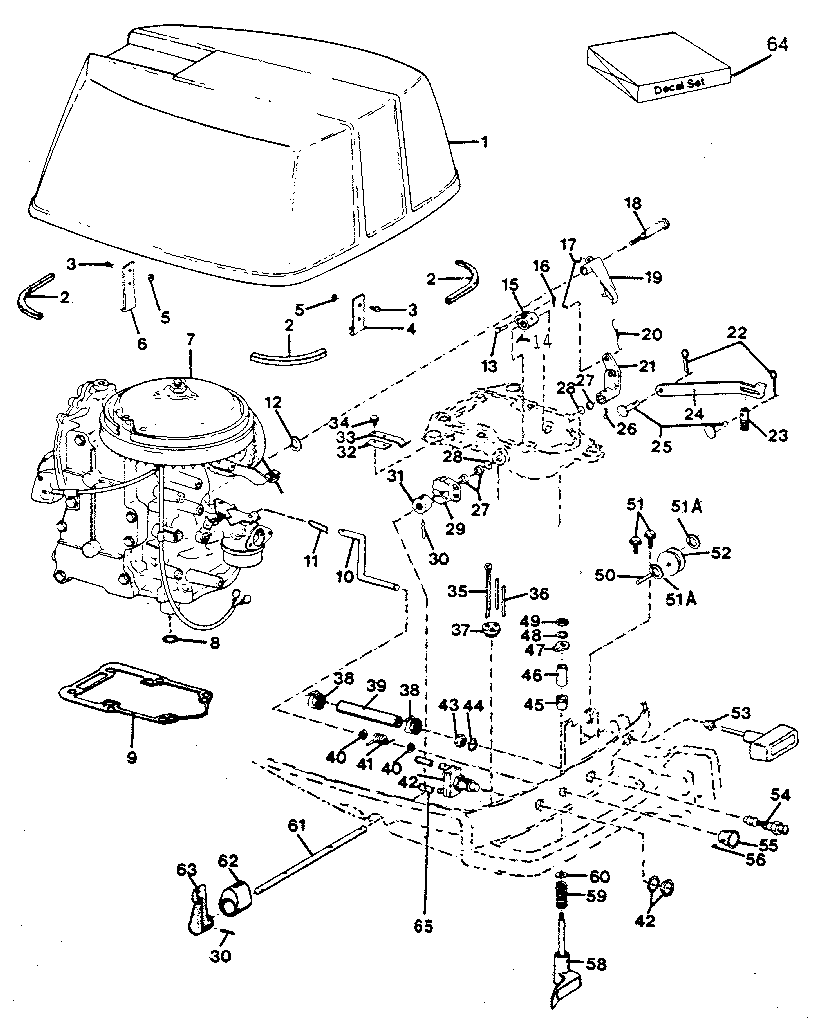

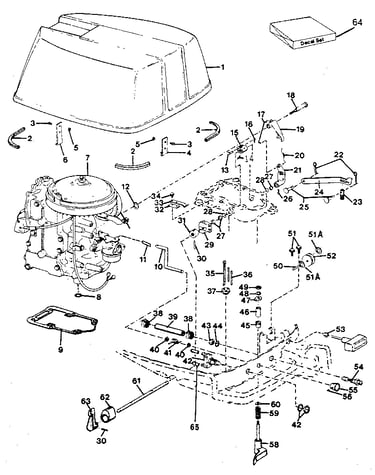

Power head assembly diagram

Shift lever handle

Part #76130

The manufacturer no longer makes this part, and there's no substitute part
