Model # 59667949701 Official Kenmore bottom-mount refrigerator
Here are the diagrams and repair parts for Official Kenmore 59667949701 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

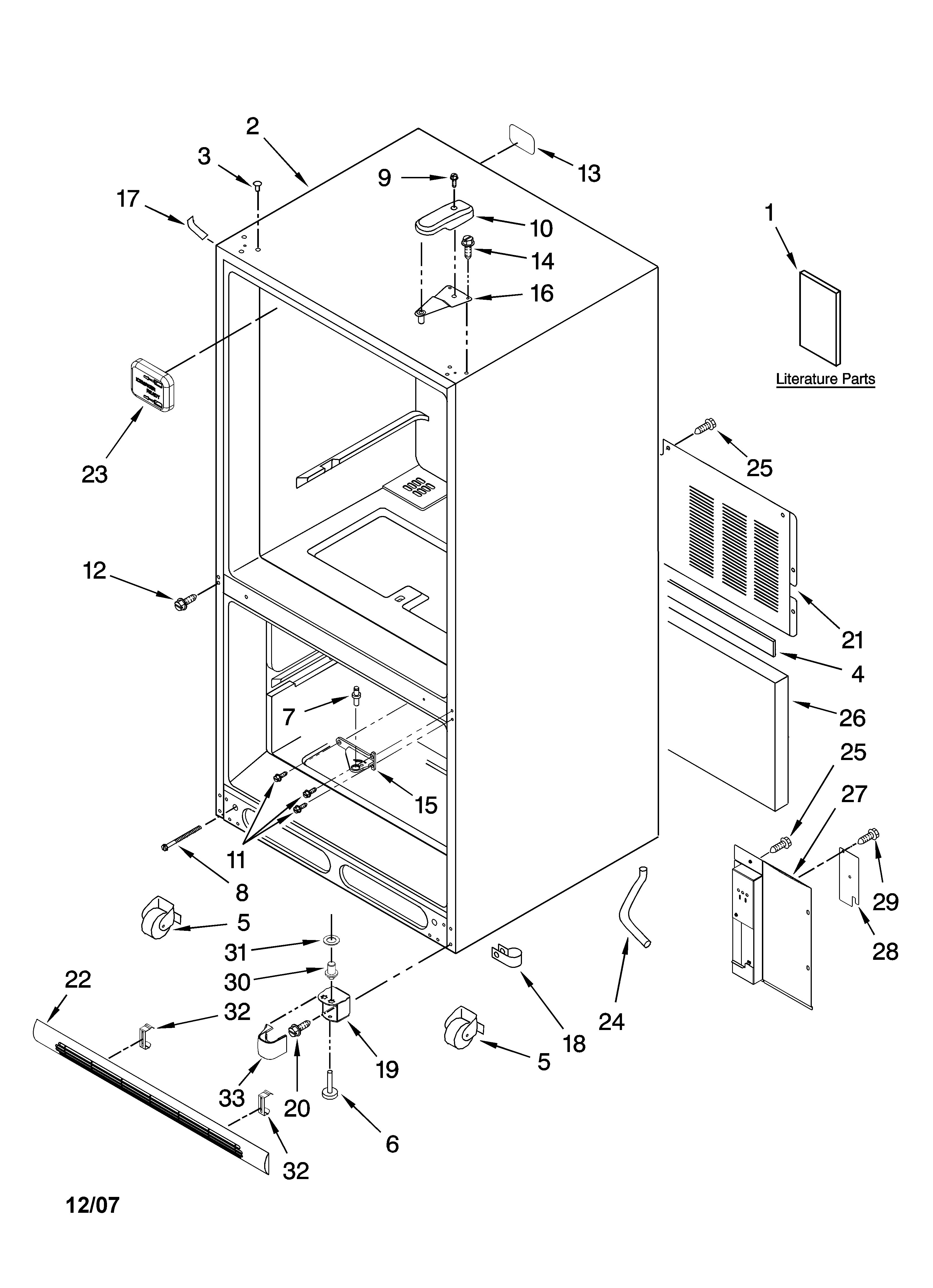

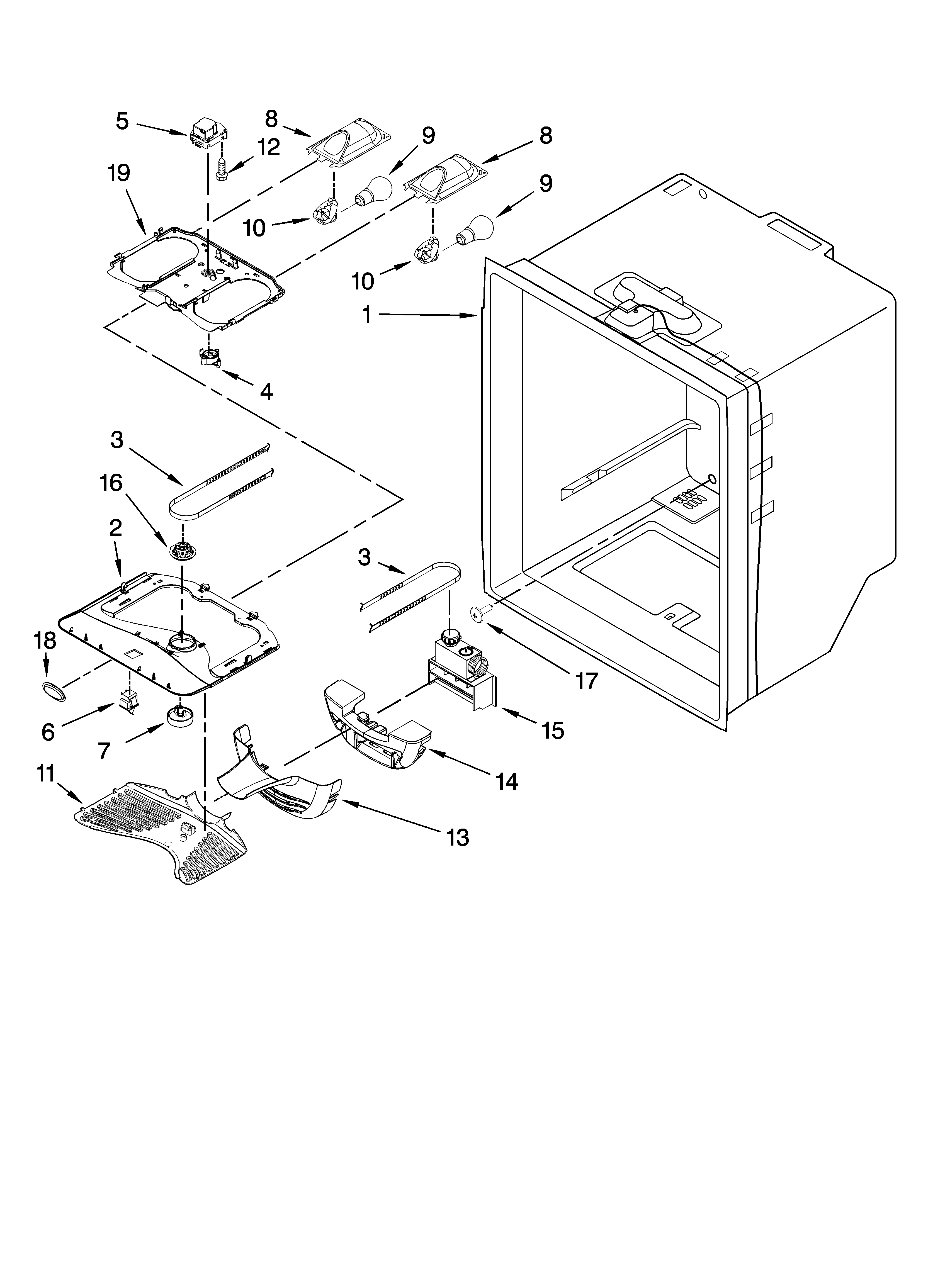

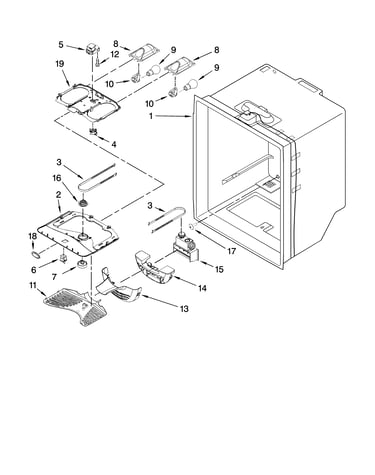

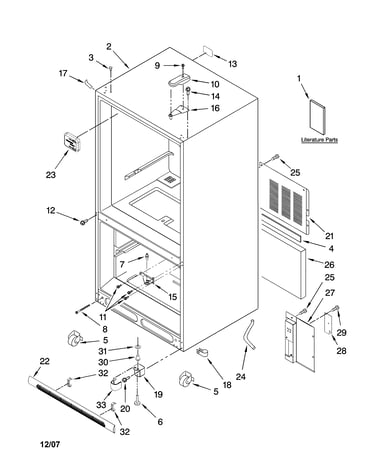

SELECT DIAGRAM
Browse Parts for59667949701 Refrigerators
- #100

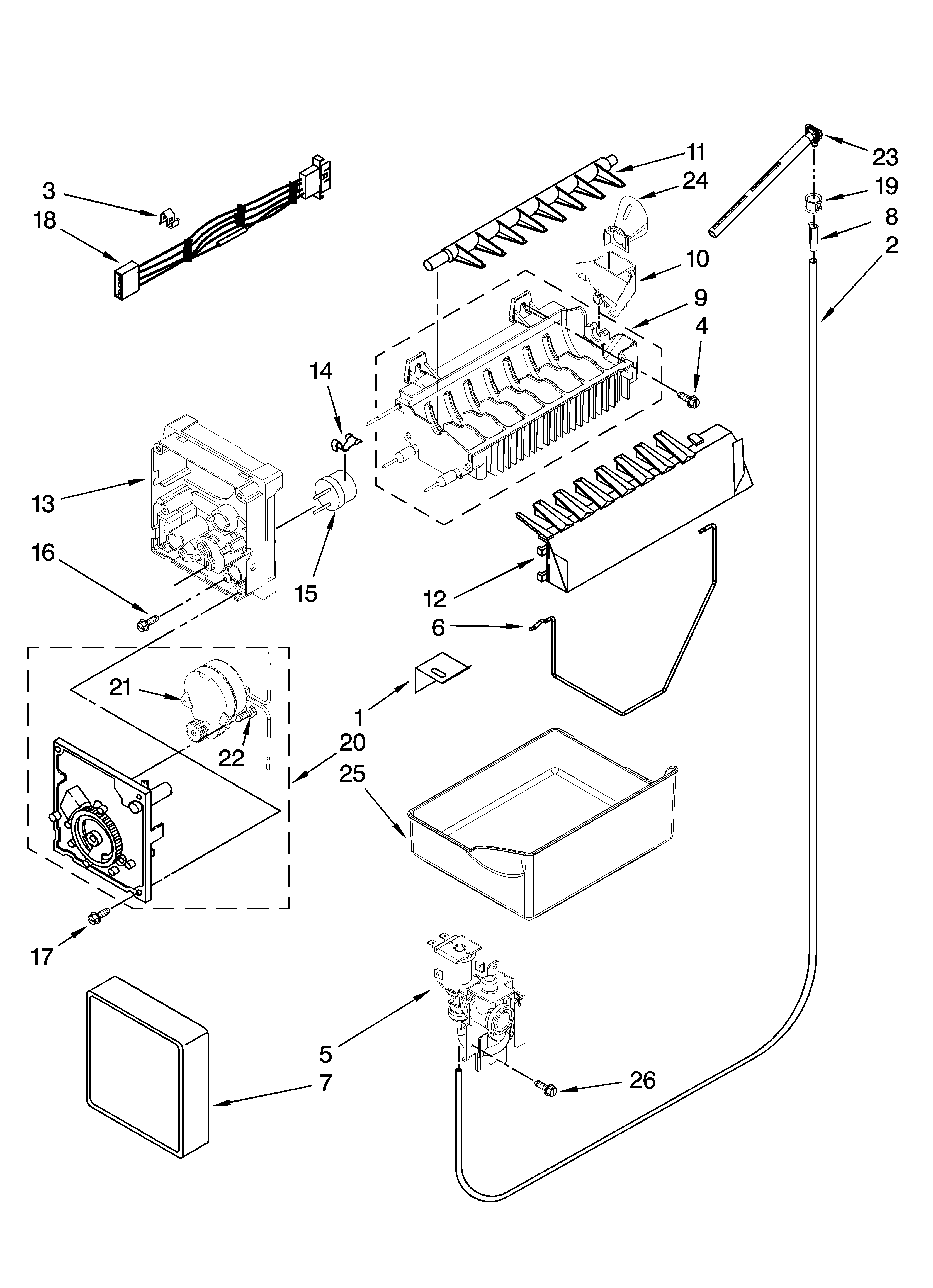

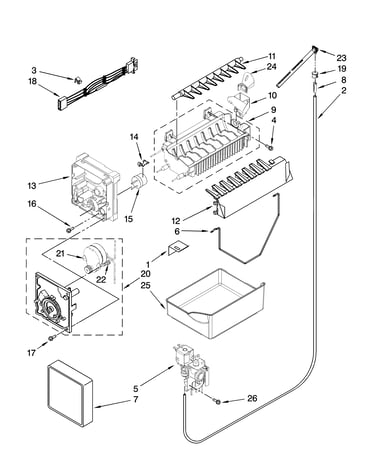

Icemaker parts, optional parts (not included) diagram
Ice maker assembly - refrigerator ice maker by whirlpoolPart #4317943
$100.68 |11% OFF Phone Price : $112.68In Stock - #16

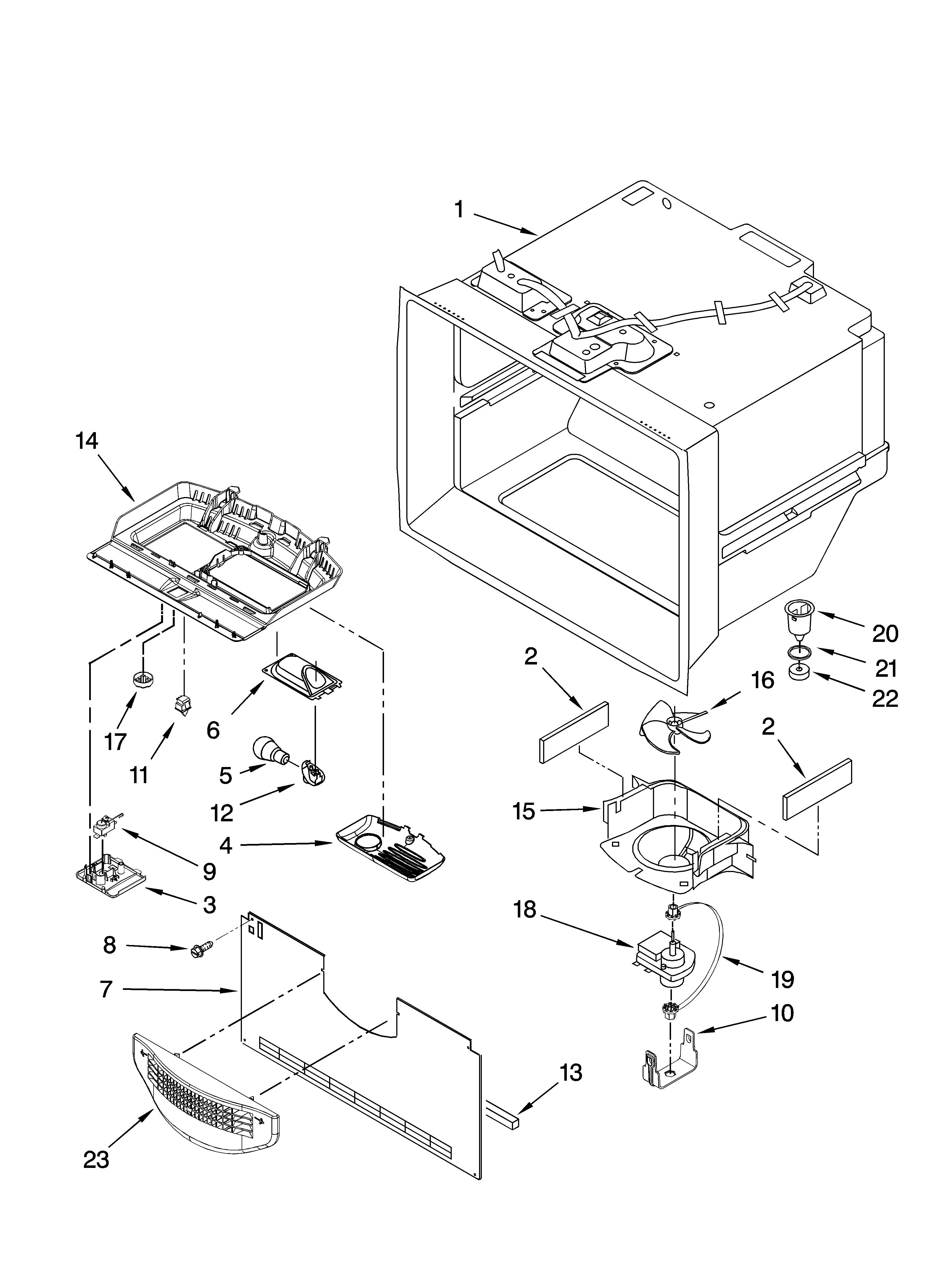

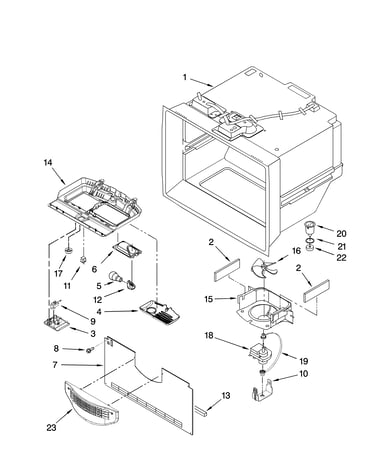

Freezer liner parts diagram
Refrigerator evaporator fan bladePart #2169142
Replaced by #WP2169142
?Manufacturer substitutionThis part replaces 2169142. Substitute parts can look different from the original.$24.98 |19% OFF Phone Price : $30.98In Stock - #29

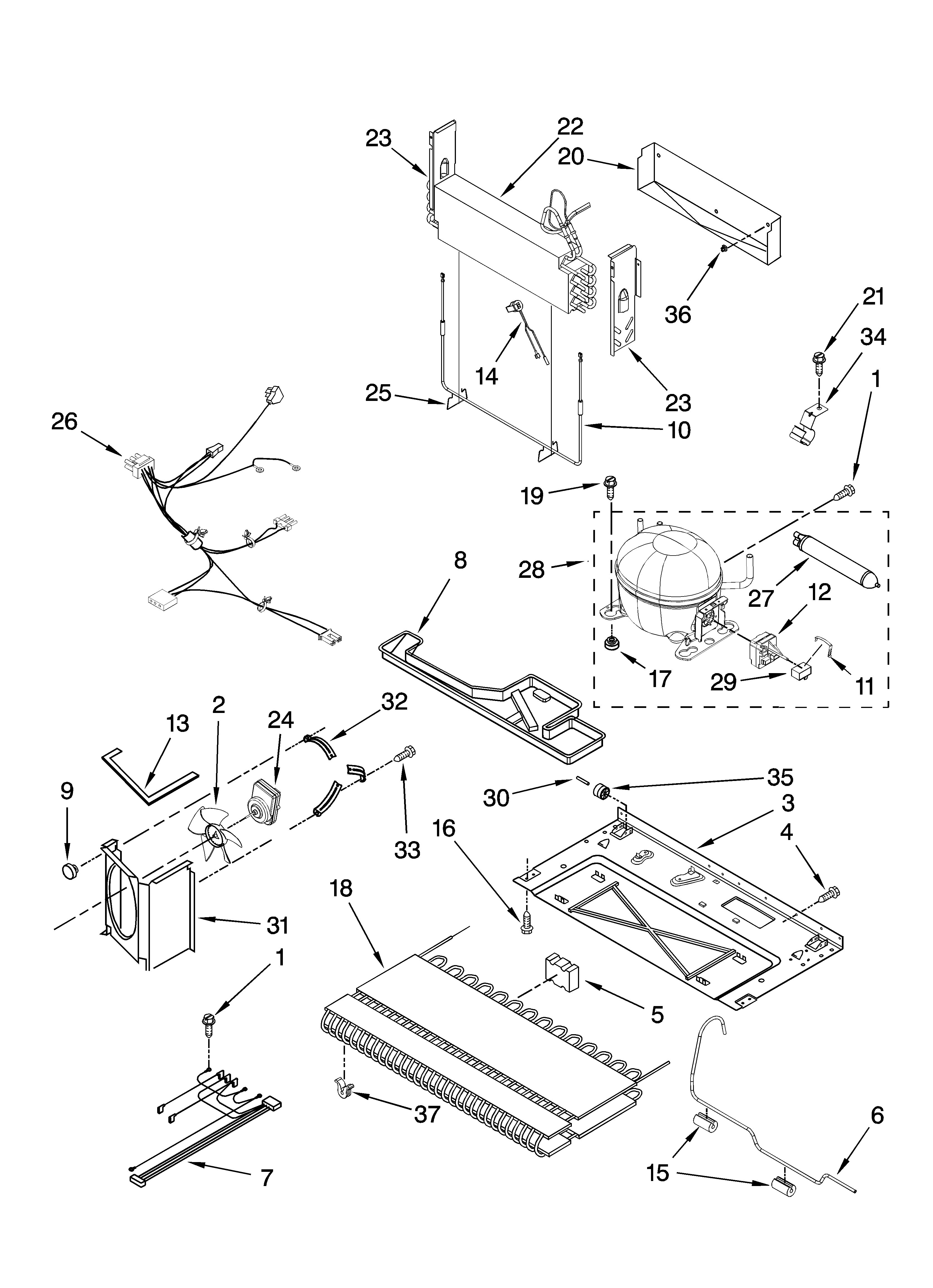

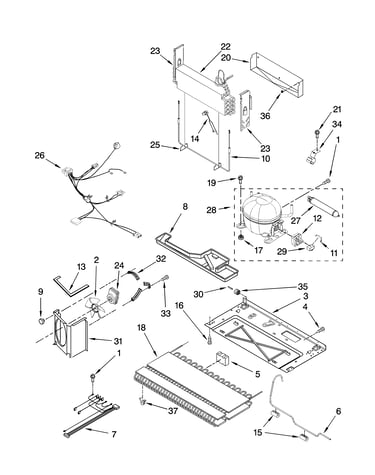

Unit parts diagram
Capacitor w/Part #67005562
Replaced by #W10613606
?Manufacturer substitutionThis part replaces 67005562. Substitute parts can look different from the original.$50.52 |11% OFF Phone Price : $56.52In Stock - #2
Unit parts diagram
Refrigerator fan bladePart #W10162928
Replaced by #W10156818
?Manufacturer substitutionThis part replaces W10162928. Substitute parts can look different from the original.$44.74 |12% OFF Phone Price : $50.74In Stock - #23
Freezer liner parts diagram
Refrigerator grillePart #W10175909
Replaced by #WPW10175909
?Manufacturer substitutionThis part replaces W10175909. Substitute parts can look different from the original.$32.91 |15% OFF Phone Price : $38.91In Stock - #3

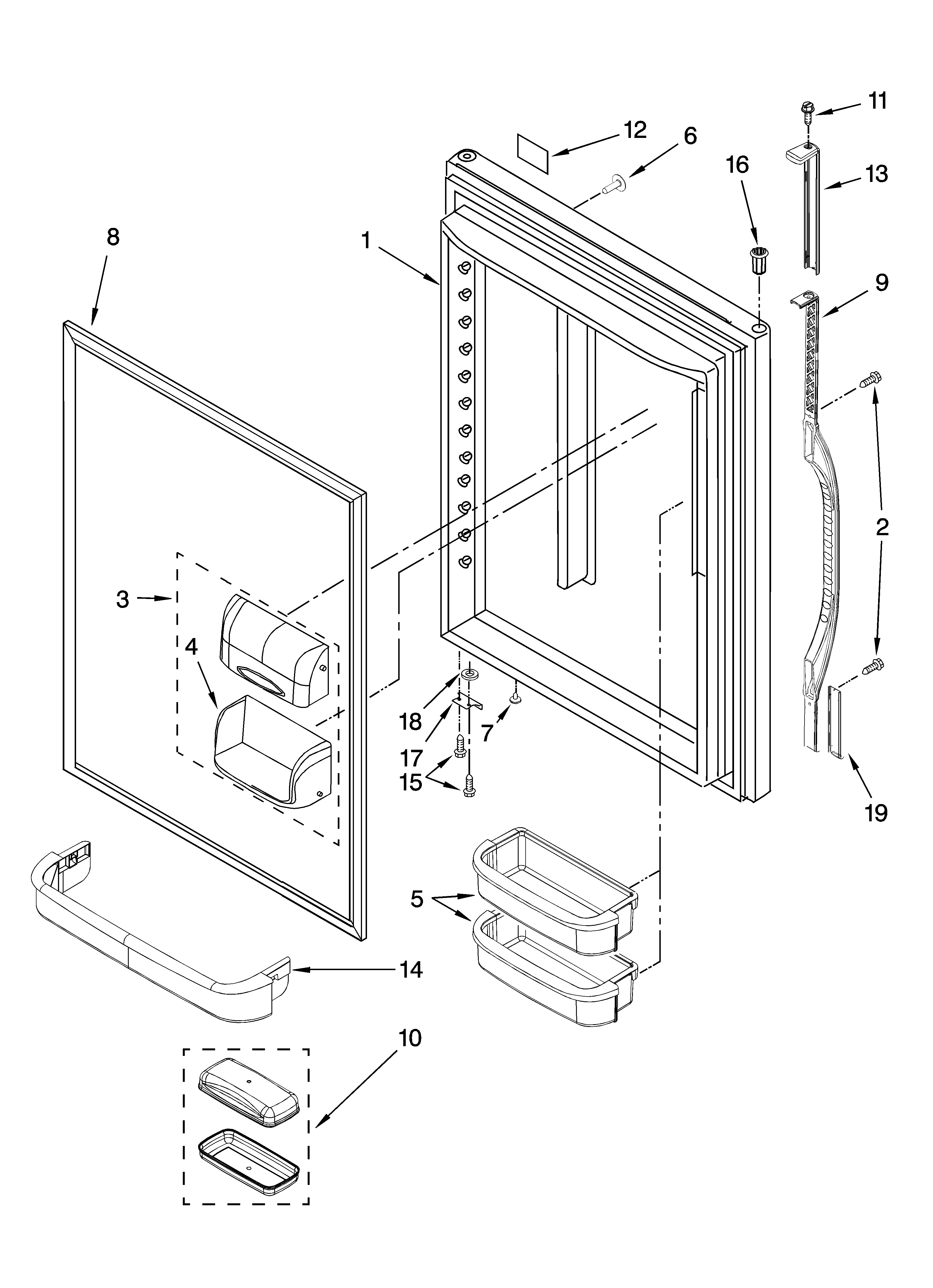

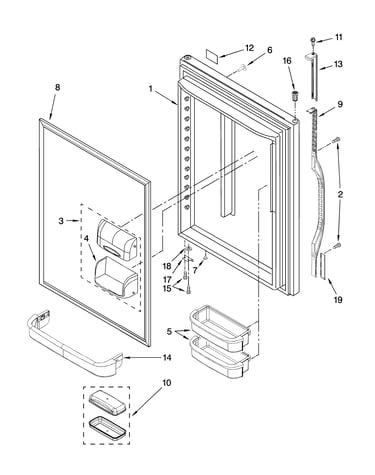

Freezer door parts diagram
Gasket, fz dPart #W10130150
Replaced by #WPW10443311
?Manufacturer substitutionThis part replaces W10130150. Substitute parts can look different from the original.$170.82 |7% OFF Phone Price : $182.82In Stock - Refrigerator light socket
Part #Y12570701
Replaced by #W11447232
?Manufacturer substitutionThis part replaces Y12570701. Substitute parts can look different from the original.This item is not returnable$7.82 |11% OFF Phone Price : $8.82In Stock - #NI
Icemaker parts, optional parts (not included) diagram
Appliance silicone lubricantPart #542638
Replaced by #WP542638
?Manufacturer substitutionThis part replaces 542638. Substitute parts can look different from the original.$31.44 |16% OFF Phone Price : $37.44In Stock - #16

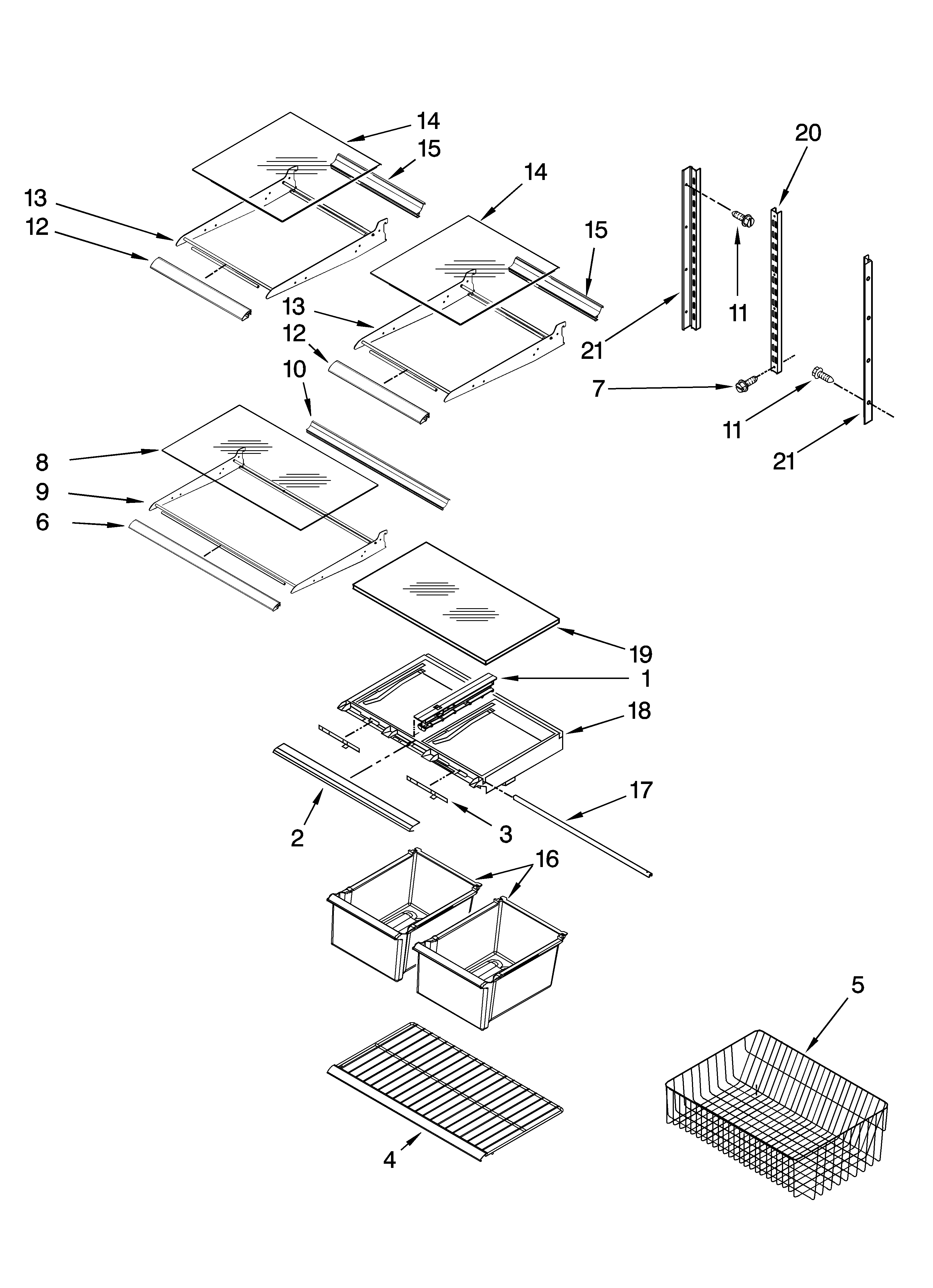

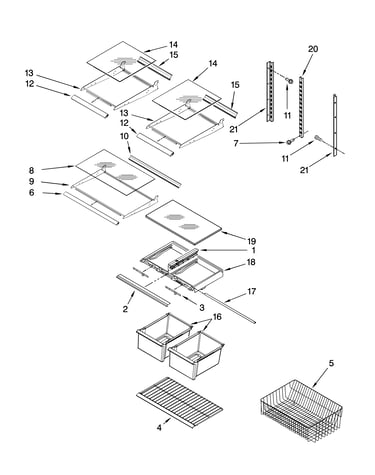

Shelf parts diagram
Refrigerator crisper drawerPart #67002569
Replaced by #W10833528
?Manufacturer substitutionThis part replaces 67002569. Substitute parts can look different from the original.$87.62 |6% OFF Phone Price : $93.62In Stock - #13
Icemaker parts, optional parts (not included) diagram
Ice maker housingPart #2194712
Replaced by #WP2195914
?Manufacturer substitutionThis part replaces 2194712. Substitute parts can look different from the original.$43.91 |12% OFF Phone Price : $49.91In Stock
