Kenmore Elite
Dishwasher

Model # 665133435 Official Kenmore Elite drawer dishwasher

Here are the diagrams and repair parts for Official Kenmore Elite 665133435 drawer dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

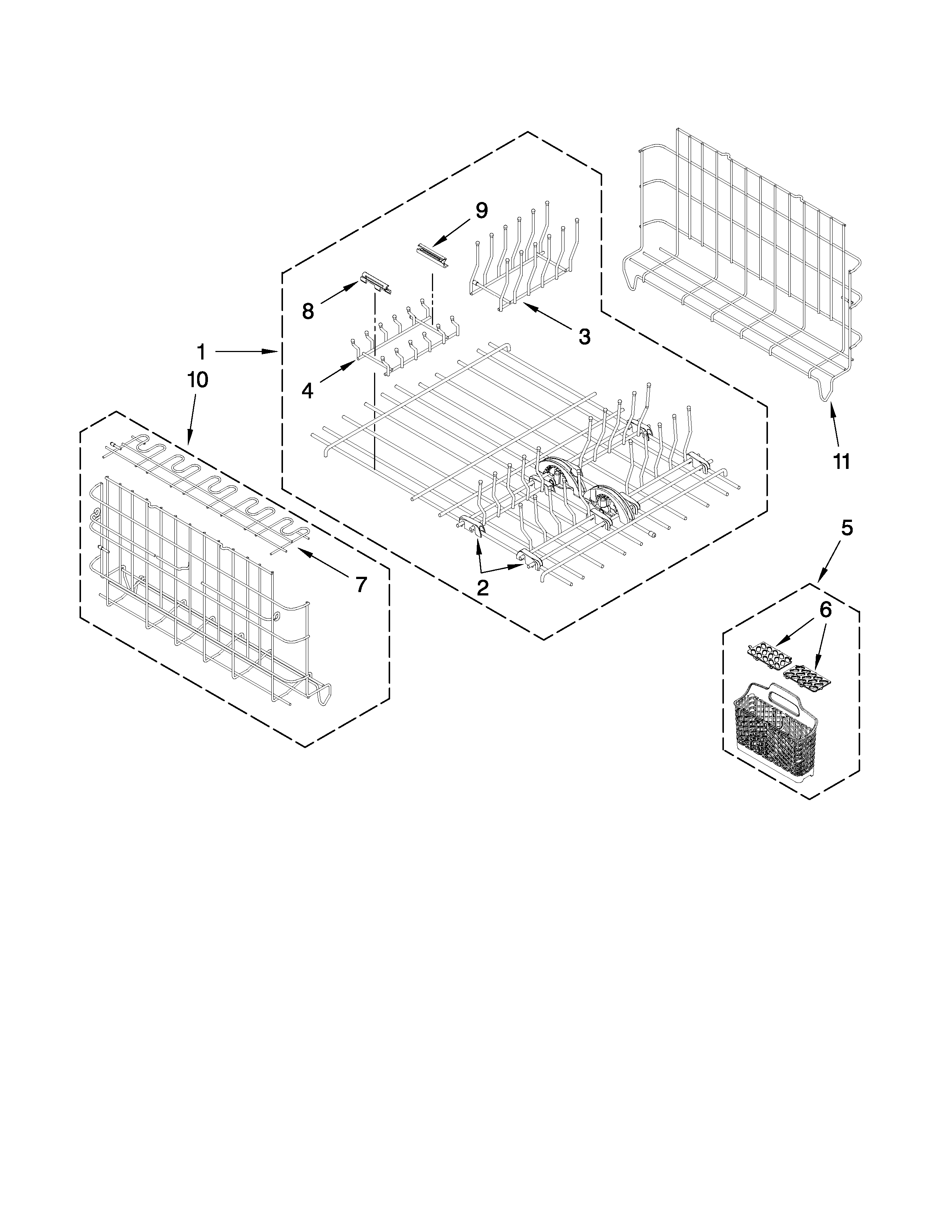

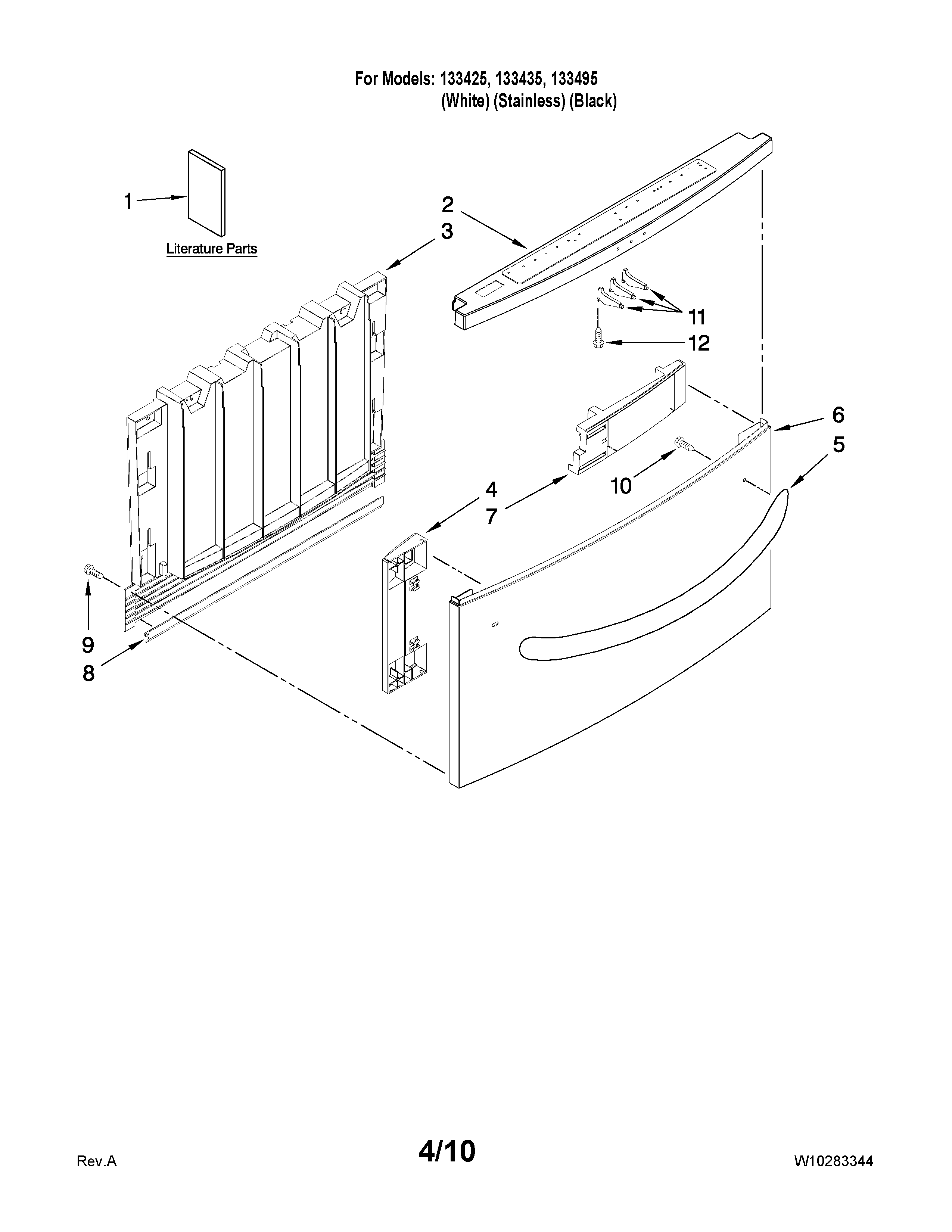

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Clamp 6-920322
#22

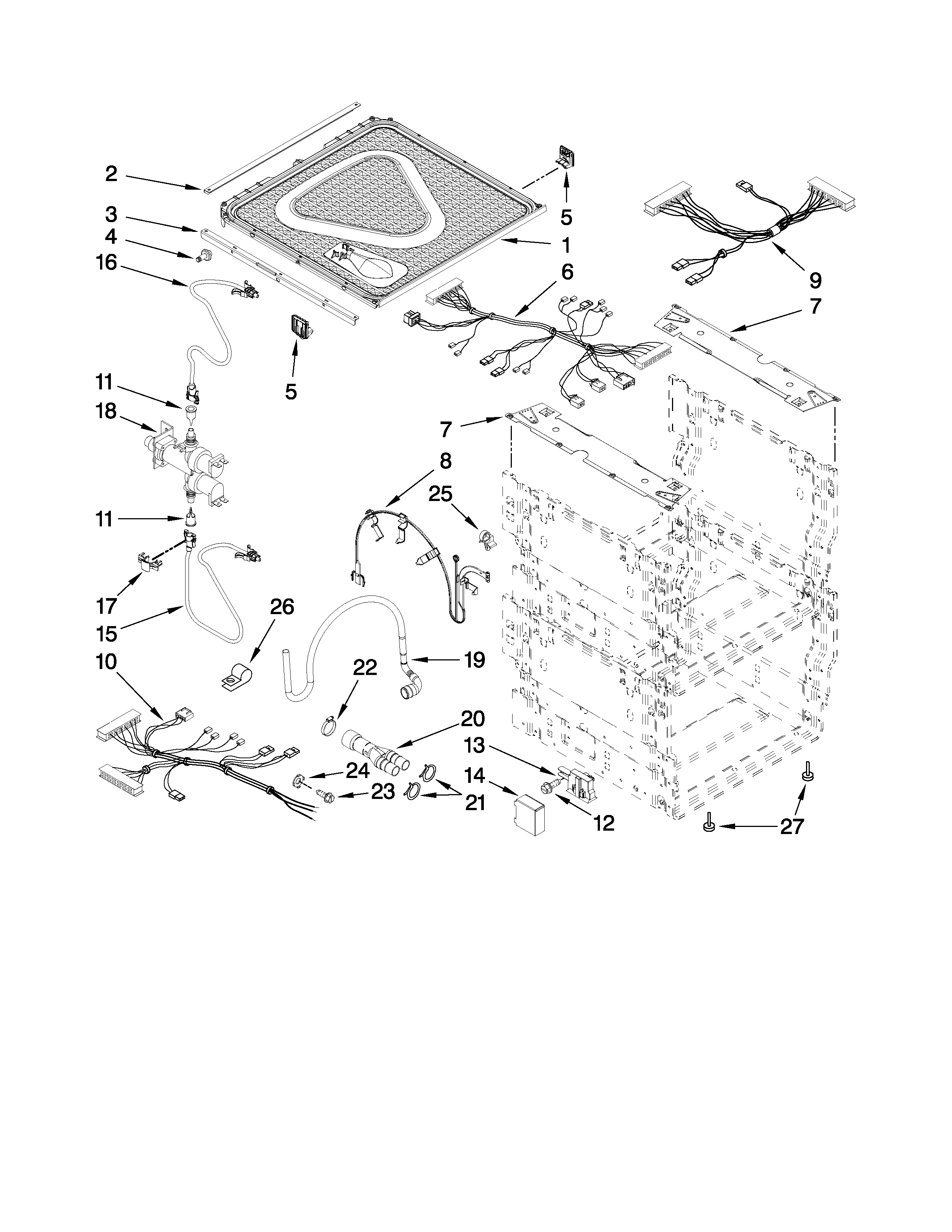

Frame and lid parts diagram

Clamp

Part #6-920322

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 6-920322. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Clamp 6-919982
#23

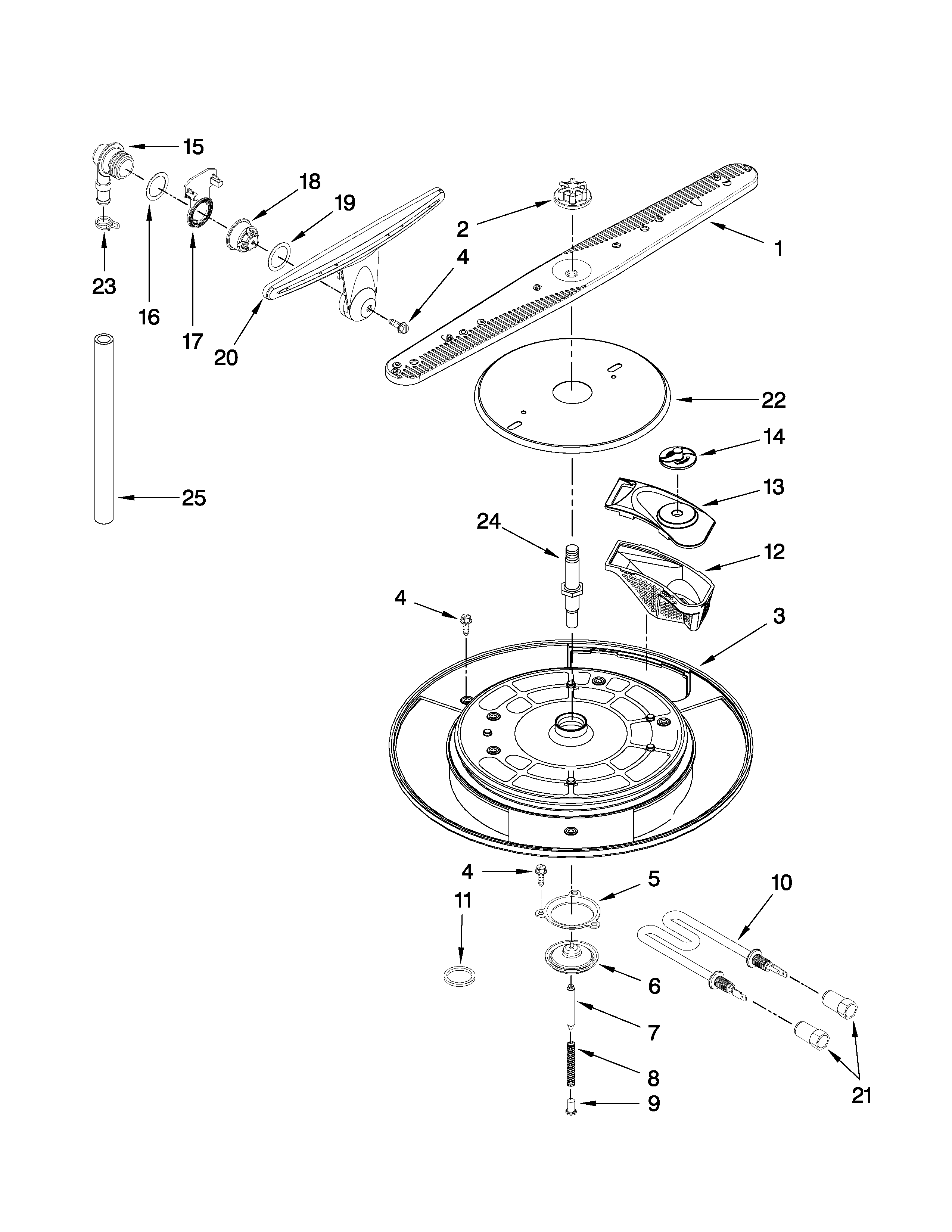

Wash system parts diagram

Clamp

Part #6-919982

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 6-919982. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Bezel 6-919693
#3

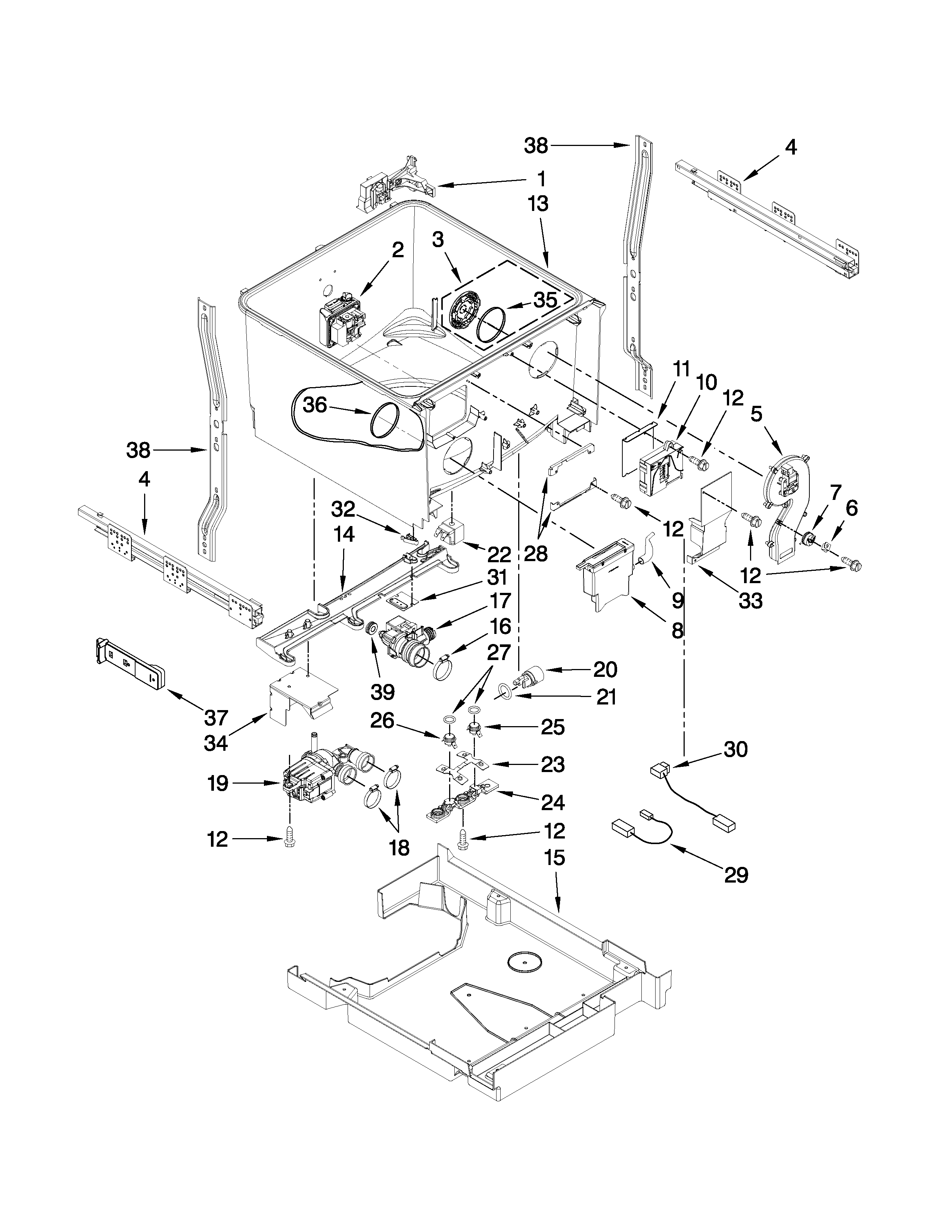

Tub parts diagram

Bezel

Part #6-919693

Replaced by #WP99003605

?
Manufacturer substitution
This part replaces 6-919693. Substitute parts can look different from the original.
BEST SELLER
$13.89 |
13% OFF Phone Price : $15.89
In Stock
Cap Washer 6-918306
#2

Wash system parts diagram

Cap washer

Part #6-918306

Replaced by #WP99003083

?
Manufacturer substitution
This part replaces 6-918306. Substitute parts can look different from the original.
This item is not returnable
$6.90 |
13% OFF Phone Price : $7.90
In Stock
Fuse 6-919376
#25

Tub parts diagram

Fuse

Part #6-919376

Replaced by #99003624

?
Manufacturer substitution
This part replaces 6-919376. Substitute parts can look different from the original.
$36.95 |
14% OFF Phone Price : $42.95
In Stock
Shield Drp 6-919650
#14

Tub parts diagram

Shield drp

Part #6-919650

Replaced by #WPY6919650

?
Manufacturer substitution
This part replaces 6-919650. Substitute parts can look different from the original.
$29.67
In Stock
Toe Kick Slide Y6920296
#6

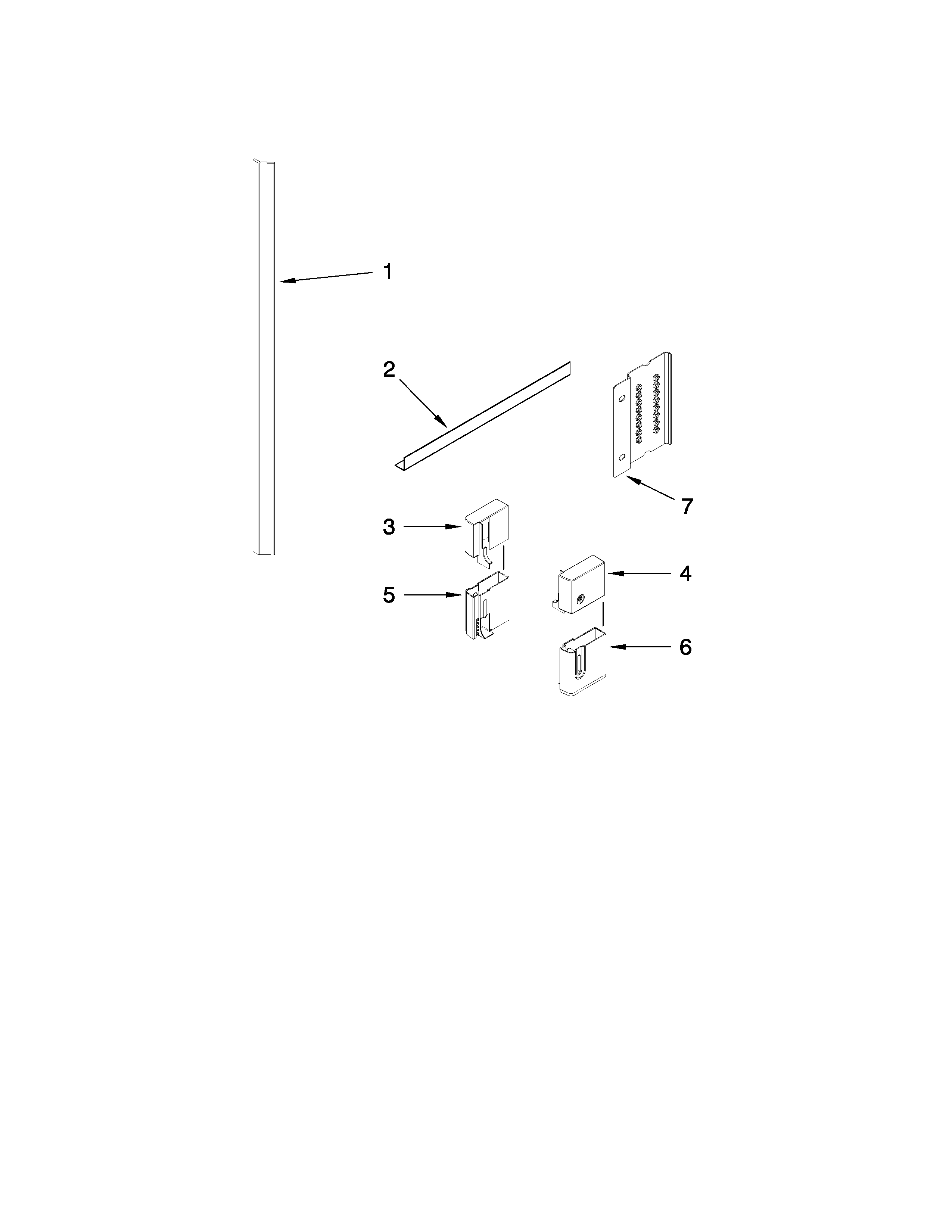

Accessory parts diagram

Toe kick slide

Part #Y6920296

$37.49 |
14% OFF Phone Price : $43.49
In Stock
Dishwasher Fine Drain Shaft Filter 6-920340
#9

Wash system parts diagram

Dishwasher fine drain shaft filter

Part #6-920340

$9.49 |
10% OFF Phone Price : $10.49
In Stock
Toe Kick Slide (black) Y6920294
#5

Accessory parts diagram

Toe kick slide (black)

Part #Y6920294

$37.56
In Stock
Dishwasher Lower Spray Arm Pivot Shaft 6-916824
#24

Wash system parts diagram

Dishwasher lower spray arm pivot shaft

Part #6-916824

$31.59 |
16% OFF Phone Price : $37.59
In Stock
