Amana
Side-By-Side Refrigerator

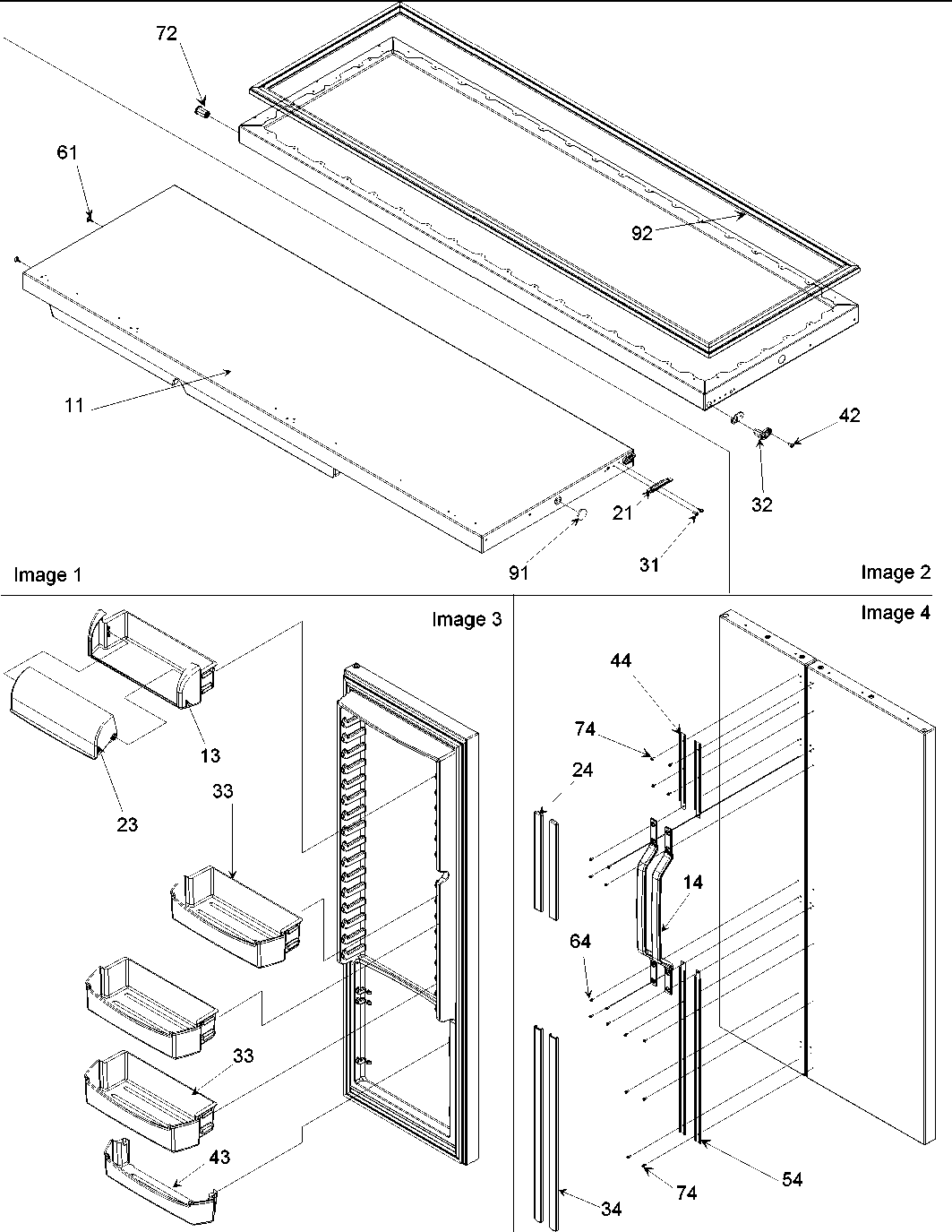

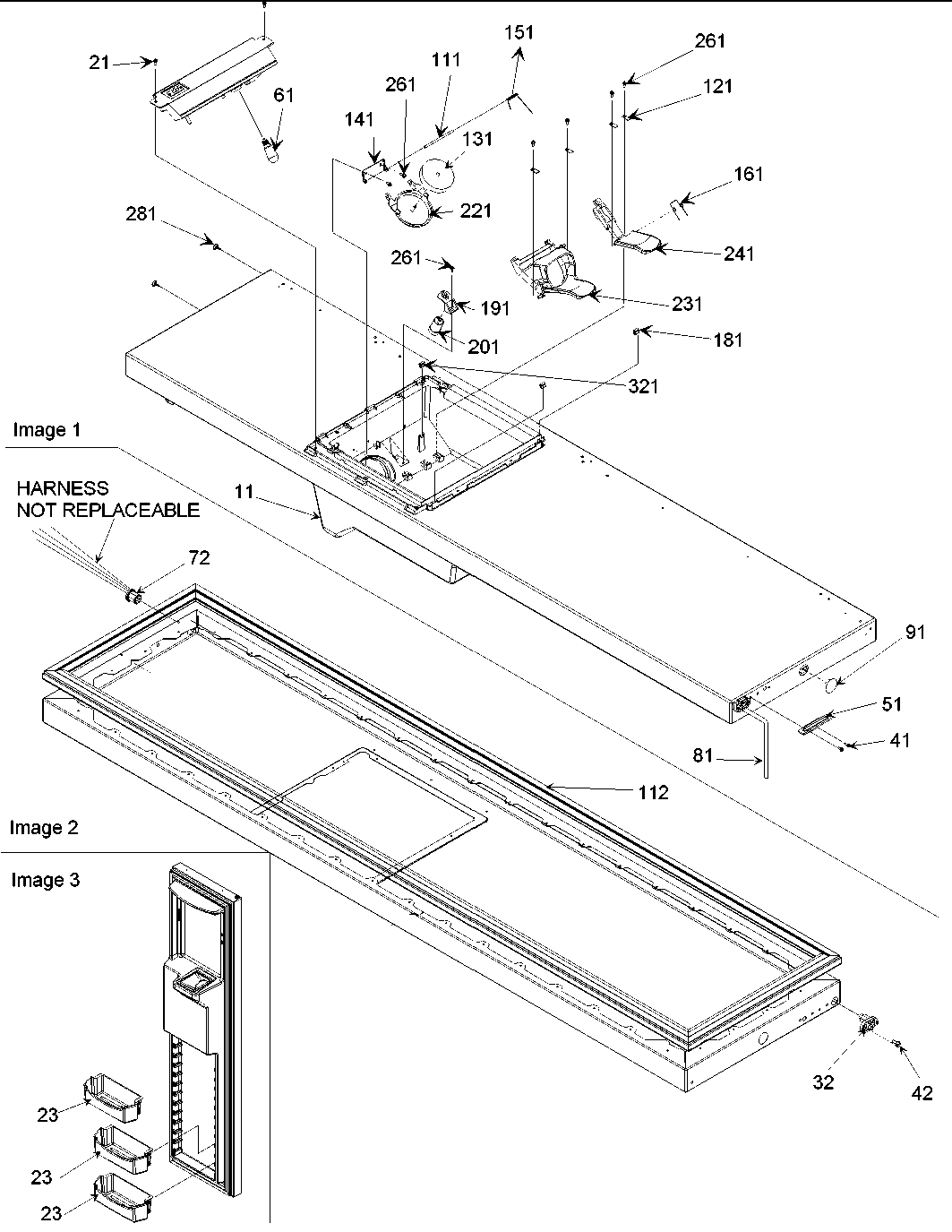

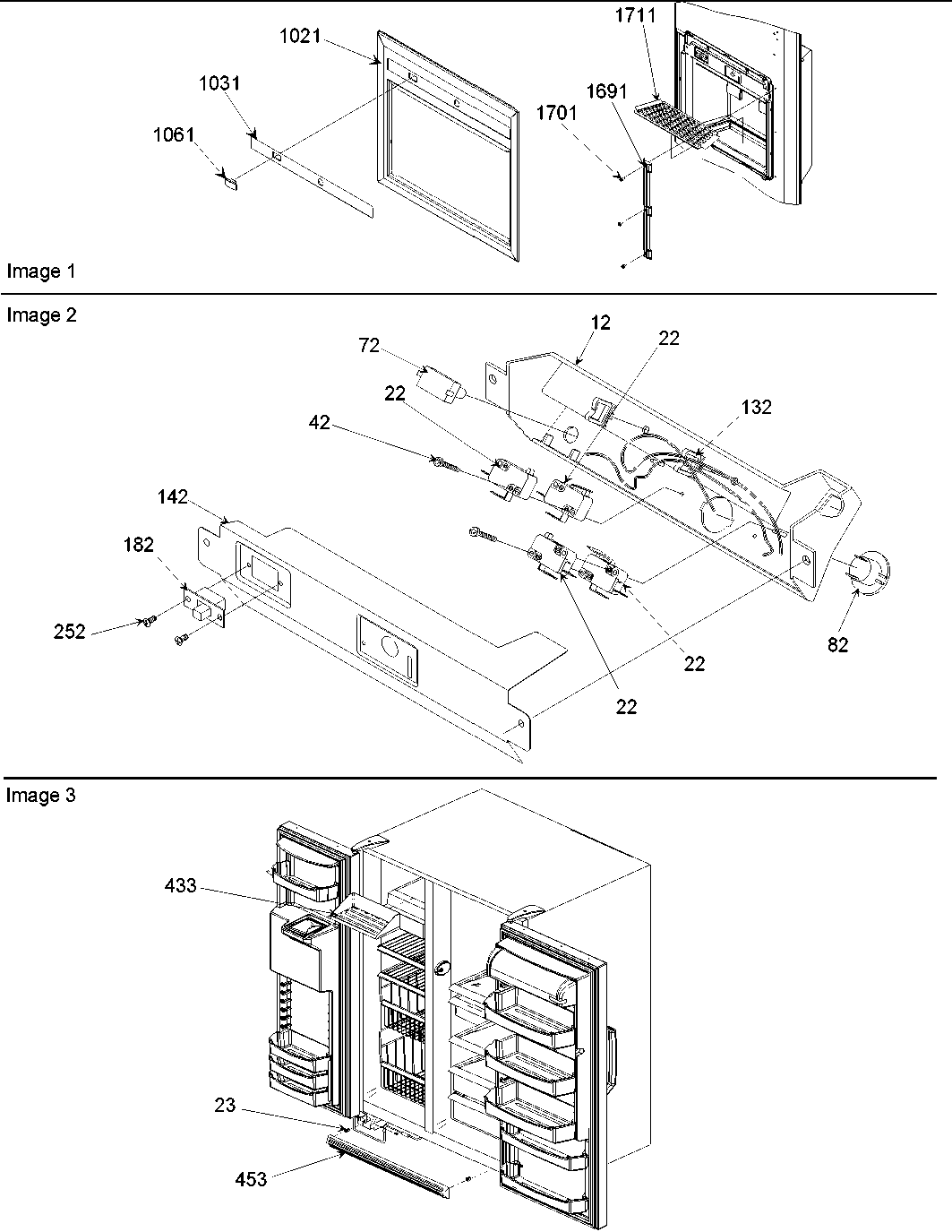

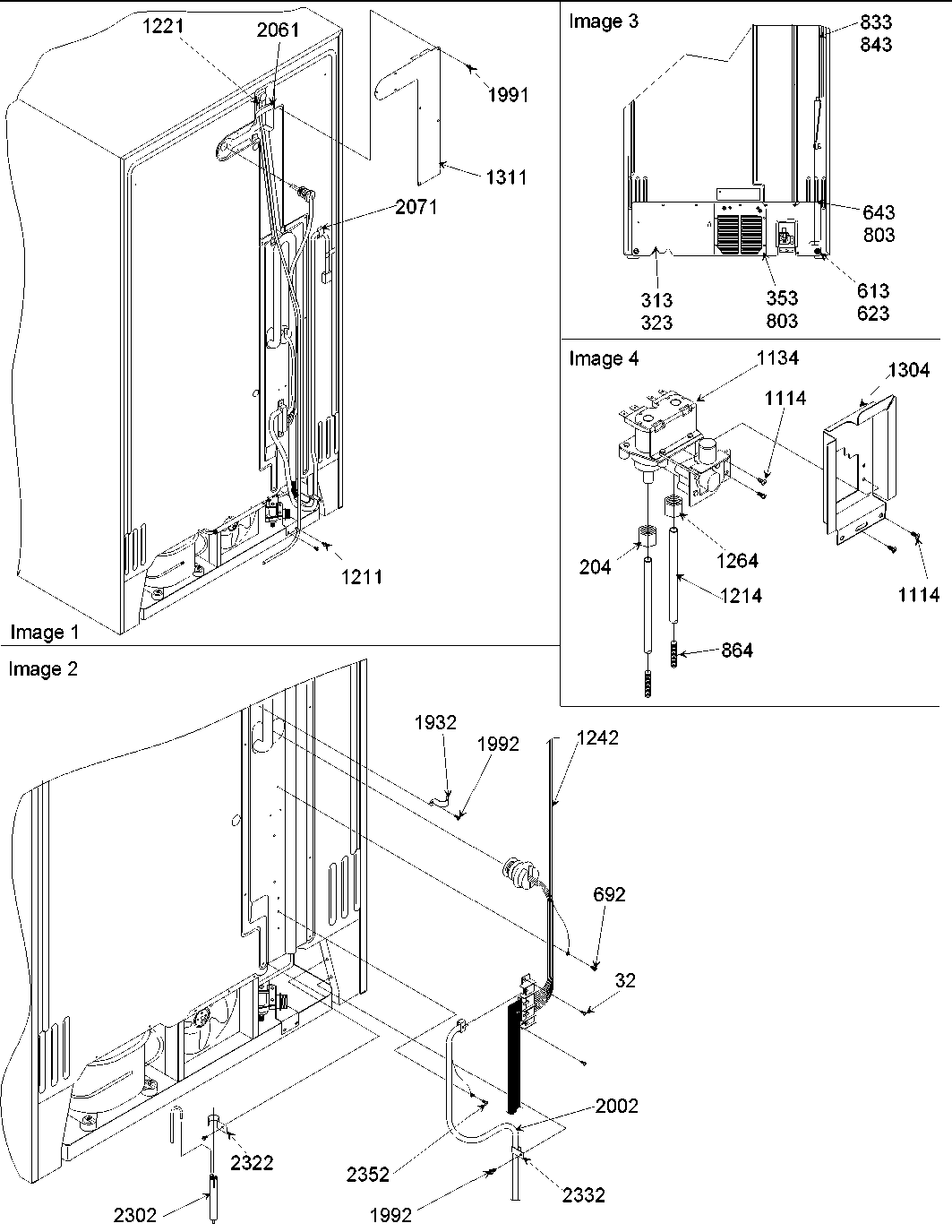

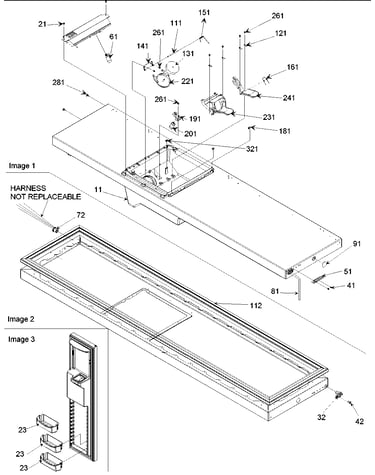

Model # ARS236XAW-PARS236XAW0 Official Amana side-by-side refrigerator

Here are the diagrams and repair parts for Official Amana ARS236XAW-PARS236XAW0 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

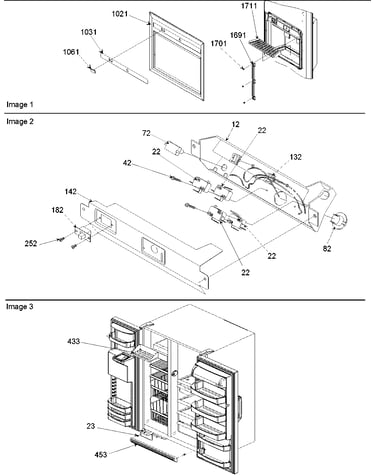

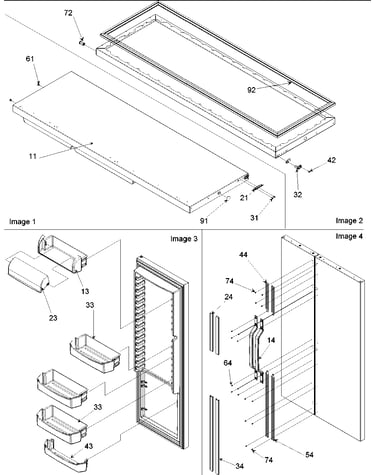

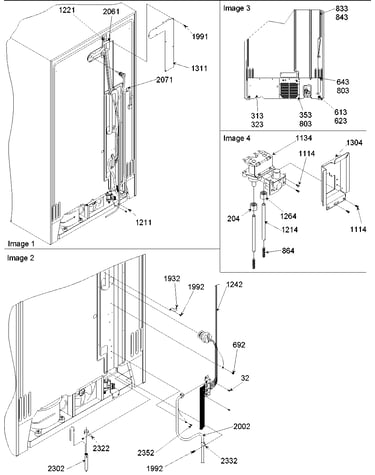

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 284 parts  |

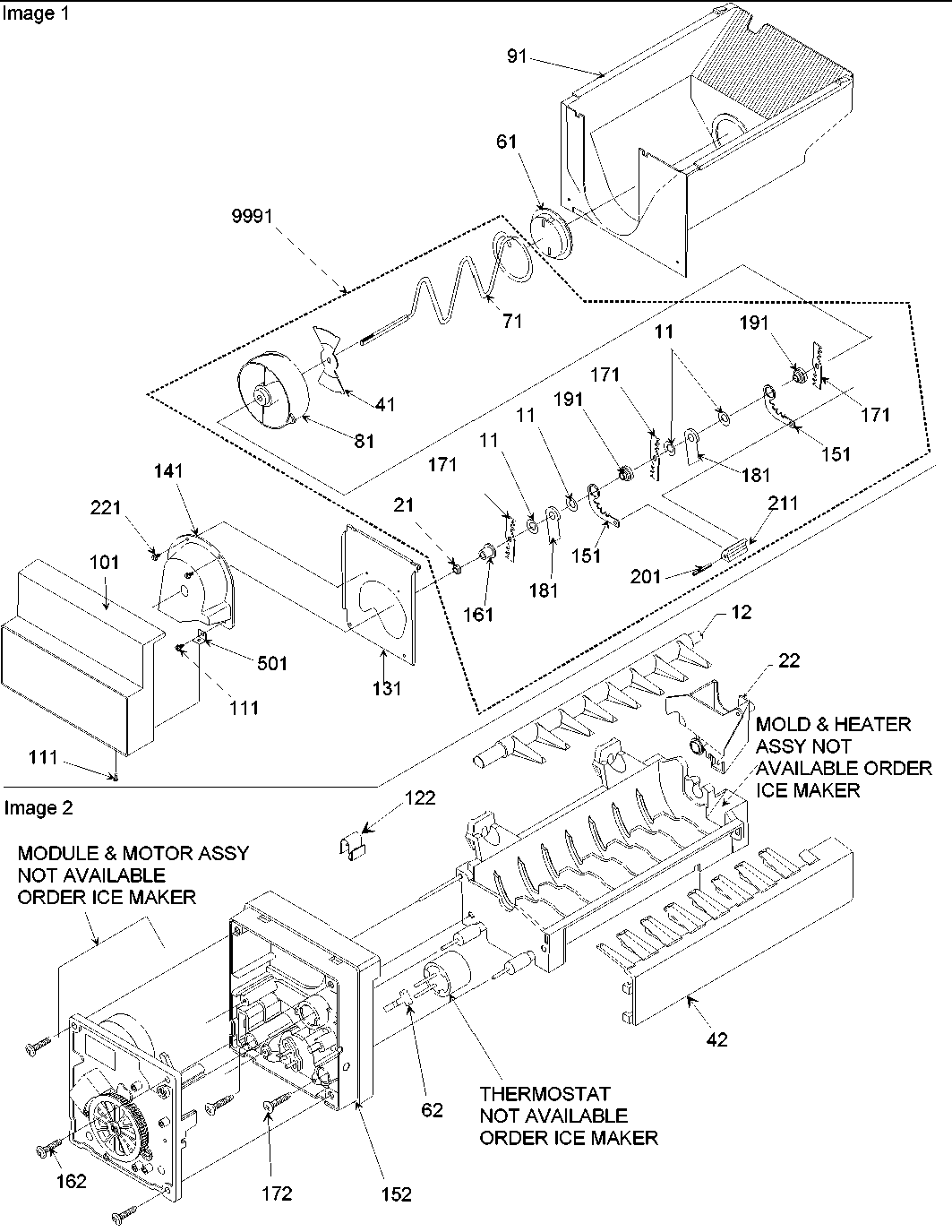

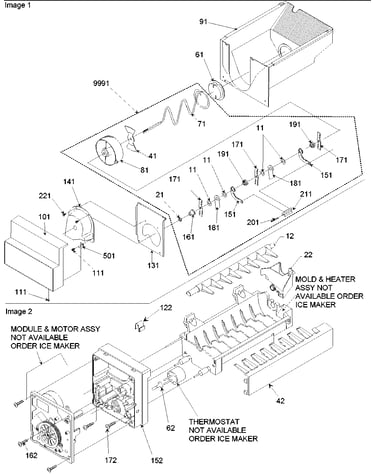

Refrigerator Ice Maker D7824705
#261

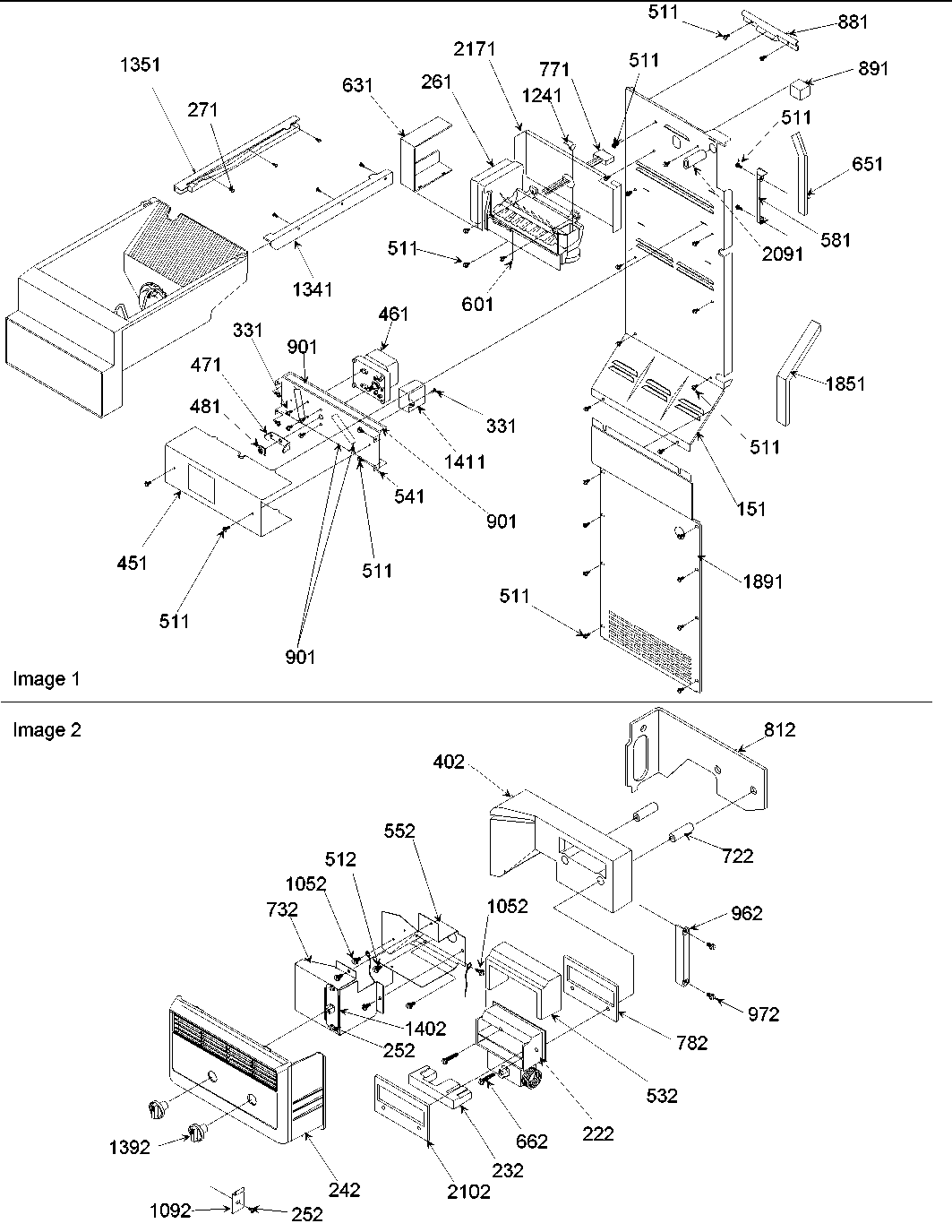

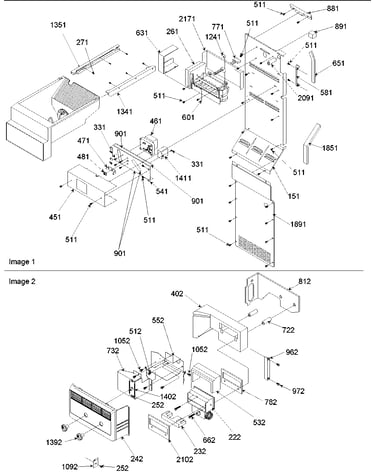

Ice maker/control assy diagram

Refrigerator ice maker

Part #D7824705

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces D7824705. Substitute parts can look different from the original.
BEST SELLER
$80.74 |
7% OFF Phone Price : $86.74
In Stock
Refrigerator Light Bulb A0282803
Refrigerator light bulb

Part #A0282803

Replaced by #40A15

?
Manufacturer substitution
This part replaces A0282803. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Compressor 12049712
#341

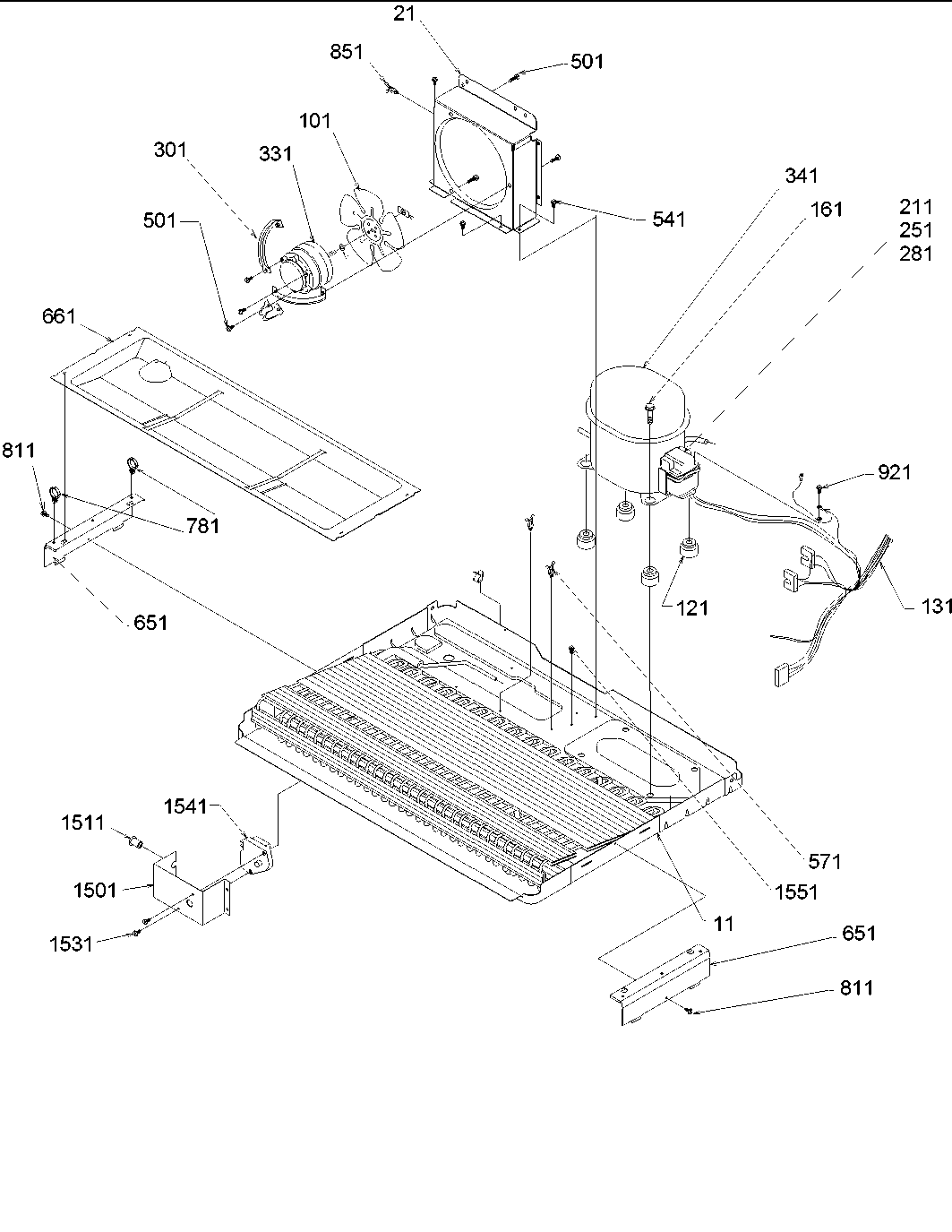

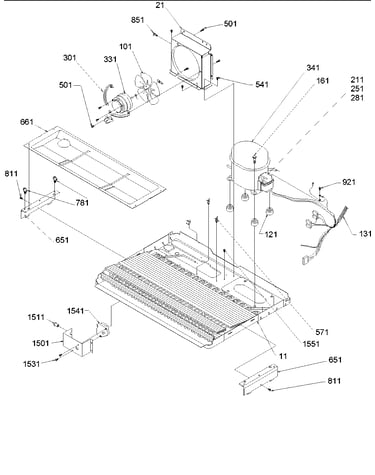

Machine compartment & muffler assy diagram

Refrigerator compressor

Part #12049712

The manufacturer no longer makes this part, and there's no substitute part

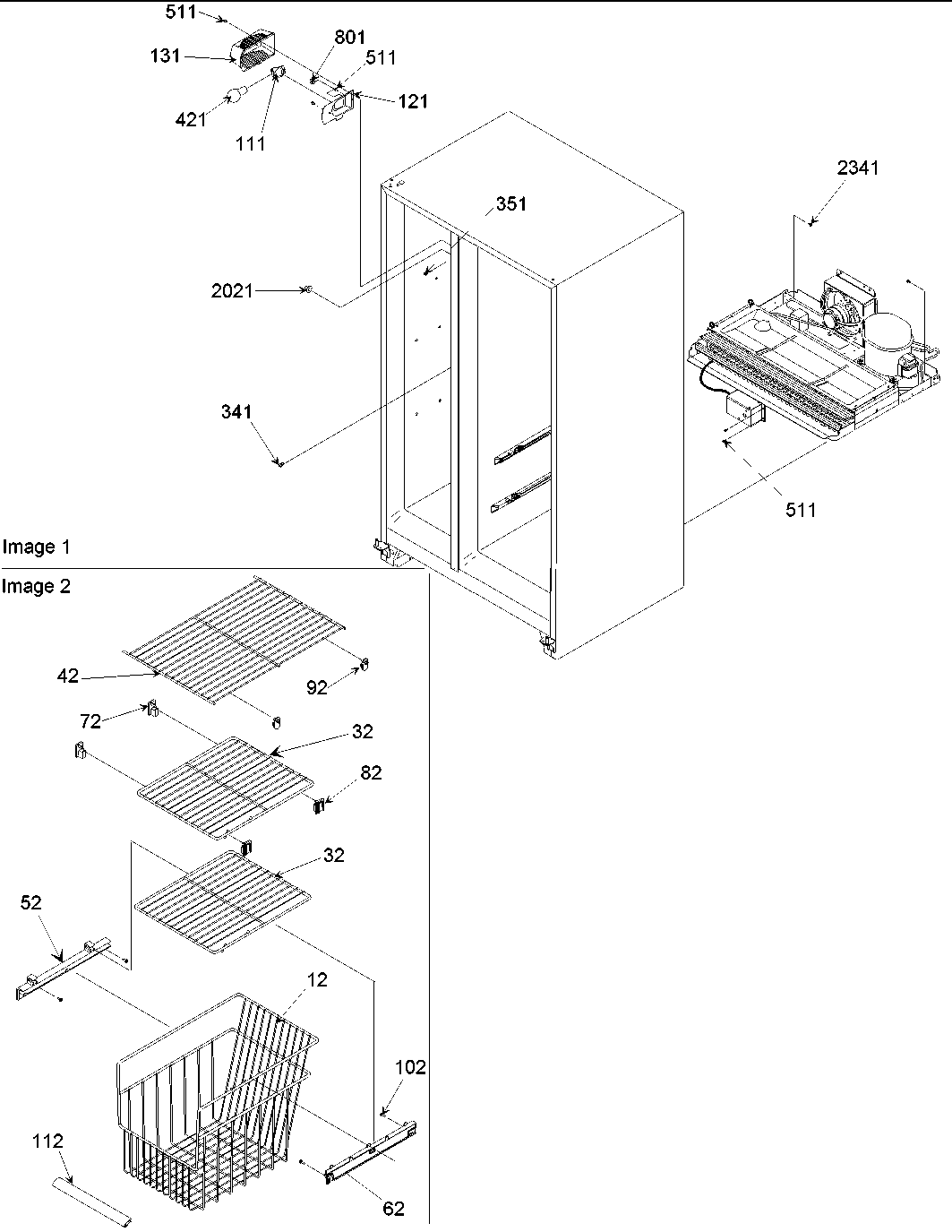

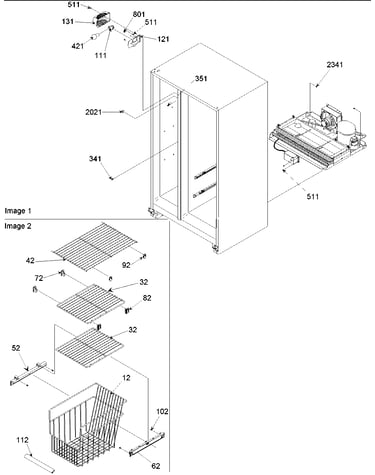

Refrigerator Light Switch 12466101
#511

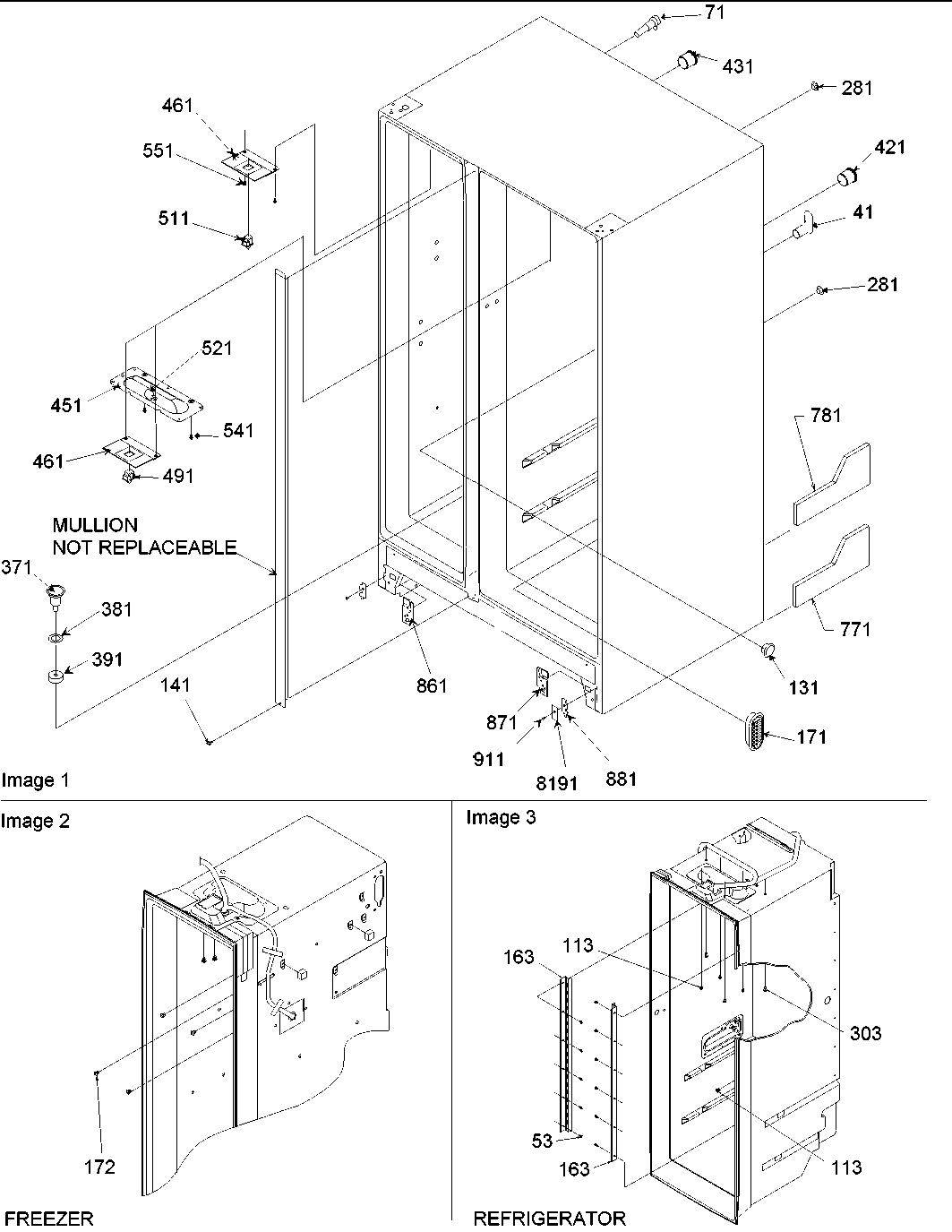

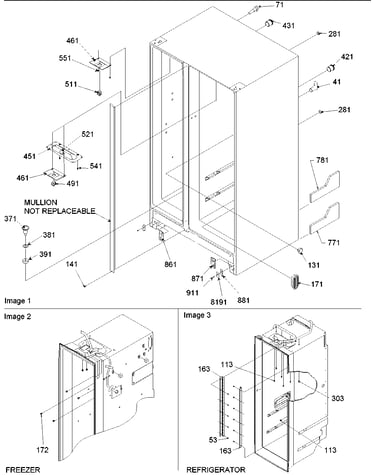

Cabinet parts diagram

Refrigerator light switch

Part #12466101

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466101. Substitute parts can look different from the original.
BEST SELLER
$21.08 |
22% OFF Phone Price : $27.08
In Stock
Refrigerator Defrost Timer 10530703
#1541

Machine compartment & muffler assy diagram

Refrigerator defrost timer

Part #10530703

Replaced by #R0131577

?
Manufacturer substitution
This part replaces 10530703. Substitute parts can look different from the original.
BEST SELLER
$31.09 |
16% OFF Phone Price : $37.09
In Stock
Refrigerator Thermostat 12017823
#23

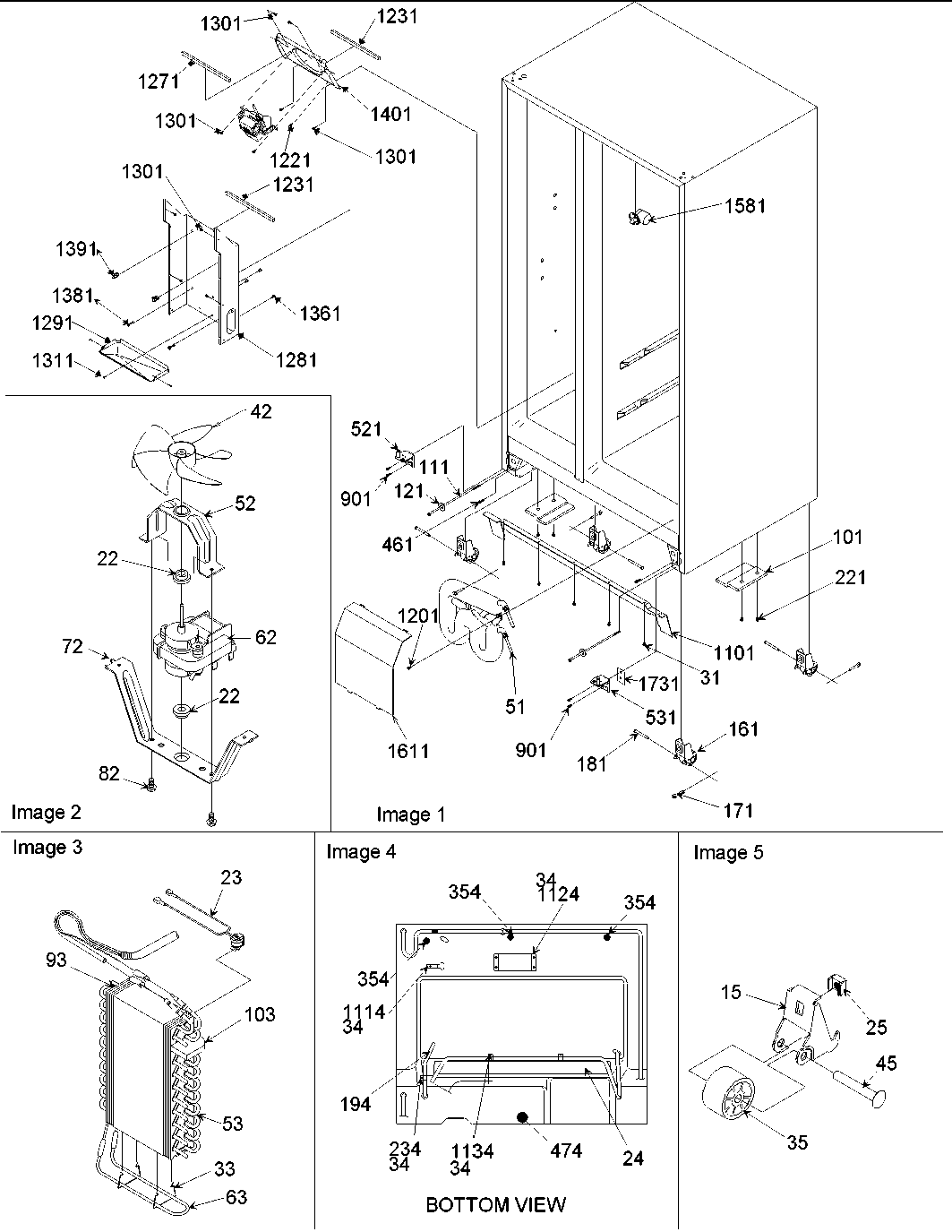

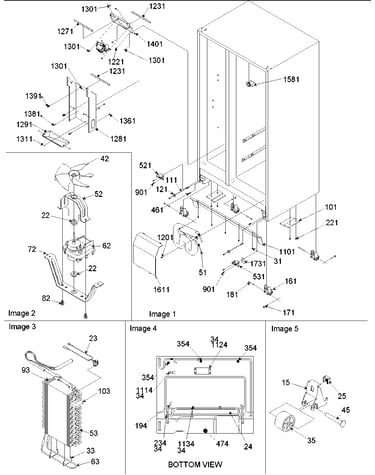

Drain, rollers, and evap assy diagram

Refrigerator thermostat

Part #12017823

Replaced by #R0161088

?
Manufacturer substitution
This part replaces 12017823. Substitute parts can look different from the original.
$56.58 |
10% OFF Phone Price : $62.58
In Stock
Refrigerator Evaporator Fan Motor 10513803
#62

Drain, rollers, and evap assy diagram

Refrigerator evaporator fan motor

Part #10513803

Replaced by #WP10513803

?
Manufacturer substitution
This part replaces 10513803. Substitute parts can look different from the original.
$93.76 |
6% OFF Phone Price : $99.76
In Stock
Refrigerator Freezer Temperature Control Thermostat (replaces 8170359, C3615024) R0161092
#1402

Ice maker/control assy diagram

Refrigerator freezer temperature control thermostat (replaces 8170359, c3615024)

Part #R0161092

$94.55 |
6% OFF Phone Price : $100.55
In Stock
Refrigerator Defrost Heater 12049801
#63

Drain, rollers, and evap assy diagram

Refrigerator defrost heater

Part #12049801

Replaced by #WP12049801

?
Manufacturer substitution
This part replaces 12049801. Substitute parts can look different from the original.
$78.36 |
7% OFF Phone Price : $84.36
In Stock

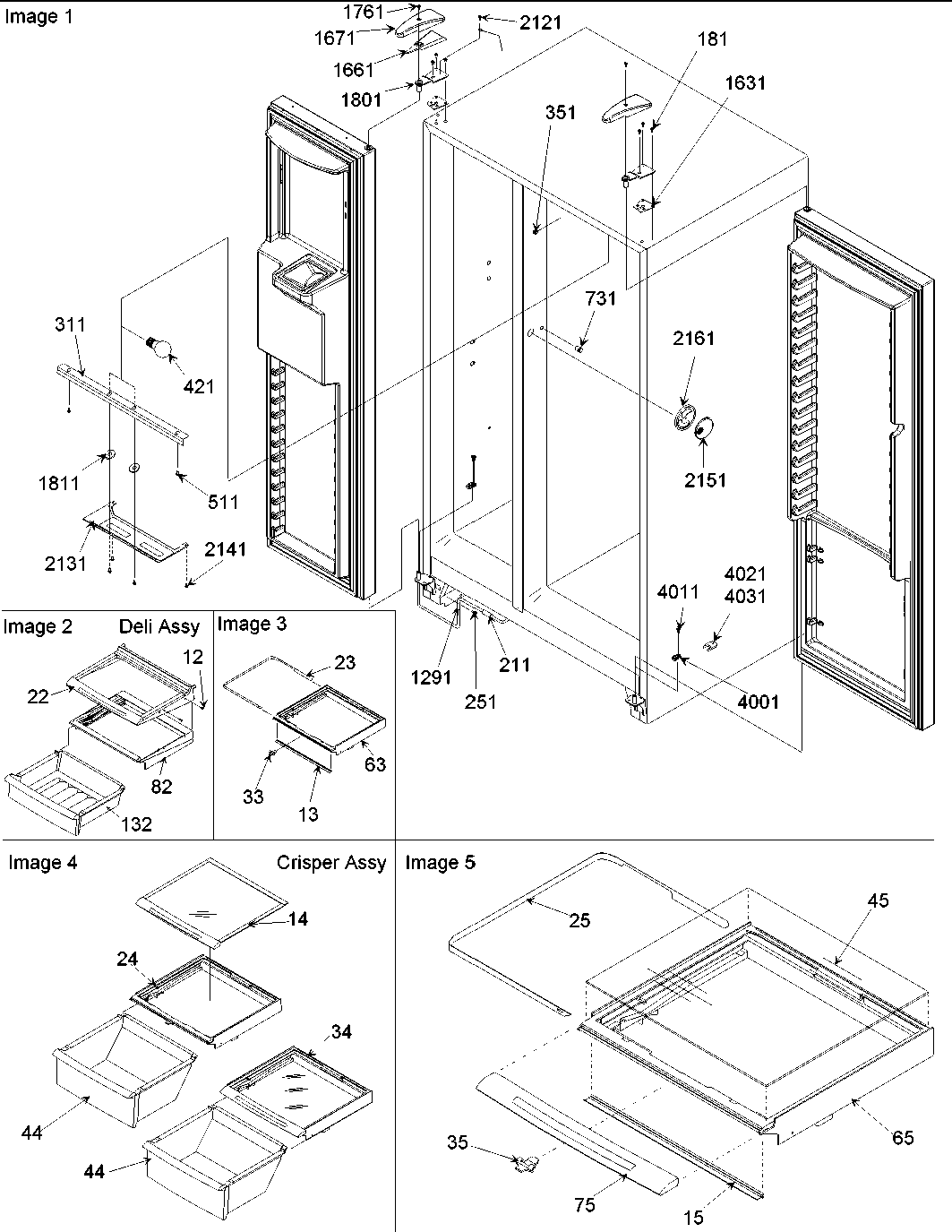

Refrigerator Union B5706901
#211

Refrigerator/freezer lights and hinges diagram

Refrigerator union

Part #B5706901

Replaced by #WP4373559

?
Manufacturer substitution
This part replaces B5706901. Substitute parts can look different from the original.
$30.47 |
16% OFF Phone Price : $36.47
In Stock
