Troybilt
Gas Walk-Behind Mower

Model # TRAILBLAZER Y0000100 AND UP Official Troybilt sickle bar lawn mower

Here are the diagrams and repair parts for Official Troybilt TRAILBLAZER-Y0000100-AND-UP sickle bar lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

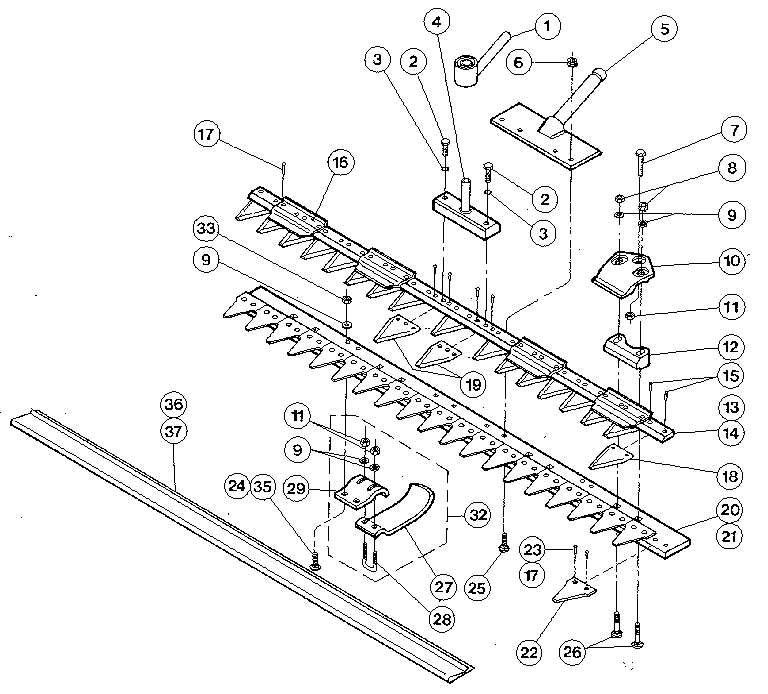

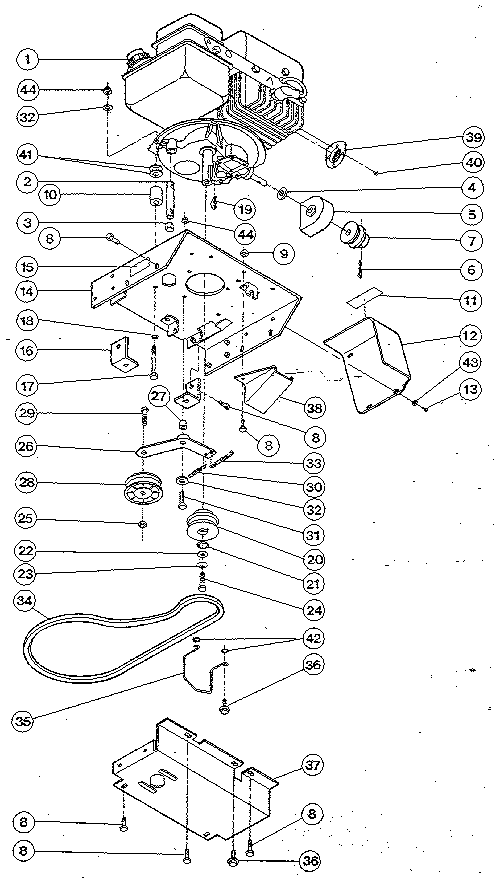

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 190 parts  |
Nut 92017
Nut

Part #92017

Replaced by #712-3004A

?
Manufacturer substitution
This part replaces 92017. Substitute parts can look different from the original.
This item is not returnable
$4.92 |
17% OFF Phone Price : $5.92
In Stock
Tire 1234-1
#6

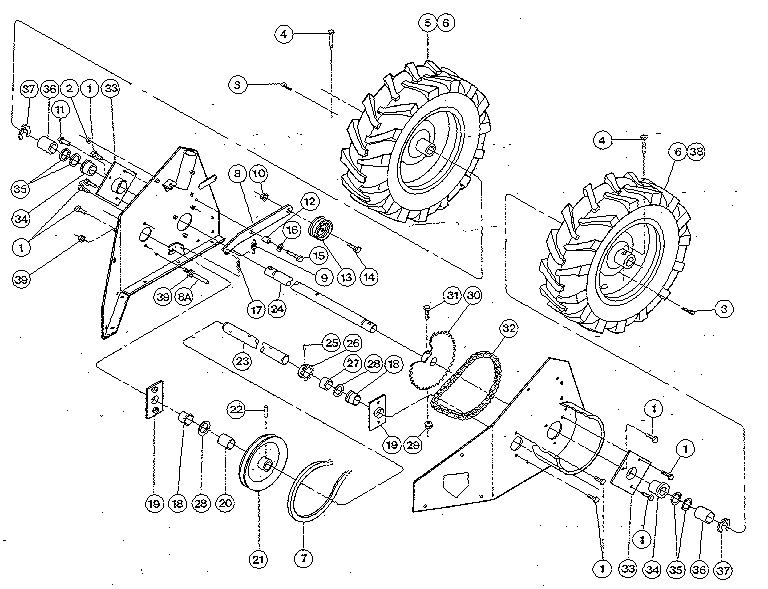

Wheel drive mechanism/wheels diagram

Tire

Part #1234-1

Replaced by #734-0808A

?
Manufacturer substitution
This part replaces 1234-1. Substitute parts can look different from the original.
$107.54 |
10% OFF Phone Price : $119.54
In Stock
Bearing 97047
#10

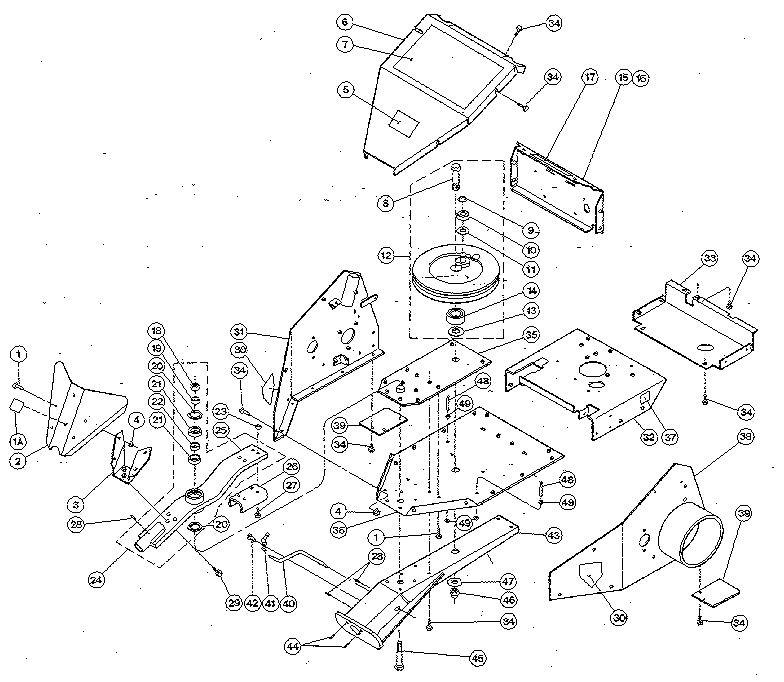

Chassis components, drive arm, cutter bar support diagram

Bearing

Part #97047

Replaced by #941-0600

?
Manufacturer substitution
This part replaces 97047. Substitute parts can look different from the original.
$28.71 |
17% OFF Phone Price : $34.71
In Stock
Retainer, Snap Ring 9511
#37

Wheel drive mechanism/wheels diagram

Retainer, snap ring

Part #9511

Replaced by #716-04104

?
Manufacturer substitution
This part replaces 9511. Substitute parts can look different from the original.
This item is not returnable
$6.11
In Stock
Scr Hh Flr 90047
Scr hh flr

Part #90047

Replaced by #1186349

?
Manufacturer substitution
This part replaces 90047. Substitute parts can look different from the original.
This item is not returnable
$6.14
In Stock
Decal 40151
#11

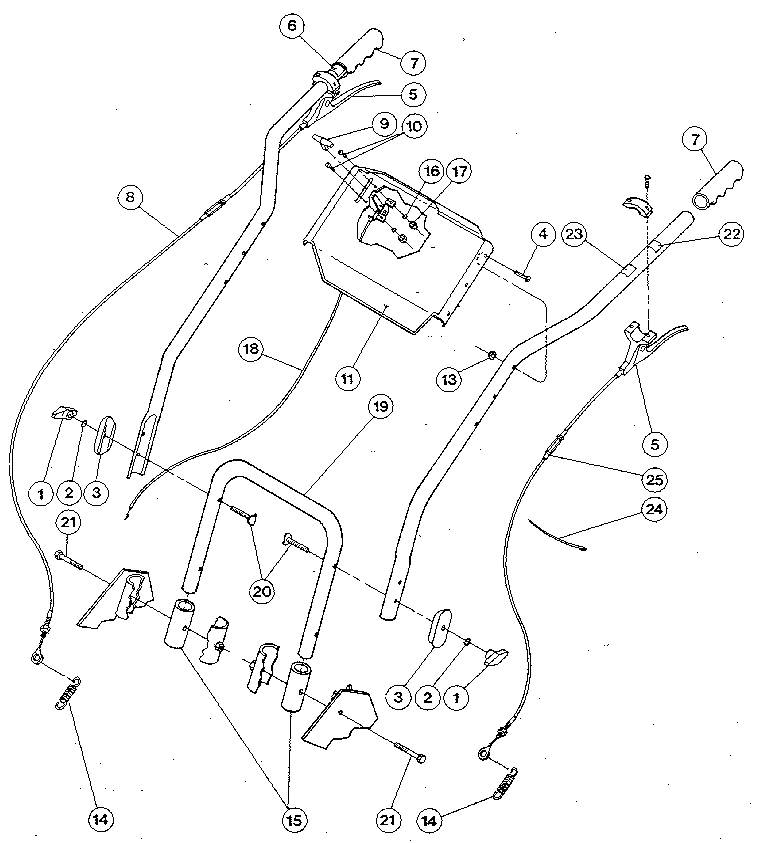

Handlebars, control levers, and throttle lever diagram

Decal

Part #40151

Replaced by #1900452

?
Manufacturer substitution
This part replaces 40151. Substitute parts can look different from the original.
$56.93
In Stock
Clevis Pin 9380
#4

Wheel drive mechanism/wheels diagram

Clevis pin

Part #9380

Replaced by #711-04126

?
Manufacturer substitution
This part replaces 9380. Substitute parts can look different from the original.
This item is not returnable
$7.20
In Stock
Nut 92016
Nut

Part #92016

Replaced by #712-0429

?
Manufacturer substitution
This part replaces 92016. Substitute parts can look different from the original.
This item is not returnable
$7.06
Back Order
Key P406543
#11

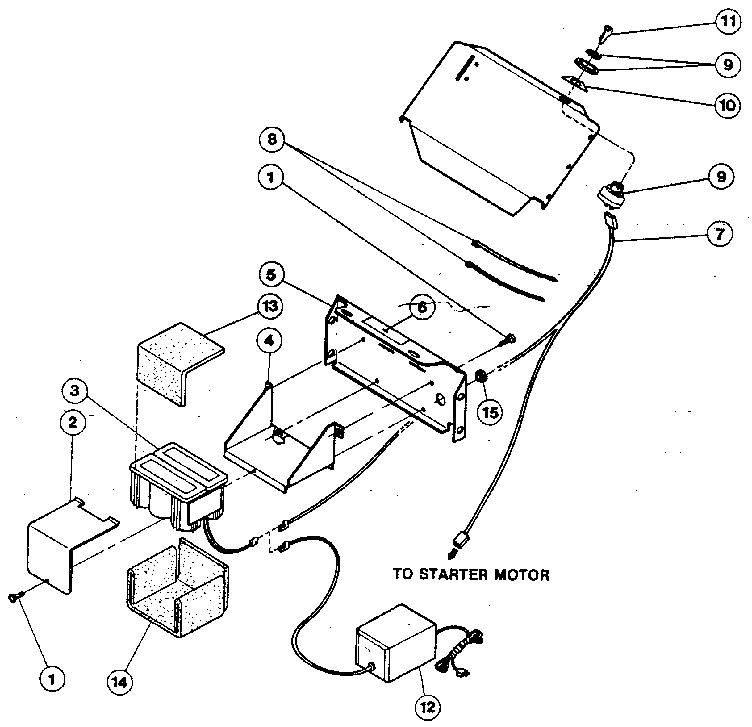

Electric start items diagram

Key

Part #P406543

Replaced by #925-0201

?
Manufacturer substitution
This part replaces P406543. Substitute parts can look different from the original.
This item is not returnable
$13.77
In Stock
Cotter Pin 9338
#3

Wheel drive mechanism/wheels diagram

Cotter pin

Part #9338

Replaced by #714-04048

?
Manufacturer substitution
This part replaces 9338. Substitute parts can look different from the original.
$13.91
In Stock
