Kenmore
Countertop Microwave

Model # 72163263300 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72163263300 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

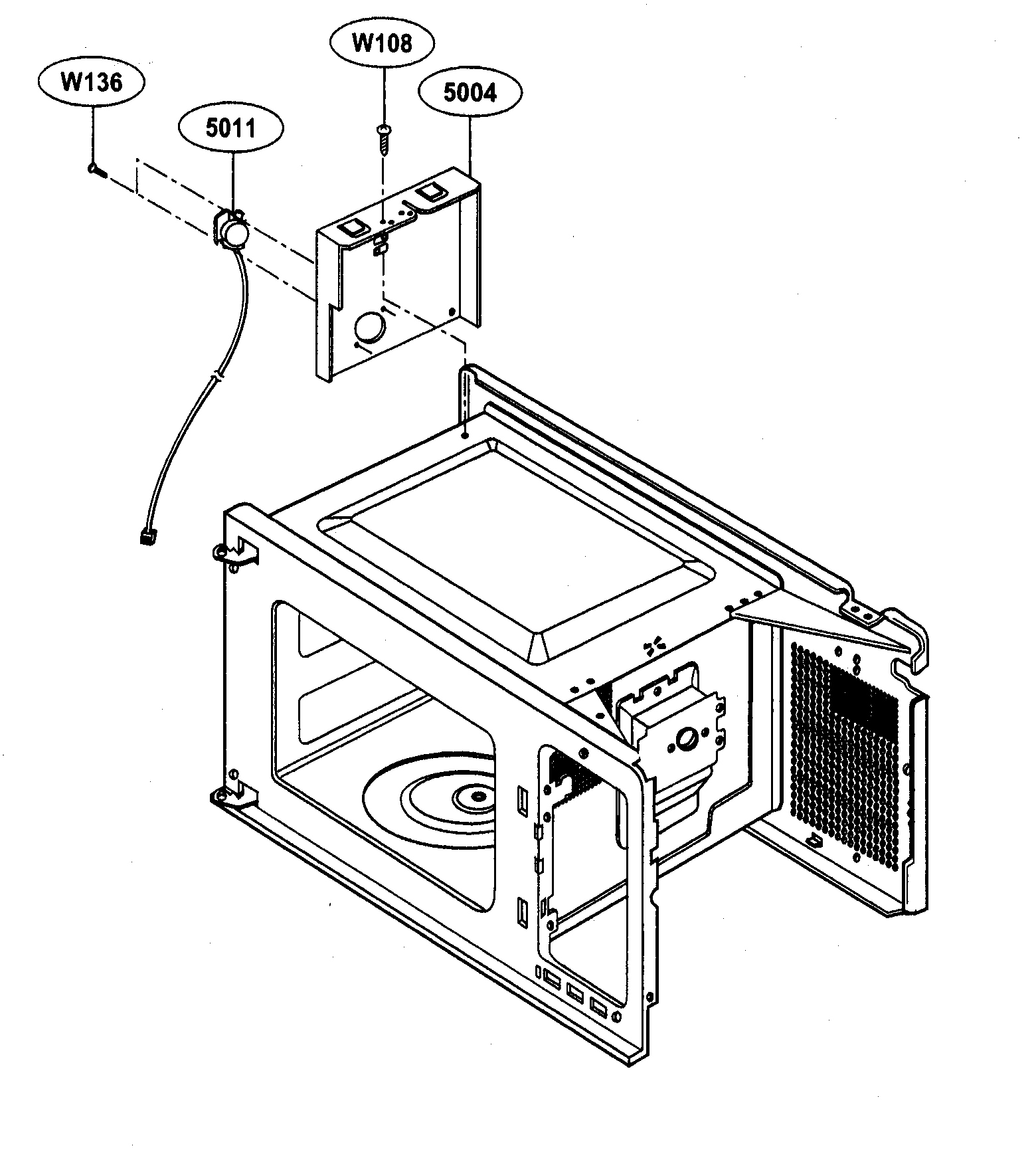

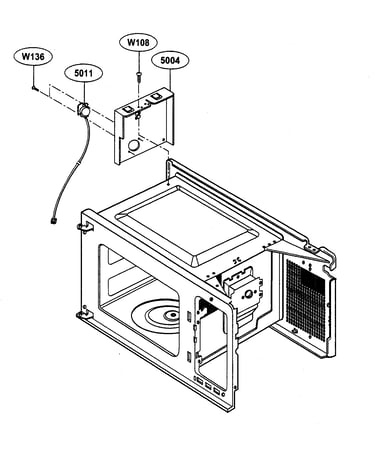

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Microwave Light Bulb (replaces 6912w3b002g) 6912W3B002L
#5015

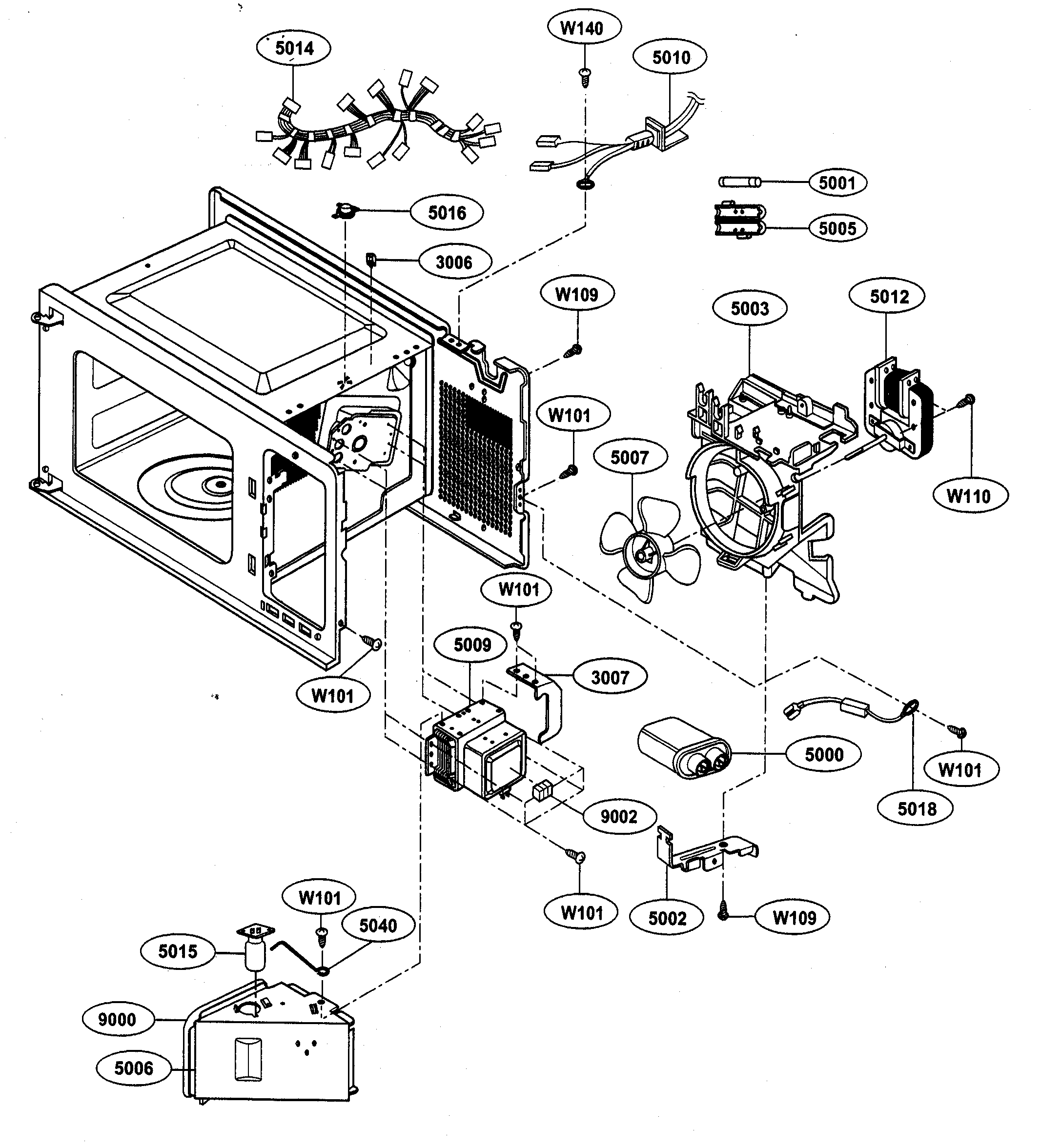

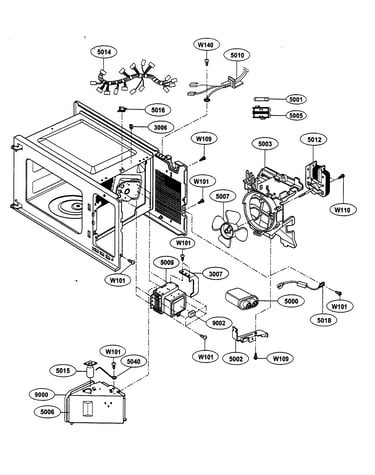

Interior parts diagram

Microwave light bulb (replaces 6912w3b002g)

Part #6912W3B002L

BEST SELLER
This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Glass Turntable Tray 3390W1G004A
#3002

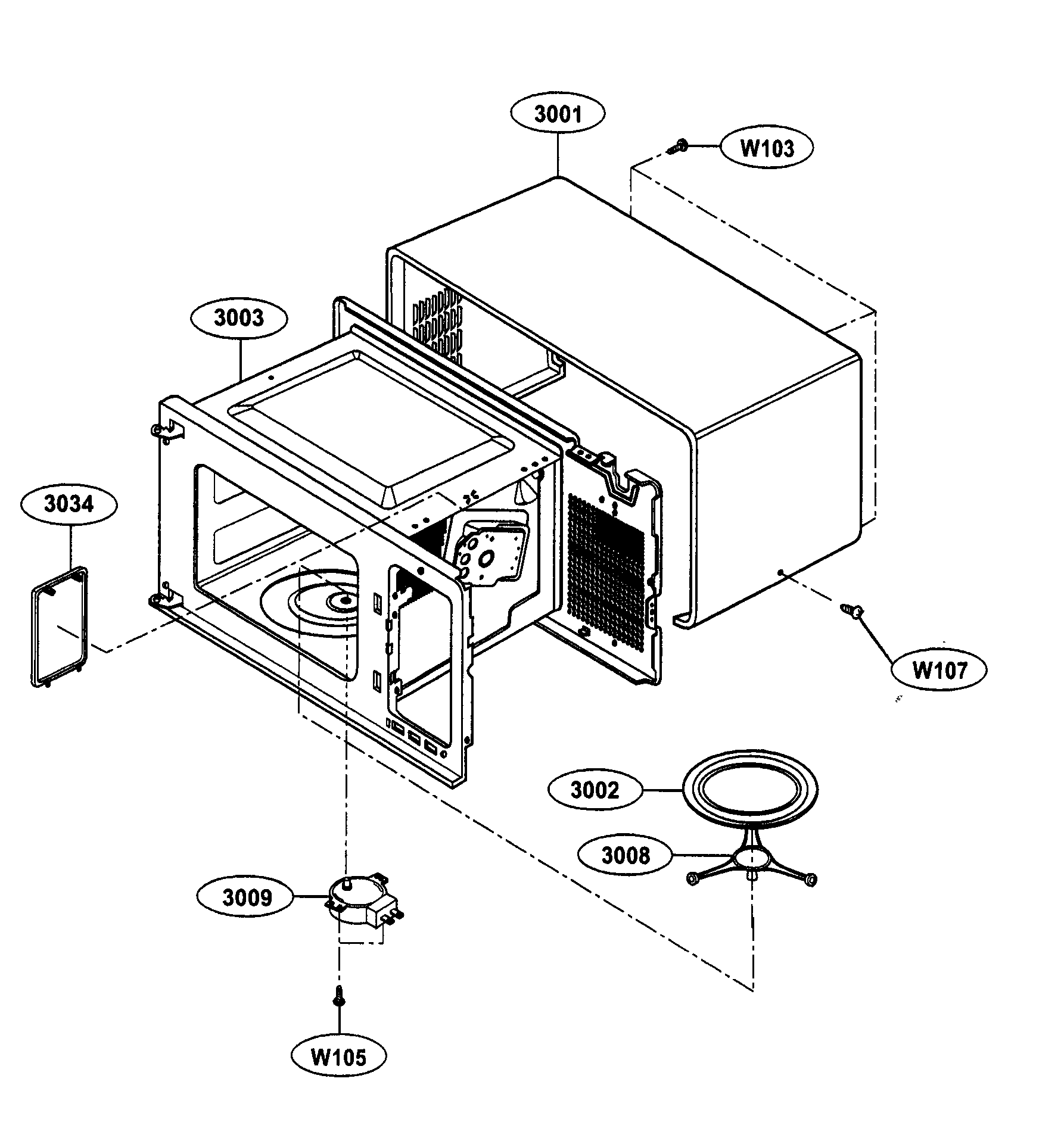

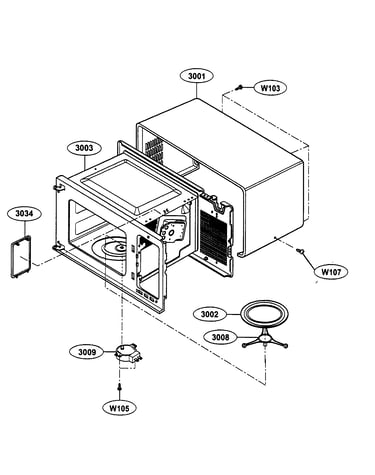

Oven cavity parts diagram

Microwave glass turntable tray

Part #3390W1G004A

Replaced by #3390W1A044B

?
Manufacturer substitution
This part replaces 3390W1G004A. Substitute parts can look different from the original.
$23.92 |
20% OFF Phone Price : $29.92
In Stock
Microwave Door Latch Hook (replaces 4026w2a012a) 4026W2A016A
#1006

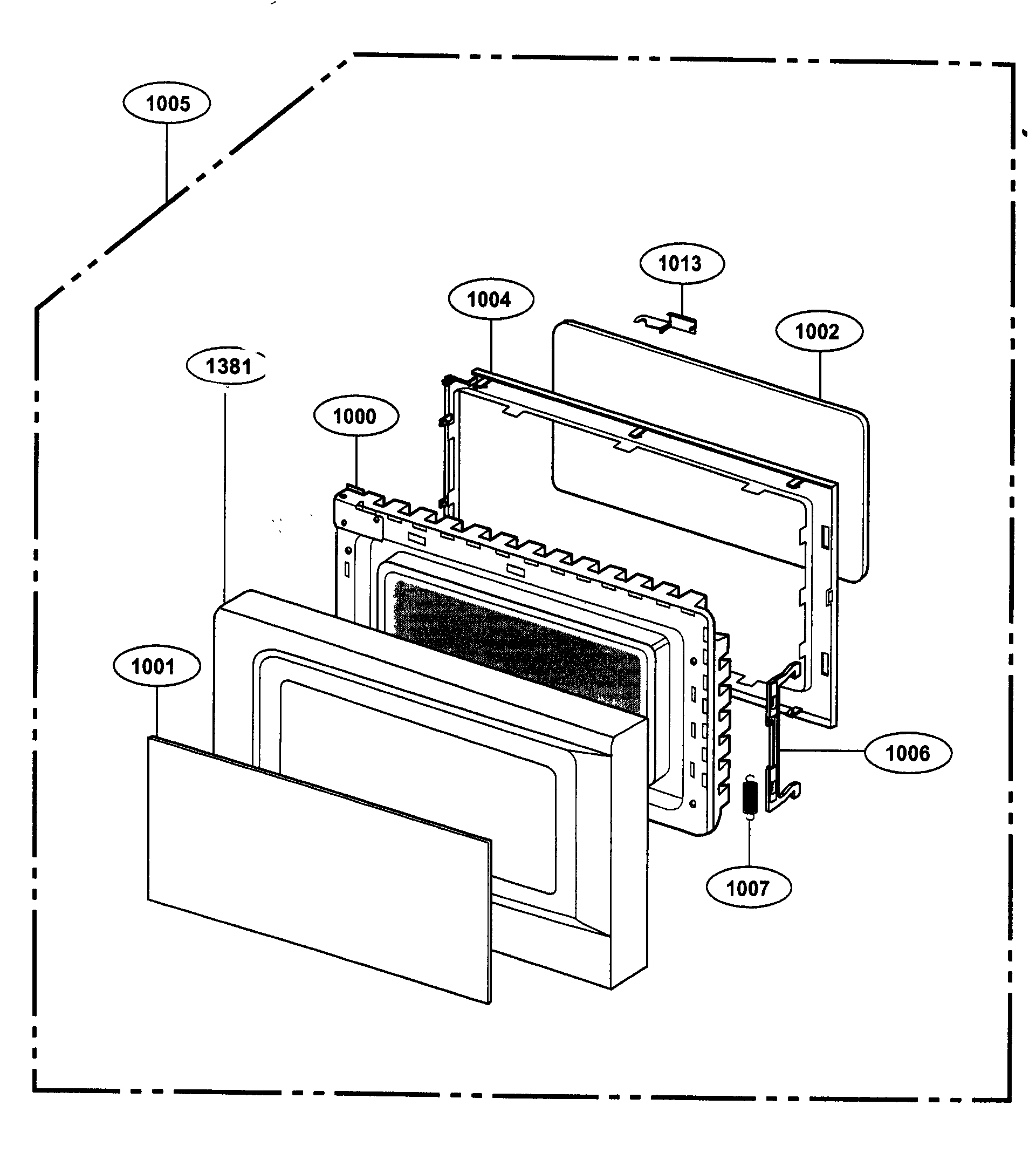

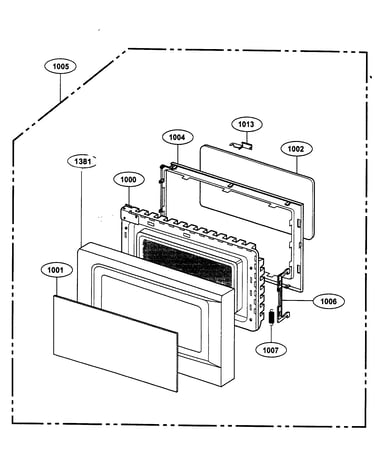

Door parts diagram

Microwave door latch hook (replaces 4026w2a012a)

Part #4026W2A016A

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Us Pressed Steel Microwave Screw 1TTL0402818
#W109

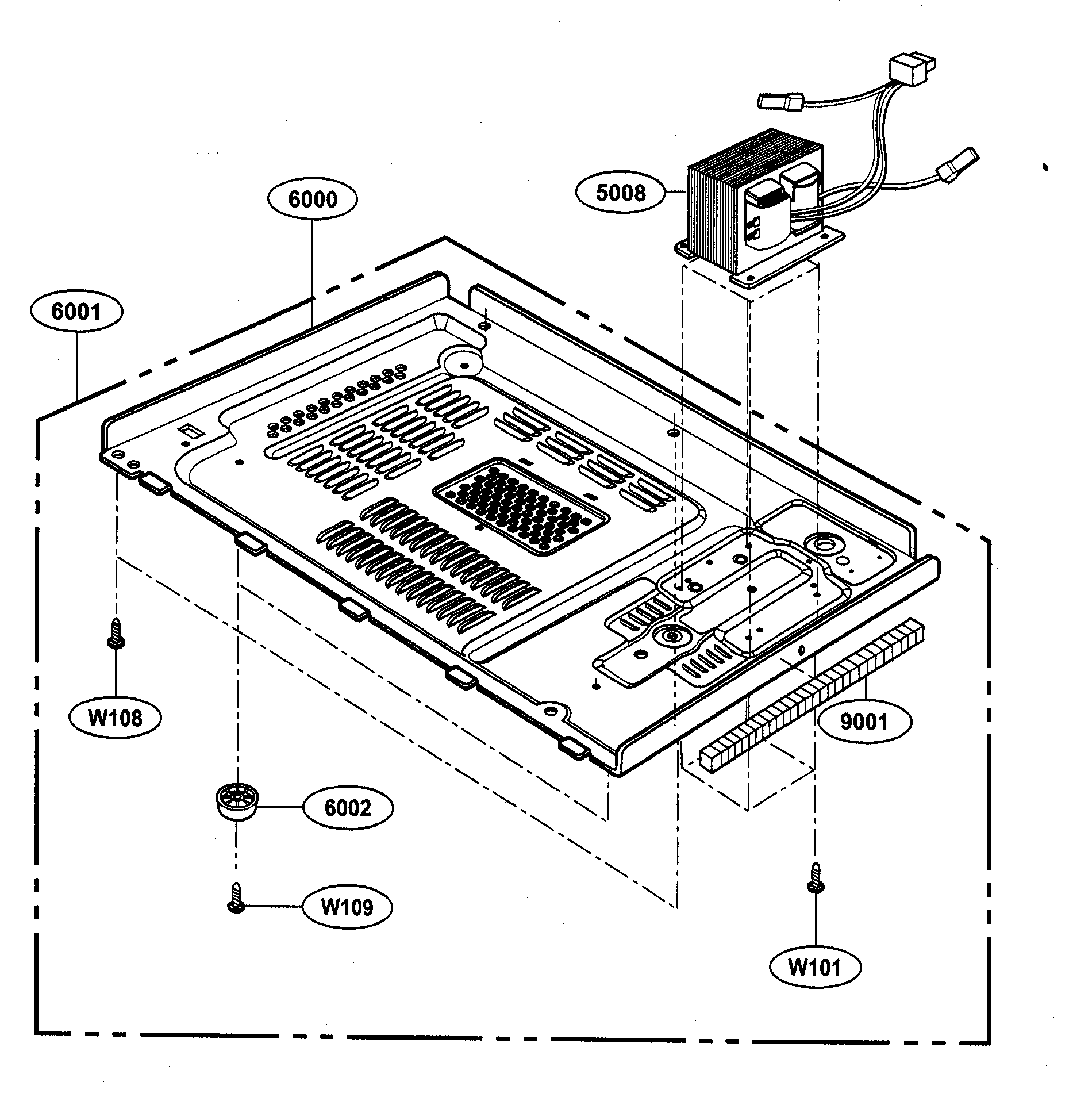

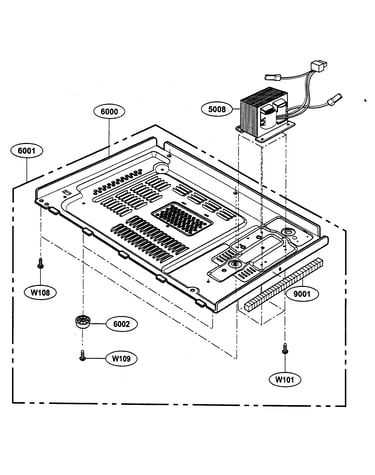

Base plate parts diagram

Us pressed steel microwave screw

Part #1TTL0402818

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Us Pressed Steel Microwave Screw 4B70188C
#W102

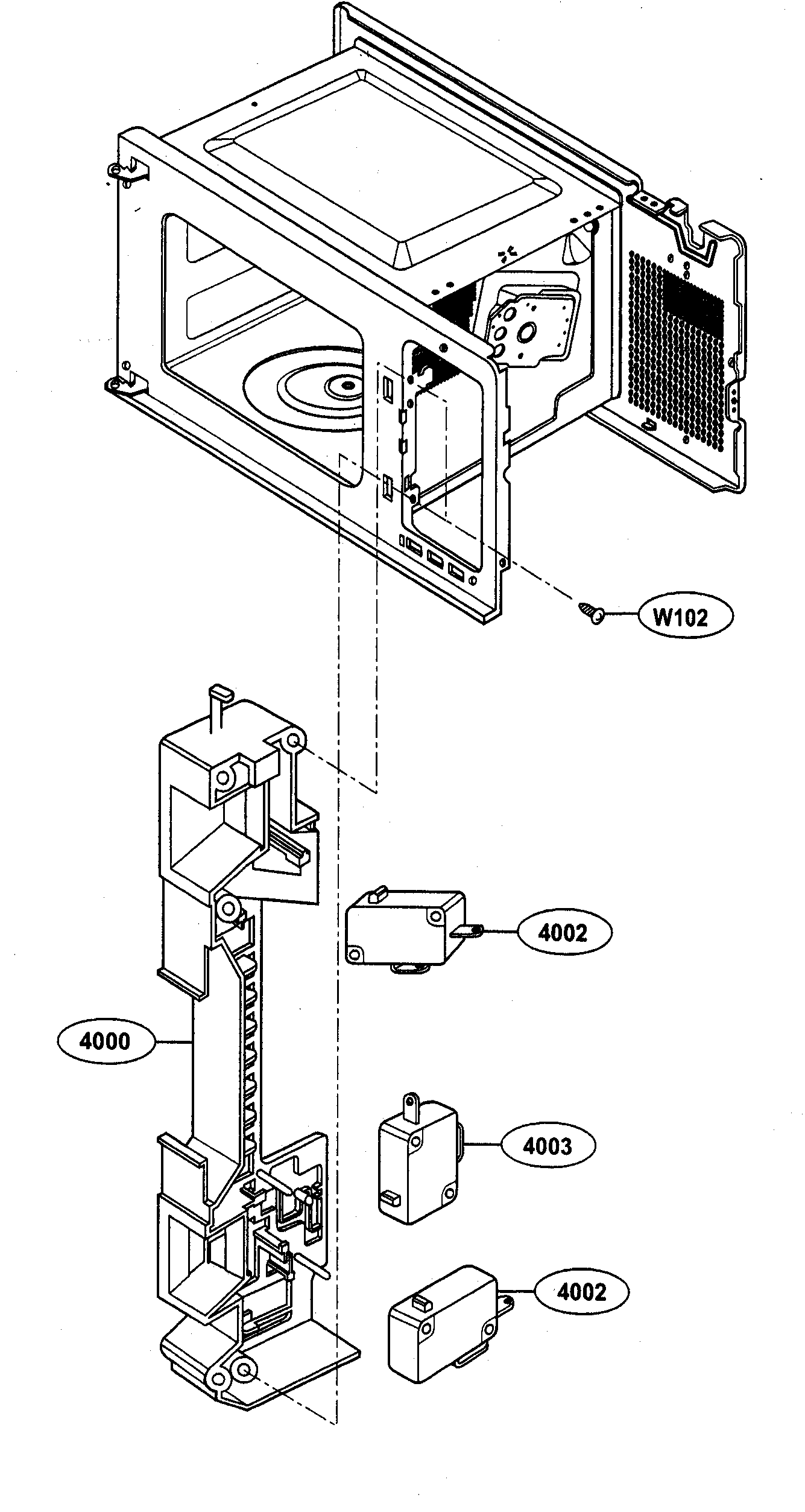

Latch board parts diagram

Us pressed steel microwave screw

Part #4B70188C

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Door Release Button Spring 4B72023B
#2005

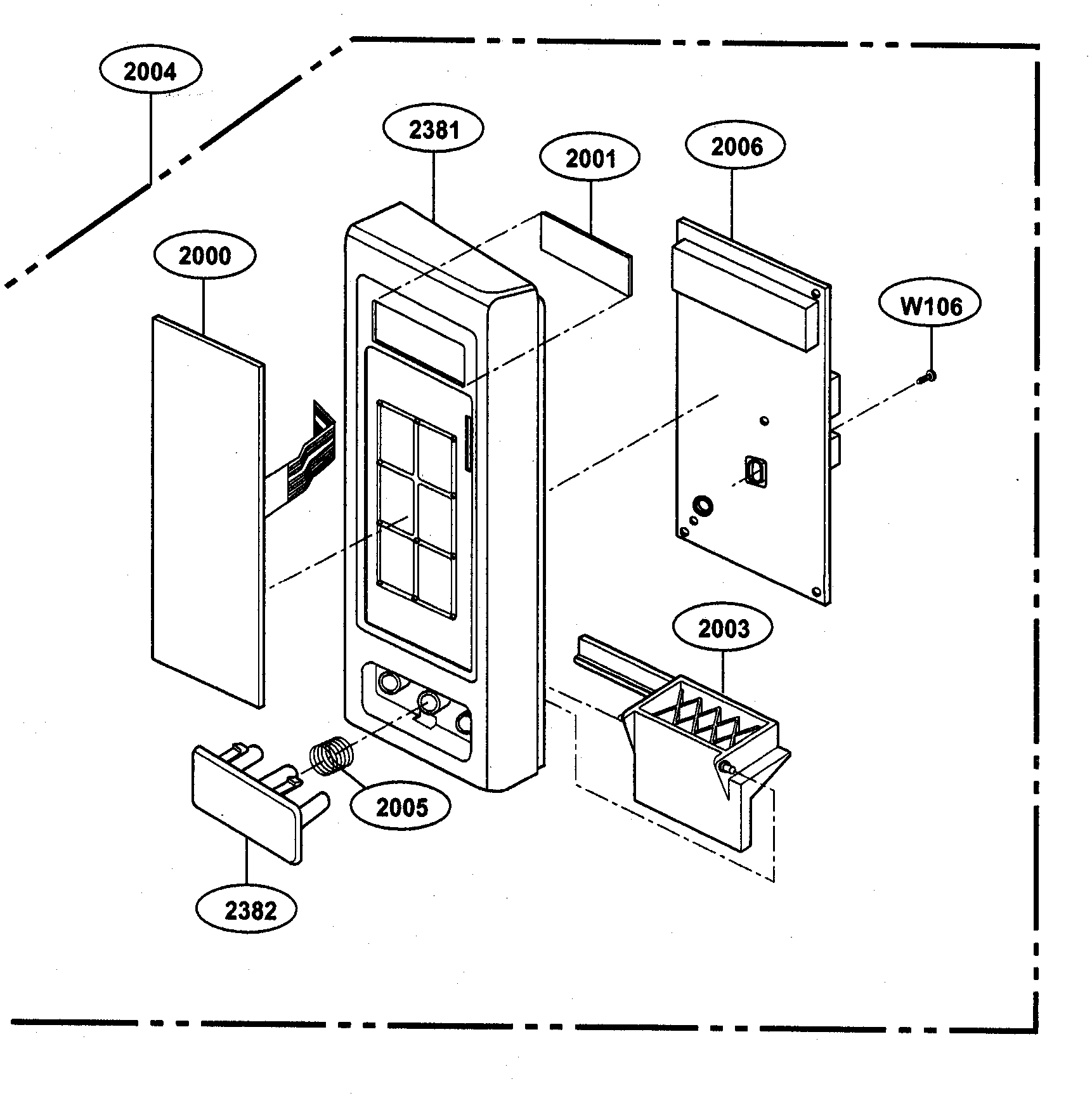

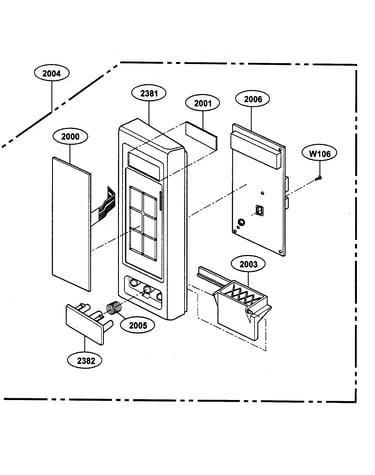

Controller parts diagram

Microwave door release button spring

Part #4B72023B

This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Primary Swtc 6600W1K003C
#4003

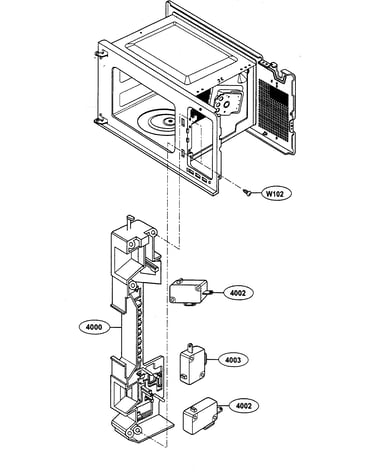

Latch board parts diagram

Primary swtc

Part #6600W1K003C

Replaced by #6600W1K001B

?
Manufacturer substitution
This part replaces 6600W1K003C. Substitute parts can look different from the original.
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Fan Bracket 5262W2A037C
#5006

Interior parts diagram

Fan bracket

Part #5262W2A037C

$13.20
In Stock
Screen 3352W2A046K
#1001

Door parts diagram

Screen

Part #3352W2A046K

$13.20
In Stock
Microwave High-voltage Capacitor Strap 4810W4C003B
#5002

Interior parts diagram

Microwave high-voltage capacitor strap

Part #4810W4C003B

This item is not returnable
$8.29
In Stock
