Frigidaire
Countertop Microwave

Model # MCT1365L1 Official Frigidaire microwave

Here are the diagrams and repair parts for Official Frigidaire MCT1365L1 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

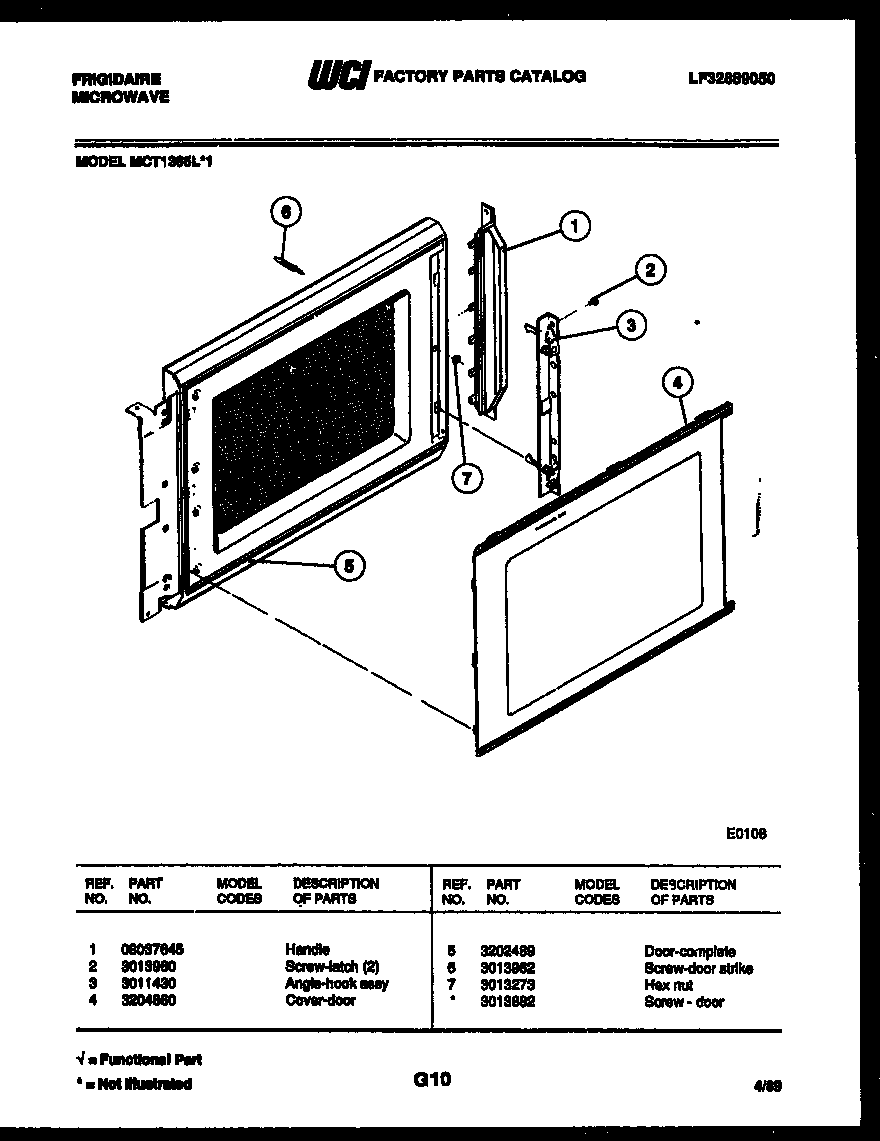

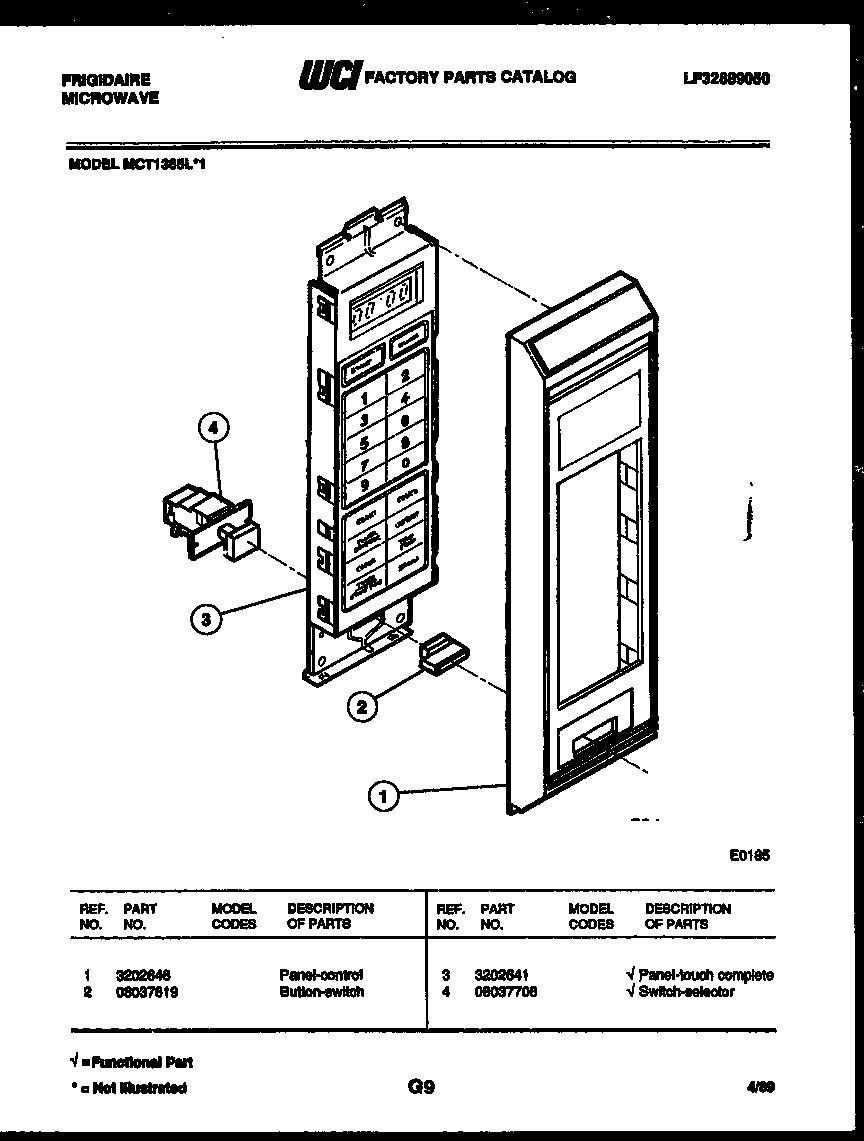

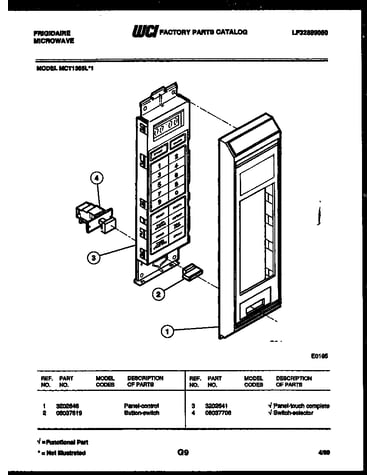

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |

Light 3013071
#4

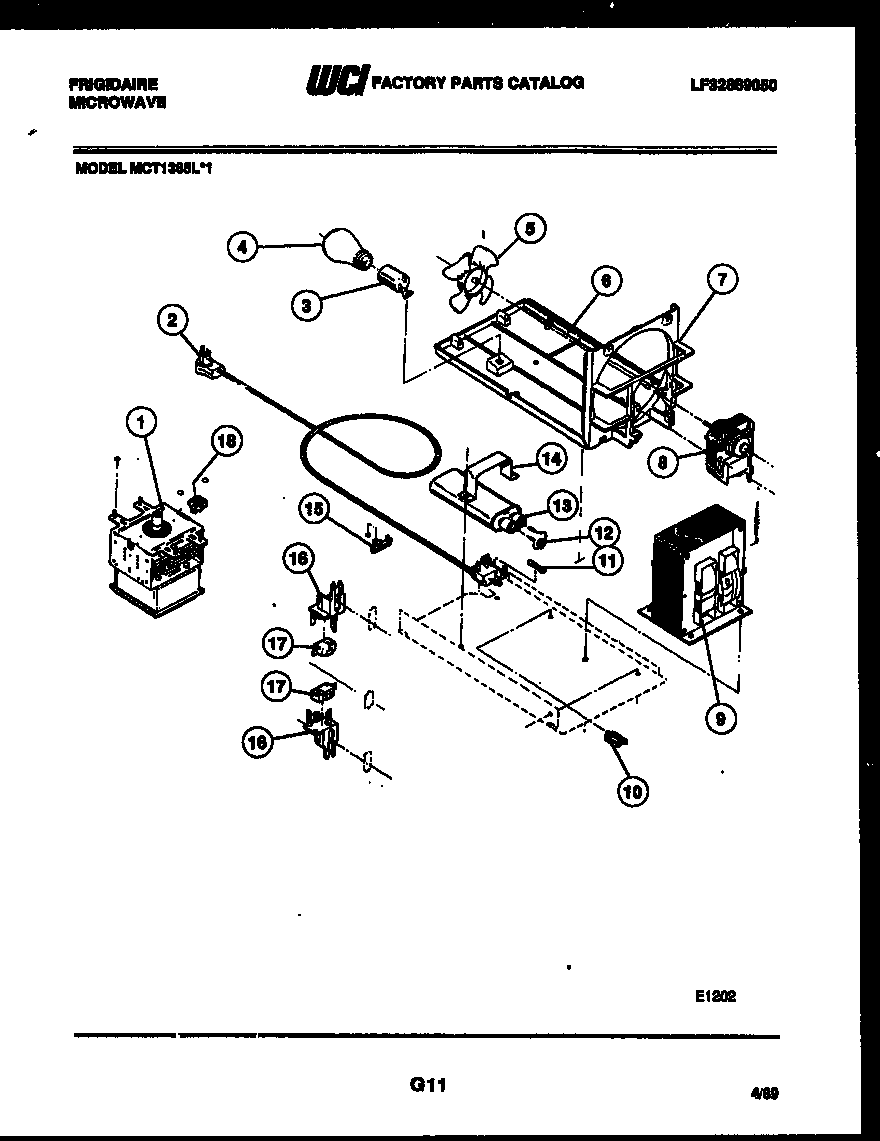

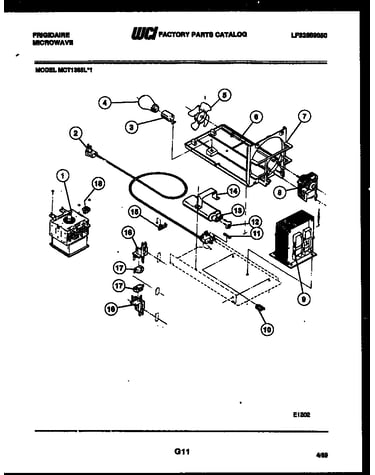

Power control diagram

Light

Part #3013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 3013071. Substitute parts can look different from the original.
BEST SELLER
$14.76
12% OFF Phone Price : $16.76
In Stock
Support 3011555
#20

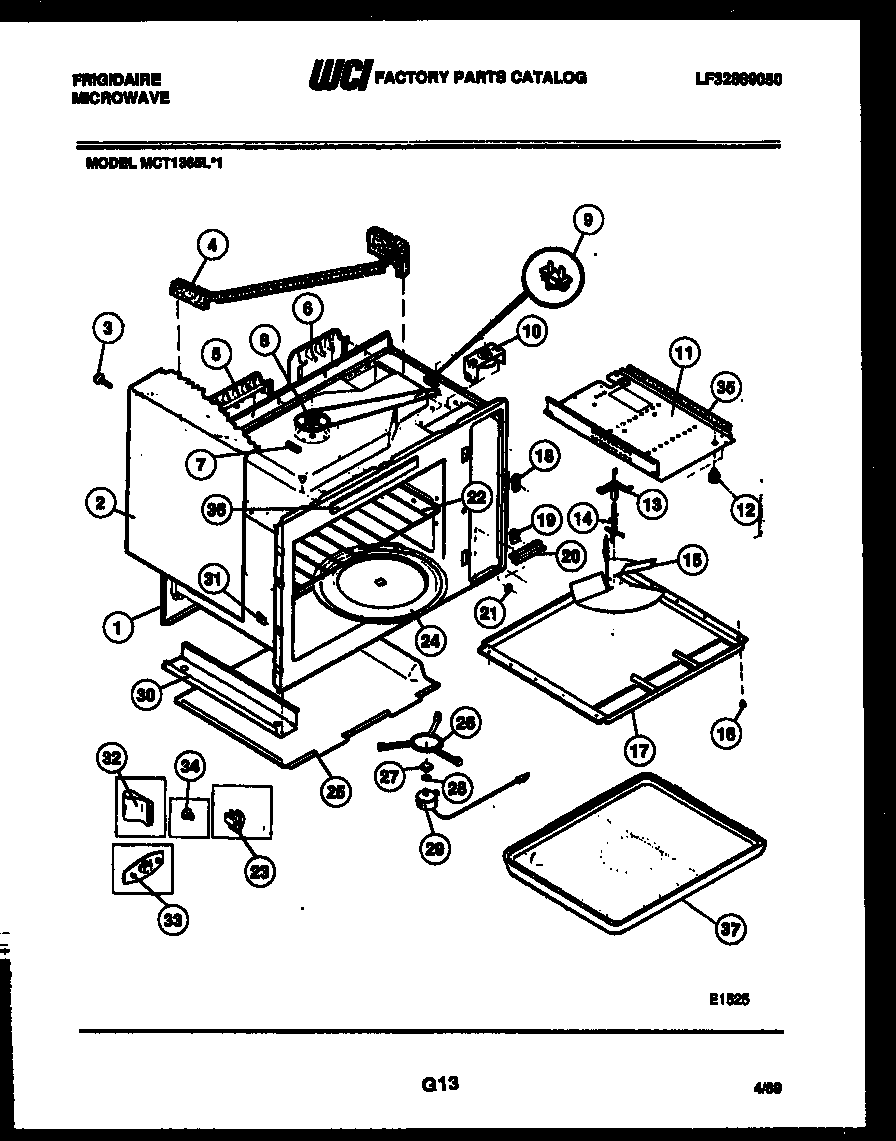

Body parts diagram

Support

Part #3011555

This item is not returnable
In Stock
White-westinghouse Fuse 3011670
#11

Power control diagram

White-westinghouse fuse

Part #3011670

This item is not returnable
In Stock
White-westinghouse Plug 3013626
#33

Body parts diagram

White-westinghouse plug

Part #3013626

This item is not returnable
In Stock
Rivet 3013807
#16

Body parts diagram

Rivet

Part #3013807

This item is not returnable
In Stock
Clip 3012323
#31

Body parts diagram

Clip

Part #3012323

This item is not returnable
In Stock
Collar 3011826
#13

Body parts diagram

Collar

Part #3011826

In Stock
Diode 3091303
#12

Power control diagram

Diode

Part #3091303

In Stock
Paint White 3203124

#NI

All parts diagram

Paint white

Part #3203124

In Stock
Grommet 3012706
#19

Body parts diagram

Grommet

Part #3012706

This item is not returnable
In Stock
