Samsung
Bottom-Mount Refrigerator

Model # RF31FMEDBSR/AA-00 Official Samsung bottom-mount refrigerator

Here are the diagrams and repair parts for Official Samsung RF31FMEDBSR-AA-00 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 322 parts  |
Refrigerator Ice Maker Assembly DA97-12317A
#23

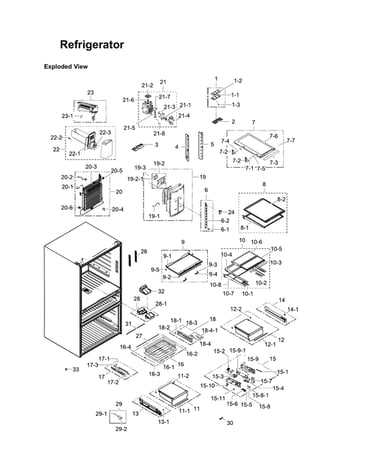

Refrigerator parts diagram

Refrigerator ice maker assembly

Part #DA97-12317A

Replaced by #DA97-15217D

?
Manufacturer substitution
This part replaces DA97-12317A. Substitute parts can look different from the original.
BEST SELLER
$106.30 |
10% OFF Phone Price : $118.30
In Stock
Refrigerator Temperature Sensor DA32-10104N
Refrigerator temperature sensor

Part #DA32-10104N

BEST SELLER
$24.24 |
20% OFF Phone Price : $30.24
In Stock
Samsung Refrigerator Fresh Food Evaporator Cover Assembly DA97-13757A
#19

Refrigerator parts diagram

Samsung refrigerator fresh food evaporator cover assembly

Part #DA97-13757A

BEST SELLER
$124.08 |
9% OFF Phone Price : $136.08
In Stock
Filtr Dryr DA62-04309B
#23

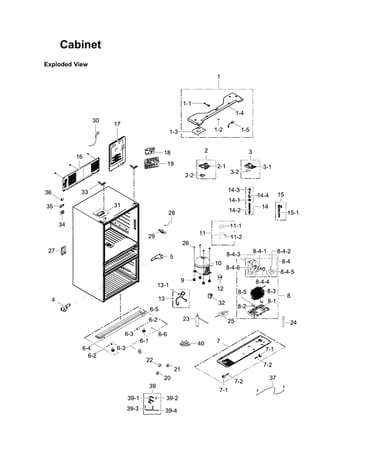

Cabinet parts diagram

Filtr dryr

Part #DA62-04309B

Replaced by #DA81-06006B

?
Manufacturer substitution
This part replaces DA62-04309B. Substitute parts can look different from the original.
BEST SELLER
$90.27 |
6% OFF Phone Price : $96.27
In Stock
Refrigerator Dispenser Ice Chute Cap And Gasket Assembly DA97-12594A
#3

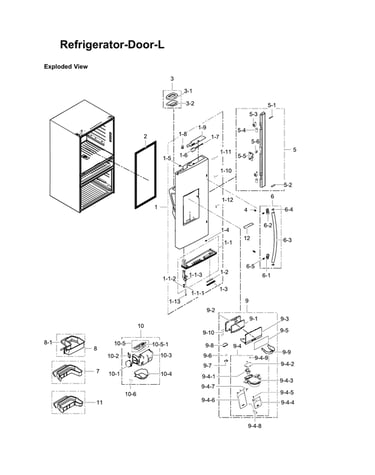

Left refrigerator door parts diagram

Refrigerator dispenser ice chute cap and gasket assembly

Part #DA97-12594A

BEST SELLER
$45.75 |
12% OFF Phone Price : $51.75
In Stock
Refrigerator Wire Harness DA96-00640A
#18-4

Refrigerator parts diagram

Refrigerator wire harness

Part #DA96-00640A

BEST SELLER
$124.04 |
9% OFF Phone Price : $136.04
In Stock
Refrigerator Water Inlet Valve DA62-04027A
#15-3

Refrigerator parts diagram

Refrigerator water inlet valve

Part #DA62-04027A

BEST SELLER
$120.24 |
9% OFF Phone Price : $132.24
In Stock
Refrigerator Ice Dispenser Door Kit DA97-13829C
#10

Left refrigerator door parts diagram

Refrigerator ice dispenser door kit

Part #DA97-13829C

BEST SELLER
$137.75 |
8% OFF Phone Price : $149.75
In Stock
Refrigerator Defrost Heater DA47-00434A
#20-3

Refrigerator parts diagram

Refrigerator defrost heater

Part #DA47-00434A

BEST SELLER
$129.38 |
8% OFF Phone Price : $141.38
In Stock
Brushless Dc Motor DA31-00287A
#19-2-1

Refrigerator parts diagram

Brushless dc motor

Part #DA31-00287A

Replaced by #DA81-06013A

?
Manufacturer substitution
This part replaces DA31-00287A. Substitute parts can look different from the original.
BEST SELLER
$105.62 |
10% OFF Phone Price : $117.62
In Stock
