Jenn-Air
Gas Cooktop

Model # JGCP536WP00 Official Jenn-Air 36" cooktop griddle (stainless)

Here are the diagrams and repair parts for Official Jenn-Air JGCP536WP00 36" cooktop griddle (stainless), as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Wall Oven Temperature Sensor W10131825
#1

Burner box, gas valves, and switches diagram

Wall oven temperature sensor

Part #W10131825

Replaced by #WPW10131825

?
Manufacturer substitution
This part replaces W10131825. Substitute parts can look different from the original.
BEST SELLER
$63.52 |
9% OFF Phone Price : $69.52
In Stock
Range Screw 3196160
#29A

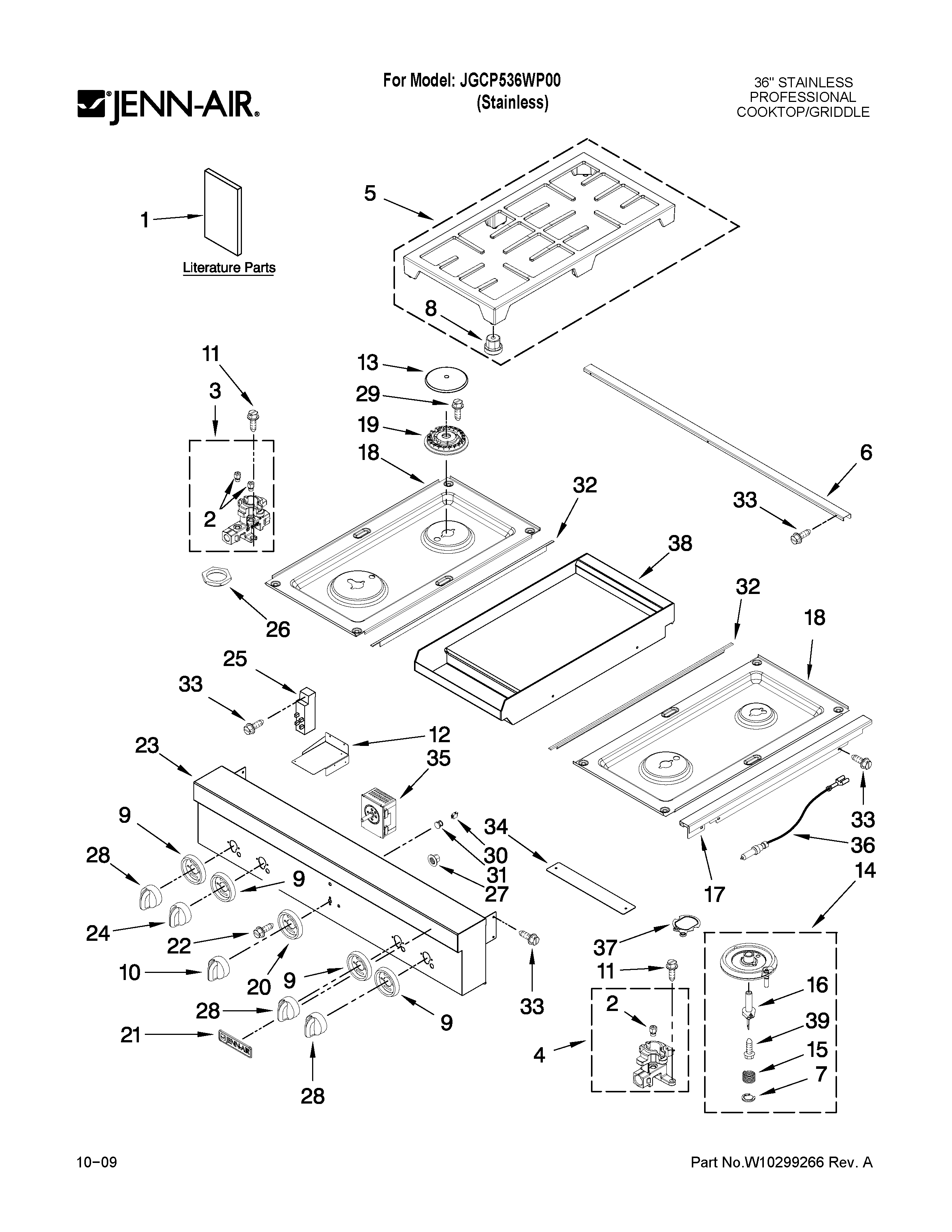

Cooktop, burner and grate parts diagram

Range screw

Part #3196160

Replaced by #W10491985

?
Manufacturer substitution
This part replaces 3196160. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Burner Valve W10250410
#18

Burner box, gas valves, and switches diagram

Burner valve

Part #W10250410

Replaced by #WPW10371235

?
Manufacturer substitution
This part replaces W10250410. Substitute parts can look different from the original.
$179.21 |
6% OFF Phone Price : $191.21
In Stock
Surface Igniter W10145991
#36

Cooktop, burner and grate parts diagram

Surface igniter

Part #W10145991

Replaced by #WPW10145991

?
Manufacturer substitution
This part replaces W10145991. Substitute parts can look different from the original.
$36.58 |
14% OFF Phone Price : $42.58
In Stock
Range Burner Head W10282515
#19B

Cooktop, burner and grate parts diagram

Range burner head

Part #W10282515

Replaced by #WPW10282515

?
Manufacturer substitution
This part replaces W10282515. Substitute parts can look different from the original.
$73.89 |
8% OFF Phone Price : $79.89
In Stock
Whirlpool Range Wok Ring W10216179
#NI

Optional parts diagram

Whirlpool range wok ring

Part #W10216179

$29.00 |
17% OFF Phone Price : $35.00
In Stock
Range Surface Burner Igniter Clip 8286863
#15A

Cooktop, burner and grate parts diagram

Range surface burner igniter clip

Part #8286863

$29.89
In Stock
Indicator Light W10116114
#30

Cooktop, burner and grate parts diagram

Indicator light

Part #W10116114

$36.09
In Stock
Range Backguard Kit, 36-in W10115776
#NI

Optional parts diagram

Range backguard kit, 36-in

Part #W10115776

$225.79 |
5% OFF Phone Price : $237.79
In Stock
Range Surface Burner Cap W10160229
#13A

Cooktop, burner and grate parts diagram

Range surface burner cap

Part #W10160229

Replaced by #WPW10160229

?
Manufacturer substitution
This part replaces W10160229. Substitute parts can look different from the original.
$61.07
In Stock
