Model # MAV6300AWQ Official Maytag washer
Here are the diagrams and repair parts for Official Maytag MAV6300AWQ washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

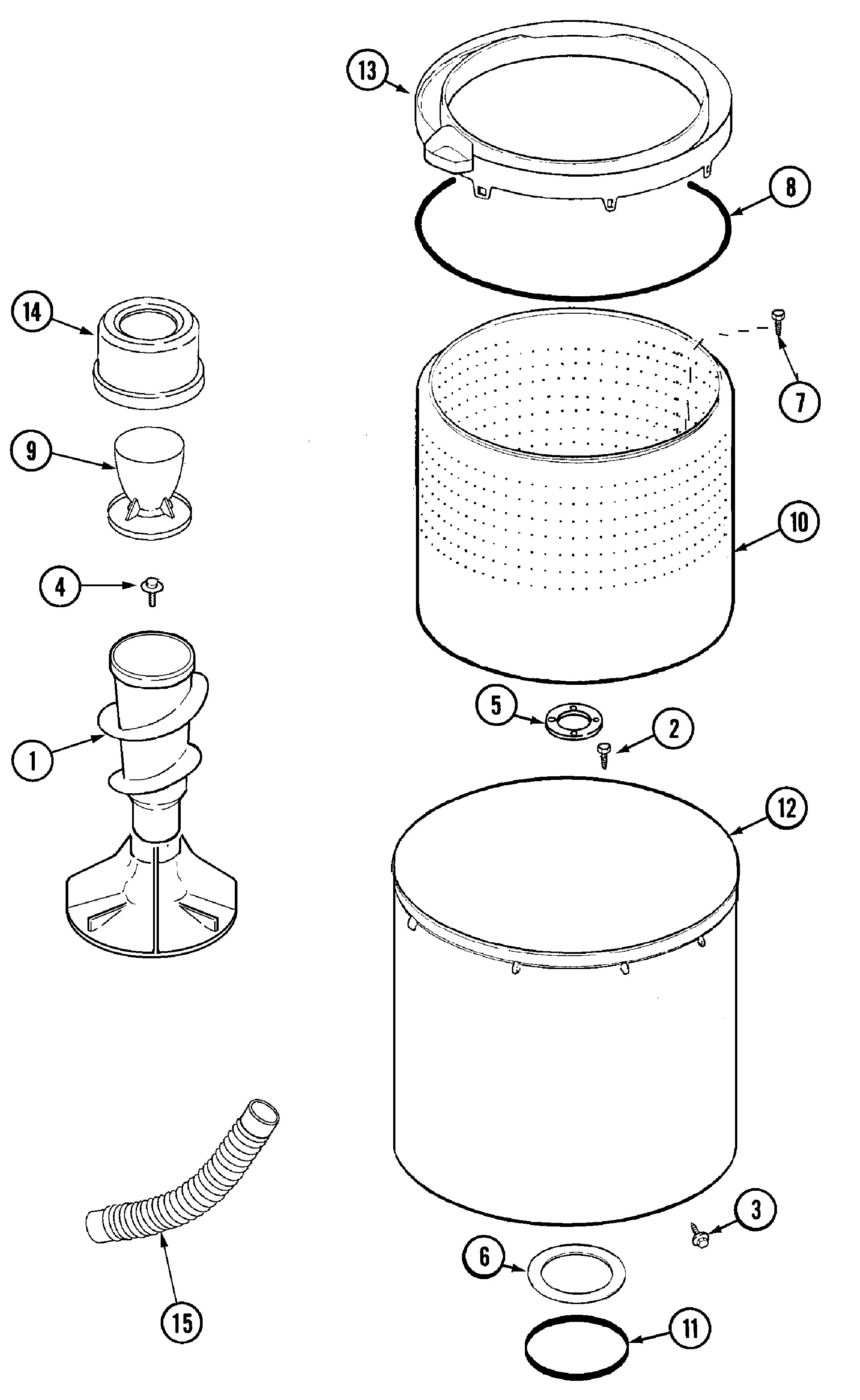

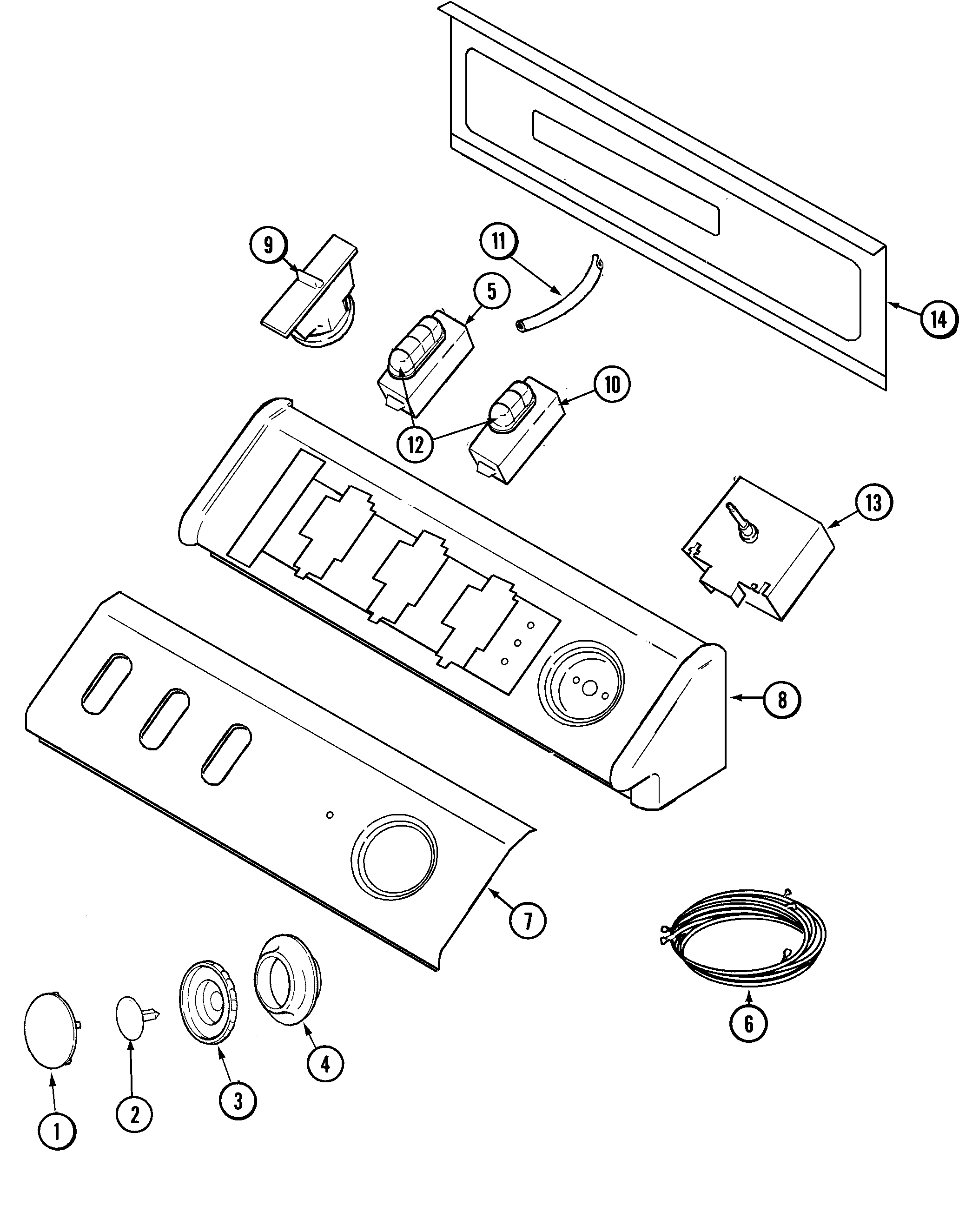

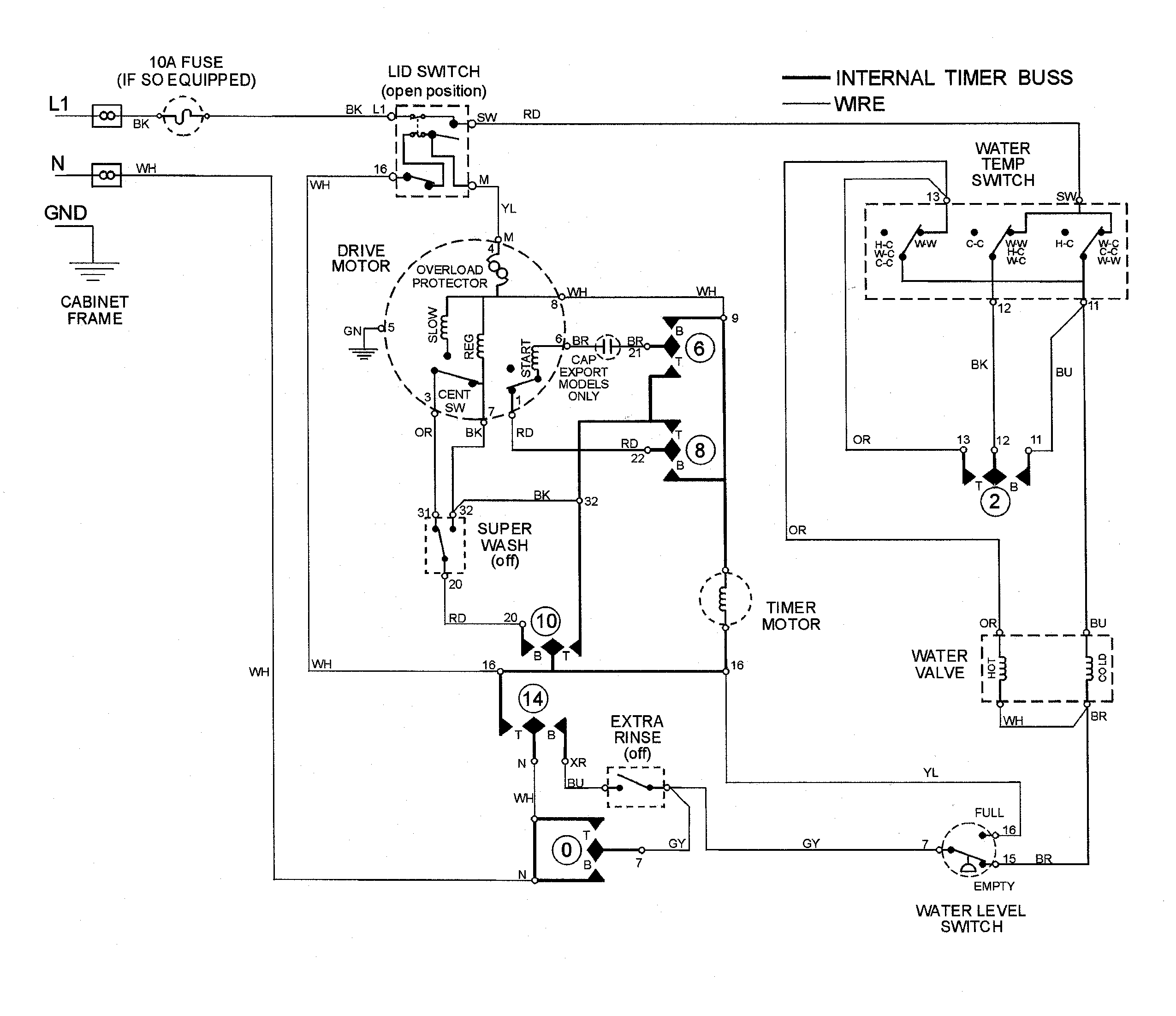

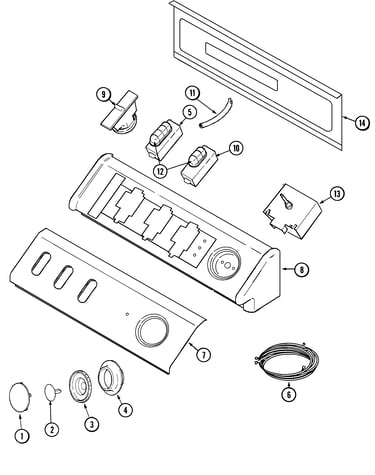

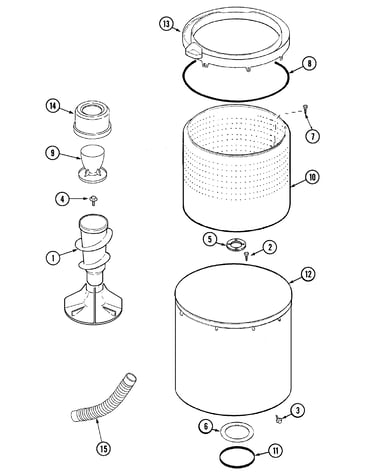

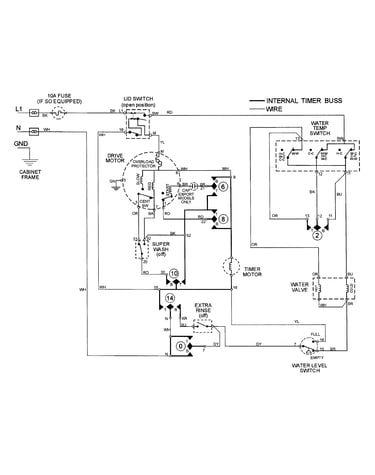

SELECT DIAGRAM
Browse Parts for
MAV6300AWQ Washer
Clamp,hose-i
Part #216169
Replaced by #WP596669
?
Manufacturer substitution
This part replaces 216169. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
#16

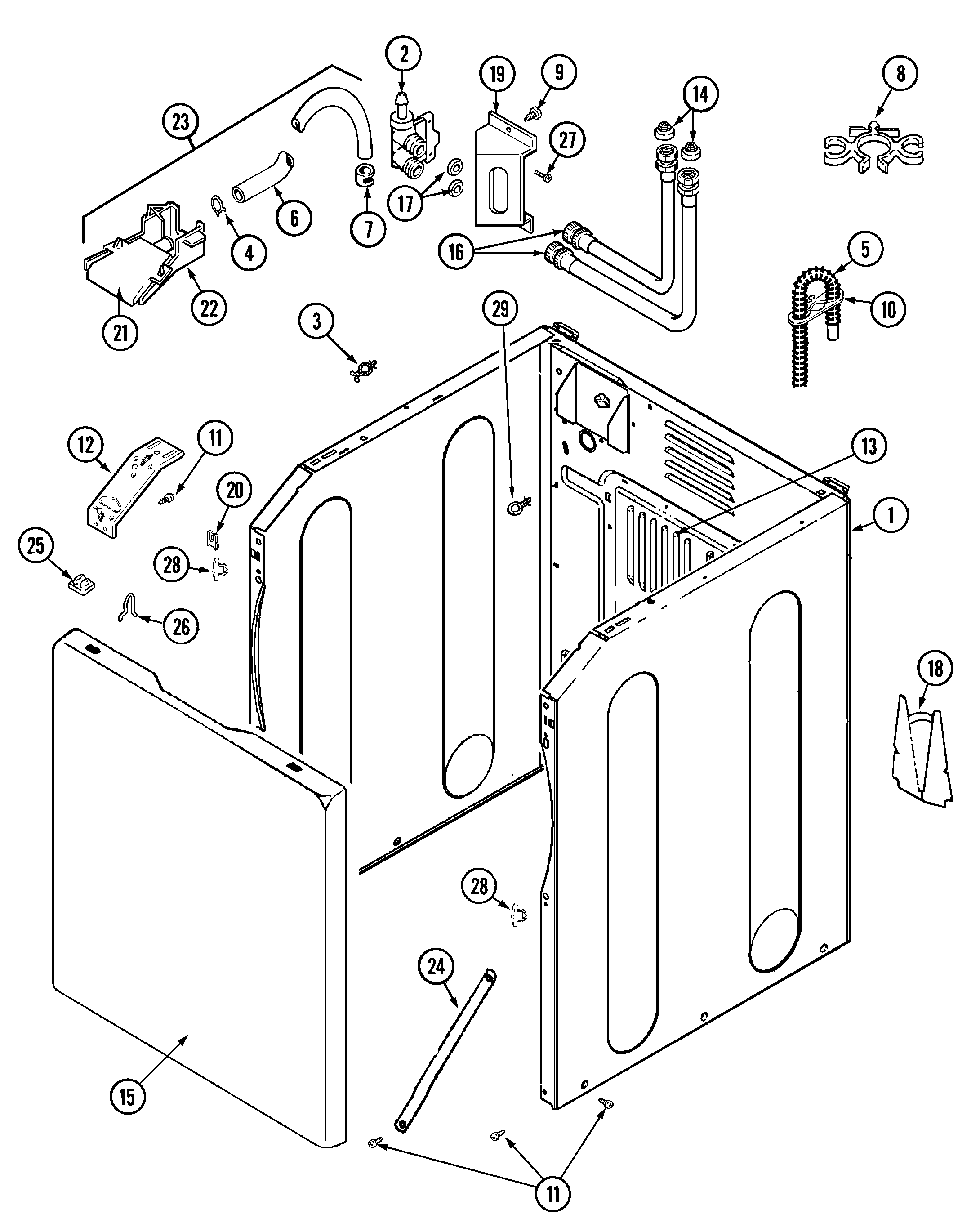

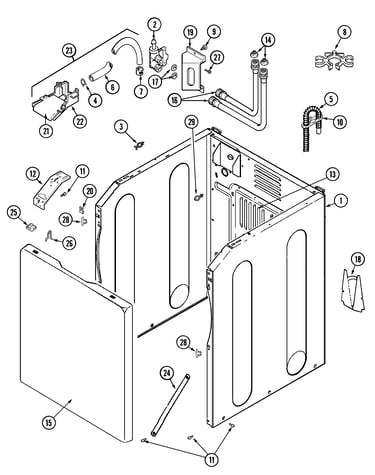

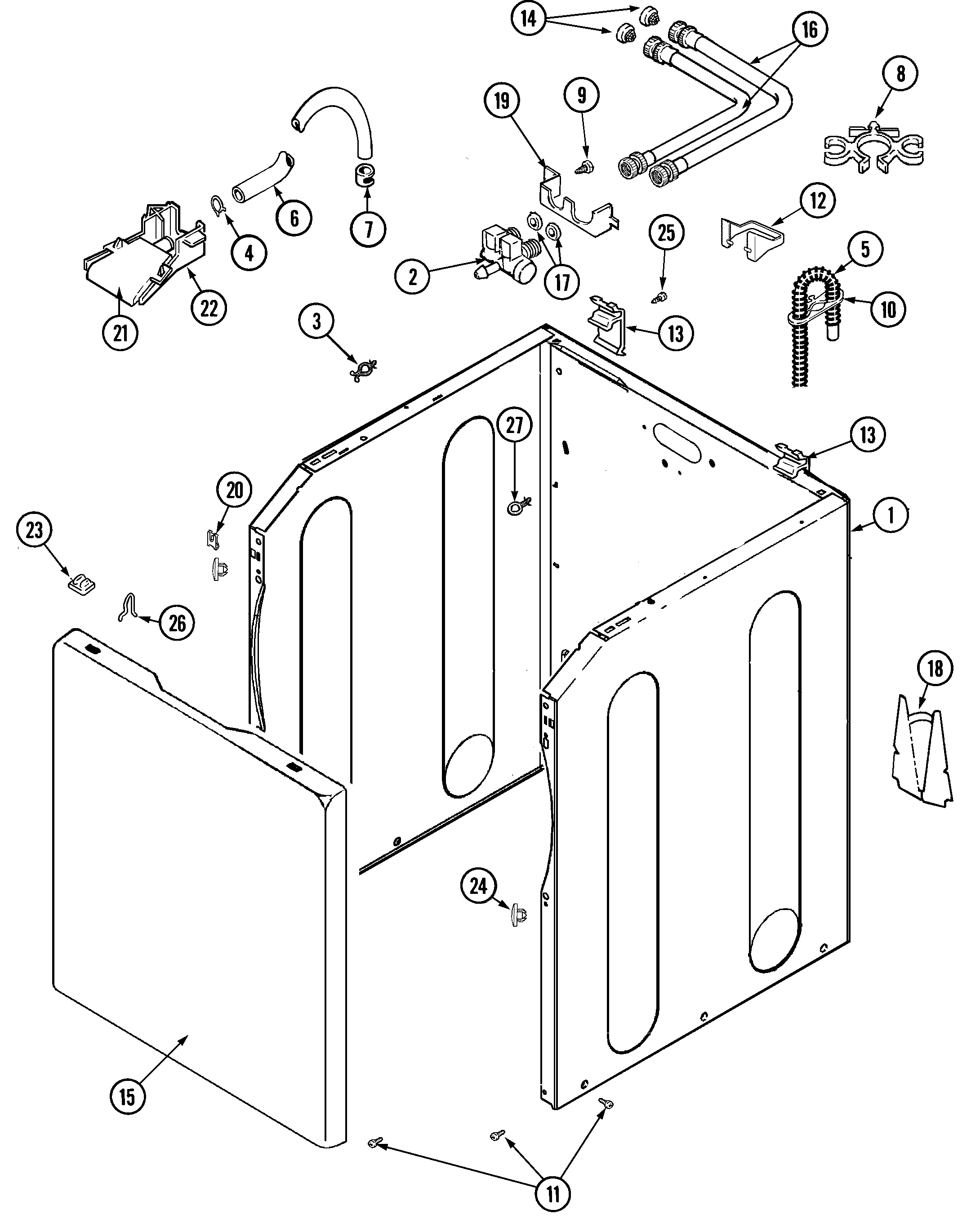

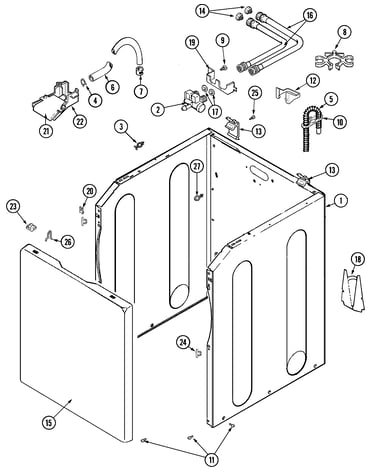

Cabinet (prior ser pre 18) diagram
Inlet hose
Part #33-7891
Replaced by #WP89503
?
Manufacturer substitution
This part replaces 33-7891. Substitute parts can look different from the original.
$14.49 |
12% OFF Phone Price : $16.49
In Stock
#12

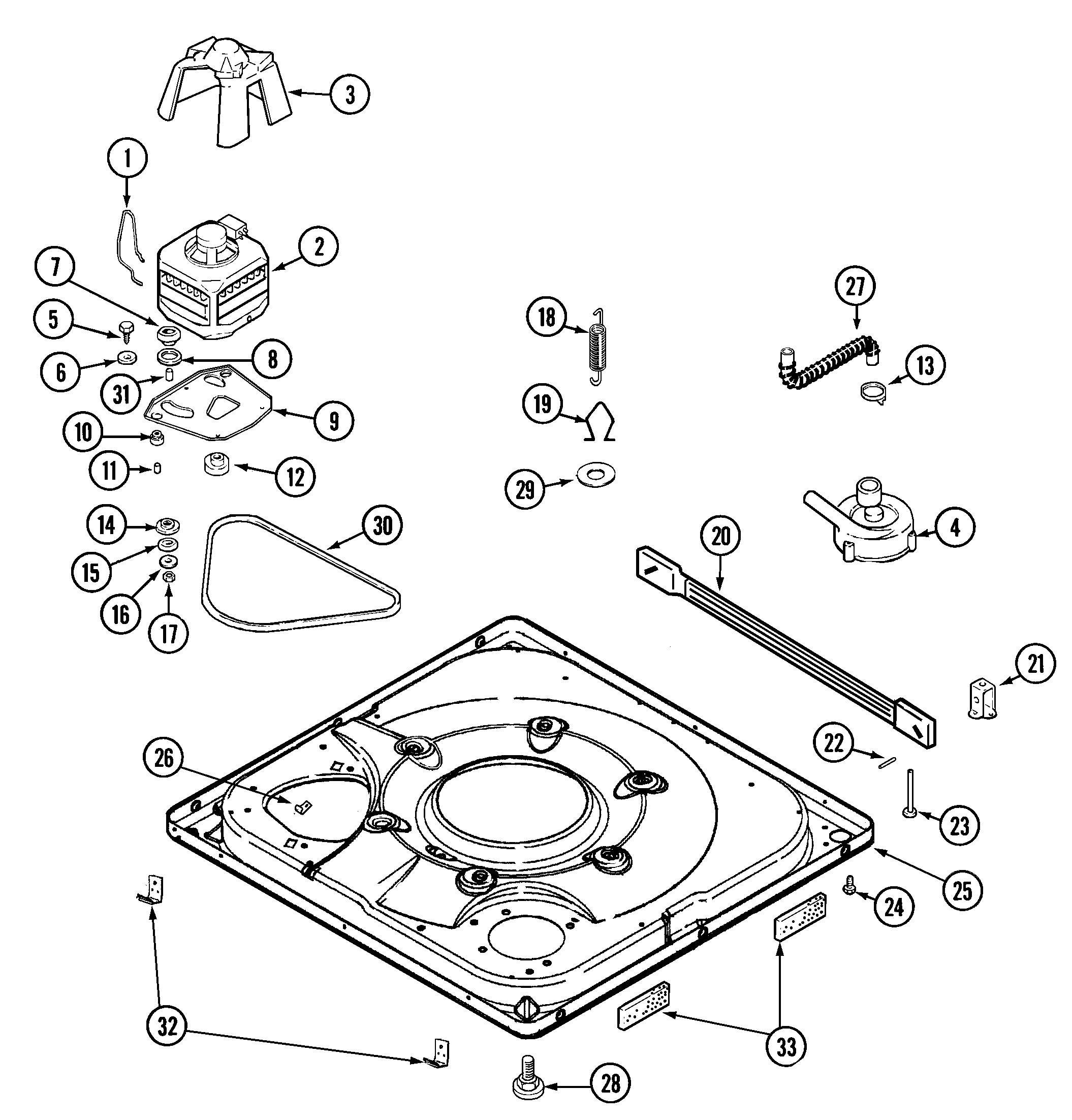

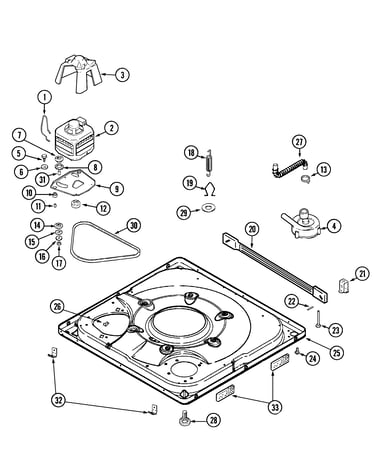

Base diagram
Washer drive motor
Part #21001506
Replaced by #WP21001950
?
Manufacturer substitution
This part replaces 21001506. Substitute parts can look different from the original.
$128.85 |
9% OFF Phone Price : $140.85
In Stock
#12A
Base diagram
Pulley
Part #22004297
Replaced by #WP21001950
?
Manufacturer substitution
This part replaces 22004297. Substitute parts can look different from the original.
$128.85 |
9% OFF Phone Price : $140.85
In Stock
#2
Base diagram
Motor with pulley
Part #21001516
Replaced by #WP21001950
?
Manufacturer substitution
This part replaces 21001516. Substitute parts can look different from the original.
$128.85 |
9% OFF Phone Price : $140.85
In Stock
#30A
Base diagram
Washer drive belt
Part #22003483
Replaced by #WP22003483
?
Manufacturer substitution
This part replaces 22003483. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
#30
Base diagram
Drive belt
Part #22002709
Replaced by #WP22003483
?
Manufacturer substitution
This part replaces 22002709. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
#22
Transmission diagram
Snubber
Part #21001161
Replaced by #WP21002026
?
Manufacturer substitution
This part replaces 21001161. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
#4A
Base diagram
Pump
Part #21001906
Replaced by #WP35-6465
?
Manufacturer substitution
This part replaces 21001906. Substitute parts can look different from the original.
$84.87 |
7% OFF Phone Price : $90.87
In Stock
#3

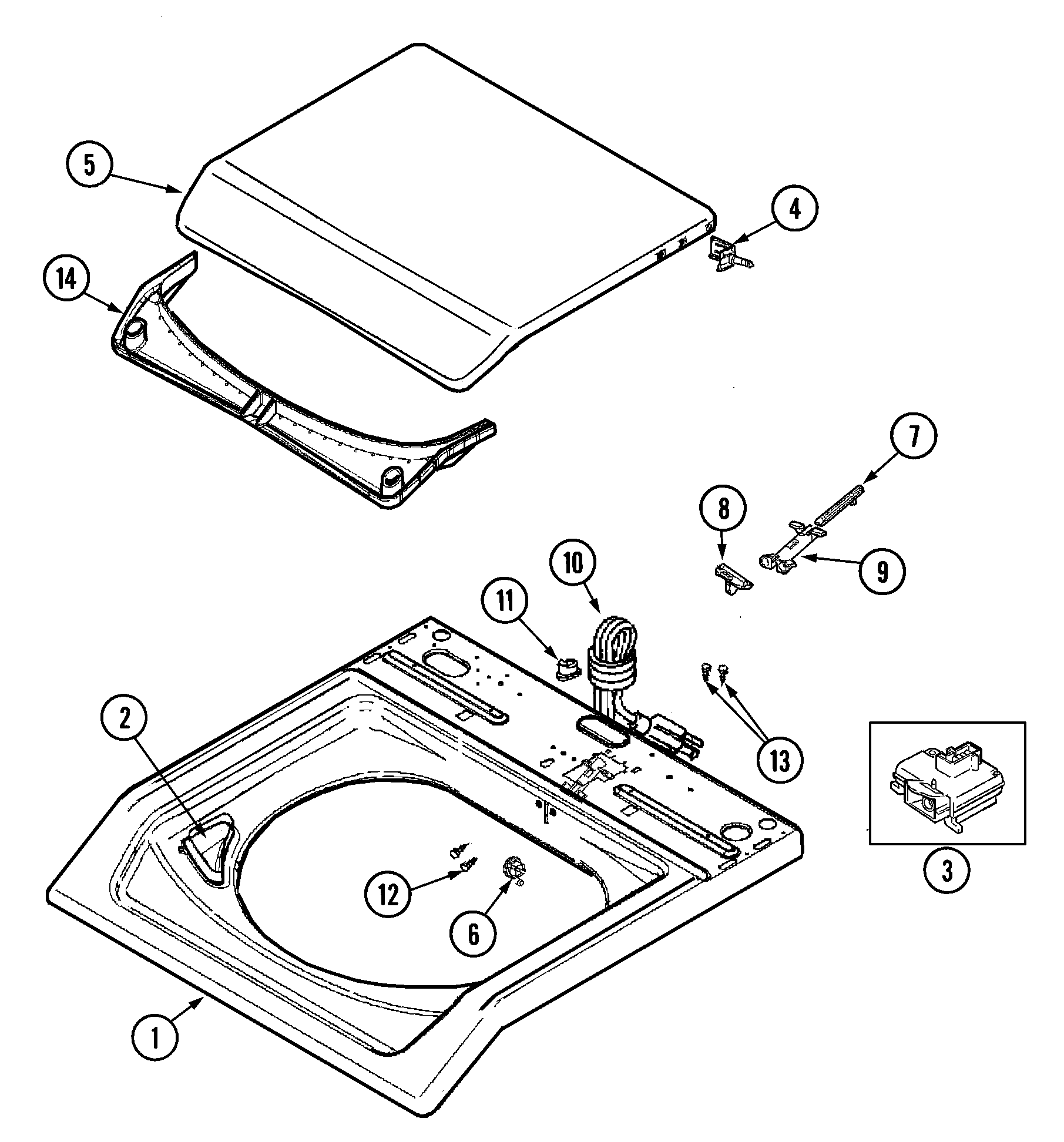

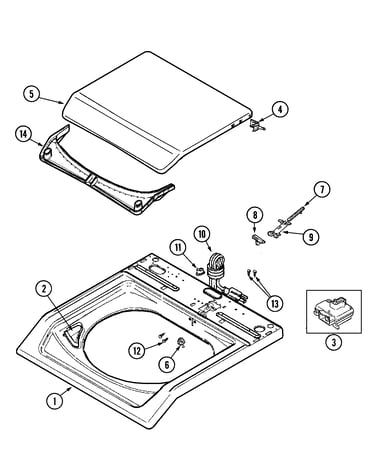

Top diagram
Washer lid switch
Part #22003804
Replaced by #WP22003804
?
Manufacturer substitution
This part replaces 22003804. Substitute parts can look different from the original.
$49.90 |
11% OFF Phone Price : $55.90
In Stock
