Model # JV338H1BB Official GE range hood

Here are the diagrams and repair parts for Official GE JV338H1BB range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 14 parts  |
Range Hood Fan Motor WB26X10148
#3

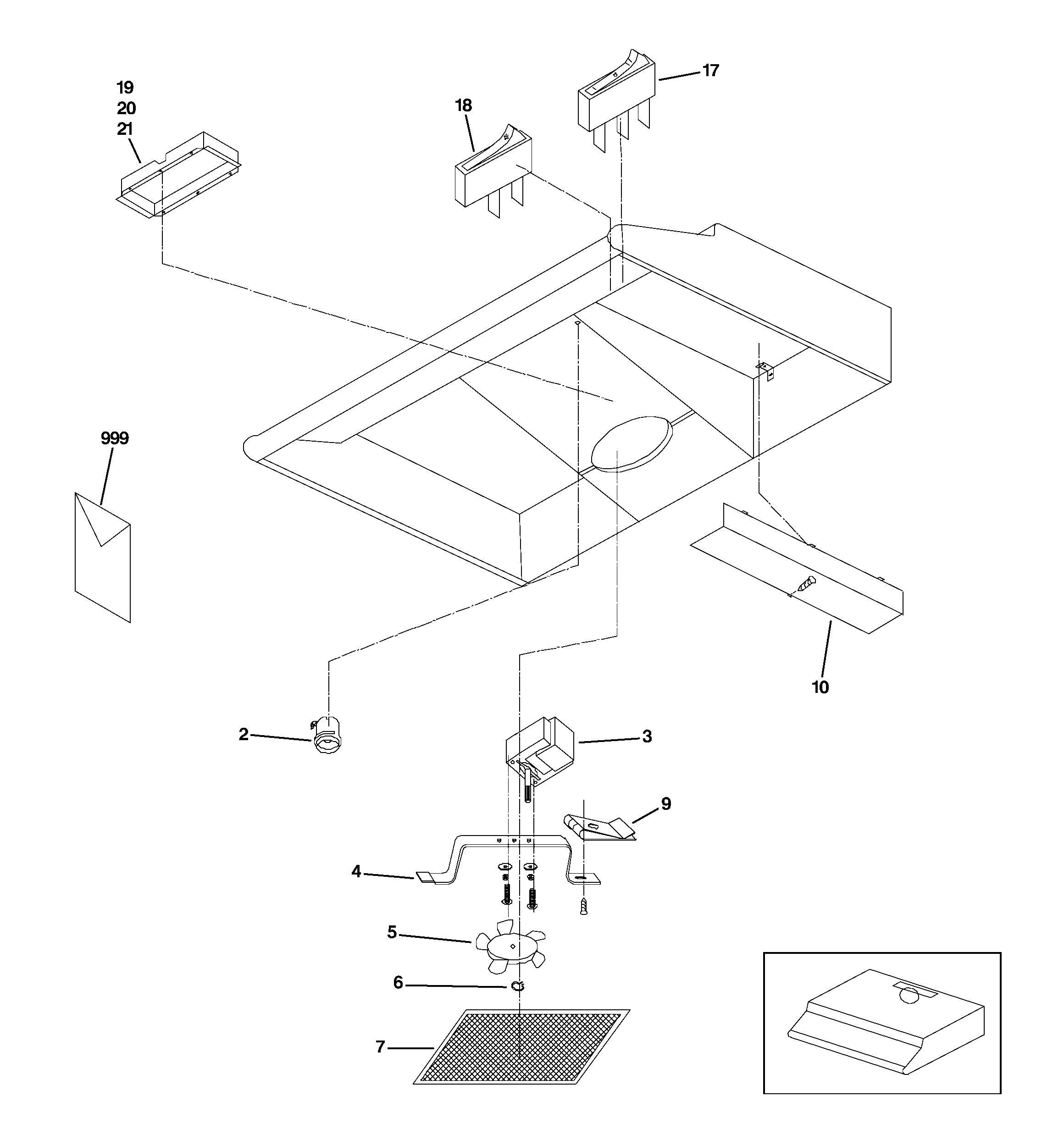

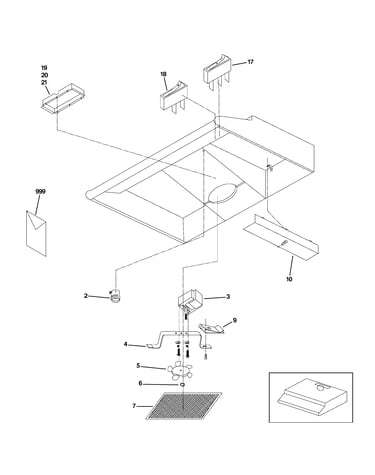

Range hood diagram

Range hood fan motor

Part #WB26X10148

$74.19 |
7% OFF Phone Price : $80.19
In Stock
Filtr Grease WB02X8391
#7

Range hood diagram

Filtr grease

Part #WB02X8391

Replaced by #WB2X8391

?
Manufacturer substitution
This part replaces WB02X8391. Substitute parts can look different from the original.
$26.89 |
18% OFF Phone Price : $32.89
In Stock
Collar WB02X11030
#21

Range hood diagram

Collar

Part #WB02X11030

$9.46
In Stock
Switch-lamp WB24X10138
#17

Range hood diagram

Switch-lamp

Part #WB24X10138

$10.09
In Stock
Damper WB02X11029
#20

Range hood diagram

Damper

Part #WB02X11029

$16.91
In Stock
Hotpoint Range Hood Lamp Socket WB02X11039
#2

Range hood diagram

Hotpoint range hood lamp socket

Part #WB02X11039

This item is not returnable
$12.51
In Stock
Pivot Frame WB02X11028
#19

Range hood diagram

Pivot frame

Part #WB02X11028

$8.80 |
10% OFF Phone Price : $9.80
In Stock
Hotpoint Retaining Nu WB02X11035
#9

Range hood diagram

Hotpoint retaining nu

Part #WB02X11035

This item is not returnable
$6.35 |
14% OFF Phone Price : $7.35
In Stock
Fan Switch WB24X10137
#18

Range hood diagram

Fan switch

Part #WB24X10137

$8.20 |
11% OFF Phone Price : $9.20
In Stock
Hotpoint Motor Bracket WB13X10013
#4

Range hood diagram

Hotpoint motor bracket

Part #WB13X10013

$13.57
In Stock
