Model # LG400SXD2 Official White-Westinghouse 27" gas laundry center - 5995260360

Here are the diagrams and repair parts for Official White-Westinghouse LG400SXD2 27" gas laundry center - 5995260360, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

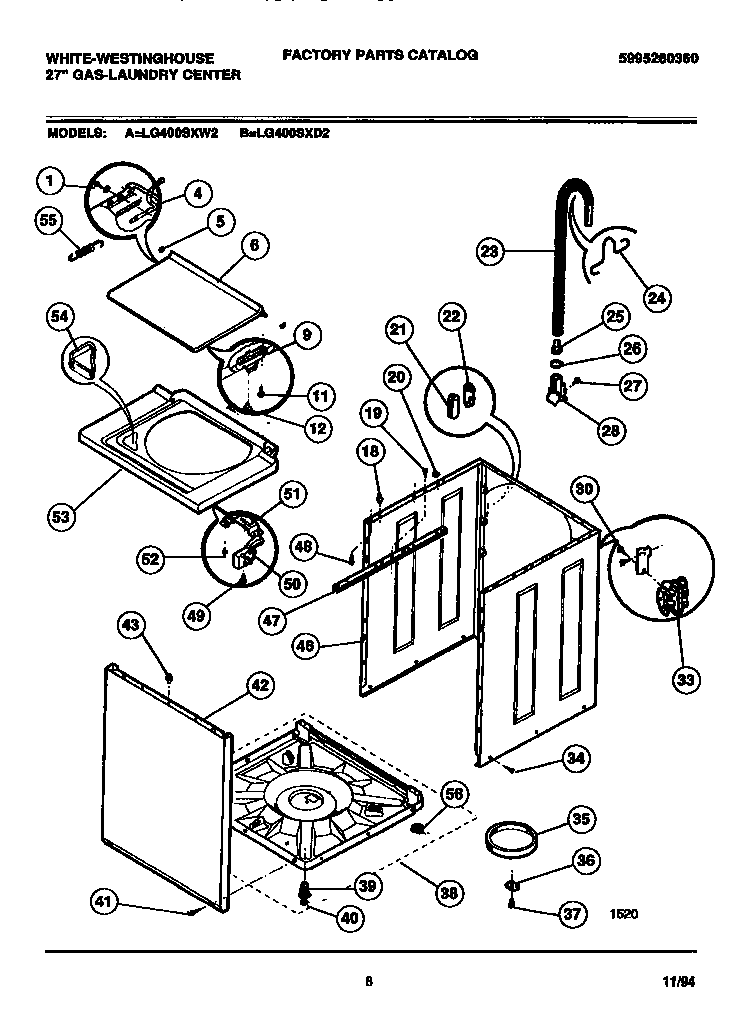

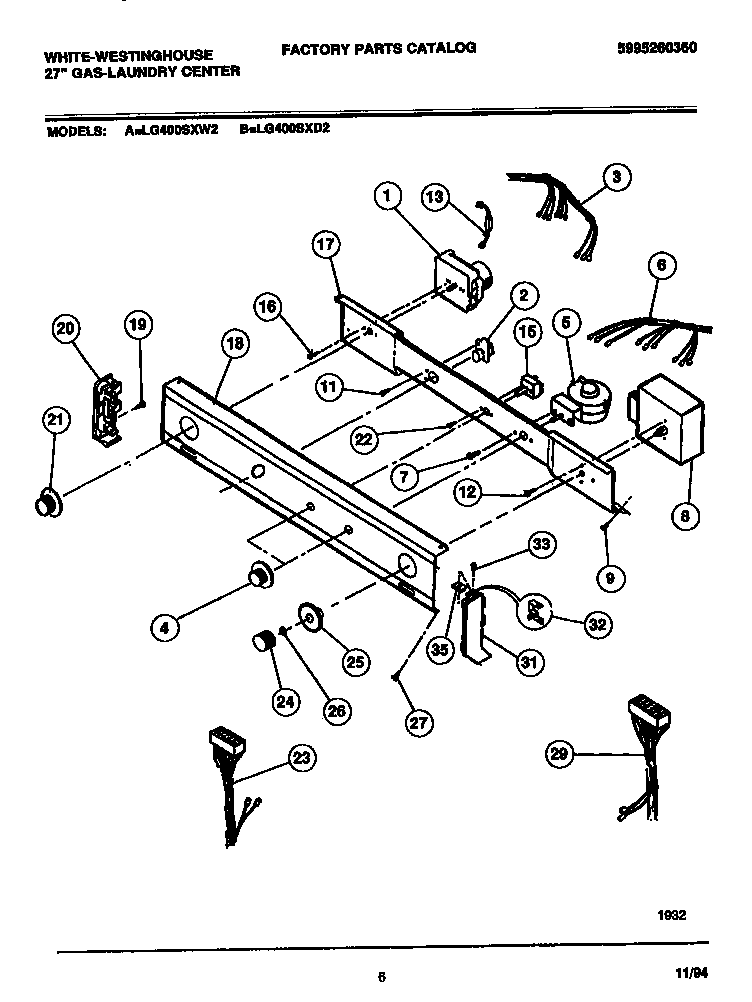

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 234 parts  |

Belt 5303283287
#25

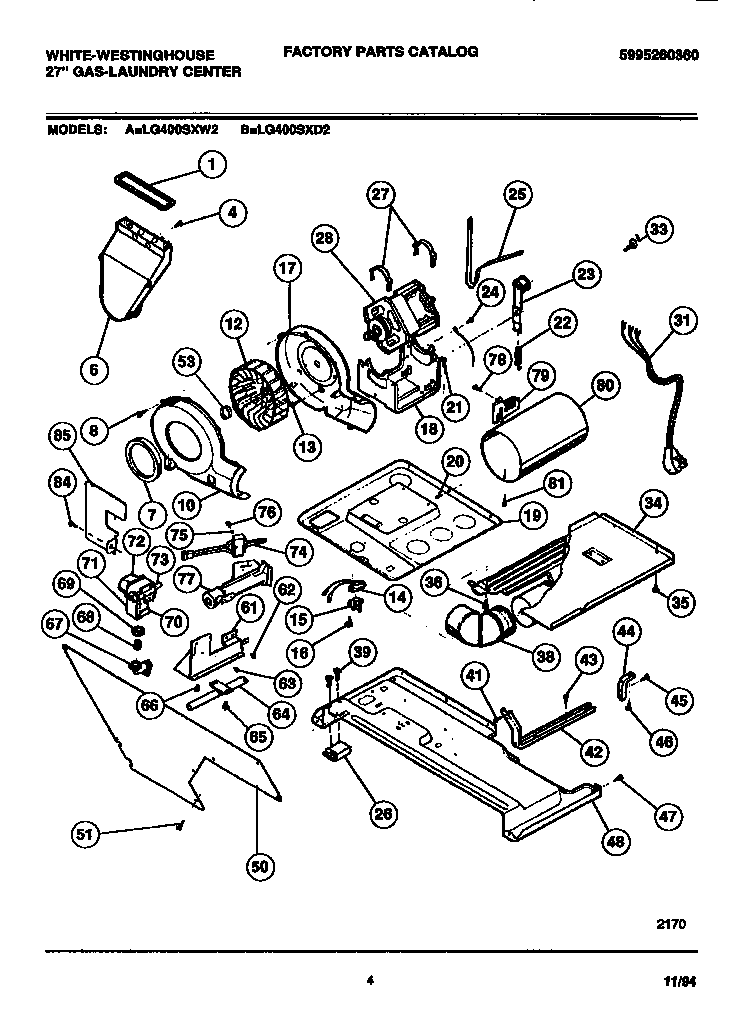

Dryer - motor, blower, belt diagram

Belt

Part #5303283287

Replaced by #134503600

?
Manufacturer substitution
This part replaces 5303283287. Substitute parts can look different from the original.
BEST SELLER
$15.20
12% OFF Phone Price : $17.20
In Stock
Bearing 5303281008
#12

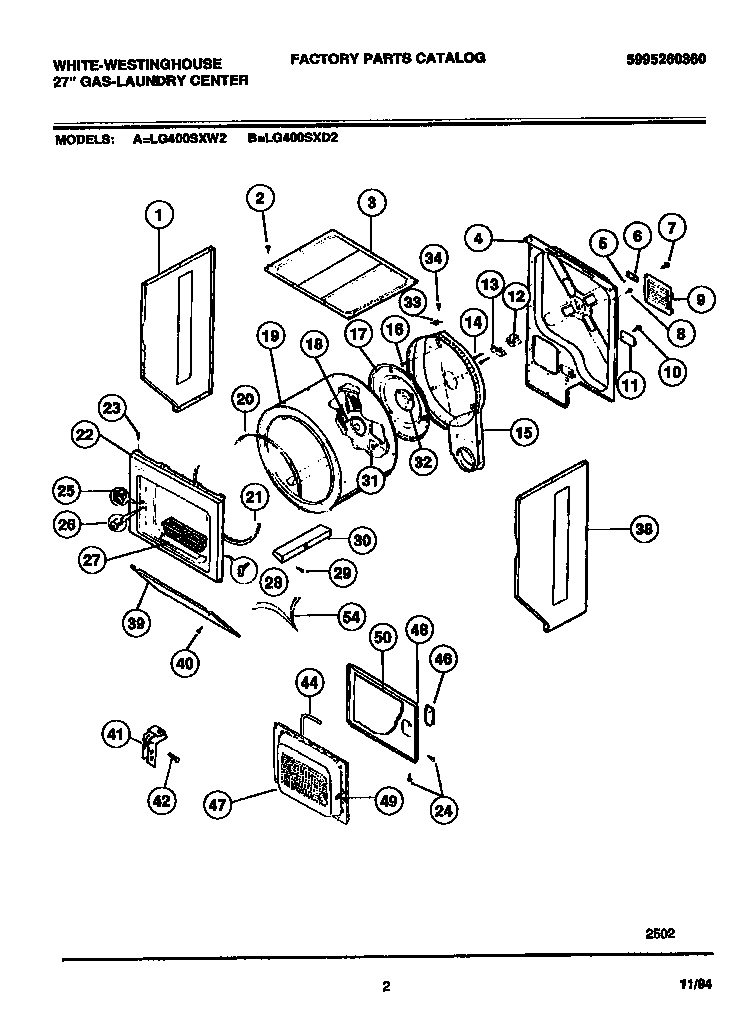

Dryer - cabinet, drum, heater diagram

Bearing

Part #5303281008

Replaced by #131825900

?
Manufacturer substitution
This part replaces 5303281008. Substitute parts can look different from the original.
BEST SELLER
$7.31
12% OFF Phone Price : $8.31
In Stock
Belt 131234000
#28

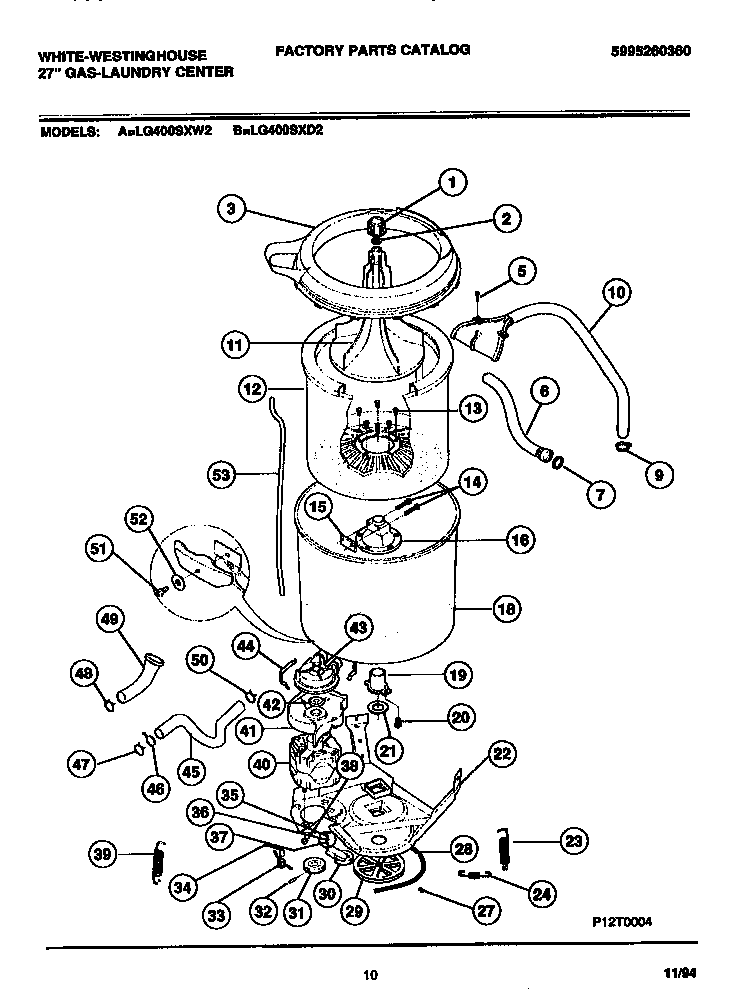

Washer - tubs, hoses, motor diagram

Belt

Part #131234000

Replaced by #134511600

?
Manufacturer substitution
This part replaces 131234000. Substitute parts can look different from the original.
BEST SELLER
$20.17
23% OFF Phone Price : $26.17
In Stock
Lint Trap 131152700
#27

Dryer - cabinet, drum, heater diagram

Lint trap

Part #131152700

Replaced by #5304516871

?
Manufacturer substitution
This part replaces 131152700. Substitute parts can look different from the original.
BEST SELLER
$39.98
13% OFF Phone Price : $45.98
In Stock
Glide 5303937123
#20

Dryer - cabinet, drum, heater diagram

Glide

Part #5303937123

Replaced by #5303937139

?
Manufacturer substitution
This part replaces 5303937123. Substitute parts can look different from the original.
BEST SELLER
$35.84
14% OFF Phone Price : $41.84
In Stock
Wheel 5303212513
#12

Dryer - motor, blower, belt diagram

Wheel

Part #5303212513

Replaced by #131476300

?
Manufacturer substitution
This part replaces 5303212513. Substitute parts can look different from the original.
BEST SELLER
$46.20
11% OFF Phone Price : $52.20
In Stock
Dryer Drum Felt Seal, Lower 5303283286
#21

Dryer - cabinet, drum, heater diagram

Dryer drum felt seal, lower

Part #5303283286

BEST SELLER
$37.40
14% OFF Phone Price : $43.40
In Stock
Electrolux Washer Tub Seal Assembly 5303279394
#26

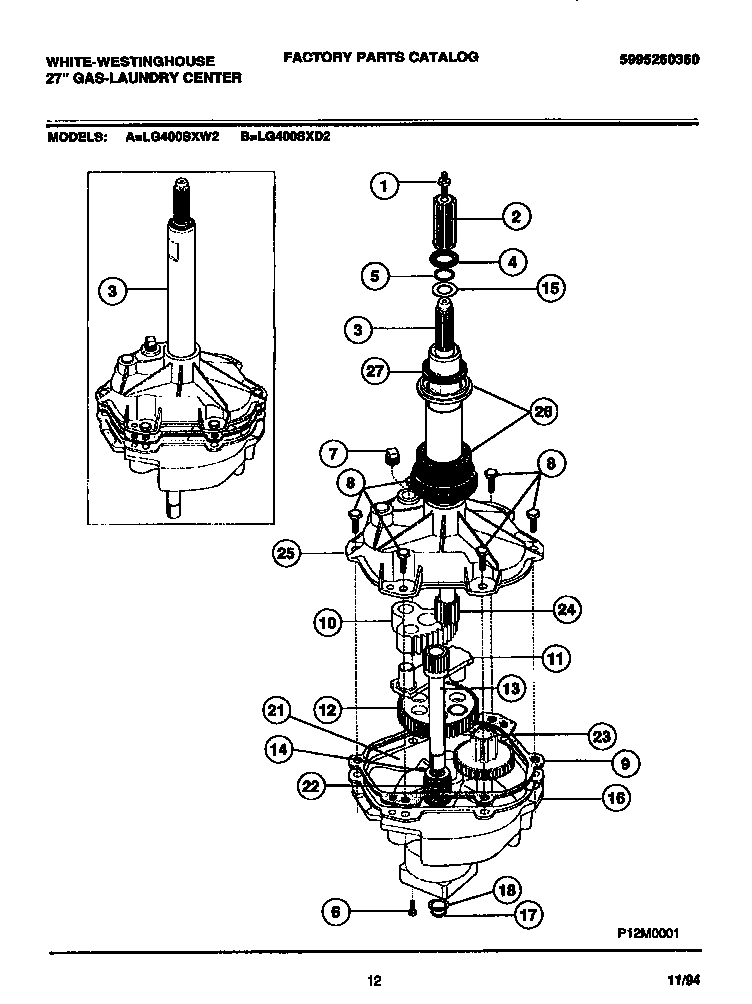

Transmission diagram

Electrolux washer tub seal assembly

Part #5303279394

The manufacturer no longer makes this part, and there's no substitute part

Laundry Appliance Screw, #8-18 X 31/100-in 131168200
Laundry appliance screw, #8-18 x 31/100-in

Part #131168200

BEST SELLER
$10.87
16% OFF Phone Price : $12.87
In Stock
Dryer Grounding Ball (replaces 000022224, 08015113, 22224, 3281019, Q000022224, Wq22224) 5303281019
#5

Dryer - cabinet, drum, heater diagram

Dryer grounding ball (replaces 000022224, 08015113, 22224, 3281019, q000022224, wq22224)

Part #5303281019

BEST SELLER
$19.49
9% OFF Phone Price : $21.49
In Stock
