GE
Gas Range

Model # JGBS02PN2 Official GE gas range

Here are the diagrams and repair parts for Official GE JGBS02PN2 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

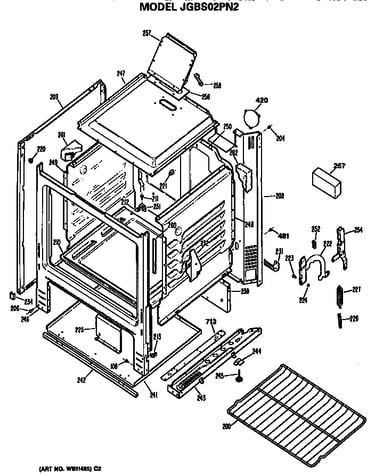

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |

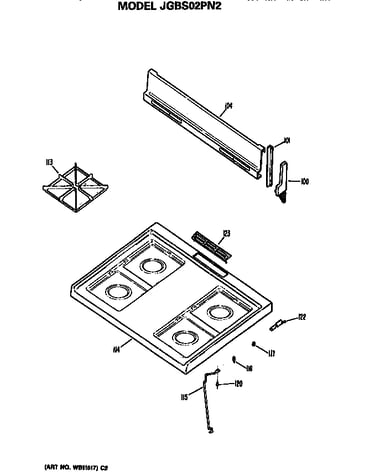

Range Top WB62K15

#114

All parts diagram

Range top

Part #WB62K15

Replaced by #WB62K10001

?
Manufacturer substitution
This part replaces WB62K15. Substitute parts can look different from the original.
$204.83 |
6% OFF Phone Price : $216.83
In Stock
Rgetop Flat WB62K16

#114

All parts diagram

Rgetop flat

Part #WB62K16

Replaced by #WB62K10001

?
Manufacturer substitution
This part replaces WB62K16. Substitute parts can look different from the original.
$204.83 |
6% OFF Phone Price : $216.83
In Stock

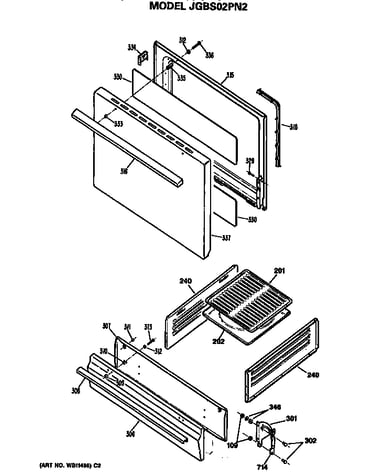

Range Door Bumper (replaces Wb02k0015, Wb02x10905) WB2K15

#311

All parts diagram

Range door bumper (replaces wb02k0015, wb02x10905)

Part #WB2K15

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Anti-tip Bracket WB2K20

#LITR

All parts diagram

Range anti-tip bracket

Part #WB2K20

$11.37 |
15% OFF Phone Price : $13.37
In Stock
Washer WB1X119

#312

All parts diagram

Washer

Part #WB1X119

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces WB1X119. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
Range Screw WB1K21

#206

All parts diagram

Range screw

Part #WB1K21

Replaced by #WR01X10065

?
Manufacturer substitution
This part replaces WB1K21. Substitute parts can look different from the original.
This item is not returnable
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Spacer WB2K14

#310

All parts diagram

Spacer

Part #WB2K14

This item is not returnable
$8.11
In Stock

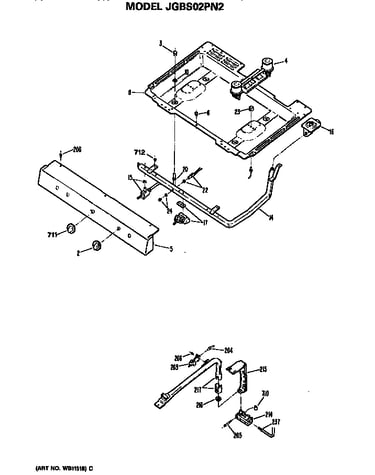

Screw WB1K37

#712

All parts diagram

Screw

Part #WB1K37

$8.11
In Stock
Range Broil Support, Left WB39K35

#714

All parts diagram

Range broil support, left

Part #WB39K35

$8.11
In Stock
Support WB39K33

#713

All parts diagram

Support

Part #WB39K33

$7.74
In Stock
