Model # 9KSM150PSMC0 Official KitchenAid mixer

Here are the diagrams and repair parts for Official KitchenAid 9KSM150PSMC0 mixer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

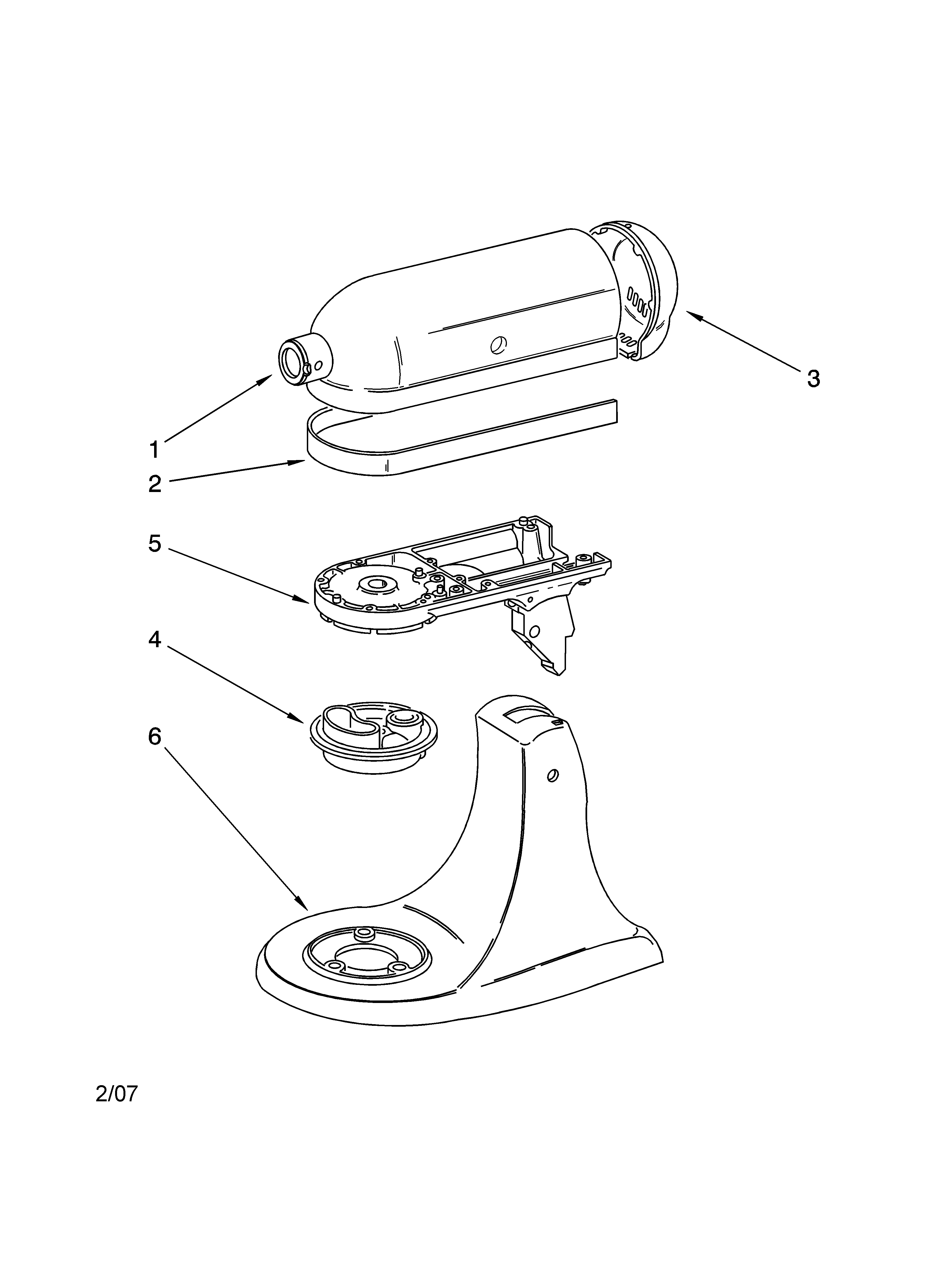

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Dryer Drum Roller Ring 9703438
#37

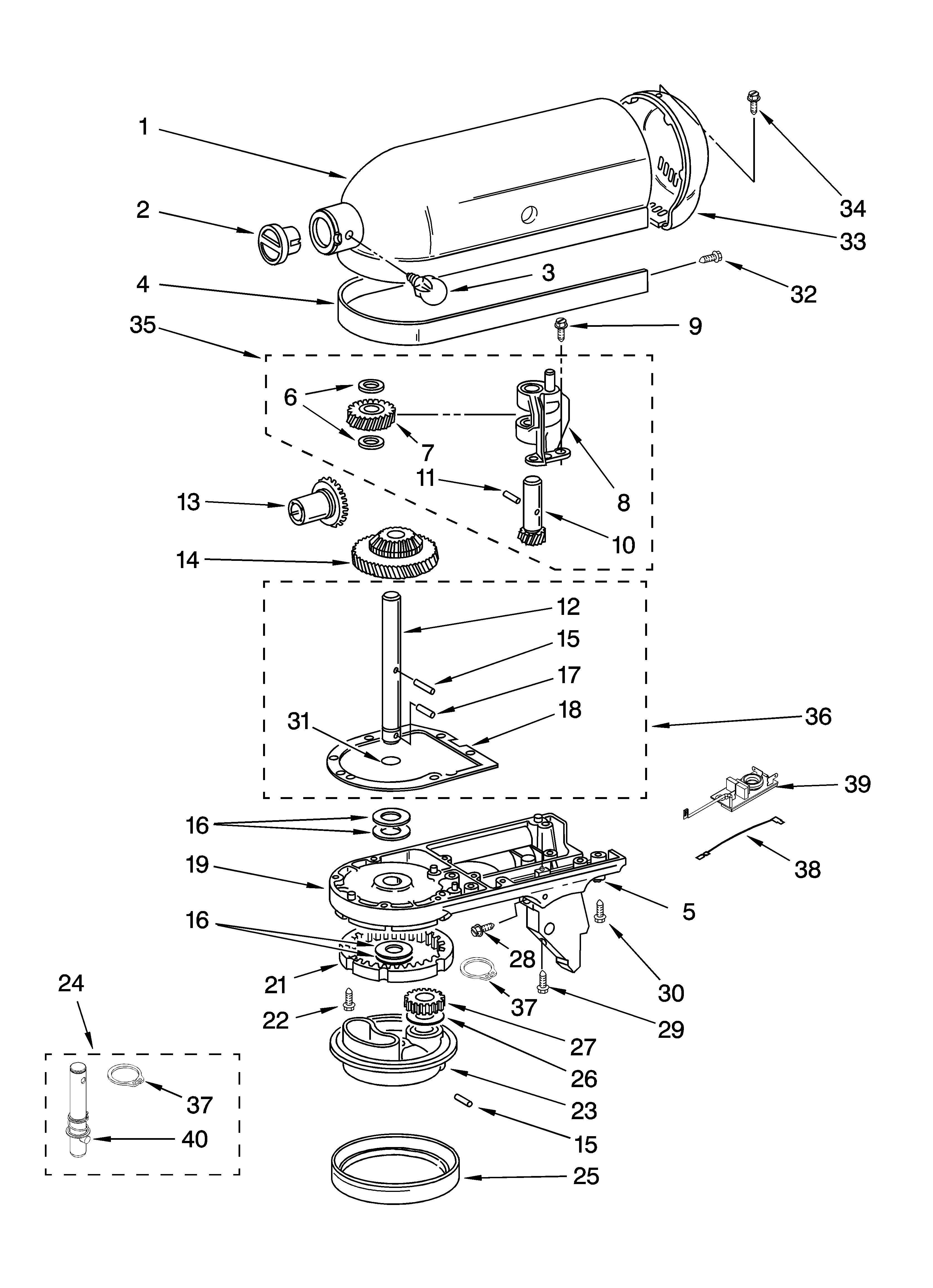

Case, gearing and planetary unit diagram

Dryer drum roller ring

Part #9703438

Replaced by #WP9703438

?
Manufacturer substitution
This part replaces 9703438. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.79 |
21% OFF Phone Price : $4.79
In Stock
Stand Mixer Worm Gear W10112253
#7

Case, gearing and planetary unit diagram

Stand mixer worm gear

Part #W10112253

Replaced by #WPW10112253

?
Manufacturer substitution
This part replaces W10112253. Substitute parts can look different from the original.
BEST SELLER
$15.08 |
12% OFF Phone Price : $17.08
In Stock
Stand Mixer Worm Gear Assembly 240309-2
#35

Case, gearing and planetary unit diagram

Stand mixer worm gear assembly

Part #240309-2

Replaced by #WP240309-2

?
Manufacturer substitution
This part replaces 240309-2. Substitute parts can look different from the original.
$30.24 |
17% OFF Phone Price : $36.24
In Stock
Gasket 4162324
#18

Case, gearing and planetary unit diagram

Gasket

Part #4162324

Replaced by #WP4162324

?
Manufacturer substitution
This part replaces 4162324. Substitute parts can look different from the original.
This item is not returnable
$15.56 |
11% OFF Phone Price : $17.56
In Stock
Brush 9706416
#22

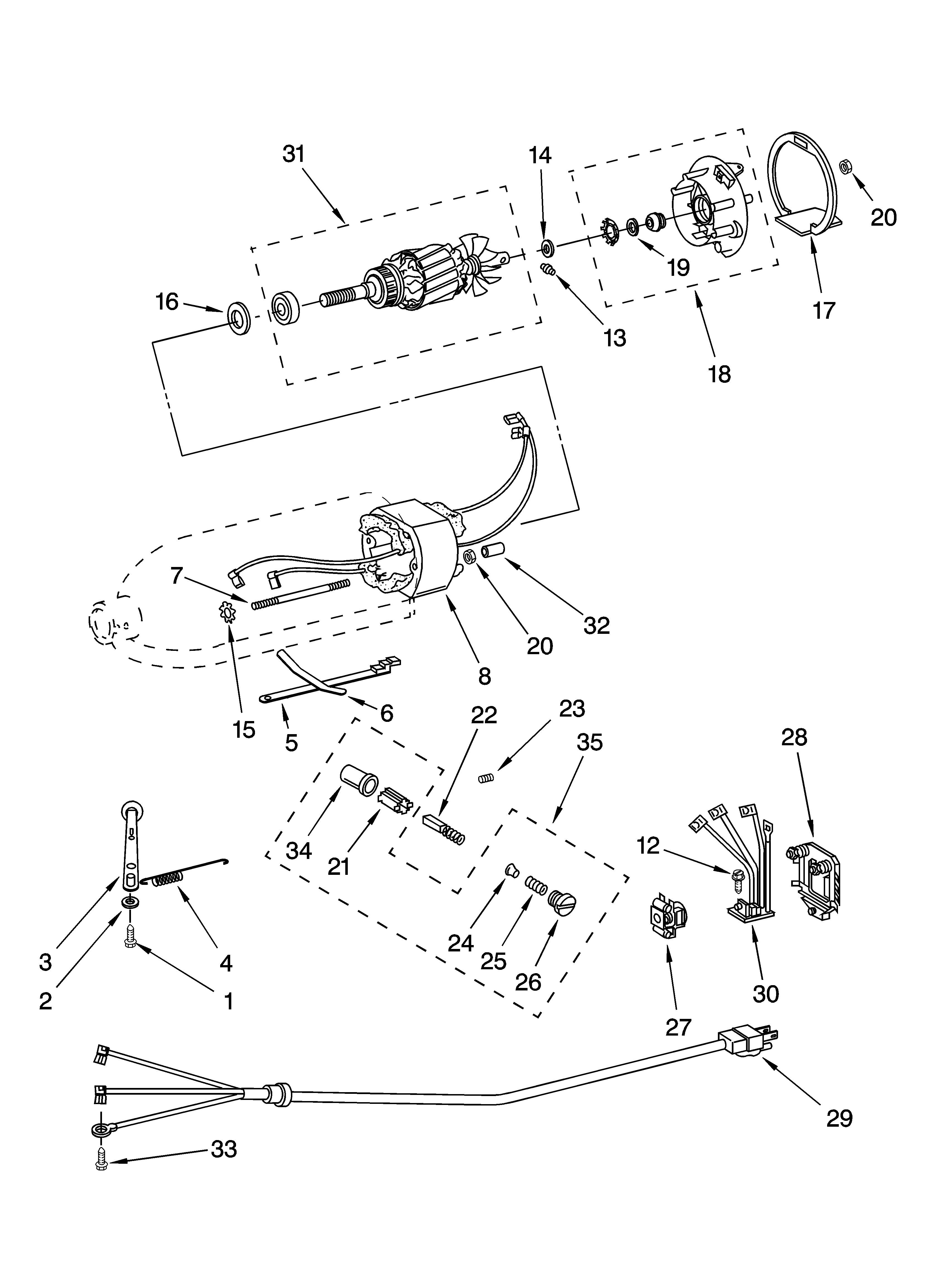

Motor and control parts diagram

Brush

Part #9706416

Replaced by #WPW10380496

?
Manufacturer substitution
This part replaces 9706416. Substitute parts can look different from the original.
$7.50 |
12% OFF Phone Price : $8.50
In Stock
Pin-dowel 240018-1
#15

Case, gearing and planetary unit diagram

Pin-dowel

Part #240018-1

Replaced by #WP9707223

?
Manufacturer substitution
This part replaces 240018-1. Substitute parts can look different from the original.
This item is not returnable
$4.58 |
18% OFF Phone Price : $5.58
In Stock
Phase Control Board 9706595
#30

Motor and control parts diagram

Phase control board

Part #9706595

Replaced by #WPW10325124

?
Manufacturer substitution
This part replaces 9706595. Substitute parts can look different from the original.
This item is not returnable
$16.28 |
11% OFF Phone Price : $18.28
In Stock
Pin-dowel 16910
#7

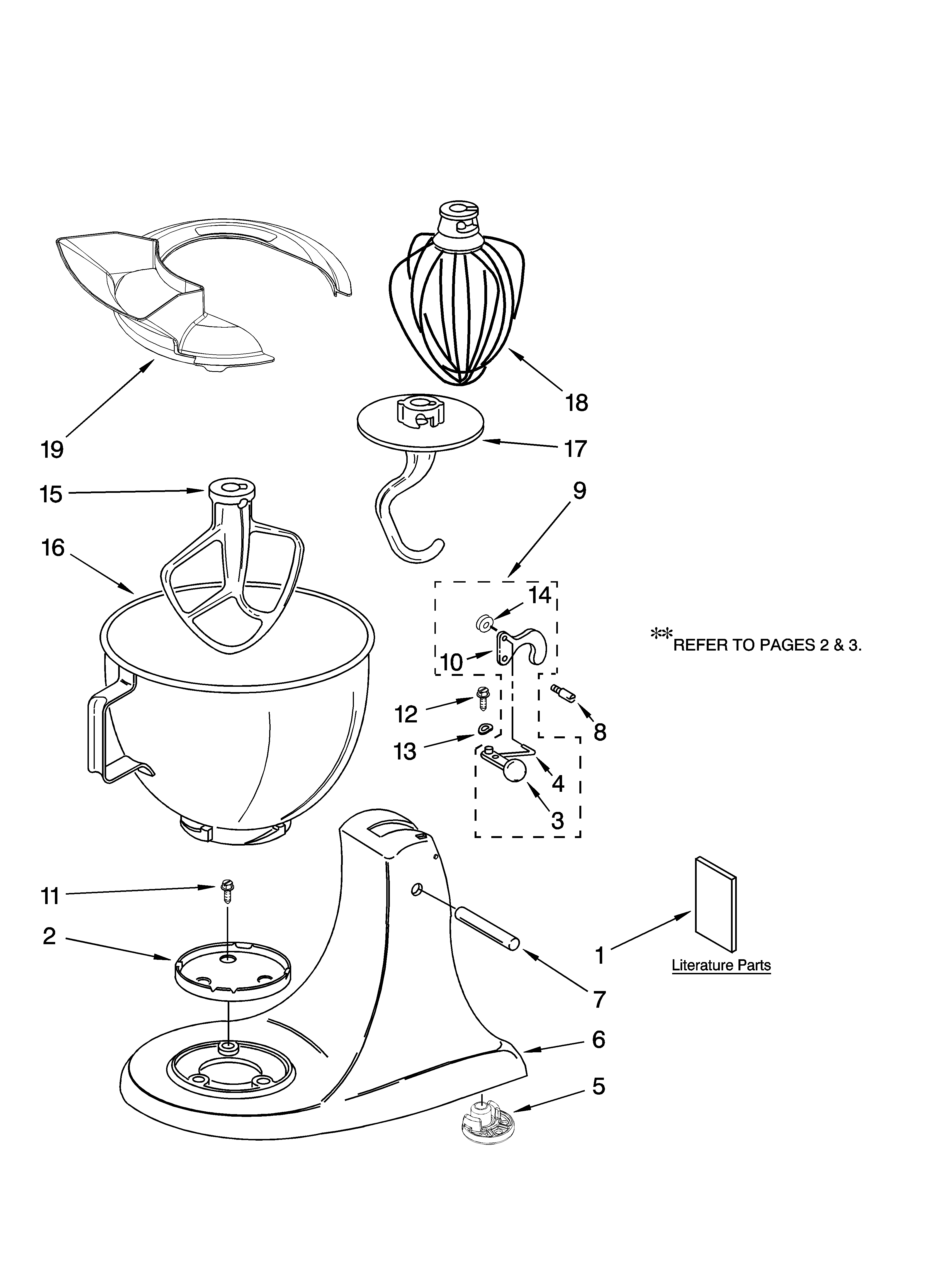

Base and pedestal unit, optional parts diagram

Pin-dowel

Part #16910

Replaced by #WP16910

?
Manufacturer substitution
This part replaces 16910. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Gear-centr 9709627
#14

Case, gearing and planetary unit diagram

Gear-centr

Part #9709627

Replaced by #W11192794

?
Manufacturer substitution
This part replaces 9709627. Substitute parts can look different from the original.
$32.85 |
15% OFF Phone Price : $38.85
In Stock
Gear Hub 9705130
#13

Case, gearing and planetary unit diagram

Gear hub

Part #9705130

Replaced by #W11192794

?
Manufacturer substitution
This part replaces 9705130. Substitute parts can look different from the original.
$32.85 |
15% OFF Phone Price : $38.85
In Stock
