Amana
Bottom-Mount Refrigerator

Model # ABR2227FES0 Official Amana refrigerator

Here are the diagrams and repair parts for Official Amana ABR2227FES0 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

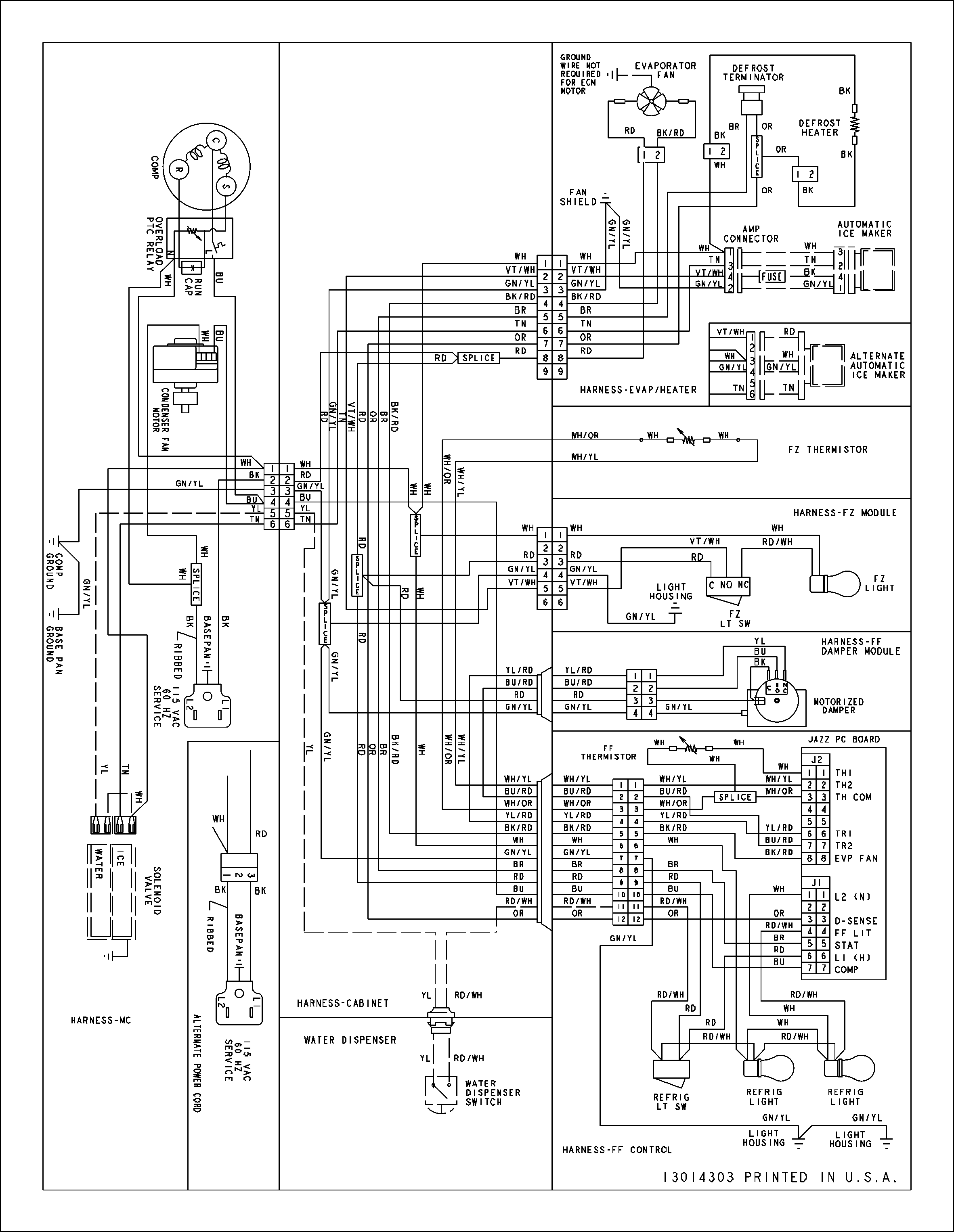

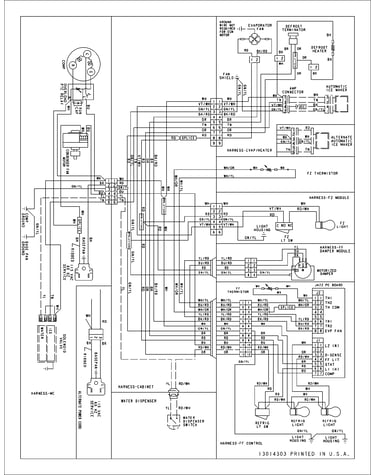

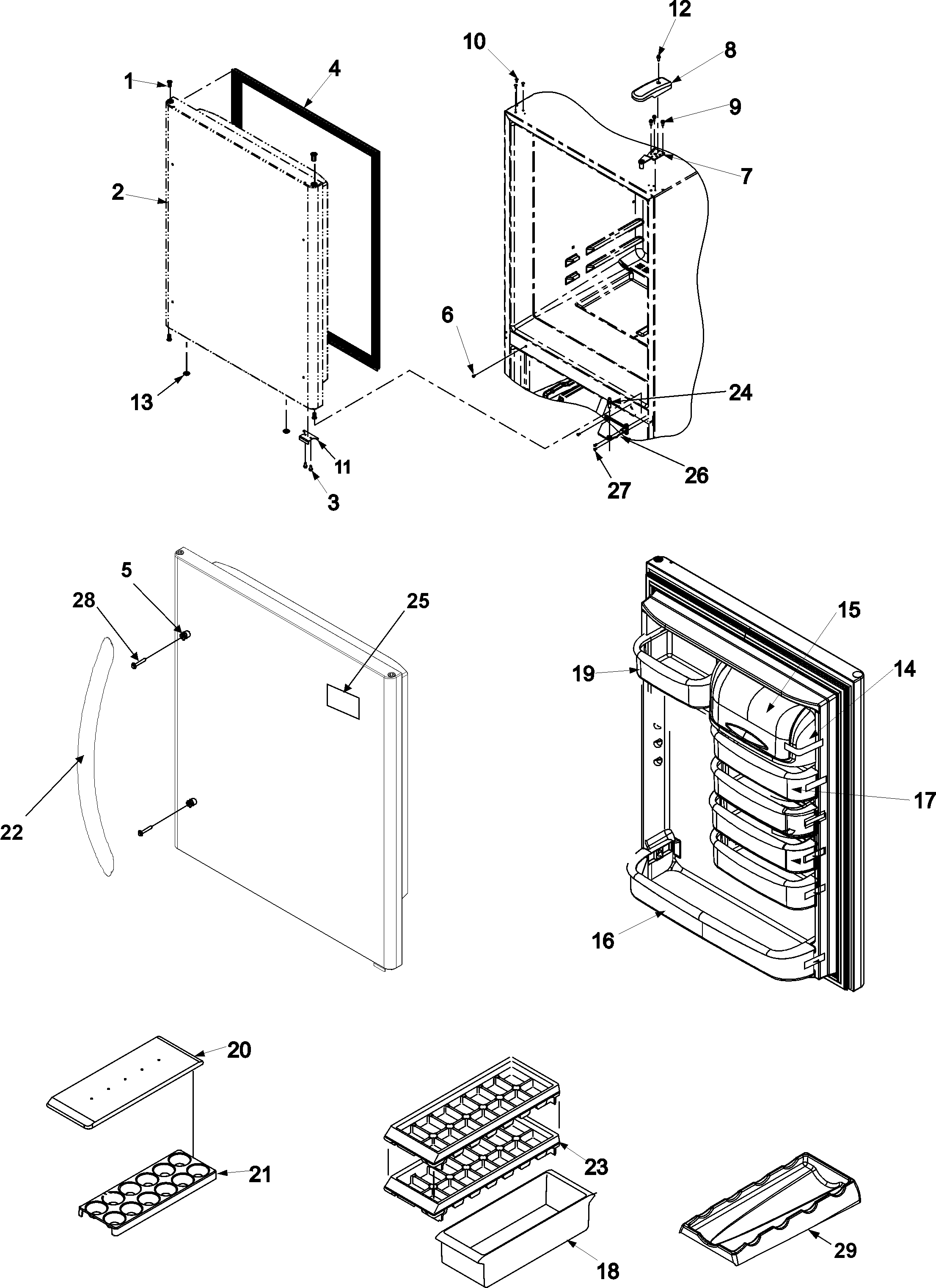

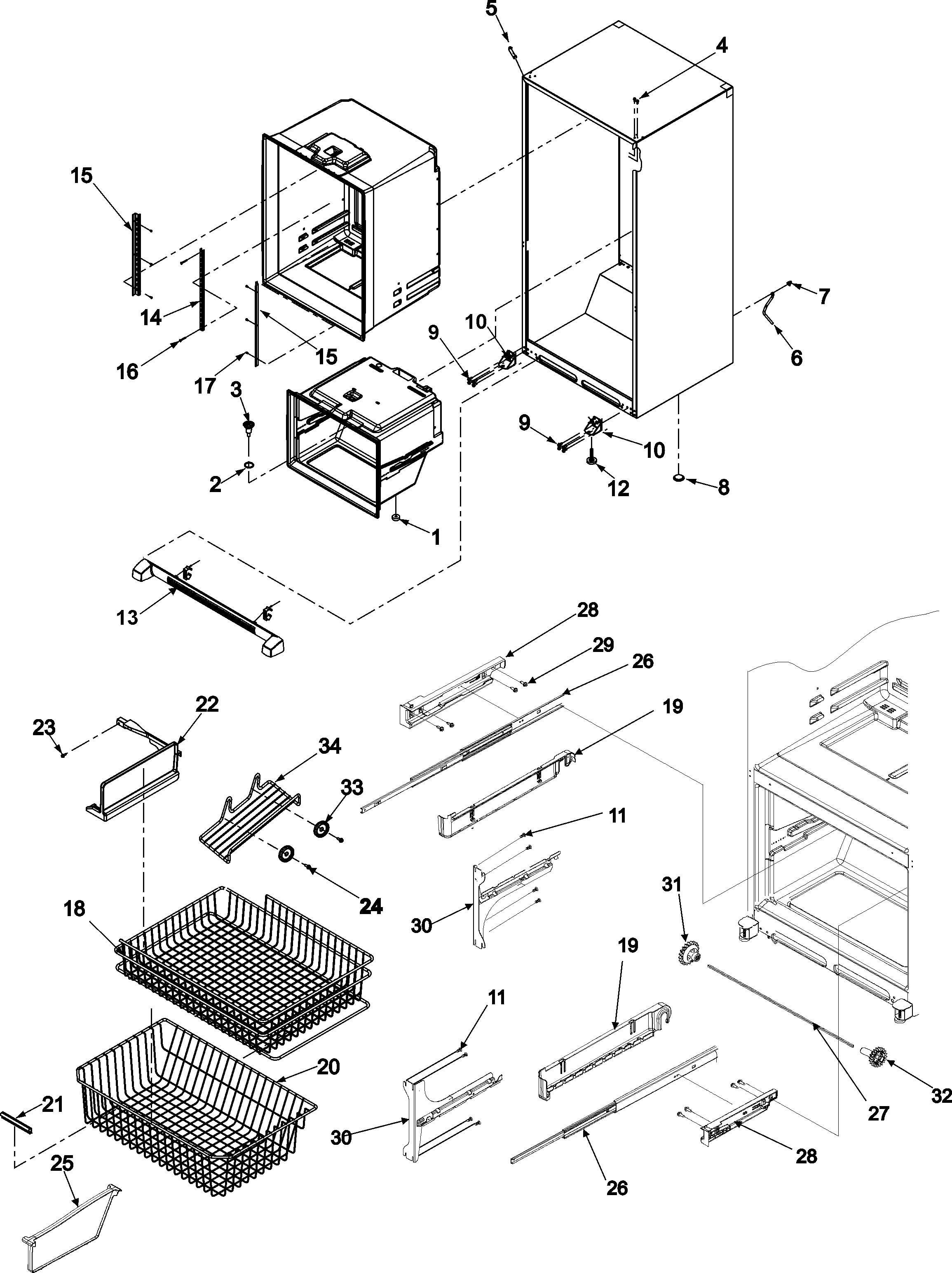

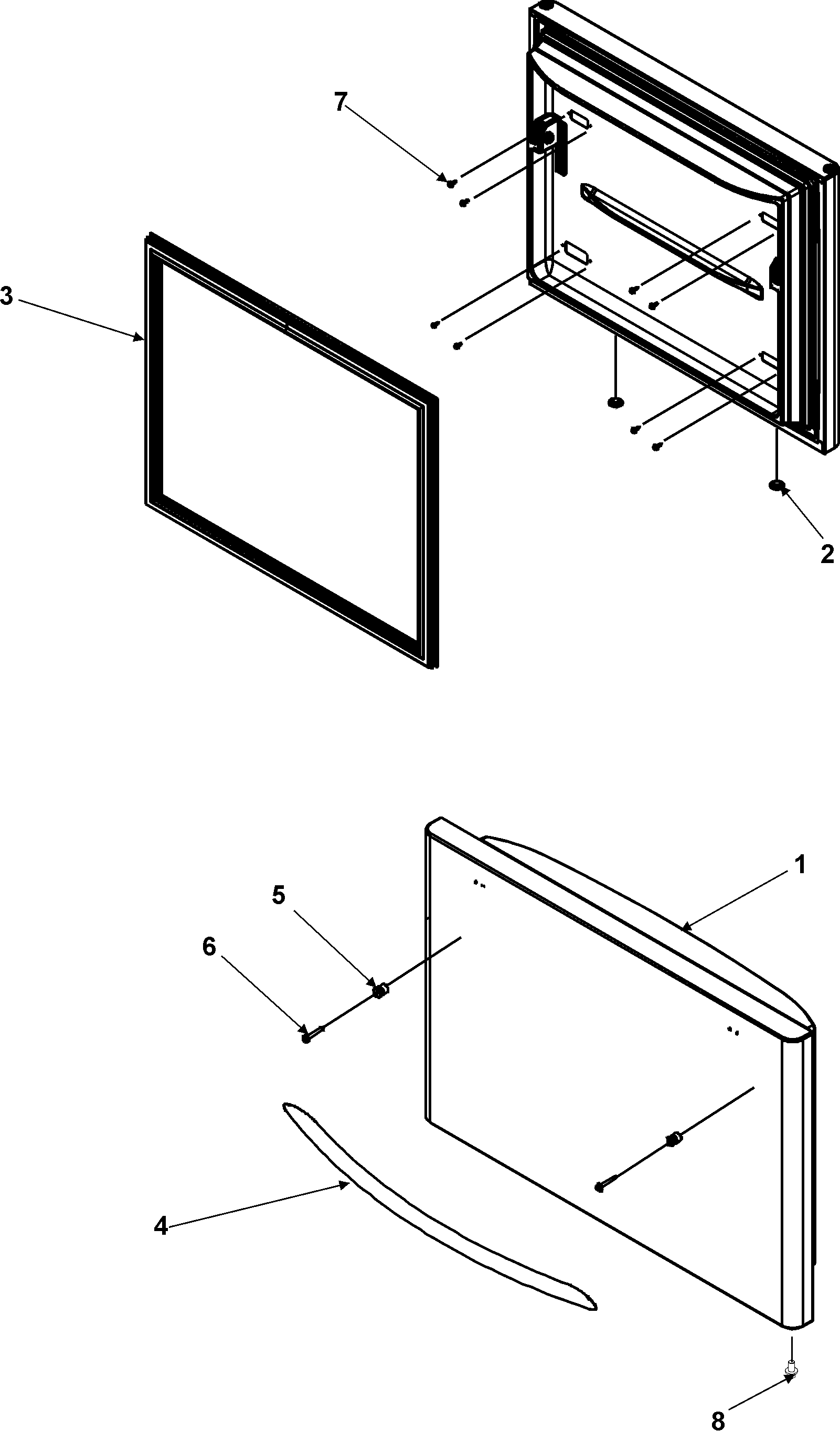

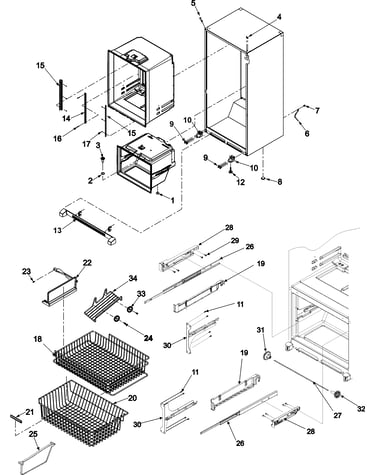

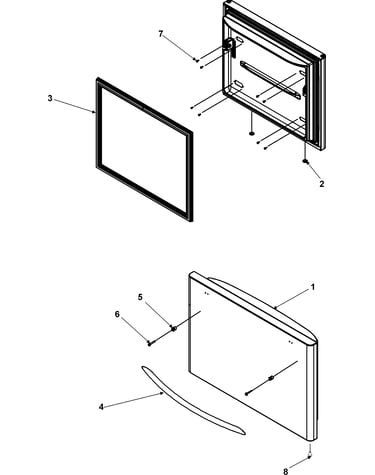

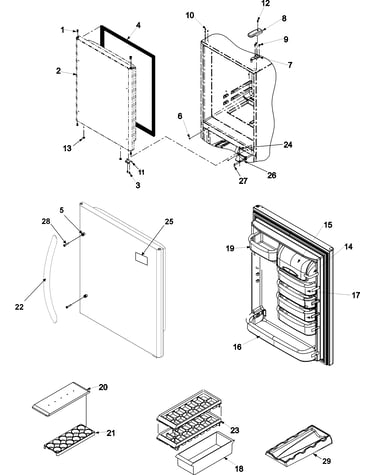

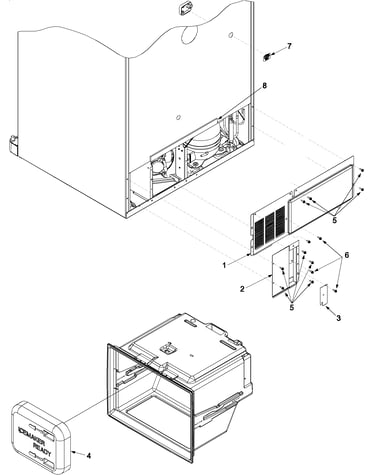

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 202 parts  |
Refrigerator Ice Maker D7824706
#14

Optional ice maker kit ic11b p1328003w diagram

Refrigerator ice maker

Part #D7824706

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces D7824706. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Light Bulb A0282812
Refrigerator light bulb

Part #A0282812

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Electronic Control Board 67006740
#5

Controls diagram

Refrigerator electronic control board

Part #67006740

Replaced by #WPW10503278

?
Manufacturer substitution
This part replaces 67006740. Substitute parts can look different from the original.
BEST SELLER
$159.52 |
7% OFF Phone Price : $171.52
In Stock
Refrigerator Light Switch C3680310
#1

Controls diagram

Refrigerator light switch

Part #C3680310

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680310. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Tube B5705323
#11

Optional ice maker kit ic11b p1328003w diagram

Refrigerator tube

Part #B5705323

Replaced by #W10823511

?
Manufacturer substitution
This part replaces B5705323. Substitute parts can look different from the original.
BEST SELLER
$33.27 |
15% OFF Phone Price : $39.27
In Stock
Refrigerator Start Device 67005560
#10

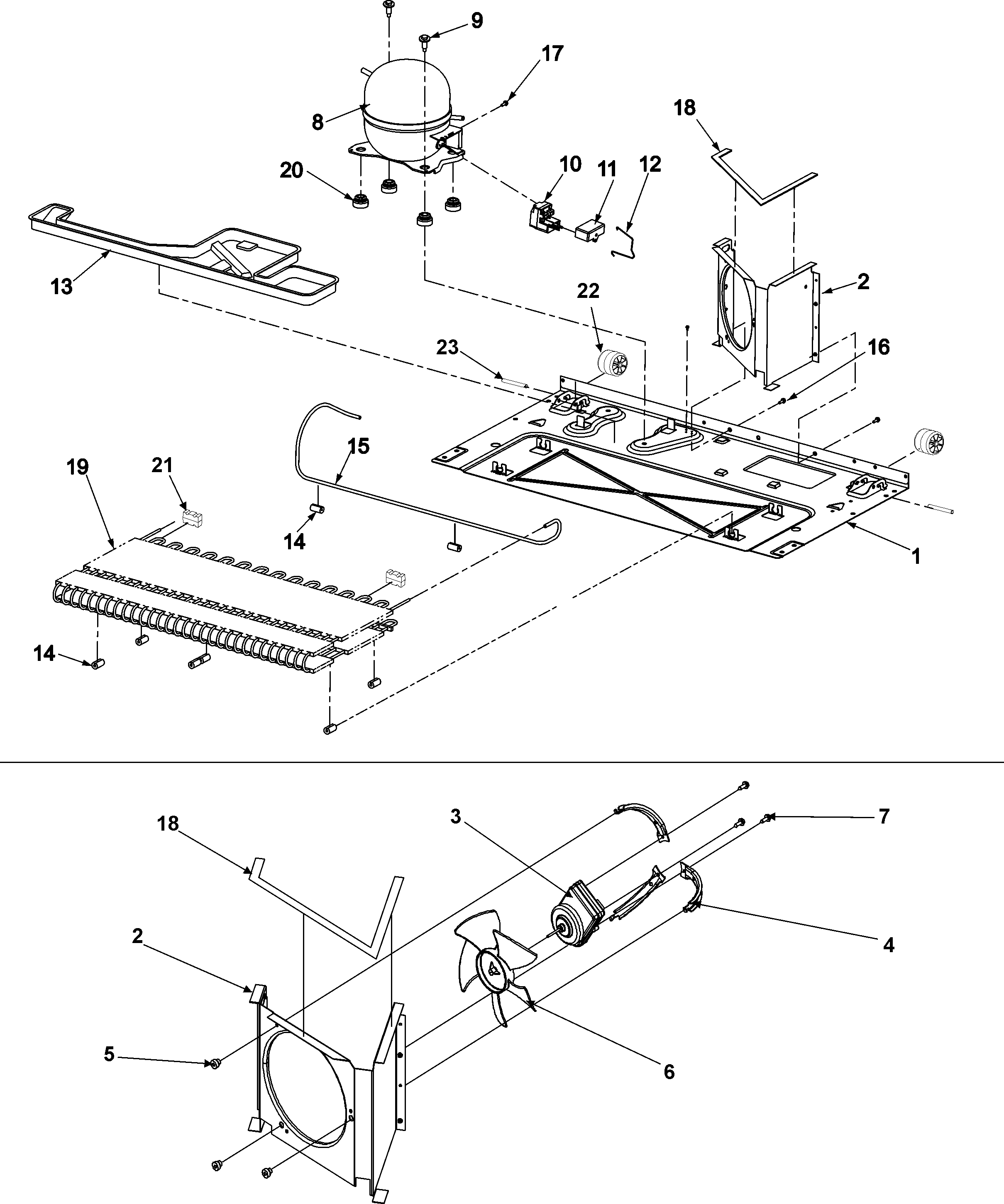

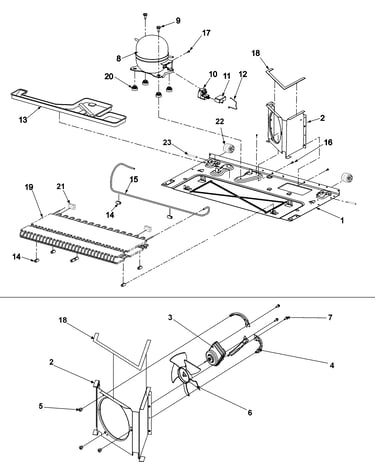

Compressor diagram

Refrigerator start device

Part #67005560

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67005560. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Capacitor W/ 67005562
#11

Compressor diagram

Capacitor w/

Part #67005562

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67005562. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Refrigerator Crisper Drawer Support Rail, Center 67001057
#7

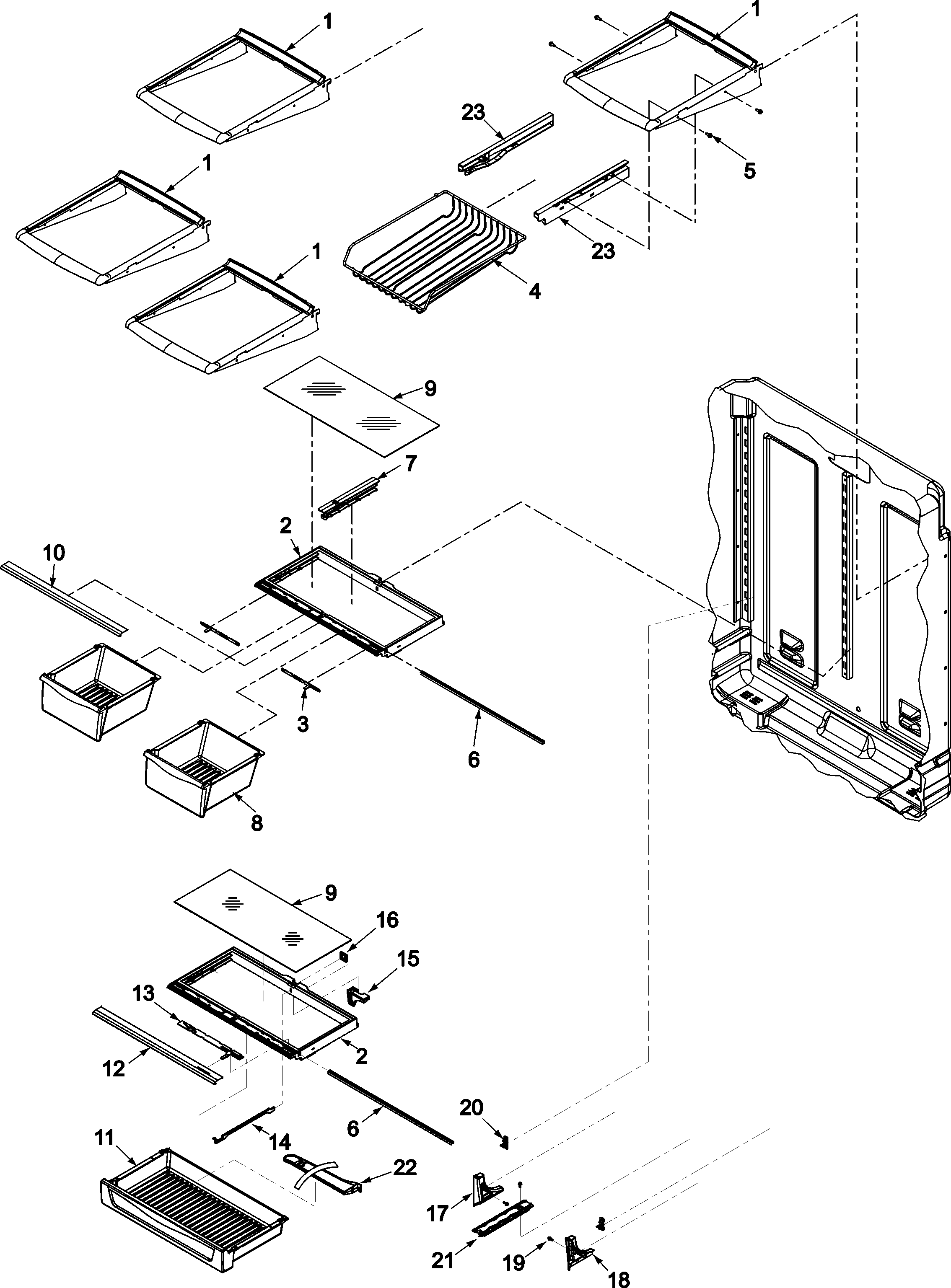

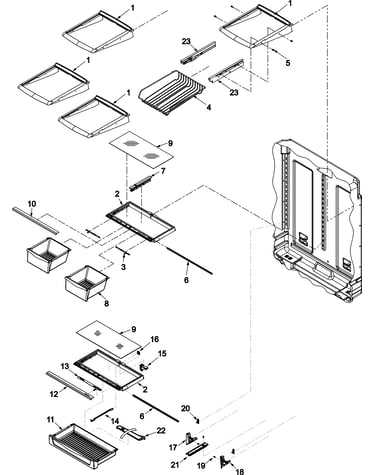

Refrigerator shelving diagram

Refrigerator crisper drawer support rail, center

Part #67001057

Replaced by #WPW10671238

?
Manufacturer substitution
This part replaces 67001057. Substitute parts can look different from the original.
BEST SELLER
$47.26 |
11% OFF Phone Price : $53.26
In Stock
Refrigerator Light Switch 12466101
#20

Controls diagram

Refrigerator light switch

Part #12466101

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466101. Substitute parts can look different from the original.
$20.47 |
23% OFF Phone Price : $26.47
In Stock
Evaporator Motor 67003636
#18

Evaporator area & rollers diagram

Evaporator motor

Part #67003636

Replaced by #WPW10128551

?
Manufacturer substitution
This part replaces 67003636. Substitute parts can look different from the original.
BEST SELLER
$65.76 |
8% OFF Phone Price : $71.76
In Stock
