Jenn-Air
Electric Cooktop

Model # CVEX4370B19 Official Jenn-Air 43" electric built-in downdraft cooktop

Here are the diagrams and repair parts for Official Jenn-Air CVEX4370B19 43" electric built-in downdraft cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Gasket- In 7201P077-60
#13

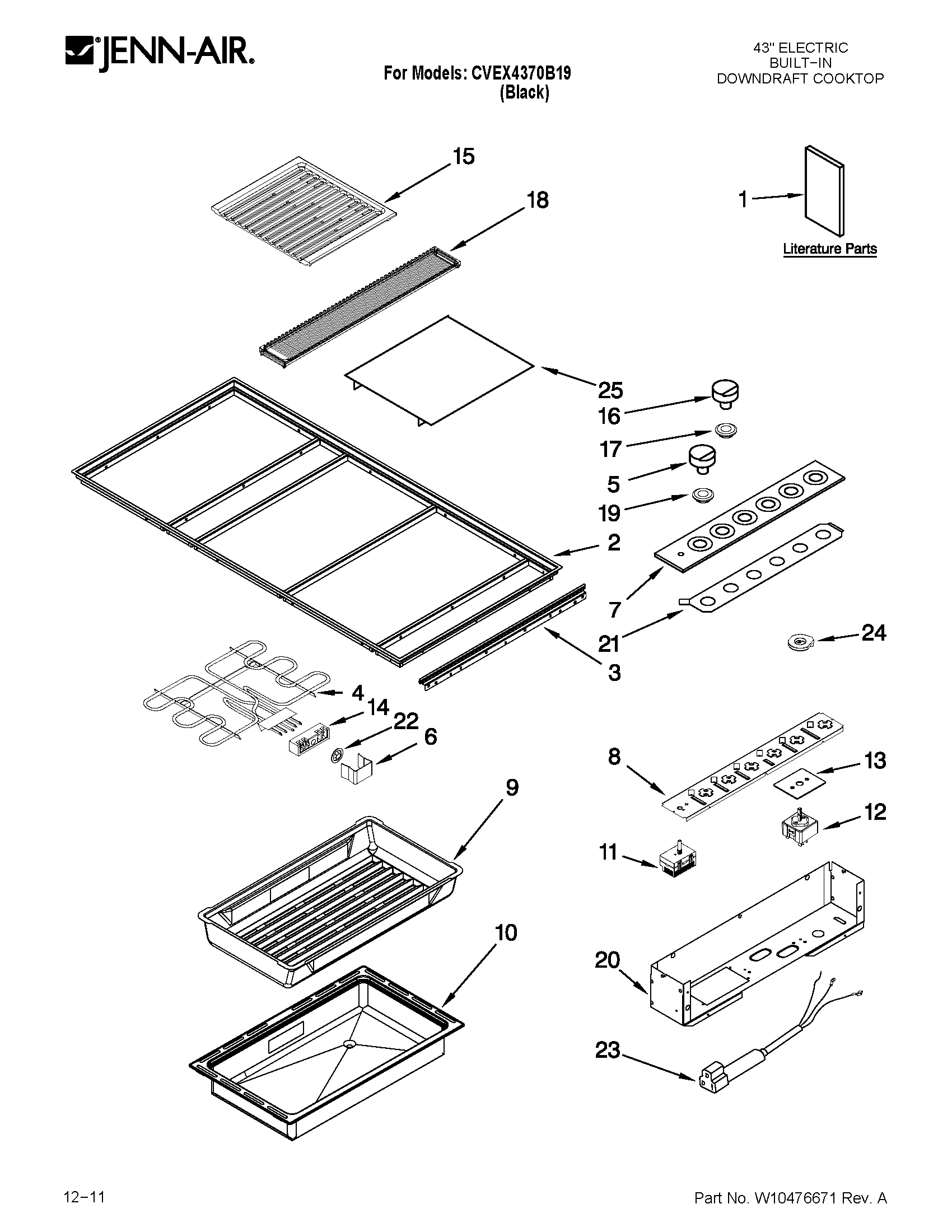

Cooktop parts diagram

Gasket- in

Part #7201P077-60

Replaced by #WP71002569

?
Manufacturer substitution
This part replaces 7201P077-60. Substitute parts can look different from the original.
This item is not returnable
$7.39 |
12% OFF Phone Price : $8.39
In Stock
Lock Nut 7103P162-60
#10

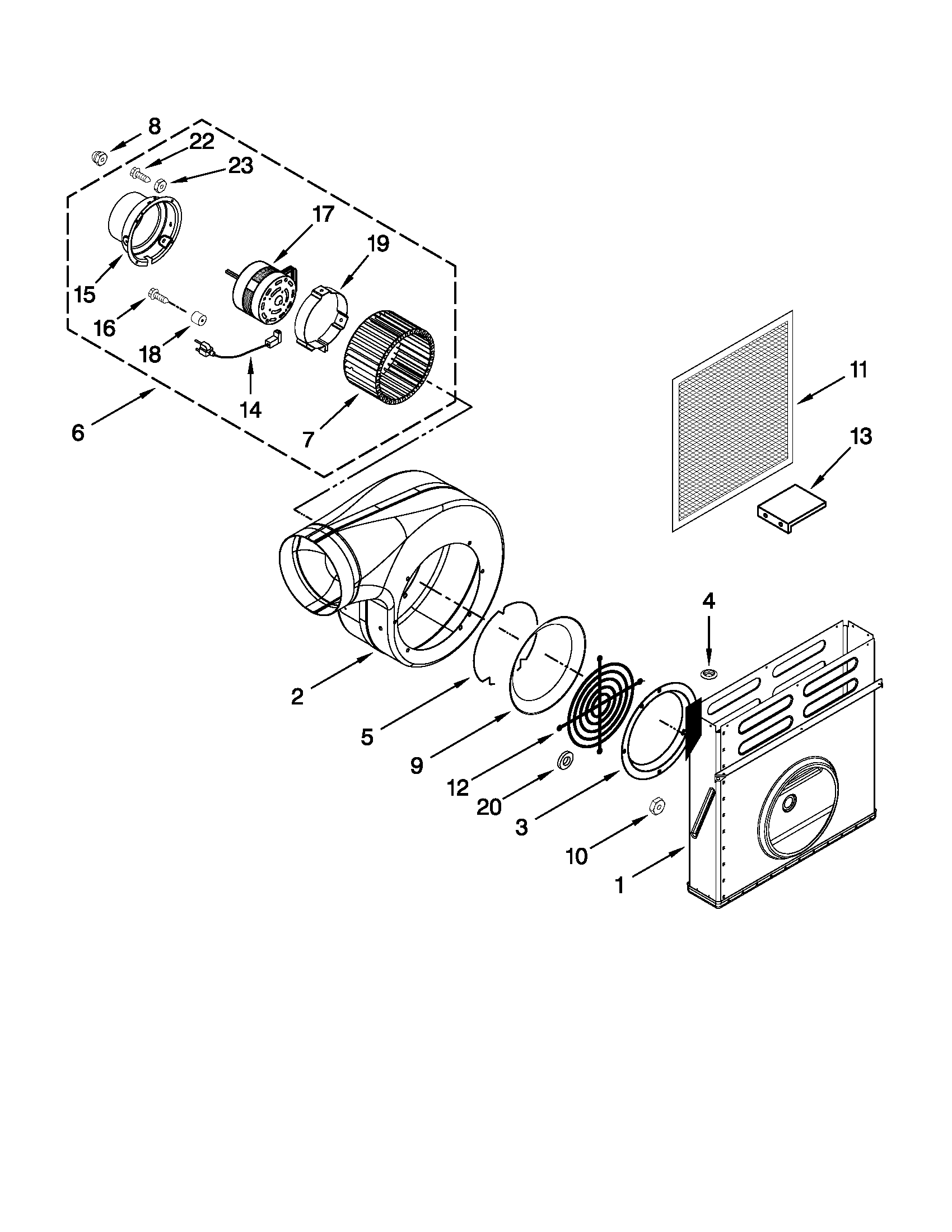

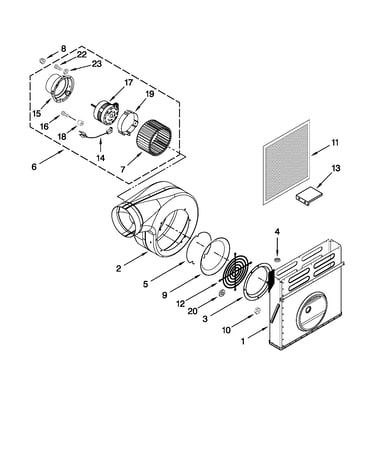

Blower unit parts diagram

Lock nut

Part #7103P162-60

Replaced by #WPY707702

?
Manufacturer substitution
This part replaces 7103P162-60. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Cooktop Blower Motor 5700D511-60
#6

Blower unit parts diagram

Cooktop blower motor

Part #5700D511-60

$269.87
In Stock
Cooktop Grill Element W10314688
#4

Cooktop parts diagram

Cooktop grill element

Part #W10314688

$191.09 |
6% OFF Phone Price : $203.09
In Stock
Band Motor 3415F003-51
#19

Blower unit parts diagram

Band motor

Part #3415F003-51

$31.09 |
16% OFF Phone Price : $37.09
In Stock
Grommet 8008P061-60
#17

Cooktop parts diagram

Grommet

Part #8008P061-60

$10.51
In Stock
Cooking Appliance Safer Cooking Guide 9762761
#1D

Cooktop parts diagram

Cooking appliance safer cooking guide

Part #9762761

$10.09 |
17% OFF Phone Price : $12.09
In Stock
Control Panel 7918P352-60
#7

Cooktop parts diagram

Control panel

Part #7918P352-60

$186.96
In Stock
Screw 7101P115-60
#16

Blower unit parts diagram

Screw

Part #7101P115-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P115-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Isolator 8038P002-60
#18

Blower unit parts diagram

Isolator

Part #8038P002-60

Replaced by #WP71003558

?
Manufacturer substitution
This part replaces 8038P002-60. Substitute parts can look different from the original.
This item is not returnable
$9.19 |
10% OFF Phone Price : $10.19
In Stock
