Dyson
Handheld Vacuum

Model # V6-SV09 Official Dyson vacuum cleaner

Here are the diagrams and repair parts for Official Dyson V6-SV09 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

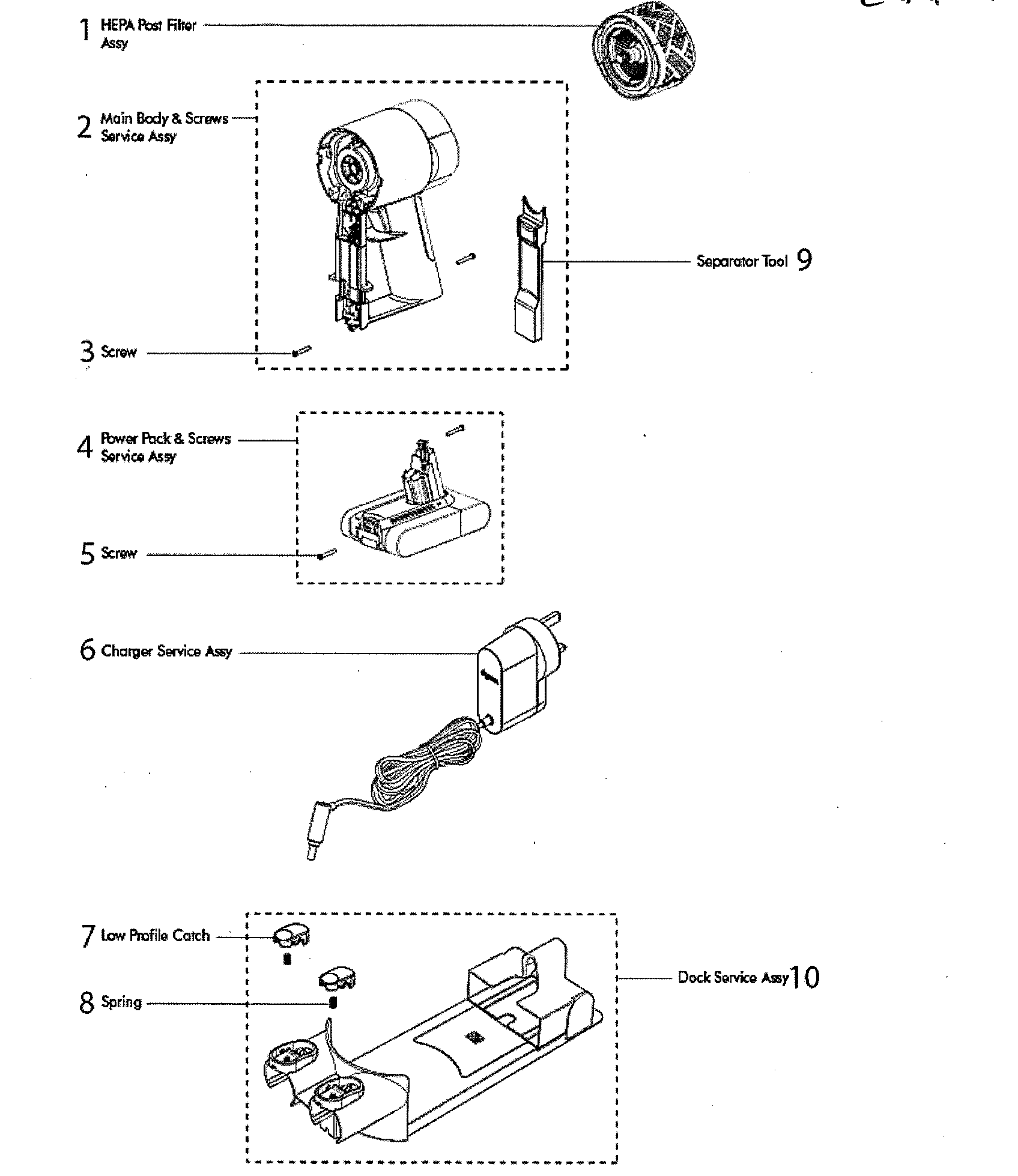

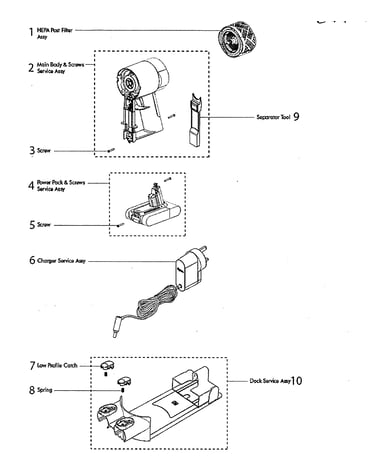

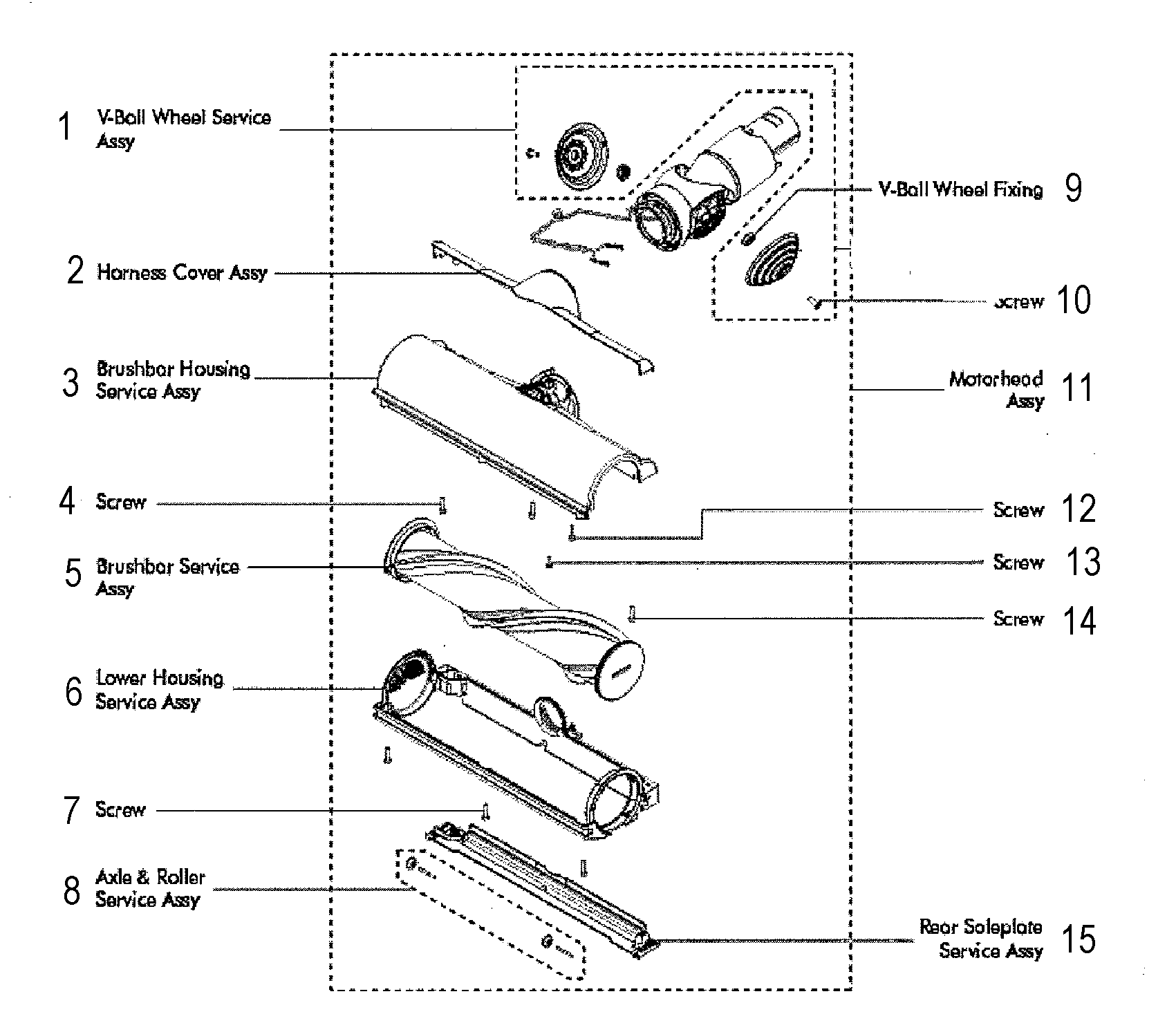

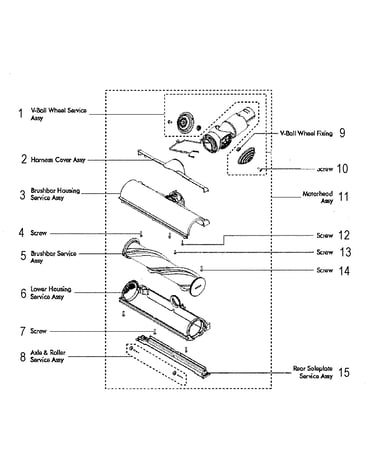

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 59 parts  |

Brush DY-91850801
#2

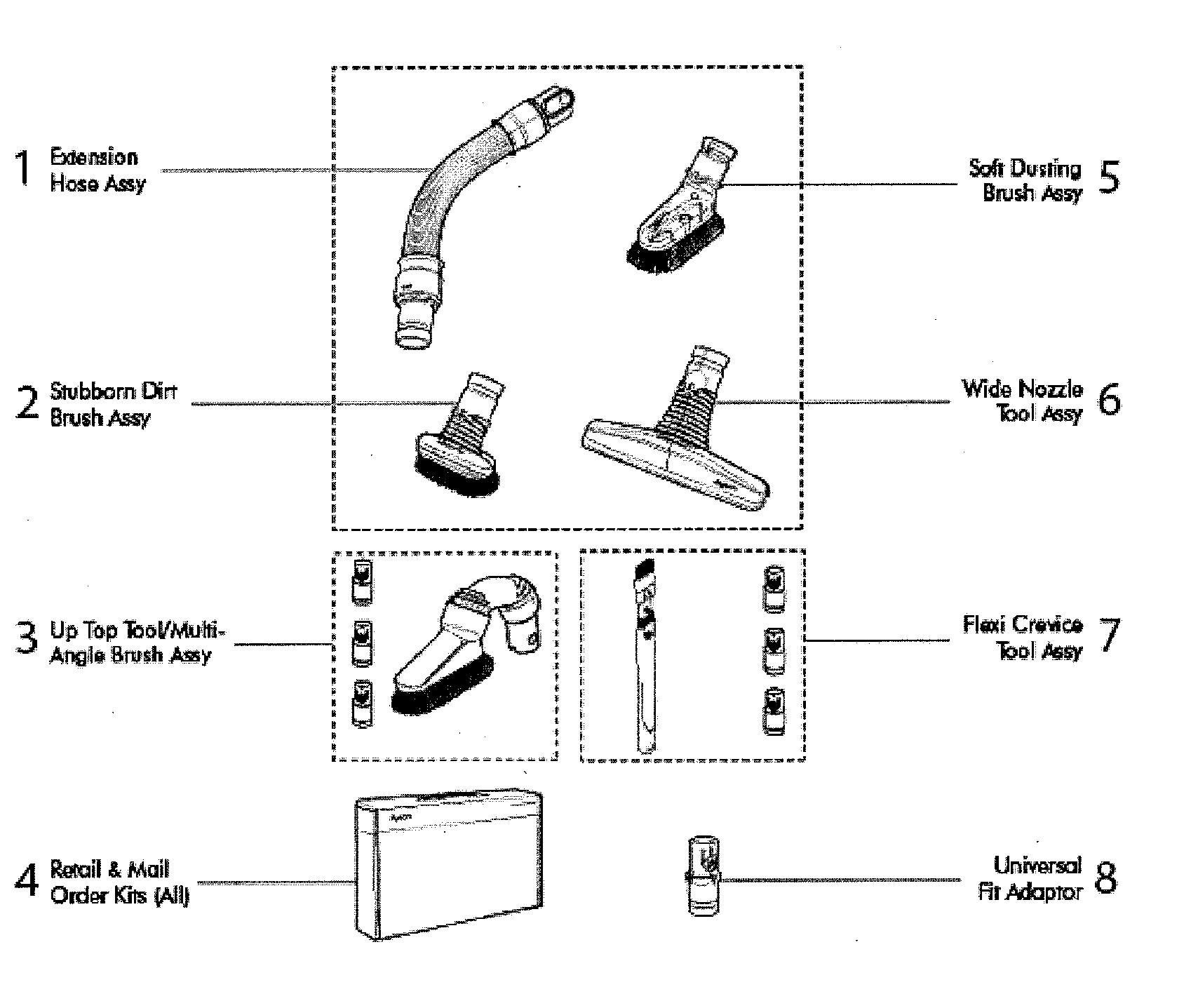

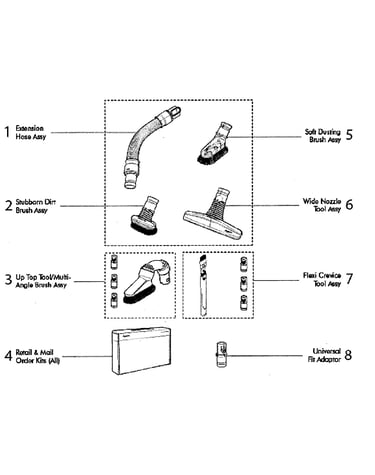

Accessories diagram

Brush

Part #DY-91850801

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Assembly DY-91270001
#1

Accessories diagram

Vacuum hose assembly

Part #DY-91270001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool DY-91763301
#7

Accessories diagram

Vacuum crevice tool

Part #DY-91763301

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Floor Nozzle Roller DY-92048801
#7

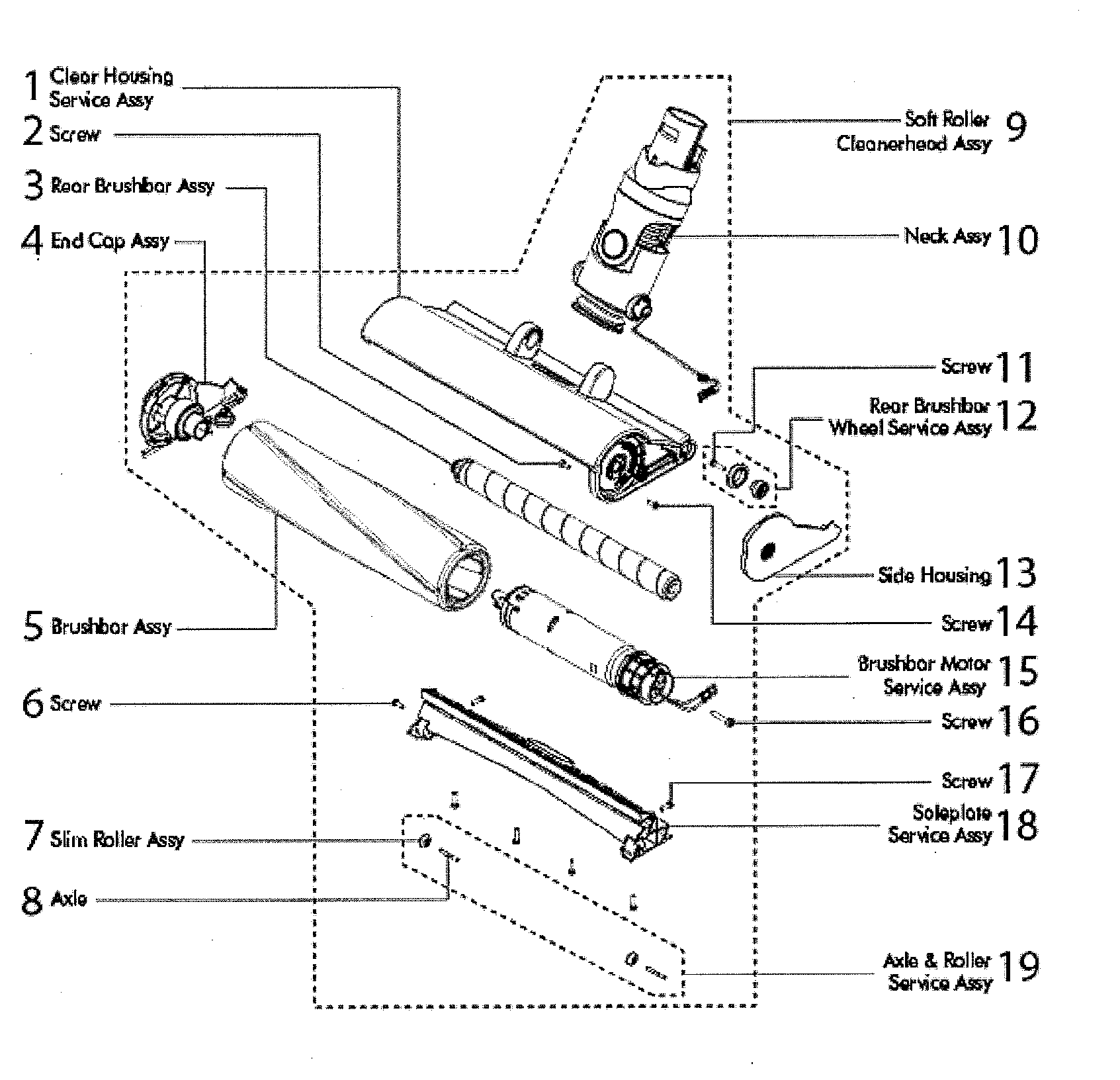

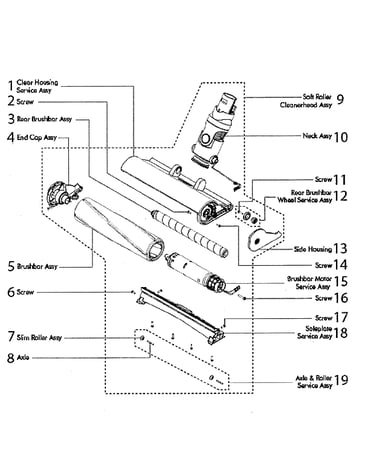

Cleanerhead asy diagram

Vacuum floor nozzle roller

Part #DY-92048801

The manufacturer no longer makes this part, and there's no substitute part

Univ.adapt DY-91176803
#8

Accessories diagram

Univ.adapt

Part #DY-91176803

The manufacturer no longer makes this part, and there's no substitute part

Iron Combo DY-91436101
#14

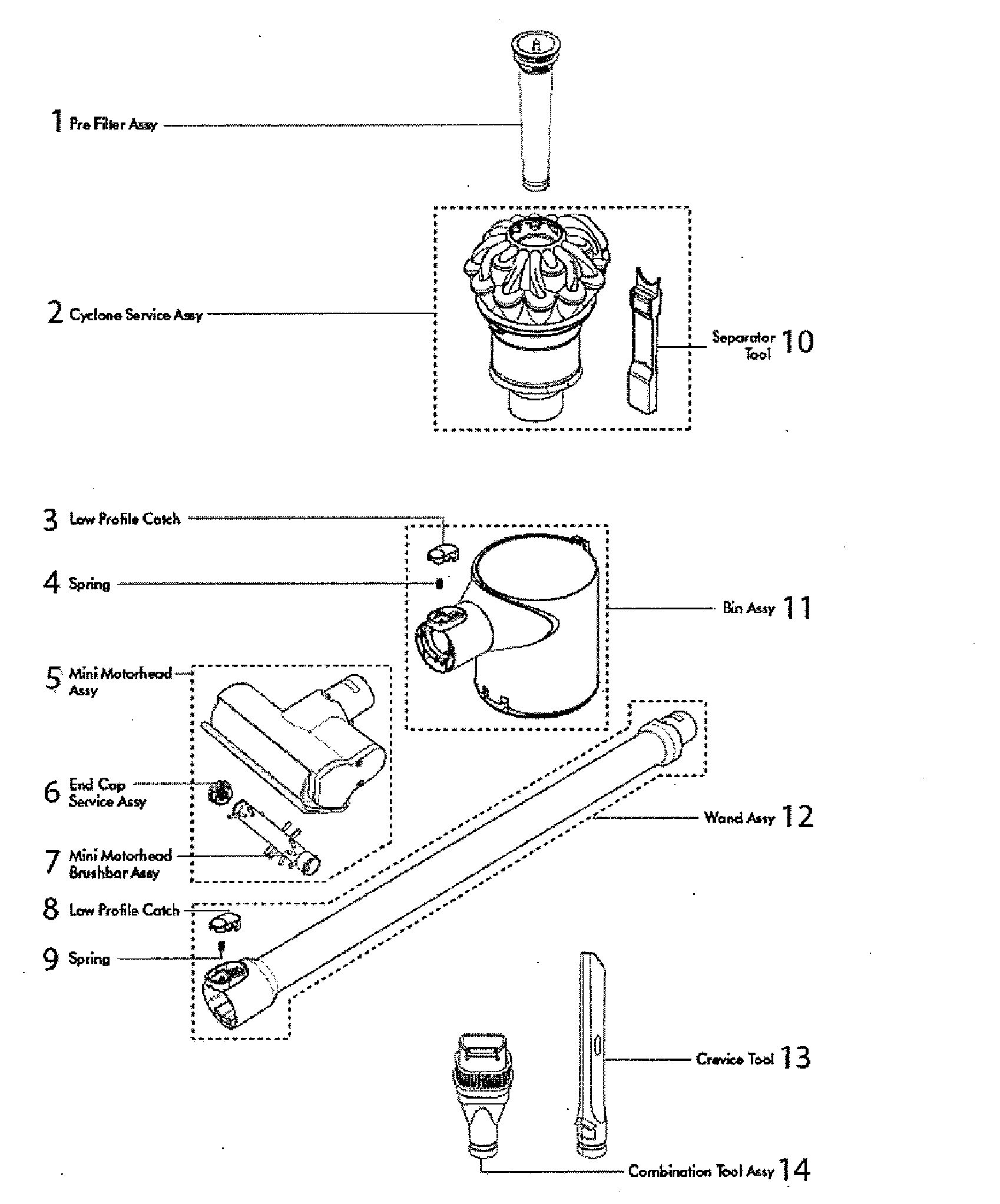

Cyclone diagram

Iron combo

Part #DY-91436101

The manufacturer no longer makes this part, and there's no substitute part

Soft Brush DY-90889602
#5

Accessories diagram

Soft brush

Part #DY-90889602

The manufacturer no longer makes this part, and there's no substitute part

Wand Assembly DY-96649305
#12

Cyclone diagram

Wand assembly

Part #DY-96649305

The manufacturer no longer makes this part, and there's no substitute part

Neck Assembly DY-96649401
#10

Cleanerhead asy diagram

Neck assembly

Part #DY-96649401

The manufacturer no longer makes this part, and there's no substitute part

Side Housing DY-96649601
#13

Cleanerhead asy diagram

Side housing

Part #DY-96649601

The manufacturer no longer makes this part, and there's no substitute part
