Model # ZVW1480SP1SS Official GE range hood

Here are the diagrams and repair parts for Official GE ZVW1480SP1SS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

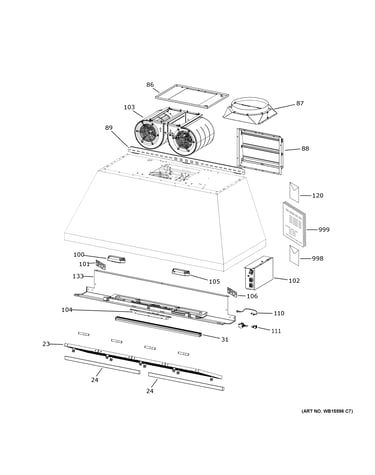

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Sp Hood Motor Ge Pro Hood WB26X40949
#103

Range hood diagram

Sp hood motor ge pro hood

Part #WB26X40949

$340.02
In Stock
Ble Module Housing With Screws WB01X41217
#105

Range hood diagram

Ble module housing with screws

Part #WB01X41217

$99.40
In Stock
Damper Assembly 10 Round WB34X41204
#87

Range hood diagram

Damper assembly 10 round

Part #WB34X41204

$190.68
In Stock
Ge Sp Hood Atf Board Monogram Dual Motor WB27X41207
#102

Range hood diagram

Ge sp hood atf board monogram dual motor

Part #WB27X41207

$495.78
In Stock
Sp Hood Bt/ir Module Board WB27X40946
#106

Range hood diagram

Sp hood bt/ir module board

Part #WB27X40946

$190.68
In Stock
Probaffle Filter Assembled 1pc WB02X40950
#23

Range hood diagram

Probaffle filter assembled 1pc

Part #WB02X40950

$192.58
In Stock
Sp Hood Led Bar Monogram WB25X41199
#31

Range hood diagram

Sp hood led bar monogram

Part #WB25X41199

$247.24
In Stock
Installation Hardware WB01X41216
#120

Range hood diagram

Installation hardware

Part #WB01X41216

$88.20
In Stock
Heat Sensor WB27X41719
#110

Range hood diagram

Heat sensor

Part #WB27X41719

$119.50
In Stock
Wifi/ble Module Harness WB27X41718
#111

Range hood diagram

Wifi/ble module harness

Part #WB27X41718

$105.84
In Stock
