Model # 689115260 Official Kenmore 52" ceiling fan

Here are the diagrams and repair parts for Official Kenmore 689115260 52" ceiling fan, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Screw 5-0035
#27B

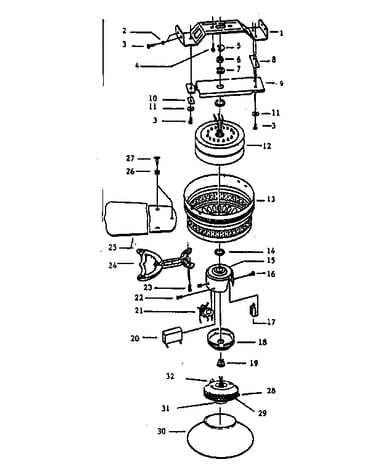

Unit parts diagram

Screw

Part #5-0035

The manufacturer no longer makes this part, and there's no substitute part

Motor Housing 6-0022
#13A

Unit parts diagram

Motor housing

Part #6-0022

The manufacturer no longer makes this part, and there's no substitute part

C-ring 5-0038
#5

Unit parts diagram

C-ring

Part #5-0038

The manufacturer no longer makes this part, and there's no substitute part

Screw 813888
#16

Unit parts diagram

Screw

Part #813888

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 13-015
#25B

Unit parts diagram

Fan blade

Part #13-015

The manufacturer no longer makes this part, and there's no substitute part

Screw 5-0020
#22A

Unit parts diagram

Screw

Part #5-0020

The manufacturer no longer makes this part, and there's no substitute part

Holder AGH100
#29A

Unit parts diagram

Holder

Part #AGH100

The manufacturer no longer makes this part, and there's no substitute part

Housing Cover 12-009
#18B

Unit parts diagram

Housing cover

Part #12-009

The manufacturer no longer makes this part, and there's no substitute part

Socket SKT100
#31

Unit parts diagram

Socket

Part #SKT100

The manufacturer no longer makes this part, and there's no substitute part

Motor 15-009
#12

Unit parts diagram

Motor

Part #15-009

The manufacturer no longer makes this part, and there's no substitute part
