Model # YAMV2307PFW1 Official Amana microwave/hood combo
Here are the diagrams and repair parts for Official Amana YAMV2307PFW1 microwave/hood combo, as well as links to manuals and error code tables, if available.
By Schematic

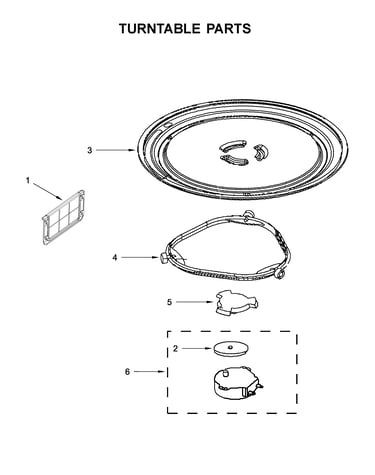

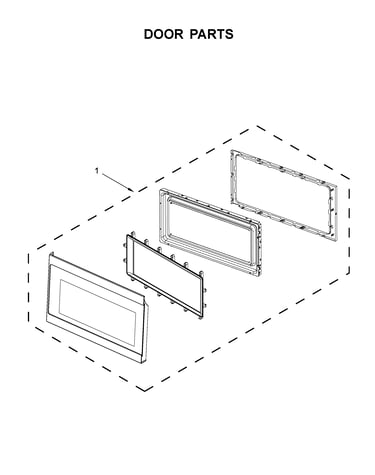

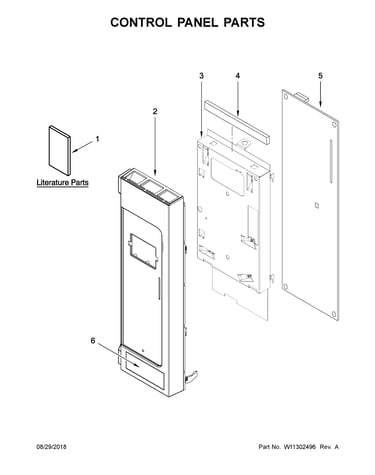

SELECT DIAGRAM
Browse Parts for
YAMV2307PFW1 Microwave/Hood Combo
#23

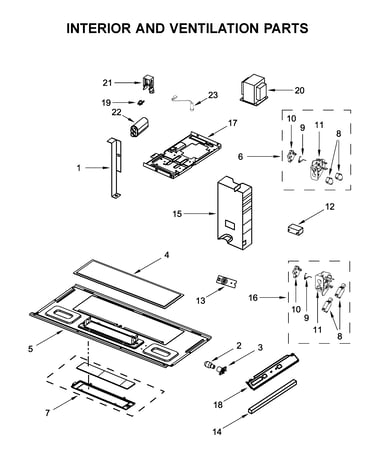

Interior and ventilation parts diagram
Diode
Part #W10886077
Replaced by #W11256462
?
Manufacturer substitution
This part replaces W10886077. Substitute parts can look different from the original.
$24.65 |
20% OFF Phone Price : $30.65
In Stock
#3

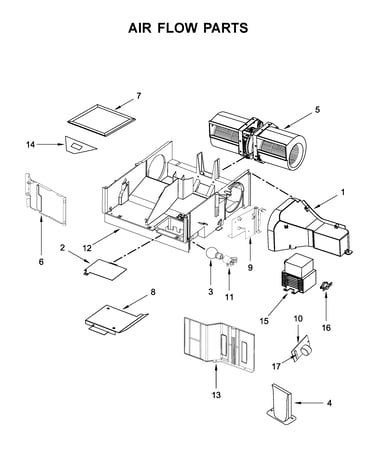

Air flow parts diagram
Lamp assembly
Part #4393681
Replaced by #8206232A
?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
$8.63 |
10% OFF Phone Price : $9.63
In Stock
#2
Interior and ventilation parts diagram
Microwave/hood light bulb
Part #8206232
Replaced by #8206232A
?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
$8.63 |
10% OFF Phone Price : $9.63
In Stock
#17
Air flow parts diagram
Microwave fuse (replaces w10422951)
Part #W10138793
Replaced by #W11707984
?
Manufacturer substitution
This part replaces W10138793. Substitute parts can look different from the original.
$53.15
In Stock
#11
Interior and ventilation parts diagram
Microwave door interlock support, upper
Part #8206419
Replaced by #WP8206419
?
Manufacturer substitution
This part replaces 8206419. Substitute parts can look different from the original.
$12.11 |
14% OFF Phone Price : $14.11
In Stock
#11A
Interior and ventilation parts diagram
Interlock
Part #W10156813
Replaced by #WPW10156813
?
Manufacturer substitution
This part replaces W10156813. Substitute parts can look different from the original.
$7.56 |
12% OFF Phone Price : $8.56
In Stock
#10
Interior and ventilation parts diagram
Microwave vent louver motor cam plate (replaces w10508437)
Part #W10562613
$11.59 |
15% OFF Phone Price : $13.59
In Stock
#4
Interior and ventilation parts diagram
Filter
Part #W10208631
Replaced by #W10208631A
?
Manufacturer substitution
This part replaces W10208631. Substitute parts can look different from the original.
$24.81 |
19% OFF Phone Price : $30.81
In Stock
#1

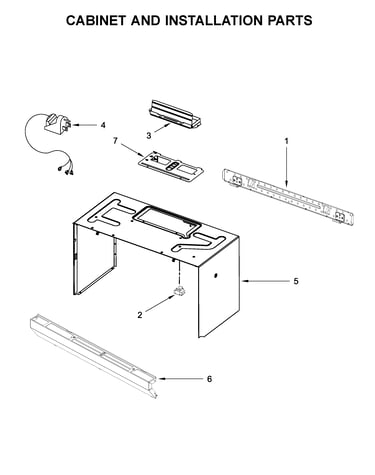

Cabinet and installation parts diagram
Microwave mounting plate (replaces w10440498)
Part #W11025649
$12.77 |
14% OFF Phone Price : $14.77
In Stock
#20
Interior and ventilation parts diagram
Transformer
Part #W10754523
Replaced by #W10836753
?
Manufacturer substitution
This part replaces W10754523. Substitute parts can look different from the original.
$199.74 |
6% OFF Phone Price : $211.74
In Stock
