GE
Range Hood

Model # UVW9301BL1TS Official GE range hood

Here are the diagrams and repair parts for Official GE UVW9301BL1TS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 37 parts  |
Board Wifi Cat Module WB27X29798
#13

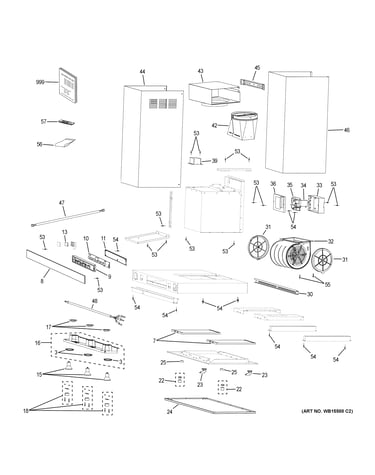

Range hood diagram

Board wifi cat module

Part #WB27X29798

Replaced by #WB27X33353

?
Manufacturer substitution
This part replaces WB27X29798. Substitute parts can look different from the original.
$46.78 |
11% OFF Phone Price : $52.78
In Stock
Screw St3.5 WH02X27219
#54

Range hood diagram

Screw st3.5

Part #WH02X27219

This item is not returnable
$7.14
In Stock
Grease Filte WB02X30549
#7

Range hood diagram

Grease filte

Part #WB02X30549

$33.11 |
15% OFF Phone Price : $39.11
In Stock
Bezel Bs WB02X30505
#3

Range hood diagram

Bezel bs

Part #WB02X30505

$83.53
In Stock
Lamp Panel A WB07X30514
#16

Range hood diagram

Lamp panel a

Part #WB07X30514

$110.00
In Stock
Ui Board Hol WB02X30560
#9

Range hood diagram

Ui board hol

Part #WB02X30560

$22.80
In Stock
Lamp Harness WB18X30545
#48

Range hood diagram

Lamp harness

Part #WB18X30545

$60.20
In Stock
Duct Cover B WB34X30537
#45

Range hood diagram

Duct cover b

Part #WB34X30537

$16.20
In Stock
Magnet Rubbe WB02X30563
#25

Range hood diagram

Magnet rubbe

Part #WB02X30563

$8.11
In Stock
Black Stainless Ui Touch Glass WB27X31591
#8

Range hood diagram

Black stainless ui touch glass

Part #WB27X31591

$100.18
In Stock
