Model # 5656153 Official Kenmore trailer down-discharge blower-type air cooler

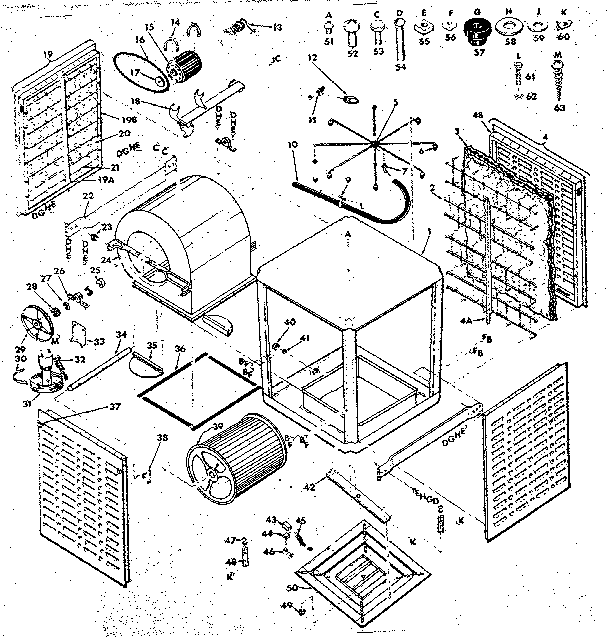

Here are the diagrams and repair parts for Official Kenmore 5656153 trailer down-discharge blower-type air cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
1/2 H.p., 1-speed N/P
1/2 h.p., 1-speed

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Screw P8-324
#52

Functional replacement parts diagram

Screw

Part #P8-324

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw P8-369
#53

Functional replacement parts diagram

Cap screw

Part #P8-369

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bar M8-203
#22

Functional replacement parts diagram

Mounting bar

Part #M8-203

The manufacturer no longer makes this part, and there's no substitute part

Filter Pad P4-500-30
Filter pad

Part #P4-500-30

The manufacturer no longer makes this part, and there's no substitute part

Knob P9-654-67
#37

Functional replacement parts diagram

Knob

Part #P9-654-67

The manufacturer no longer makes this part, and there's no substitute part

Nut P8-121
#55

Functional replacement parts diagram

Nut

Part #P8-121

The manufacturer no longer makes this part, and there's no substitute part

Switch P2-187
#44

Functional replacement parts diagram

Switch

Part #P2-187

The manufacturer no longer makes this part, and there's no substitute part

Screw P8-321
#63

Functional replacement parts diagram

Screw

Part #P8-321

The manufacturer no longer makes this part, and there's no substitute part

Pad Retainer A5-718
Pad retainer

Part #A5-718

The manufacturer no longer makes this part, and there's no substitute part
