Bottom-Mount Refrigerator

Model # BZ22R5W-P1182301WW Official Amana bottom-mount free-o-frost refrigerator/freezer

Here are the diagrams and repair parts for Official Amana BZ22R5W-P1182301WW bottom-mount free-o-frost refrigerator/freezer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

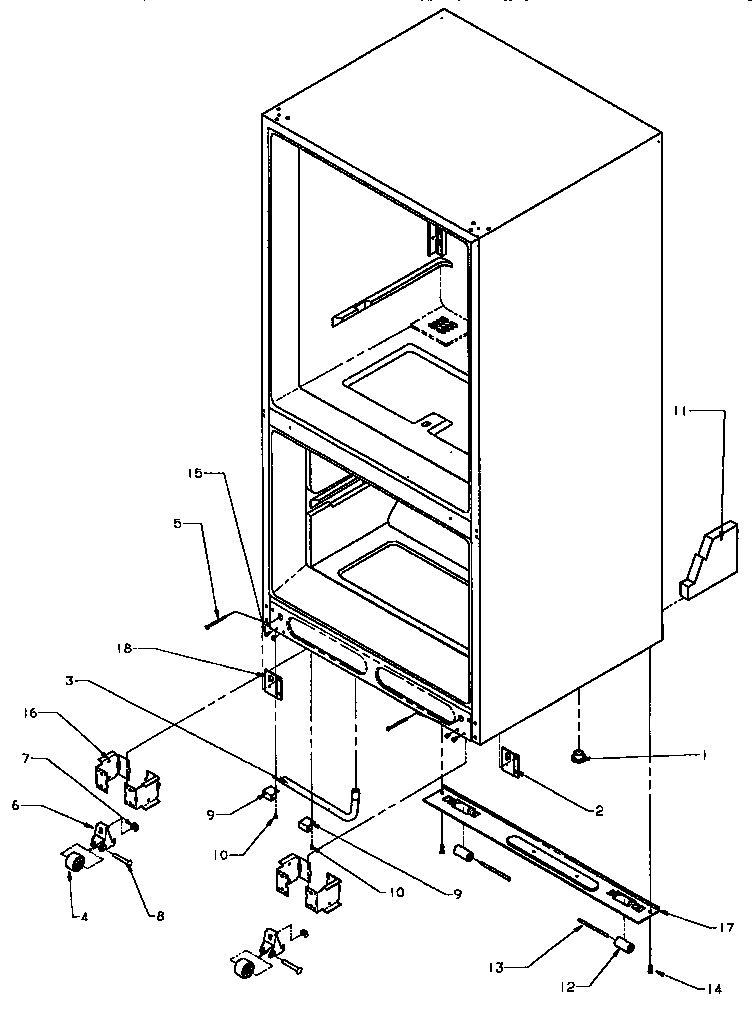

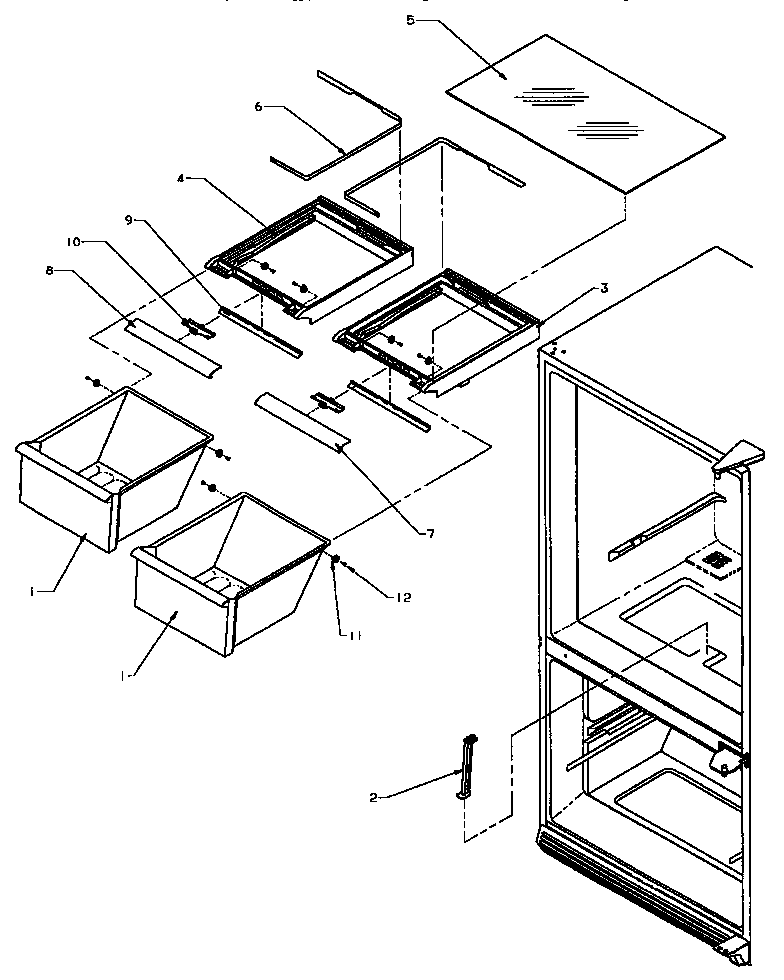

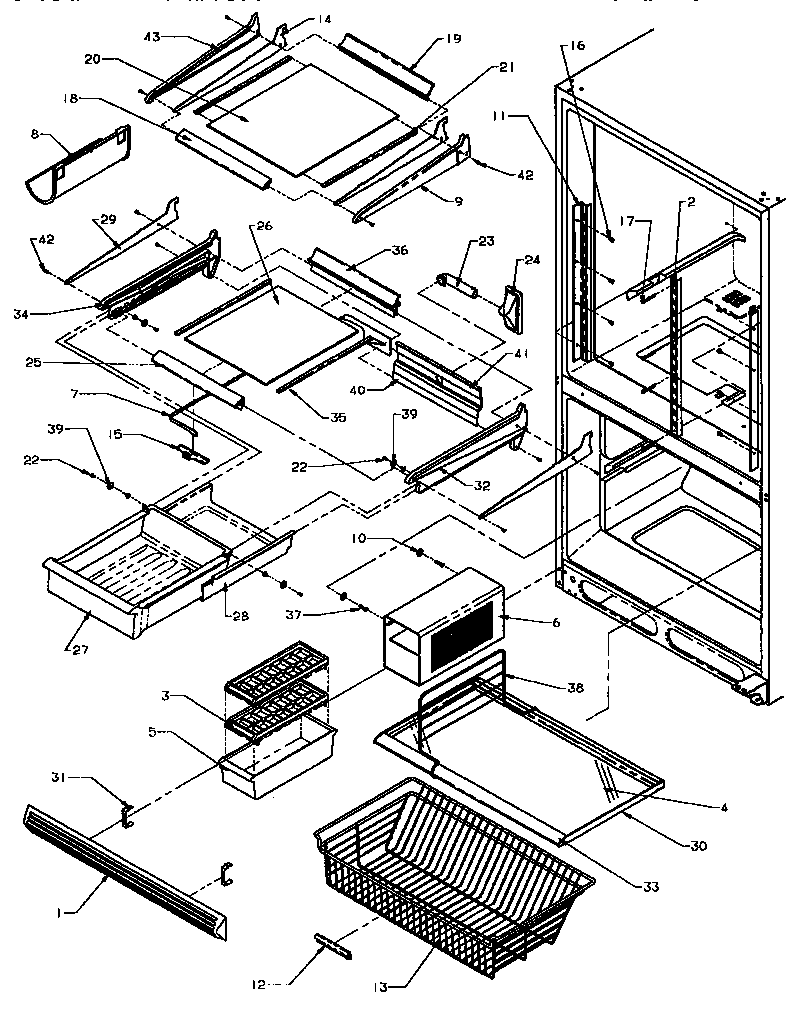

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
BZ22R5W-P1182301WW Refrigerators
Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
#15

Refrigerator/freezer control switches diagram

Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Condenser Motor 10884501
#12

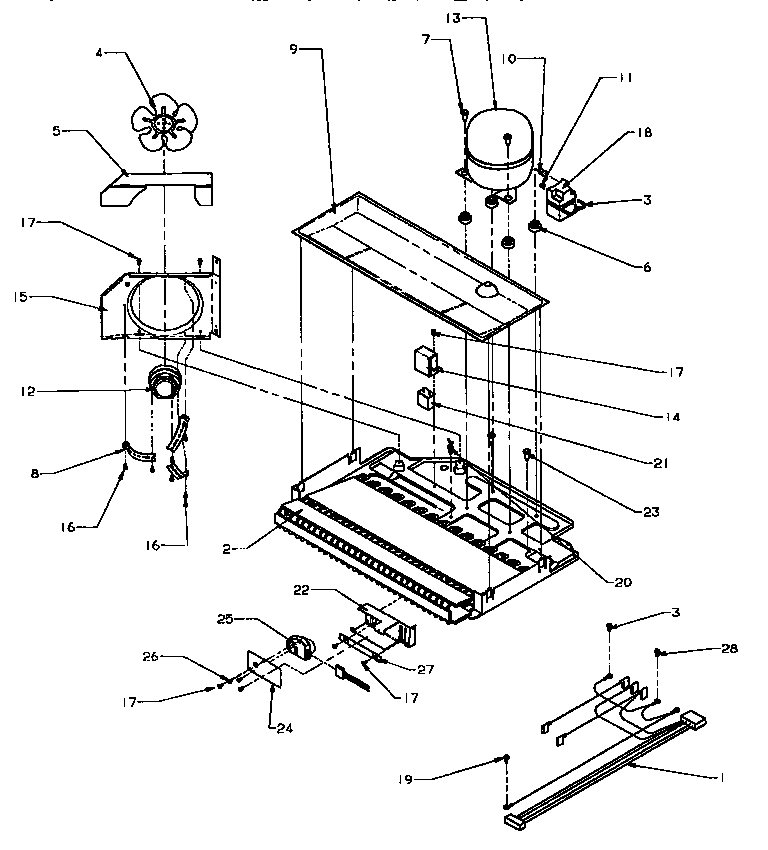

Compressor compartment diagram

Refrigerator condenser motor

Part #10884501

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw M0203944
Refrigerator screw

Part #M0203944

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces M0203944. Substitute parts can look different from the original.
1 (1)
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Screw M0222429
#18

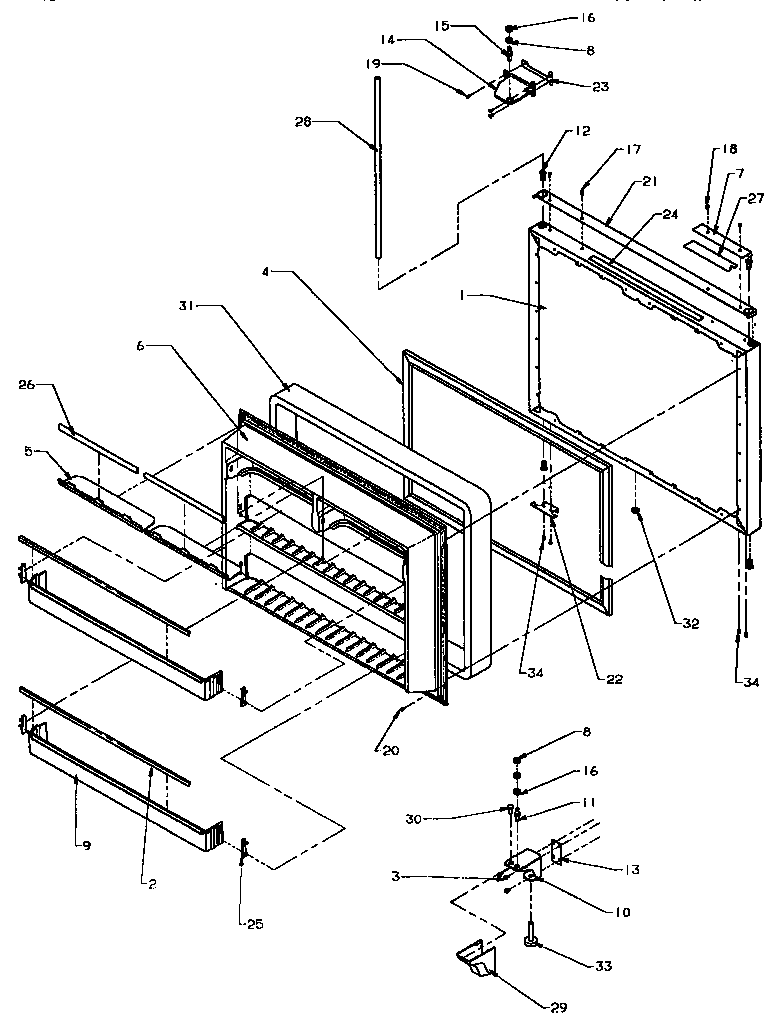

Freezer door diagram

Refrigerator screw

Part #M0222429

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces M0222429. Substitute parts can look different from the original.
1 (1)
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Screw M0211533
Refrigerator screw

Part #M0211533

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces M0211533. Substitute parts can look different from the original.
1 (1)
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Gasket 10456810
#4

Freezer door diagram

Refrigerator gasket

Part #10456810

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Capacitor C8931604
#21

Compressor compartment diagram

Refrigerator capacitor

Part #C8931604

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Temperature Control C8946703
#30

Refrigerator/freezer control switches diagram

Refrigerator temperature control

Part #C8946703

Replaced by #W10752646

?
Manufacturer substitution
This part replaces C8946703. Substitute parts can look different from the original.
1.5 (2)
BEST SELLER
$103.47 |
10% OFF Phone Price : $115.47
In Stock
Refrigerator Gasket 10456809
#7

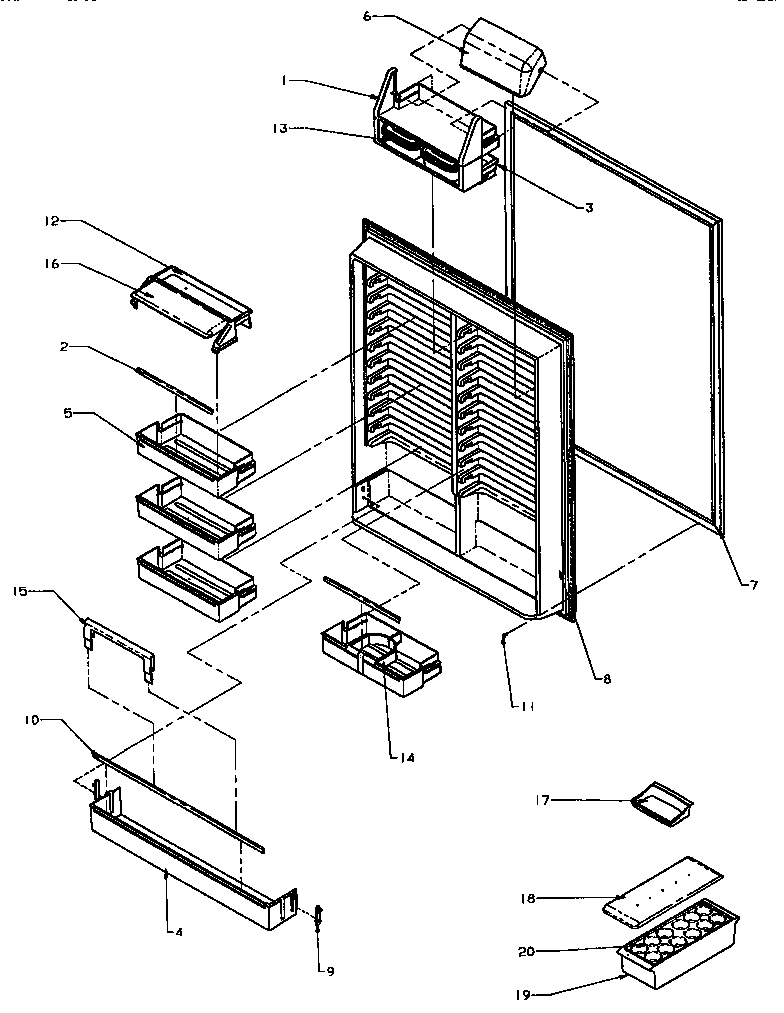

Refrigerator inner door diagram

Refrigerator gasket

Part #10456809

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Thermostat 10442402
#6

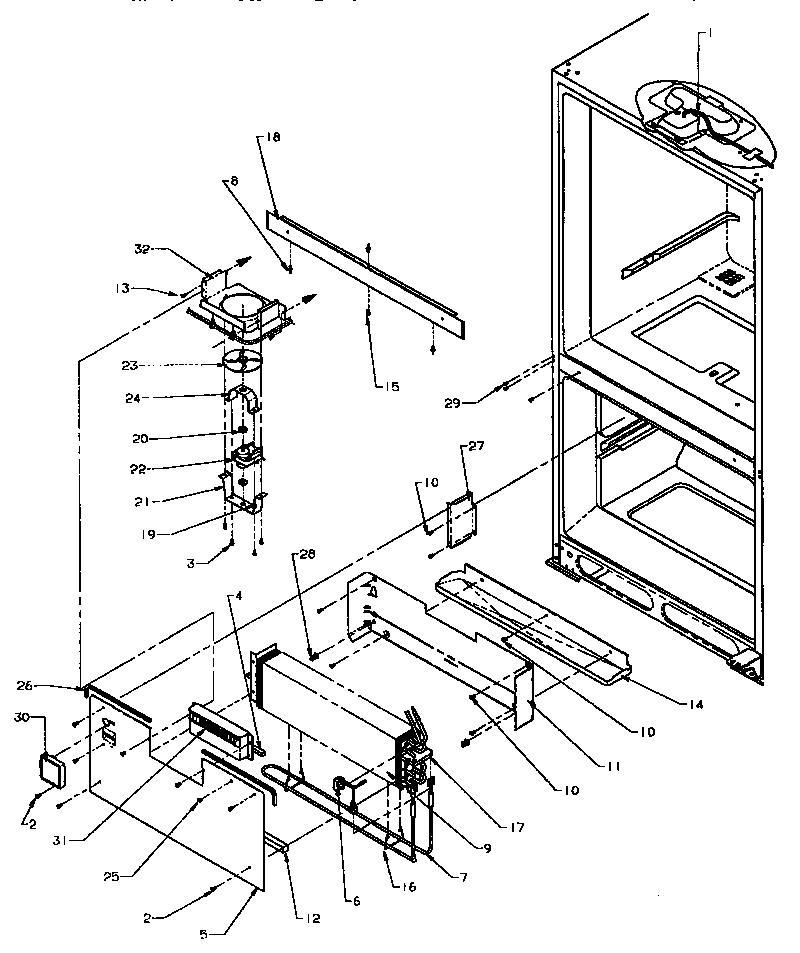

Evaporator area diagram

Refrigerator thermostat

Part #10442402

The manufacturer no longer makes this part, and there's no substitute part
