Kenmore
Washer

Model # 11073676210 Official Kenmore washer

Here are the diagrams and repair parts for Official Kenmore 11073676210 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 320 parts  |
Washer Spanner Nut 21366
#27

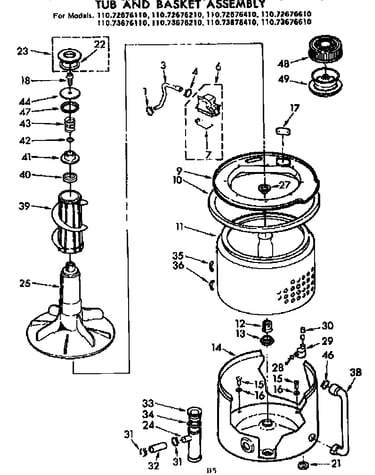

Tub and basket assembly diagram

Washer spanner nut

Part #21366

Replaced by #WP21366

?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Washer Agitator Bolt 358237
#18

Tub and basket assembly diagram

Washer agitator bolt

Part #358237

Replaced by #WP358237

?
Manufacturer substitution
This part replaces 358237. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.75 |
15% OFF Phone Price : $6.75
In Stock
Gasket 96690
#13

Tub and basket assembly diagram

Gasket

Part #96690

Replaced by #W10814296

?
Manufacturer substitution
This part replaces 96690. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
Lid Switch 364090
#19

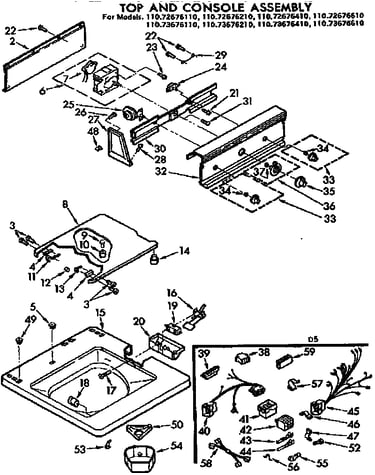

Top and console assembly diagram

Lid switch

Part #364090

Replaced by #W10820036

?
Manufacturer substitution
This part replaces 364090. Substitute parts can look different from the original.
BEST SELLER
$24.22 |
20% OFF Phone Price : $30.22
In Stock
Hose 355517
#30

Tub and basket assembly diagram

Hose

Part #355517

Replaced by #WP353244

?
Manufacturer substitution
This part replaces 355517. Substitute parts can look different from the original.
BEST SELLER
$43.73 |
12% OFF Phone Price : $49.73
In Stock
Seal, Center Post 356934
#12

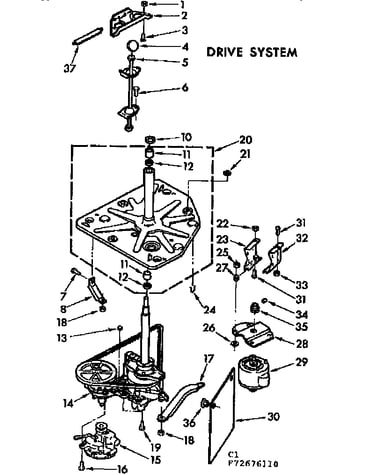

Drive system diagram

Seal, center post

Part #356934

Replaced by #WP8577376

?
Manufacturer substitution
This part replaces 356934. Substitute parts can look different from the original.
BEST SELLER
$9.89 |
9% OFF Phone Price : $10.89
In Stock
Tap Screw 90767
#21

Top and console assembly diagram

Tap screw

Part #90767

Replaced by #WP90767

?
Manufacturer substitution
This part replaces 90767. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Hose Clamp 356138
#11

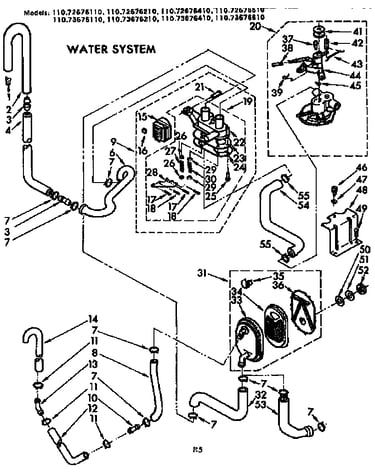

Water system diagram

Hose clamp

Part #356138

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 272858
#31

Tub and basket assembly diagram

Hose clamp

Part #272858

The manufacturer no longer makes this part, and there's no substitute part

Screw 687128
#23

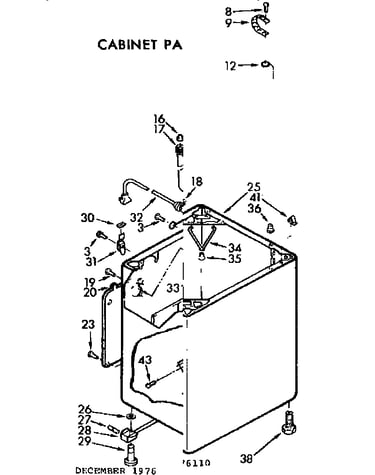

Cabinet parts diagram

Screw

Part #687128

Replaced by #WP681414

?
Manufacturer substitution
This part replaces 687128. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
