Model # 66514799N511 Official Kenmore Elite dishwasher
Here are the diagrams and repair parts for Official Kenmore Elite 66514799N511 dishwasher, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part

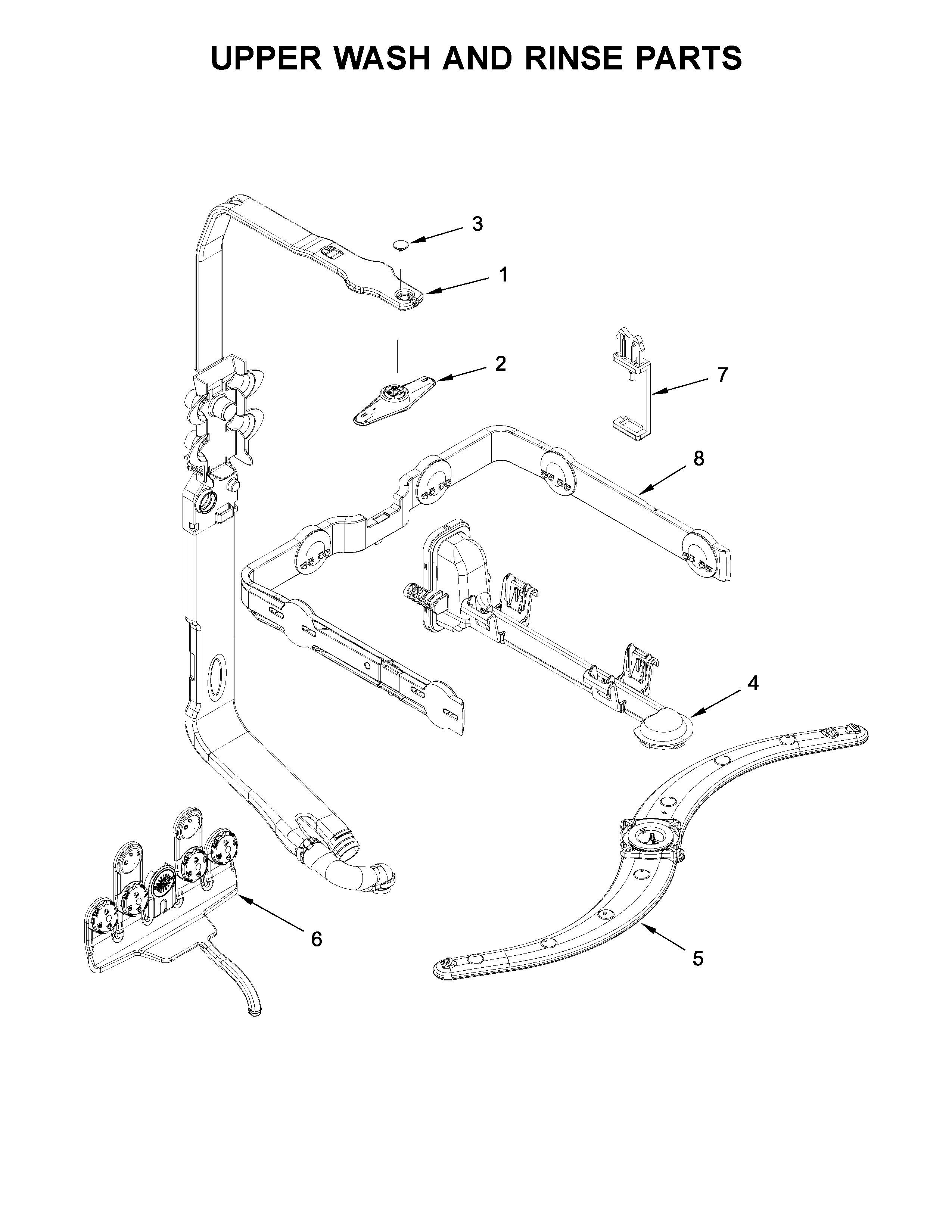

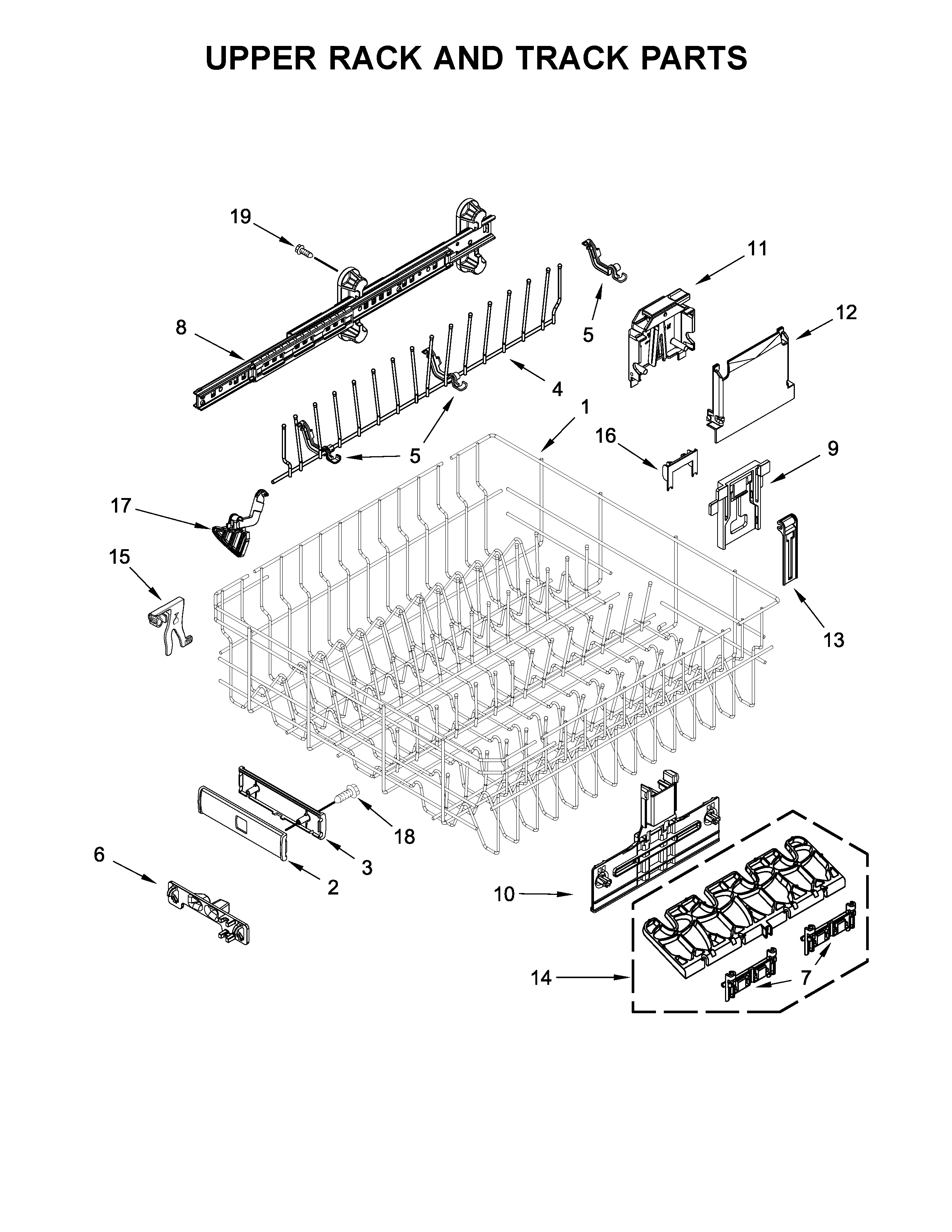

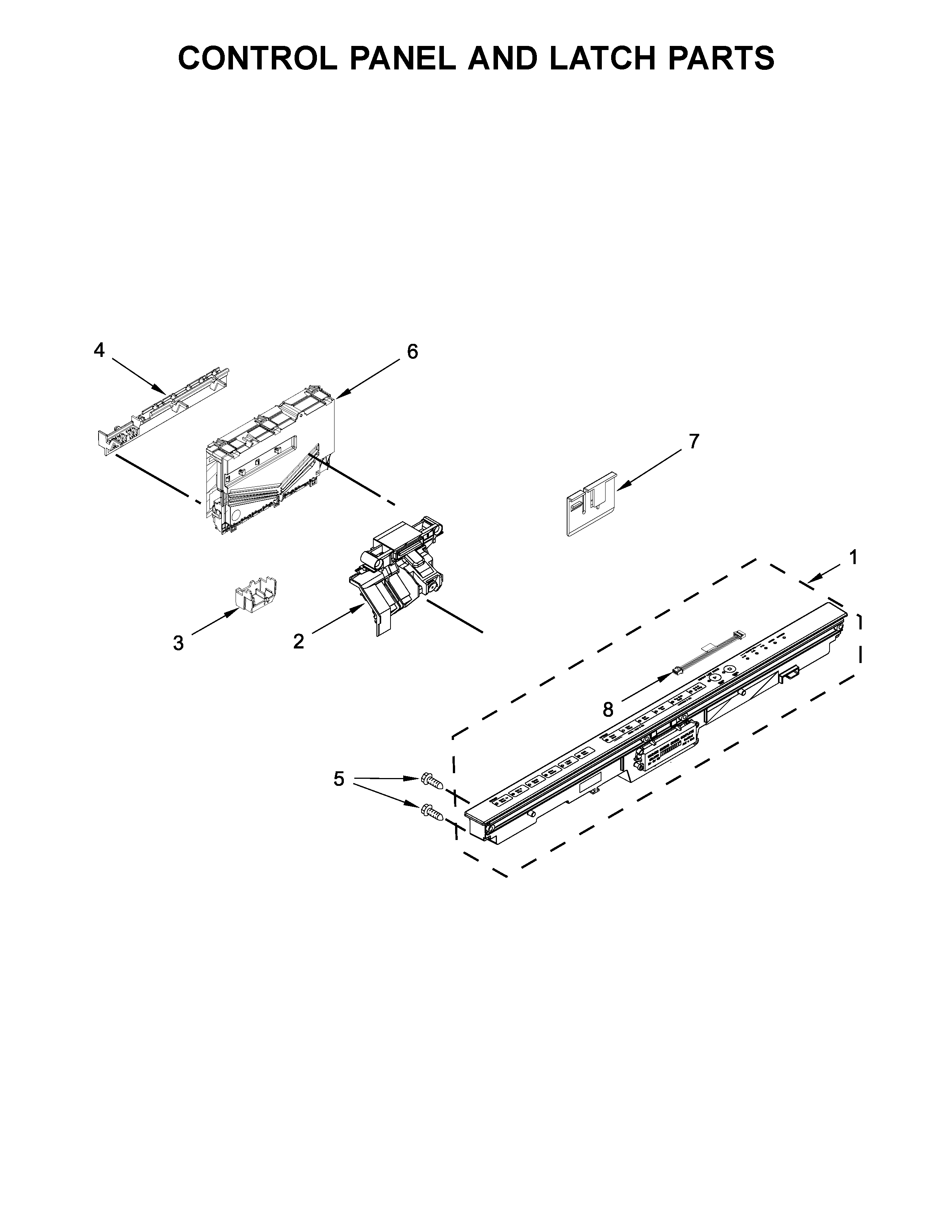

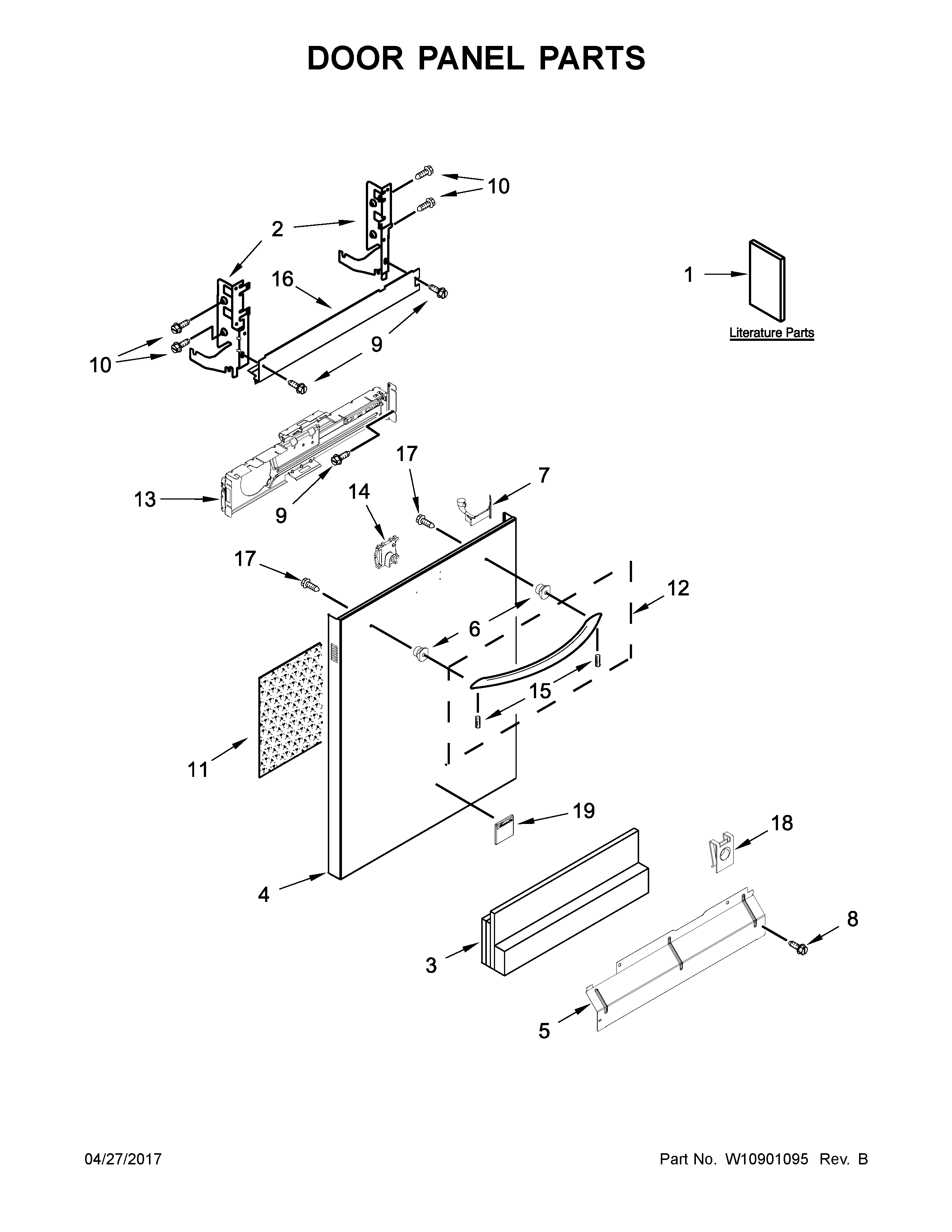

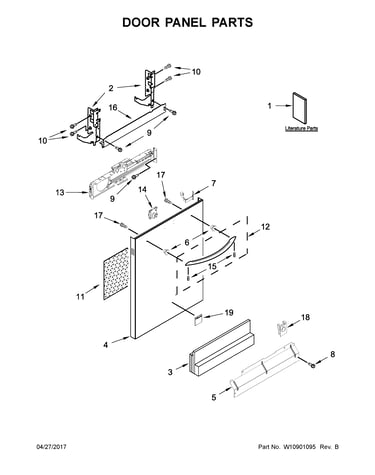

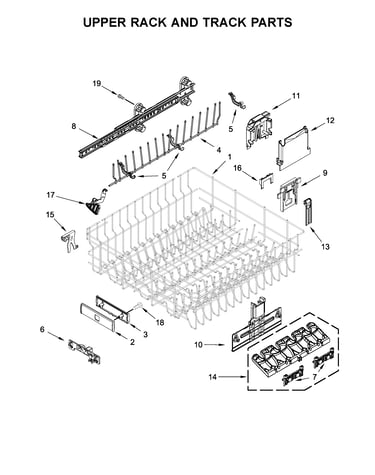

SELECT DIAGRAM
Browse Parts for
66514799N511 Dishwasher
#2

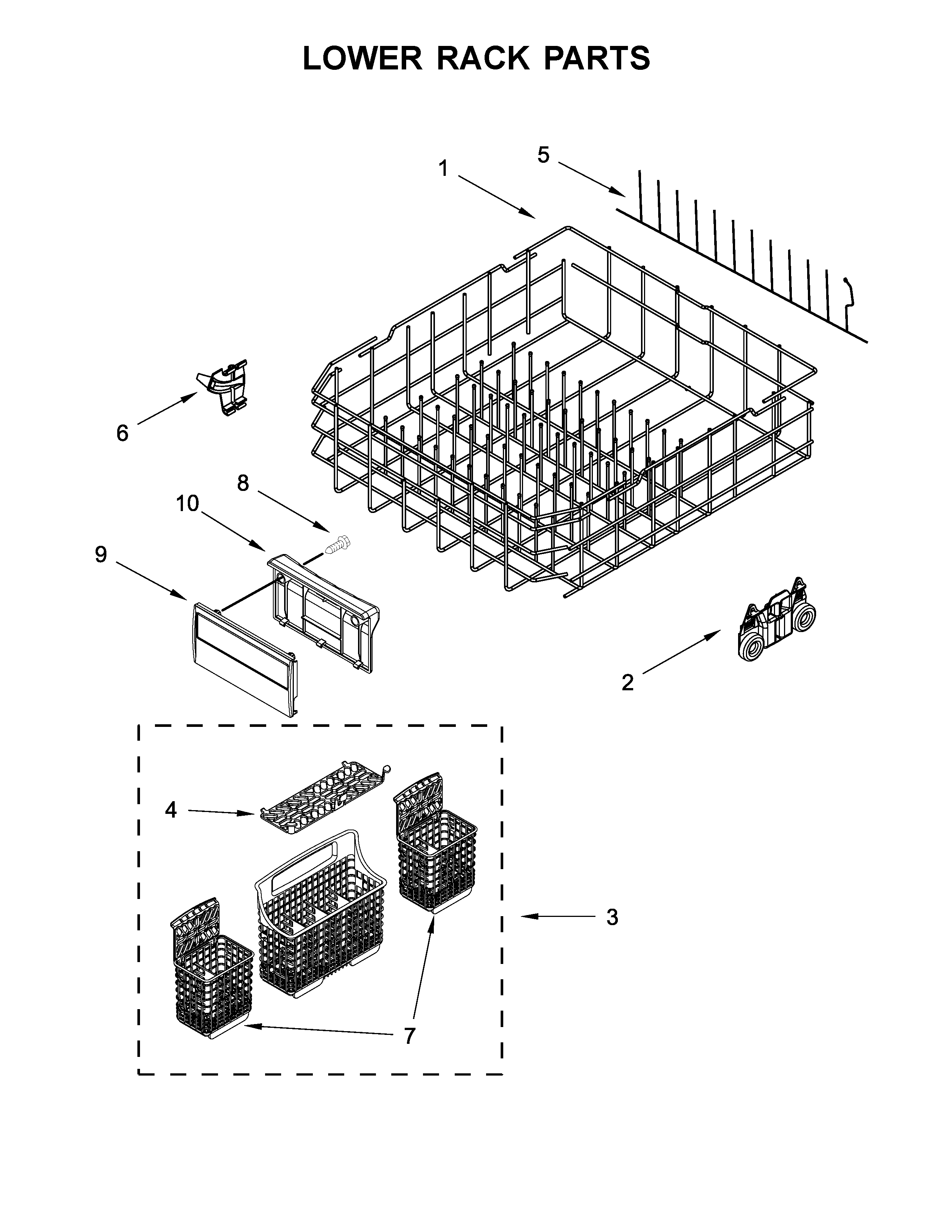

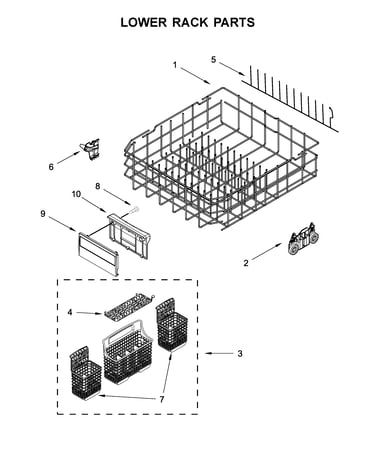

Lower rack parts diagram
Dishwasher dishrack roller assembly, lower
Part #W10195417
Replaced by #WPW10195417
?
Manufacturer substitution
This part replaces W10195417. Substitute parts can look different from the original.
$38.30 |
14% OFF Phone Price : $44.30
In Stock
#6

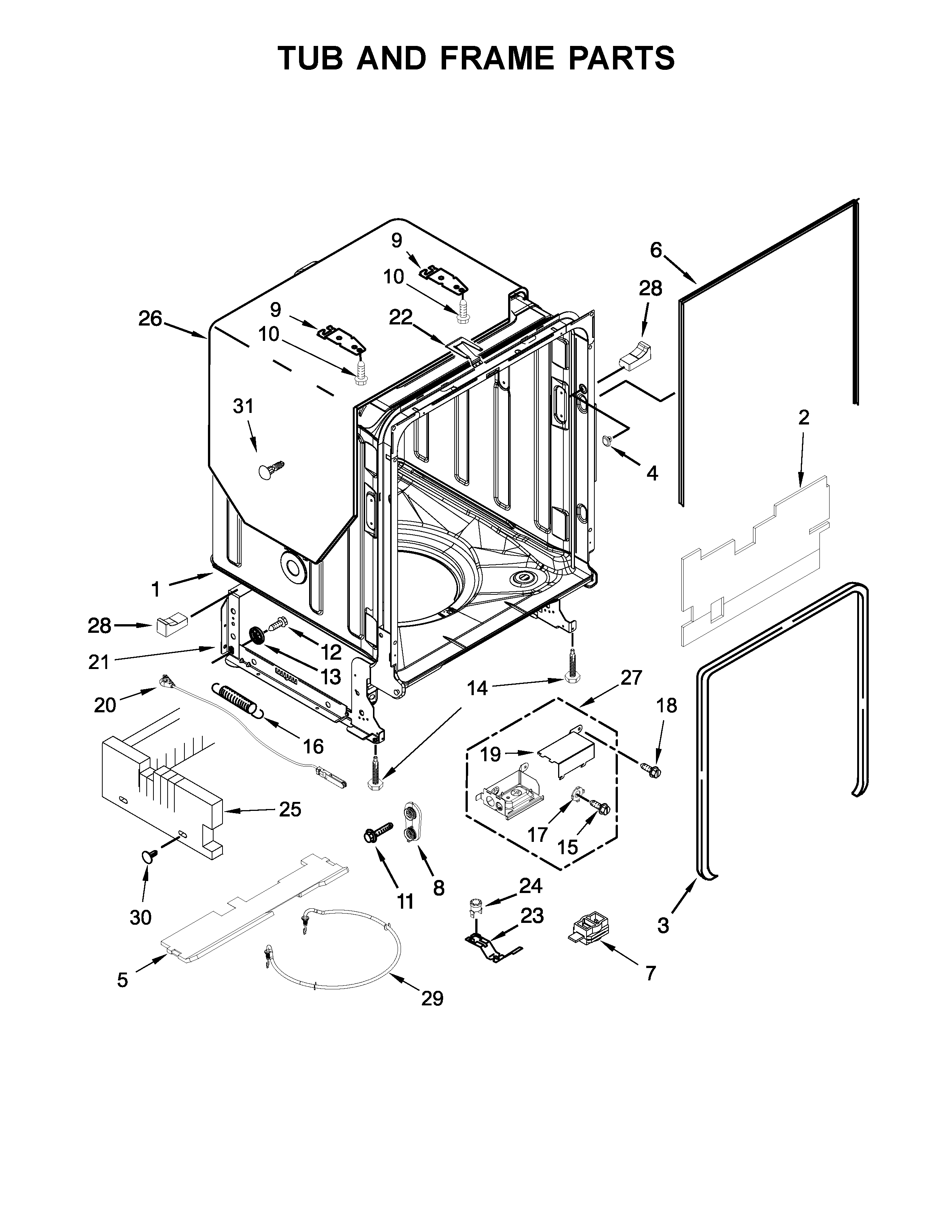

Tub and frame parts diagram
Dishwasher door seal
Part #W10300924
Replaced by #W11177741
?
Manufacturer substitution
This part replaces W10300924. Substitute parts can look different from the original.
$44.25 |
12% OFF Phone Price : $50.25
In Stock
#20
Tub and frame parts diagram
Dishwasher door balance link
Part #W10158291
Replaced by #8194001
?
Manufacturer substitution
This part replaces W10158291. Substitute parts can look different from the original.
$23.54 |
20% OFF Phone Price : $29.54
In Stock
#29
Tub and frame parts diagram
Element assembly
Part #W10696509
Replaced by #W10703867
?
Manufacturer substitution
This part replaces W10696509. Substitute parts can look different from the original.
$57.42 |
9% OFF Phone Price : $63.42
In Stock
#8

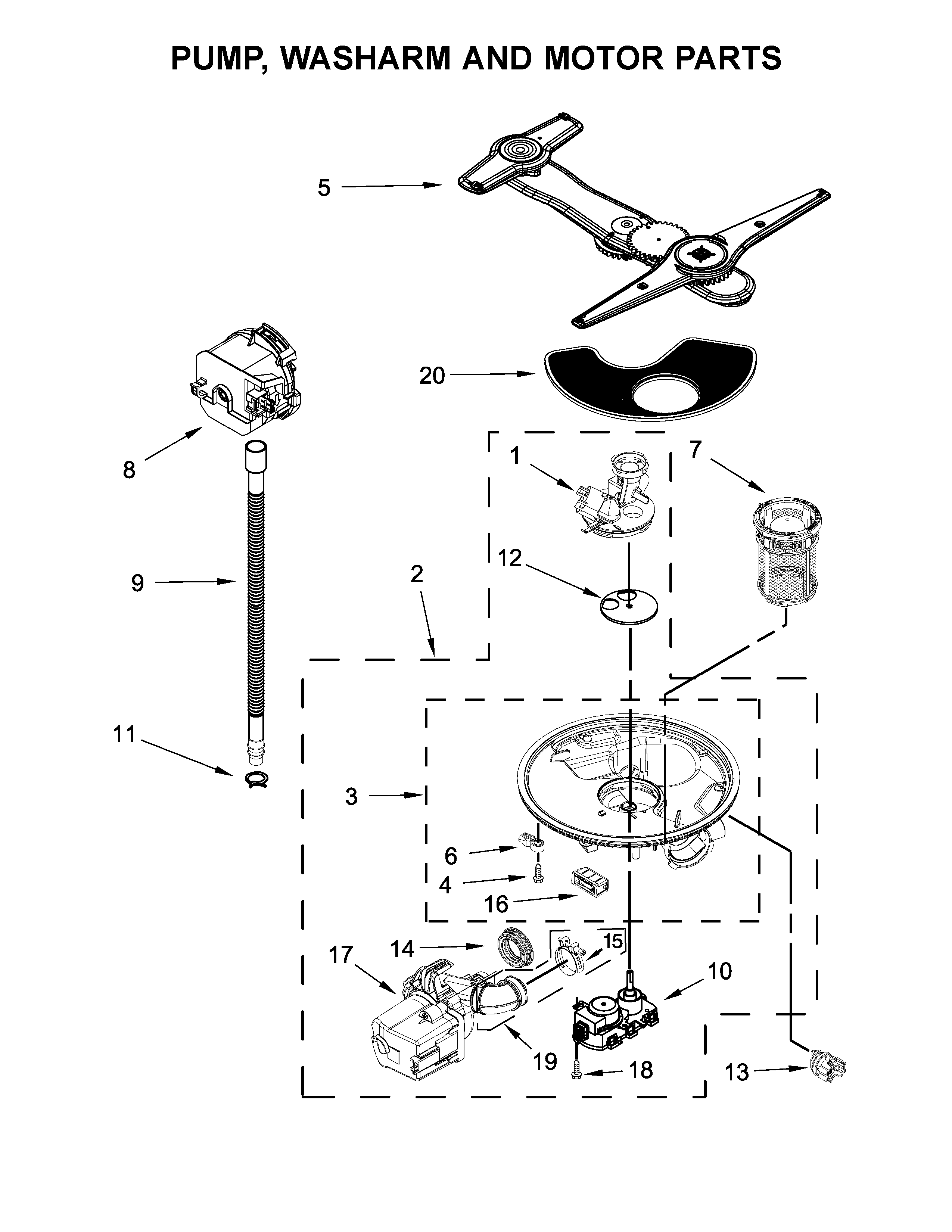

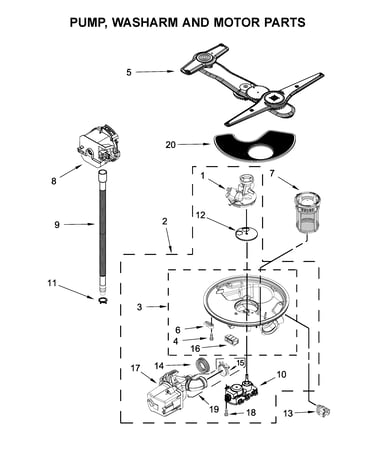

Pump, washarm and motor parts diagram
Dishwasher drain pump
Part #W10531320
Replaced by #WPW10531320
?
Manufacturer substitution
This part replaces W10531320. Substitute parts can look different from the original.
$47.07 |
11% OFF Phone Price : $53.07
In Stock
#3
Lower rack parts diagram
Basket asm,s
Part #W10756125
Replaced by #W10807920
?
Manufacturer substitution
This part replaces W10756125. Substitute parts can look different from the original.
$46.63 |
11% OFF Phone Price : $52.63
In Stock
#10
Pump, washarm and motor parts diagram
Dishwasher diverter motor
Part #W10849439
Replaced by #W10537869
?
Manufacturer substitution
This part replaces W10849439. Substitute parts can look different from the original.
$60.37 |
9% OFF Phone Price : $66.37
In Stock

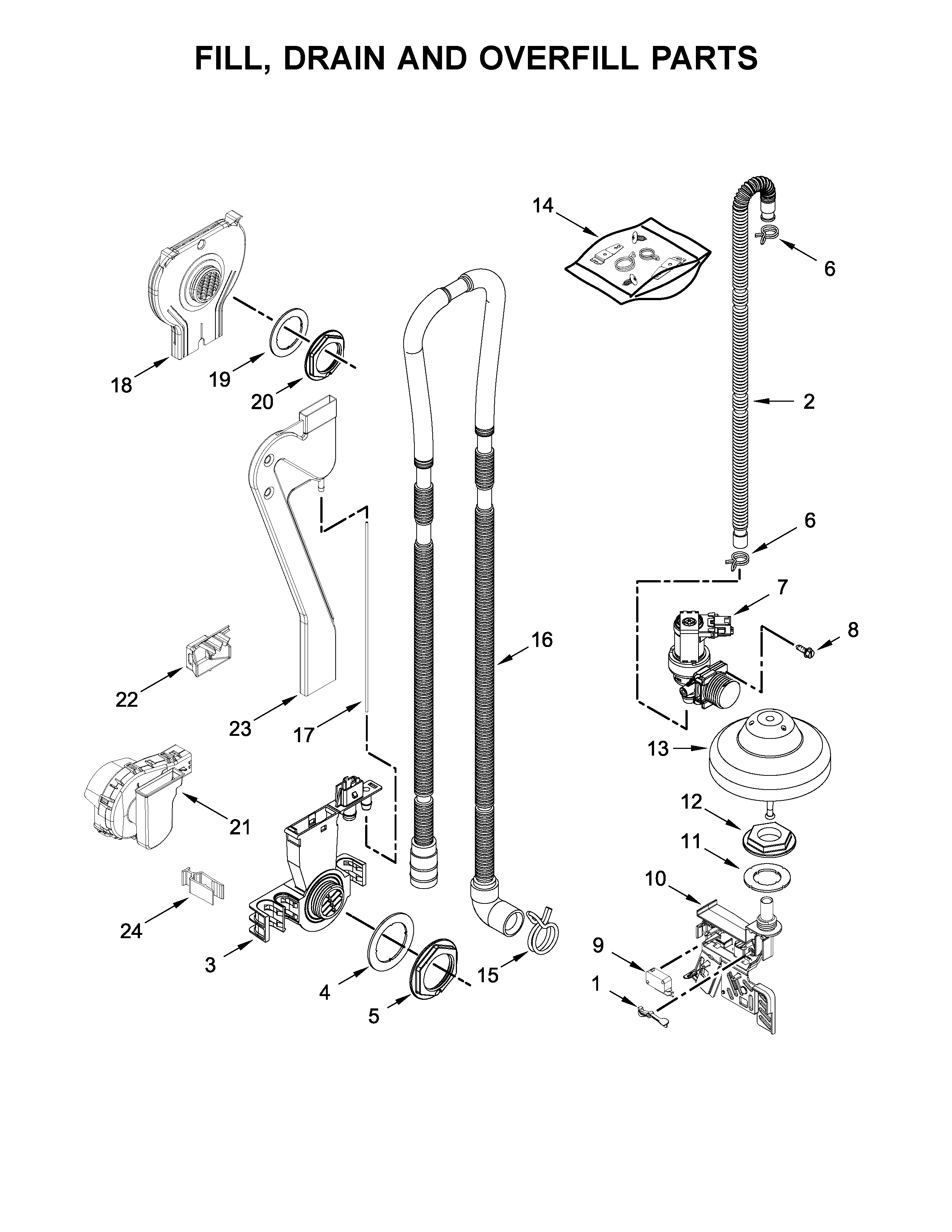

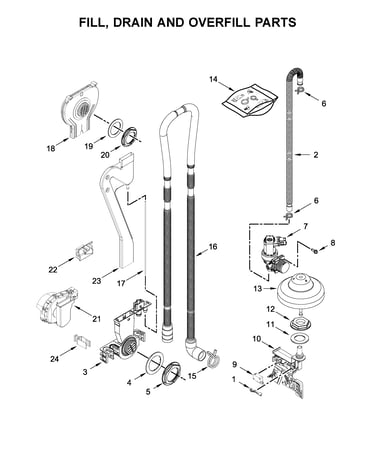

#9
Pump, washarm and motor parts diagram
Dishwasher drain hose
Part #8269144
Replaced by #8269144A
?
Manufacturer substitution
This part replaces 8269144. Substitute parts can look different from the original.
$17.19 |
10% OFF Phone Price : $19.19
In Stock
#3
Pump, washarm and motor parts diagram
Dishwasher sump and seal assembly
Part #W10455268
Replaced by #WPW10455268
?
Manufacturer substitution
This part replaces W10455268. Substitute parts can look different from the original.
$84.18 |
7% OFF Phone Price : $90.18
In Stock
#5

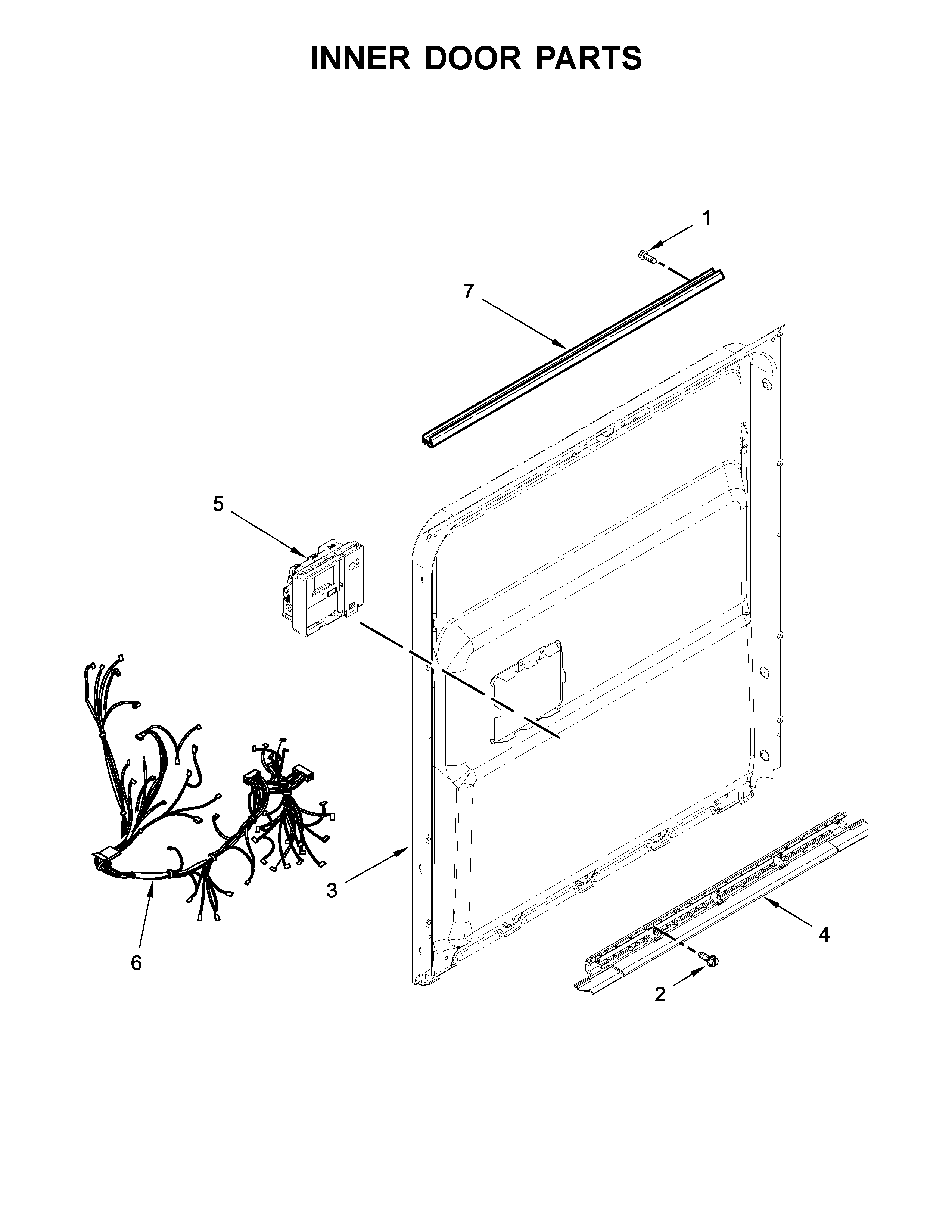

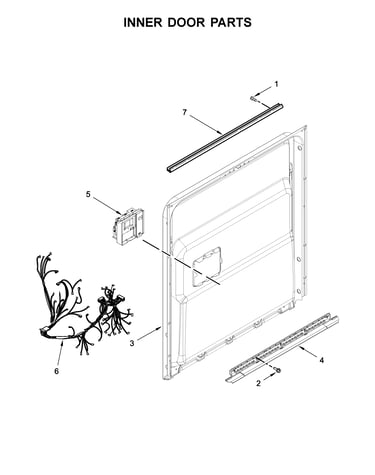

Inner door parts diagram
Dishwasher detergent dispenser assembly
Part #W10620297
Replaced by #W10876529
?
Manufacturer substitution
This part replaces W10620297. Substitute parts can look different from the original.
$77.92 |
7% OFF Phone Price : $83.92
In Stock
