Model # 2335188910 Official Kenmore range hood

Here are the diagrams and repair parts for Official Kenmore 2335188910 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

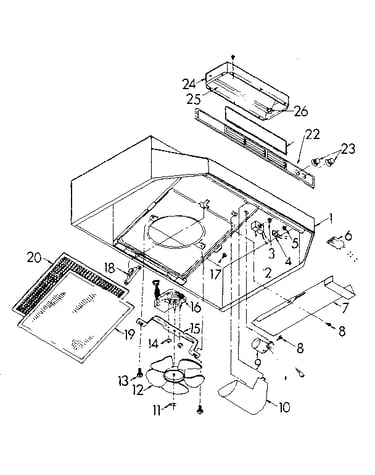

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Range Hood Filter Latch 99420472
#18

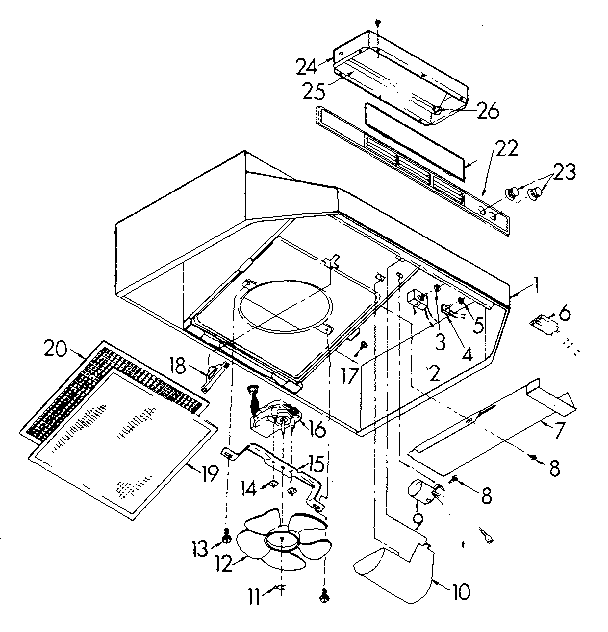

Range hood diagram

Range hood filter latch

Part #99420472

Replaced by #S99420472

?
Manufacturer substitution
This part replaces 99420472. Substitute parts can look different from the original.
This item is not returnable
$19.92 |
9% OFF Phone Price : $21.92
In Stock
Range Hood Fan Motor Bracket 98005568
#15

Range hood diagram

Range hood fan motor bracket

Part #98005568

Replaced by #S98005568

?
Manufacturer substitution
This part replaces 98005568. Substitute parts can look different from the original.
This item is not returnable
$3.39
In Stock
Range Hood Nameplate 97008998
#22

Range hood diagram

Range hood nameplate

Part #97008998

Replaced by #S97018378

?
Manufacturer substitution
This part replaces 97008998. Substitute parts can look different from the original.
This item is not returnable
$6.54
In Stock
Range Hood Light Lens 99110437
#10

Range hood diagram

Range hood light lens

Part #99110437

Replaced by #S99110437

?
Manufacturer substitution
This part replaces 99110437. Substitute parts can look different from the original.
$20.00 |
23% OFF Phone Price : $26.00
In Stock
Switch 97007499
#4

Range hood diagram

Switch

Part #97007499

Replaced by #S97016438

?
Manufacturer substitution
This part replaces 97007499. Substitute parts can look different from the original.
This item is not returnable
$35.00
In Stock
Range Hood Vent Damper 97005544
#24

Range hood diagram

Range hood vent damper

Part #97005544

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Fan Motor Lock Nut 99260428
#14

Range hood diagram

Range hood fan motor lock nut

Part #99260428

Replaced by #S99260428

?
Manufacturer substitution
This part replaces 99260428. Substitute parts can look different from the original.
This item is not returnable
$3.33
In Stock
Filter (silver) 97006931
#19

Range hood diagram

Filter (silver)

Part #97006931

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Nut, 15/32 X 32-in 99260470
#5

Range hood diagram

Range hood nut, 15/32 x 32-in

Part #99260470

Replaced by #S99260470

?
Manufacturer substitution
This part replaces 99260470. Substitute parts can look different from the original.
This item is not returnable
$3.37
In Stock
Pal Nut 99260422
#3

Range hood diagram

Pal nut

Part #99260422

Replaced by #S99260419

?
Manufacturer substitution
This part replaces 99260422. Substitute parts can look different from the original.
This item is not returnable
$3.33
In Stock
