Model # 61WC Official Marvel wine cellar

Here are the diagrams and repair parts for Official Marvel 61WC wine cellar, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 84 parts |

#26

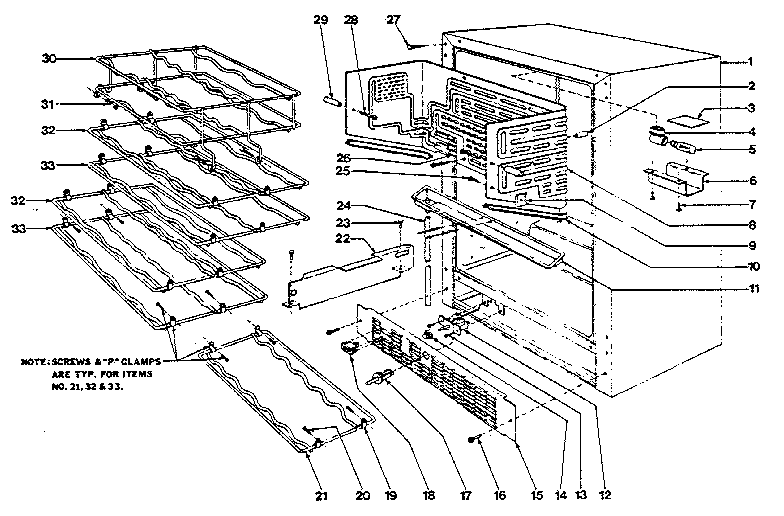

Cabinet parts diagram

Kenmore cap

Part #41001150

The manufacturer no longer makes this part, and there's no substitute part

#23

Cabinet parts diagram

Clip

Part #41000130

The manufacturer no longer makes this part, and there's no substitute part

#27

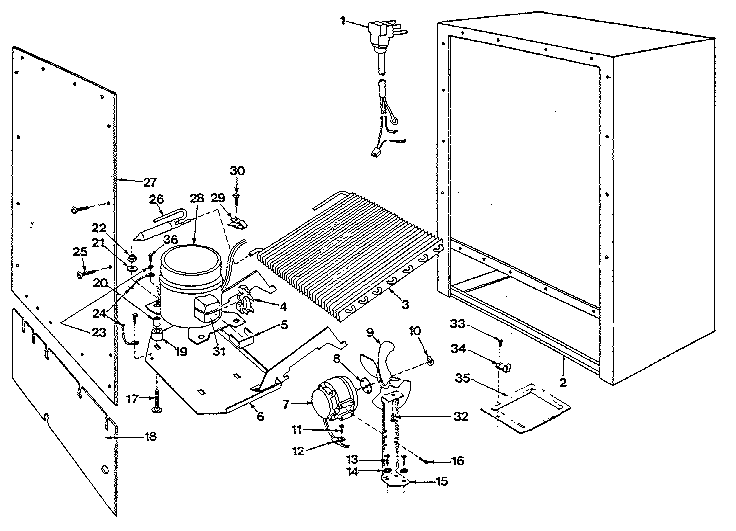

Unit parts diagram

Kenmore cabinet

Part #41000396

The manufacturer no longer makes this part, and there's no substitute part

#16

Unit parts diagram

Screw

Part #41003221

The manufacturer no longer makes this part, and there's no substitute part

#21

Cabinet parts diagram

Wire rack

Part #1220053D

The manufacturer no longer makes this part, and there's no substitute part

Cable clamp

Part #41000609

The manufacturer no longer makes this part, and there's no substitute part

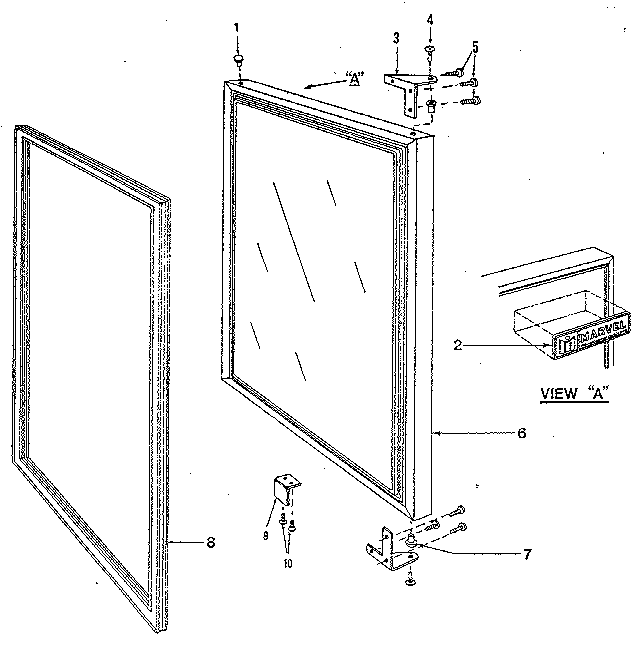

Door diagram

Refrigerator door gasket

Part #42241280

The manufacturer no longer makes this part, and there's no substitute part

#31

Cabinet parts diagram

Screw

Part #08205079

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Wire (black)

Part #1180025B

The manufacturer no longer makes this part, and there's no substitute part

#19A

Unit parts diagram

Sears grommet

Part #41002797

The manufacturer no longer makes this part, and there's no substitute part
