Ryobi
Drill/Driver

Model # DE-1320 Official Ryobi electric drill

Here are the diagrams and repair parts for Official Ryobi DE-1320 electric drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Armature 6031153
#26A

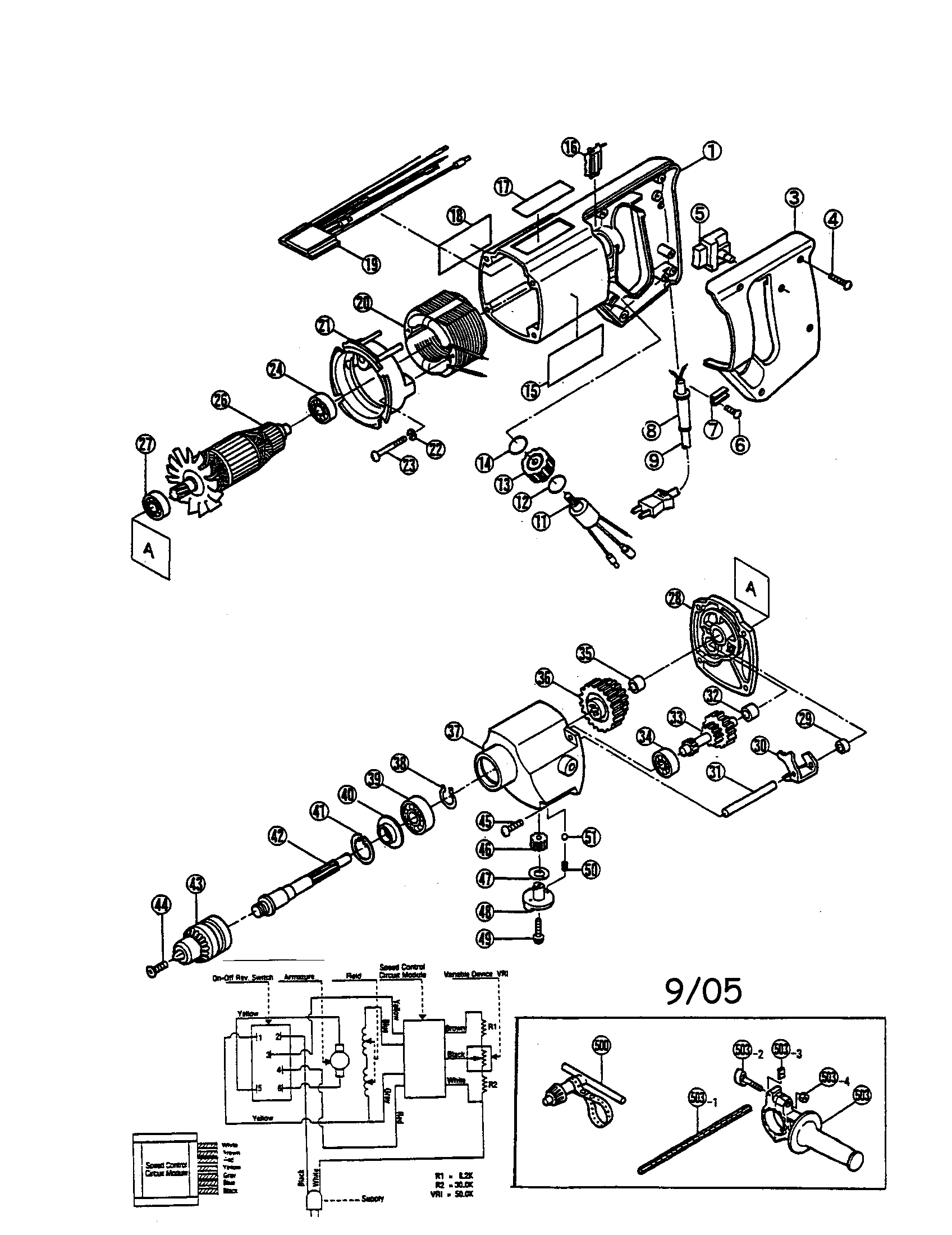

Electric drill diagram

Armature

Part #6031153

The manufacturer no longer makes this part, and there's no substitute part

Variable Device 6430061
#11

Electric drill diagram

Variable device

Part #6430061

The manufacturer no longer makes this part, and there's no substitute part

Sleeve Cover 6530396

#NI03

All parts diagram

Sleeve cover

Part #6530396

The manufacturer no longer makes this part, and there's no substitute part

Spindle (de1320) 6100115
#42

Electric drill diagram

Spindle (de1320)

Part #6100115

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring R-30 (not Shown) 9523200
#41

Electric drill diagram

Retaining ring r-30 (not shown)

Part #9523200

The manufacturer no longer makes this part, and there's no substitute part

Band 6530134

#NI01

All parts diagram

Band

Part #6530134

The manufacturer no longer makes this part, and there's no substitute part

Reversible Switch 6550229
#5A

Electric drill diagram

Reversible switch

Part #6550229

The manufacturer no longer makes this part, and there's no substitute part

Stopper Plate 6151184
#503-3

Electric drill diagram

Stopper plate

Part #6151184

The manufacturer no longer makes this part, and there's no substitute part

Oilless Metal 6760052
Oilless metal

Part #6760052

The manufacturer no longer makes this part, and there's no substitute part

O Ring P-18 De1310r 9760018
O ring p-18 de1310r

Part #9760018

The manufacturer no longer makes this part, and there's no substitute part
