Amana
Dryer

Model # LEA90AW-PLEA90AW Official Amana dryer

Here are the diagrams and repair parts for Official Amana LEA90AW-PLEA90AW dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

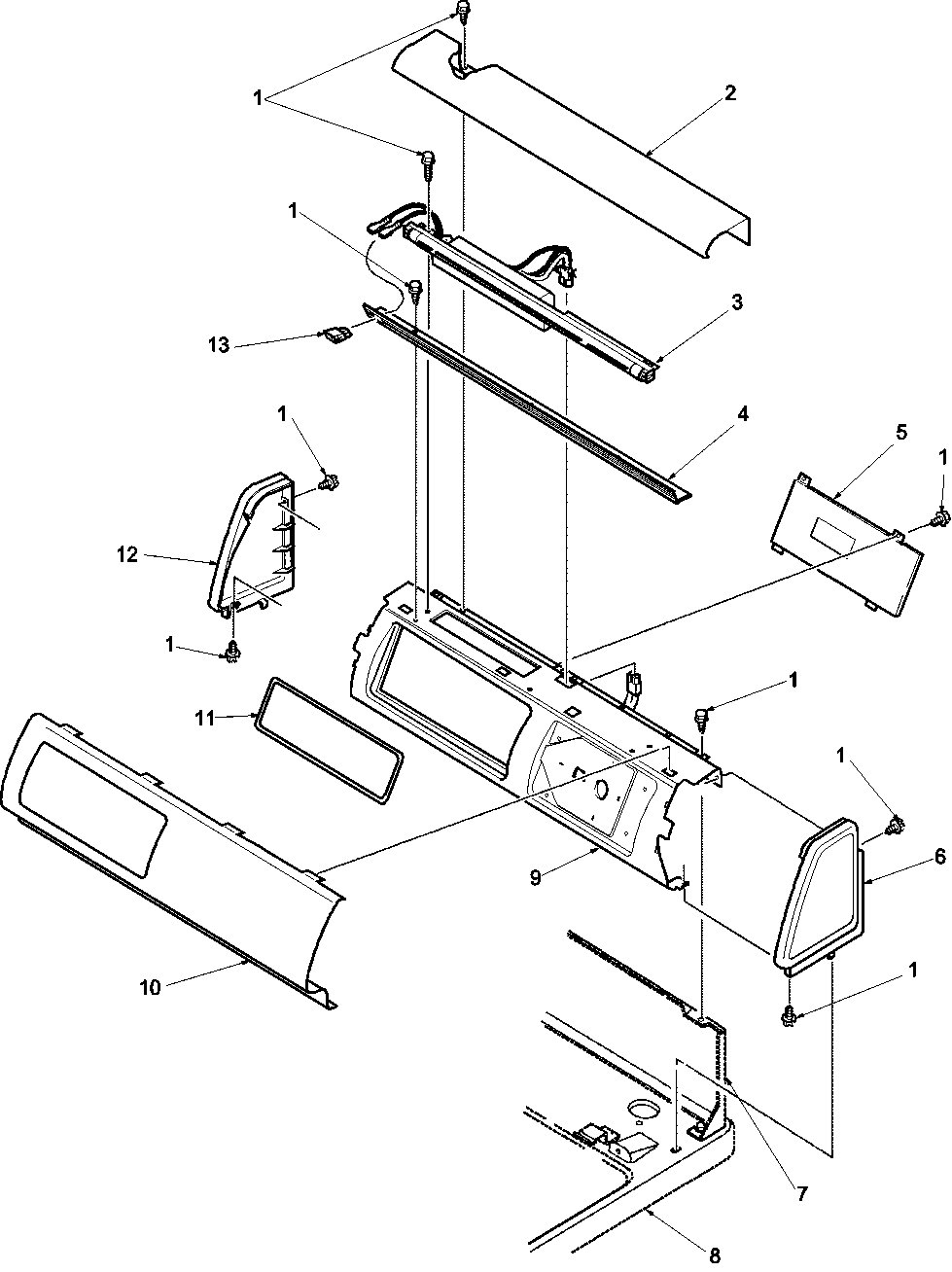

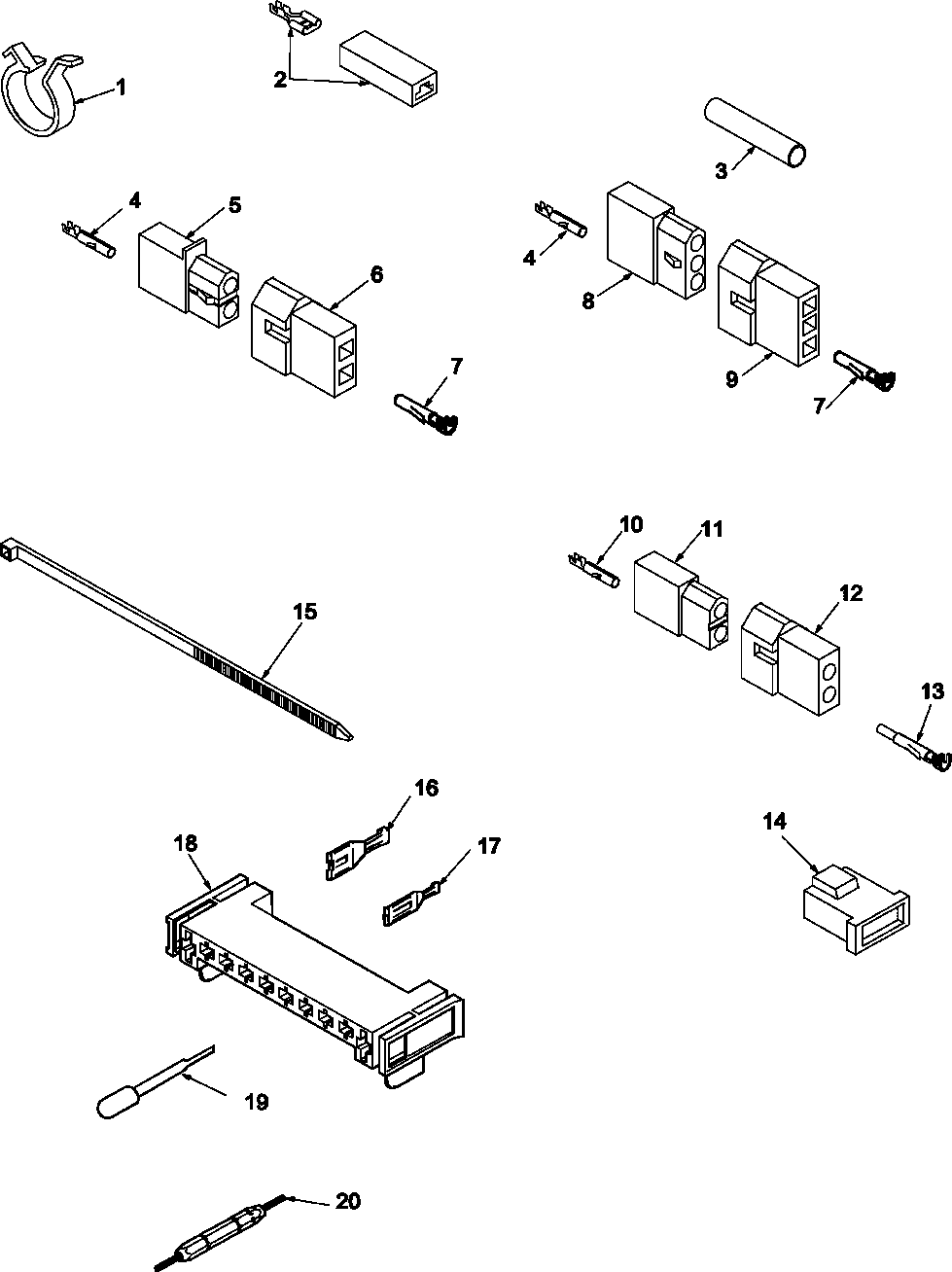

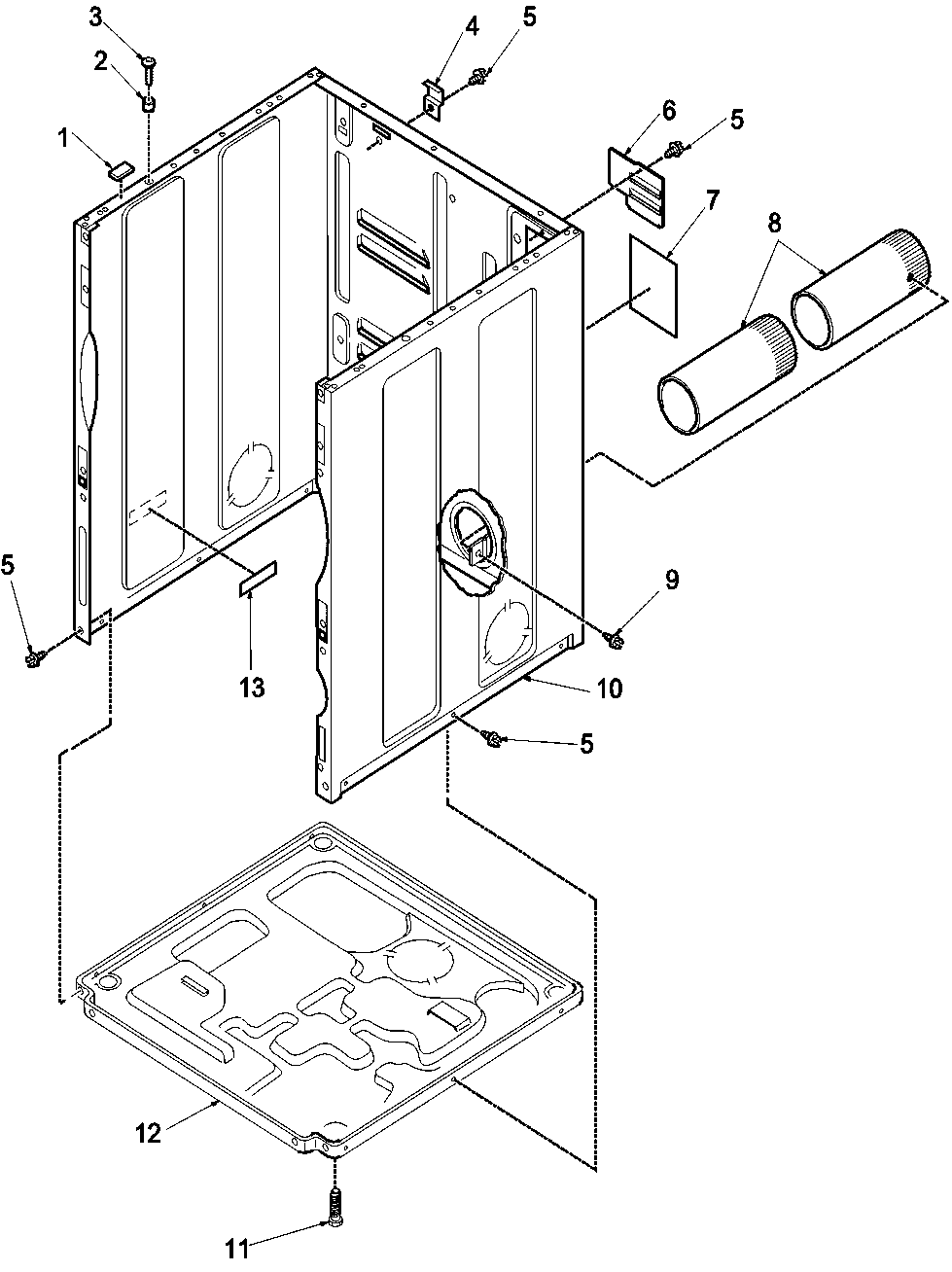

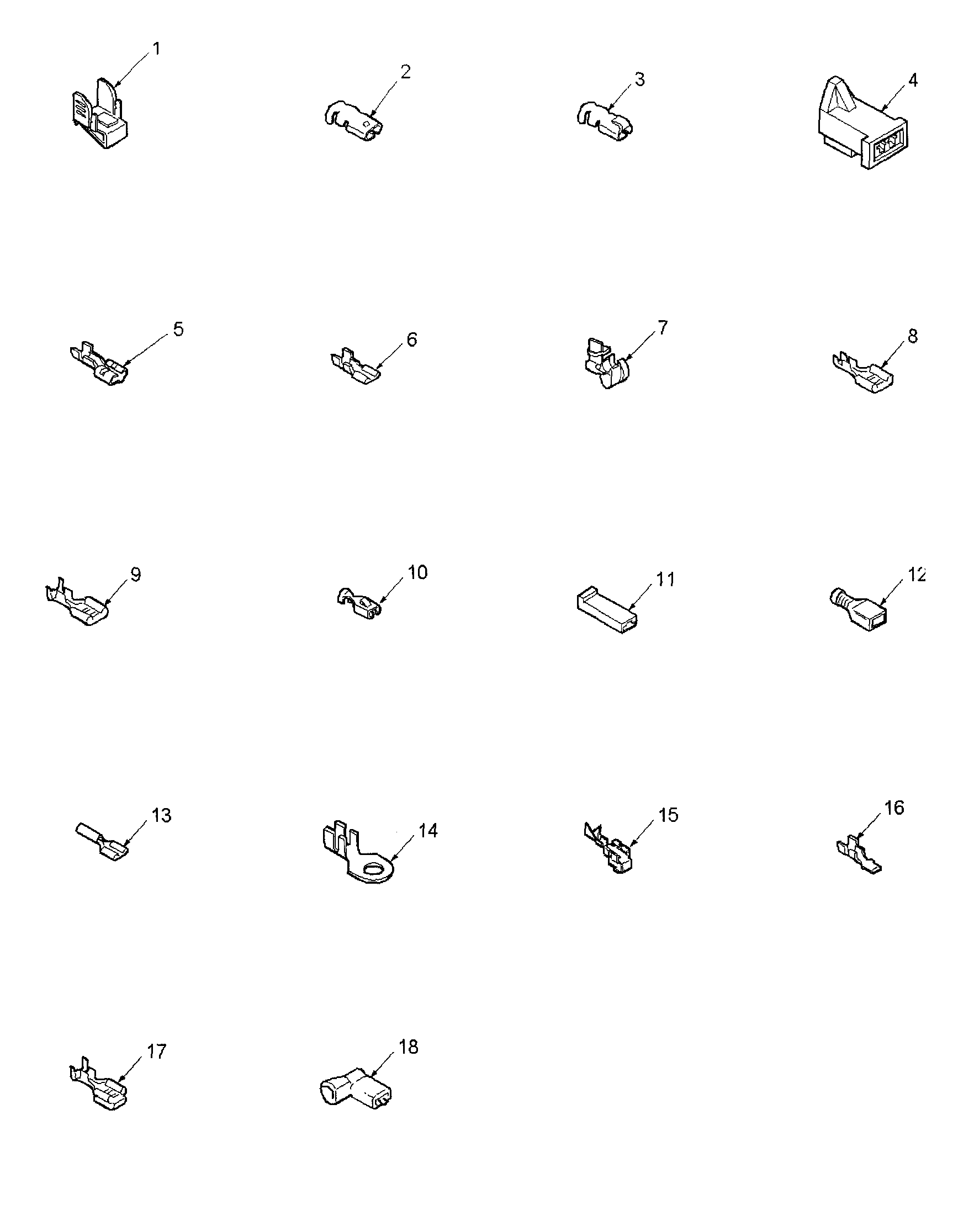

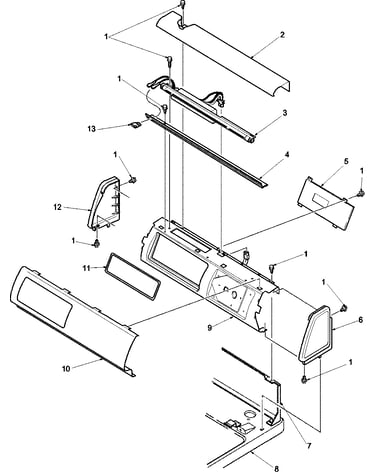

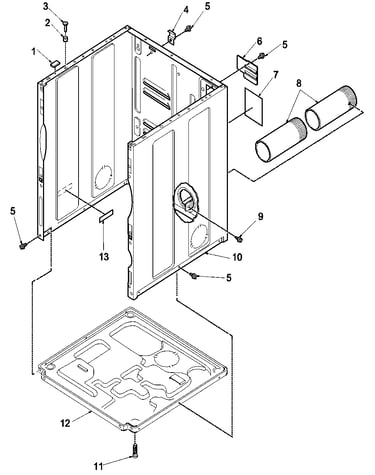

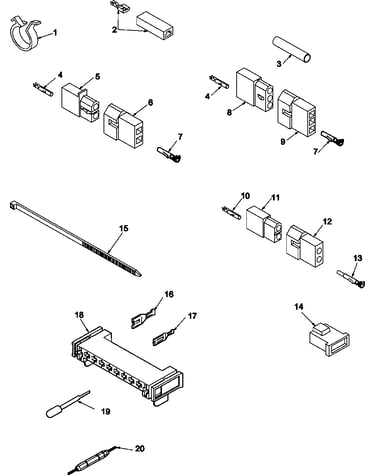

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |
Belt 59174
#1

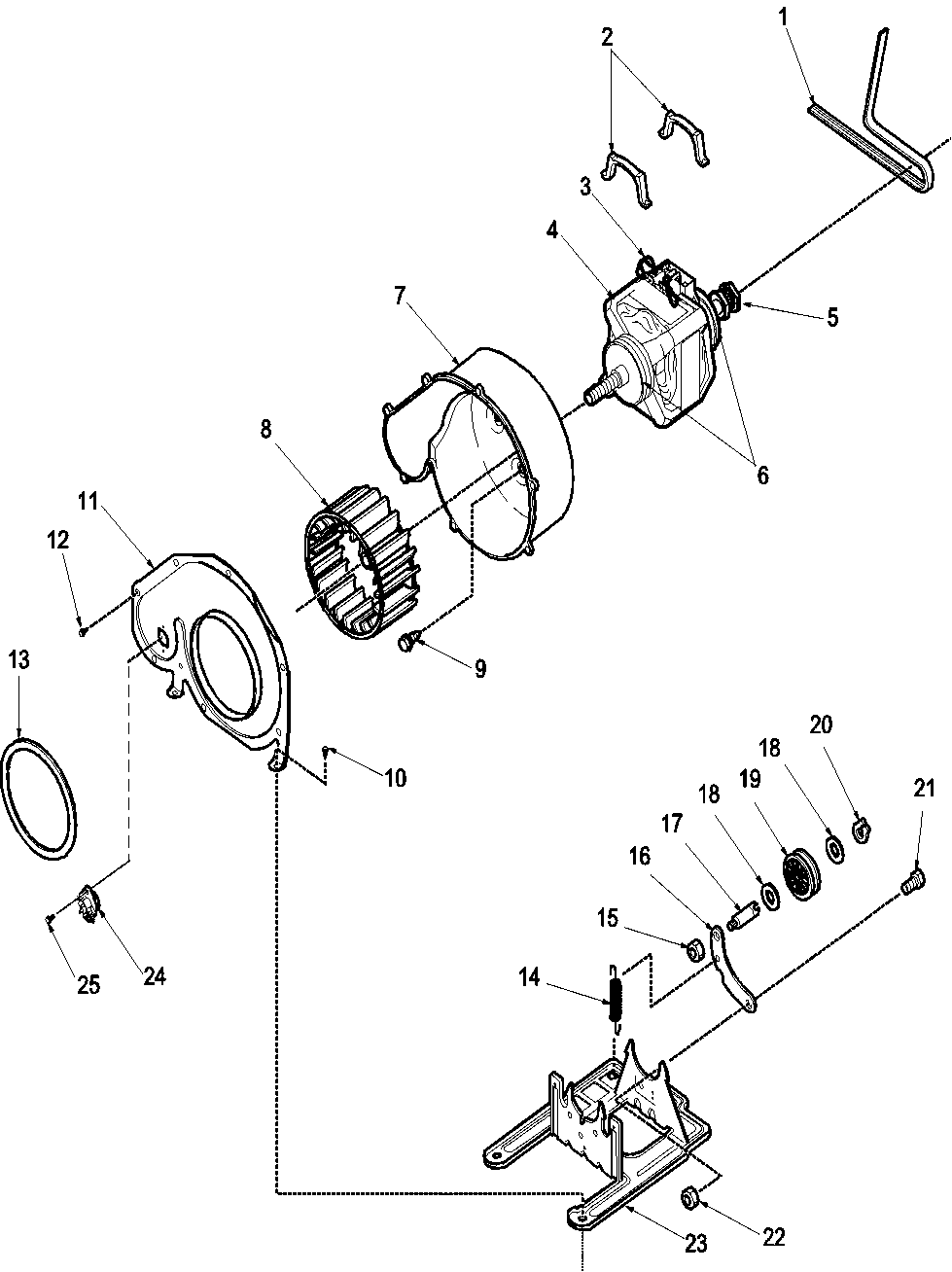

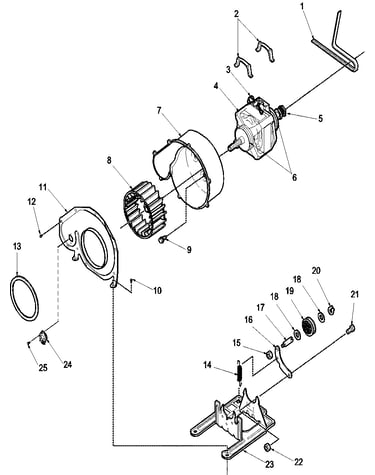

Motor and fan assemblies diagram

Belt

Part #59174

The manufacturer no longer makes this part, and there's no substitute part

Lever 500269
#999

Motor and fan assemblies diagram

Lever

Part #500269

The manufacturer no longer makes this part, and there's no substitute part

Motor 502368
#4

Motor and fan assemblies diagram

Motor

Part #502368

The manufacturer no longer makes this part, and there's no substitute part

Impeller 56000
#8

Motor and fan assemblies diagram

Impeller

Part #56000

Replaced by #56000

?
Manufacturer substitution
This part replaces 56000. Substitute parts can look different from the original.
BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Fuse 62600
#6

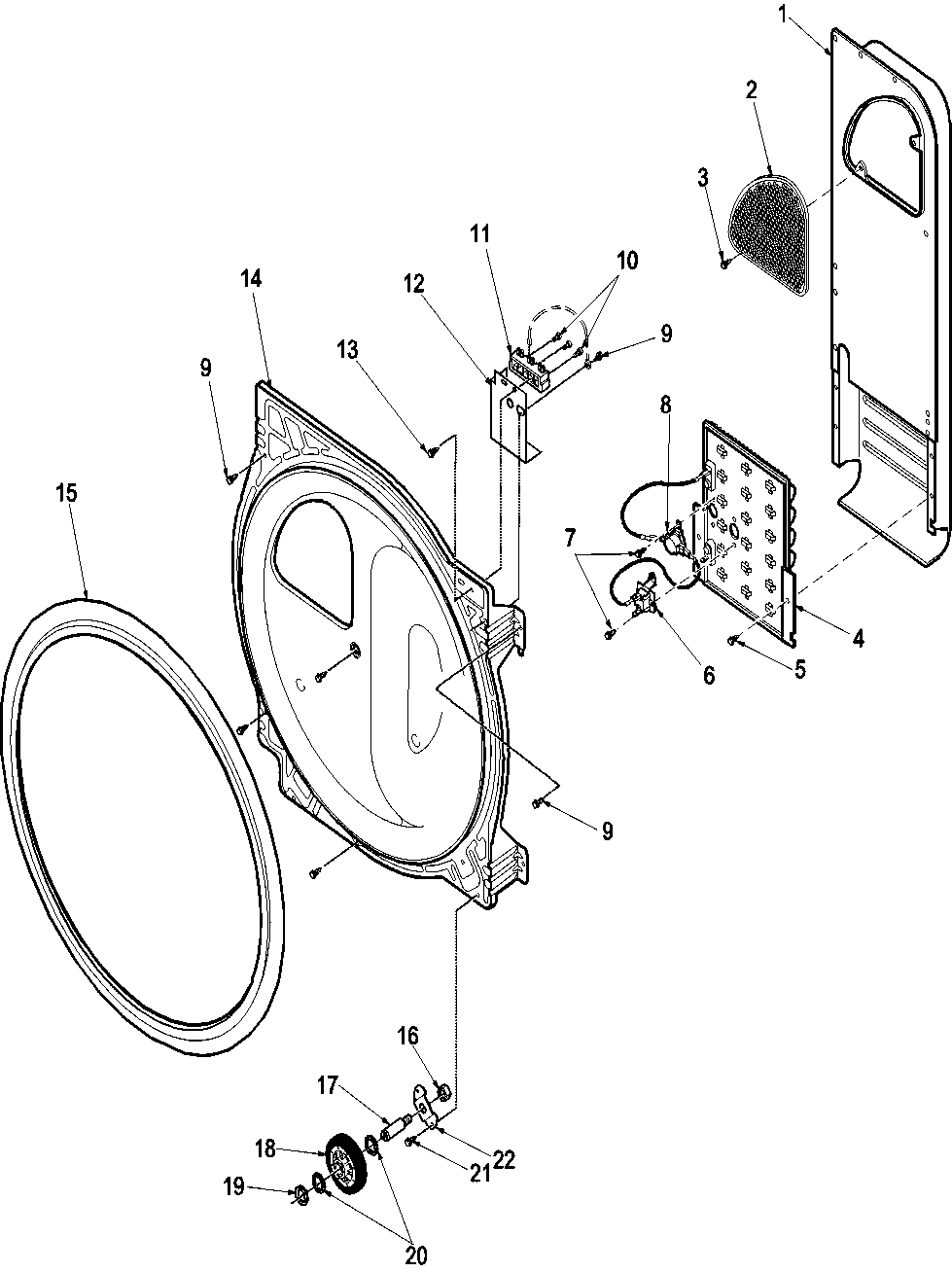

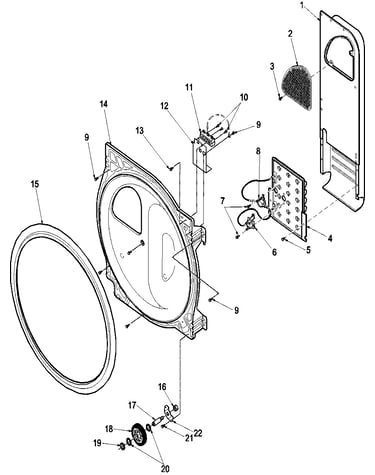

R bulkhead, seal, rollers, and air duct diagram

Fuse

Part #62600

Replaced by #WP40113801

?
Manufacturer substitution
This part replaces 62600. Substitute parts can look different from the original.
BEST SELLER
$14.01 |
12% OFF Phone Price : $16.01
In Stock
Pulley 54414
#19

Motor and fan assemblies diagram

Pulley

Part #54414

Replaced by #WPY54414

?
Manufacturer substitution
This part replaces 54414. Substitute parts can look different from the original.
BEST SELLER
$18.57 |
10% OFF Phone Price : $20.57
In Stock
Clamp 58047
#2

Motor and fan assemblies diagram

Clamp

Part #58047

Replaced by #WP660658

?
Manufacturer substitution
This part replaces 58047. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Glide 501553
#13

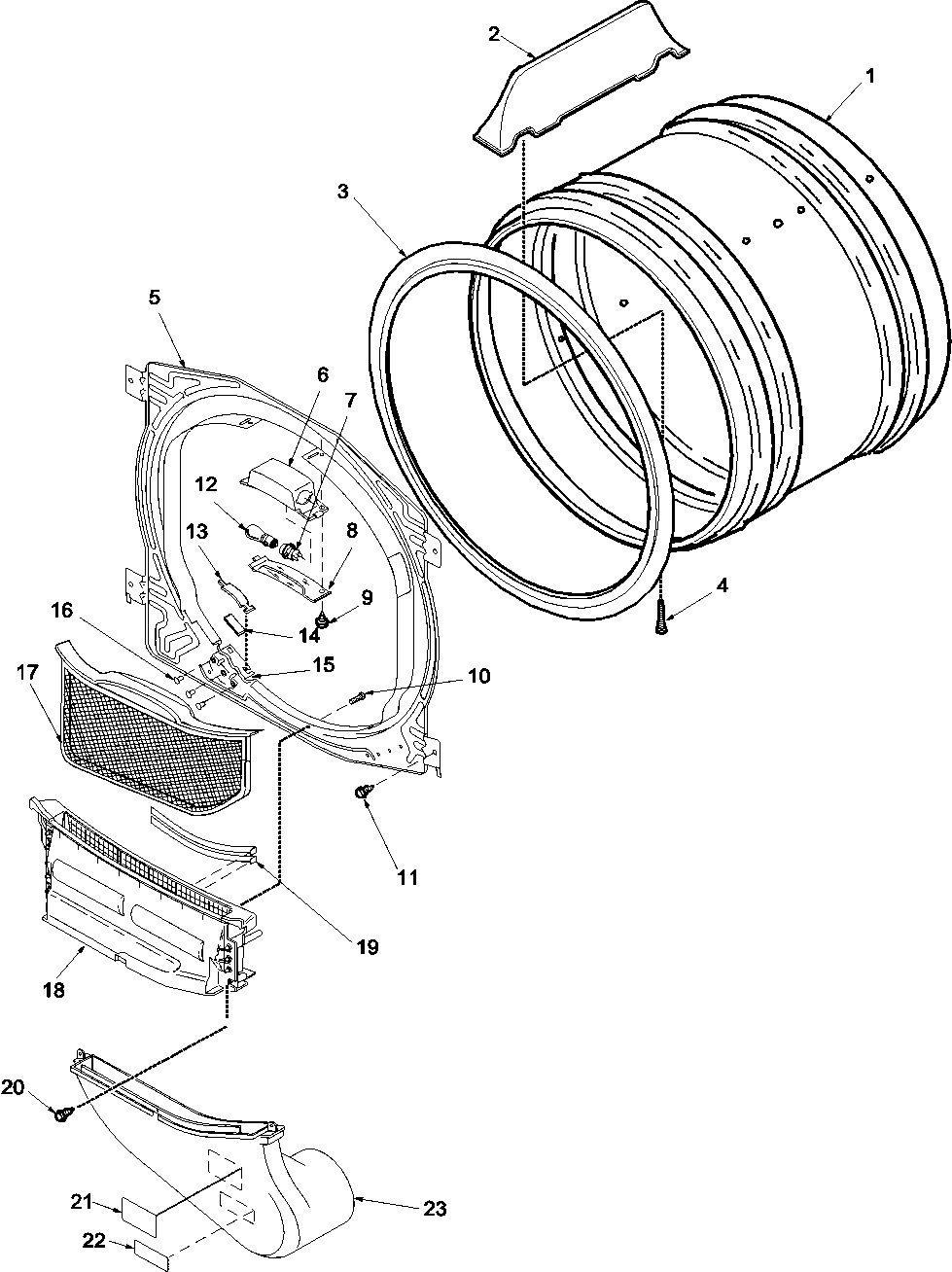

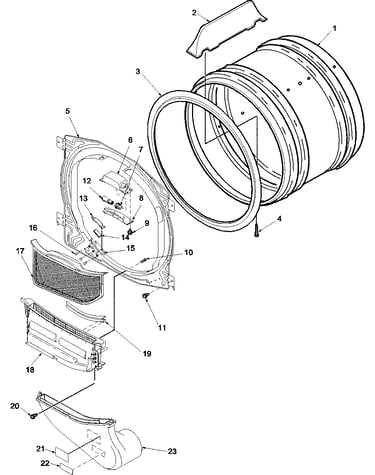

F bulkhead, air duct, seal and cylinder diagram

Glide

Part #501553

The manufacturer no longer makes this part, and there's no substitute part

Screw 503688
#1

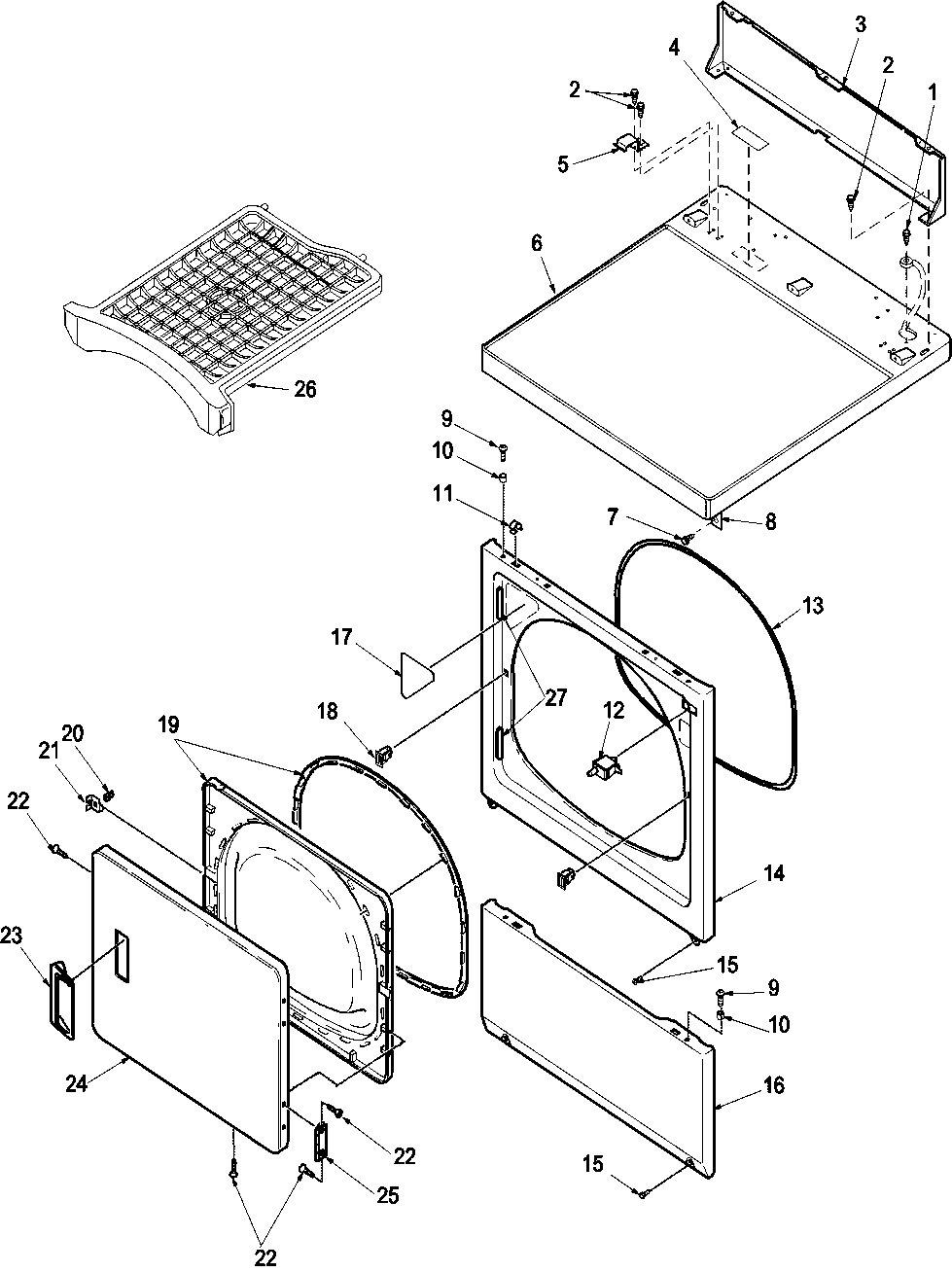

Door and front, access, and top panels diagram

Screw

Part #503688

The manufacturer no longer makes this part, and there's no substitute part

Seal 501801
Seal

Part #501801

The manufacturer no longer makes this part, and there's no substitute part
