Model # KPDC610S2 Official KitchenAid dishwasher
Here are the diagrams and repair parts for Official KitchenAid KPDC610S2 dishwasher, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

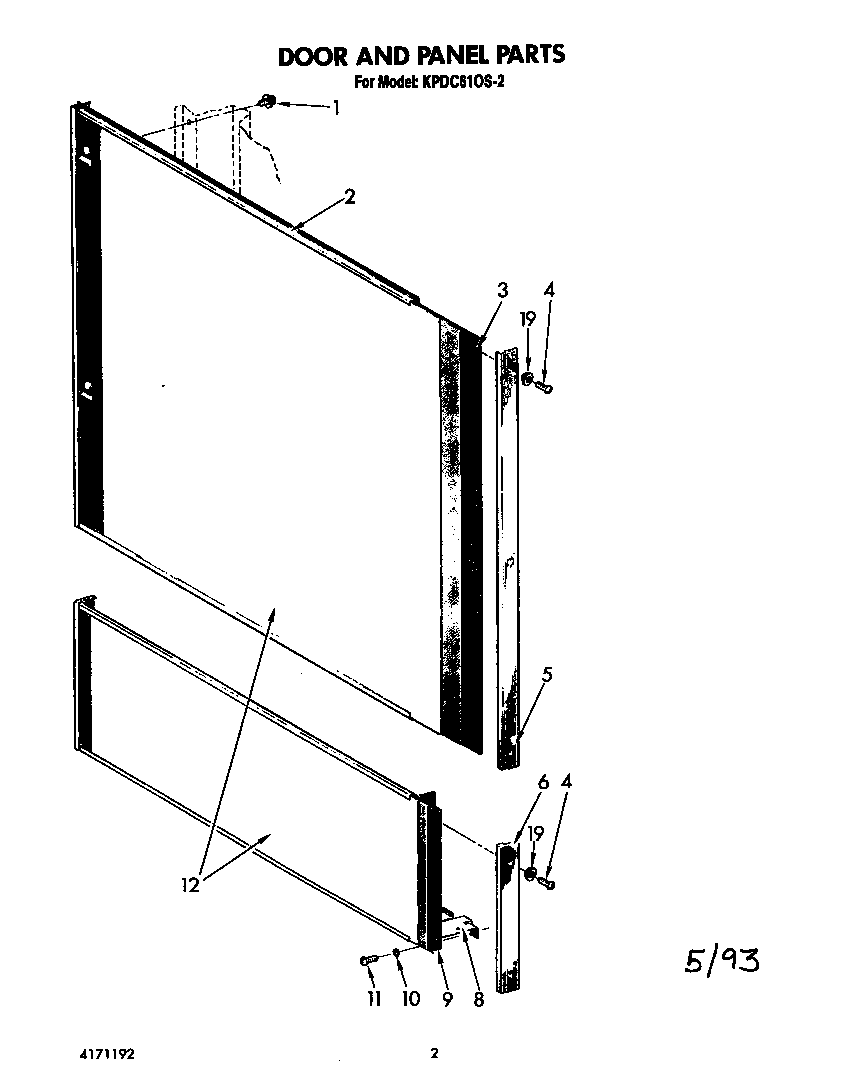

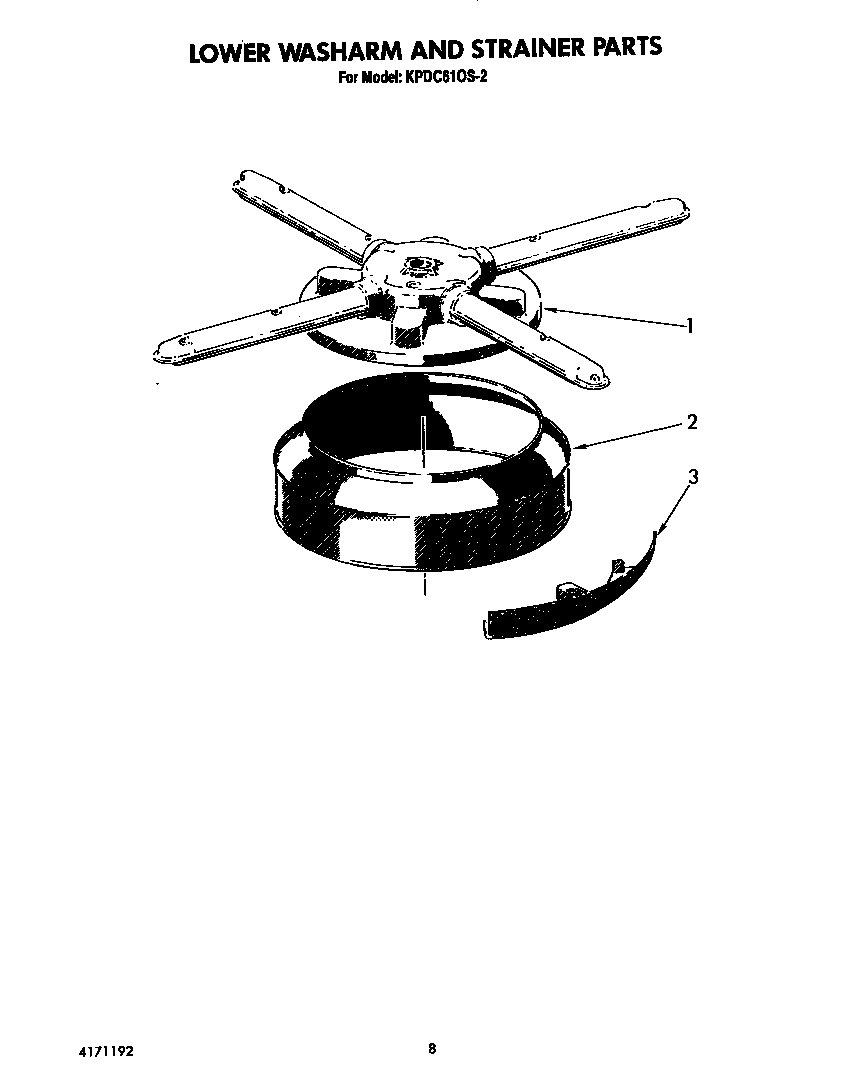

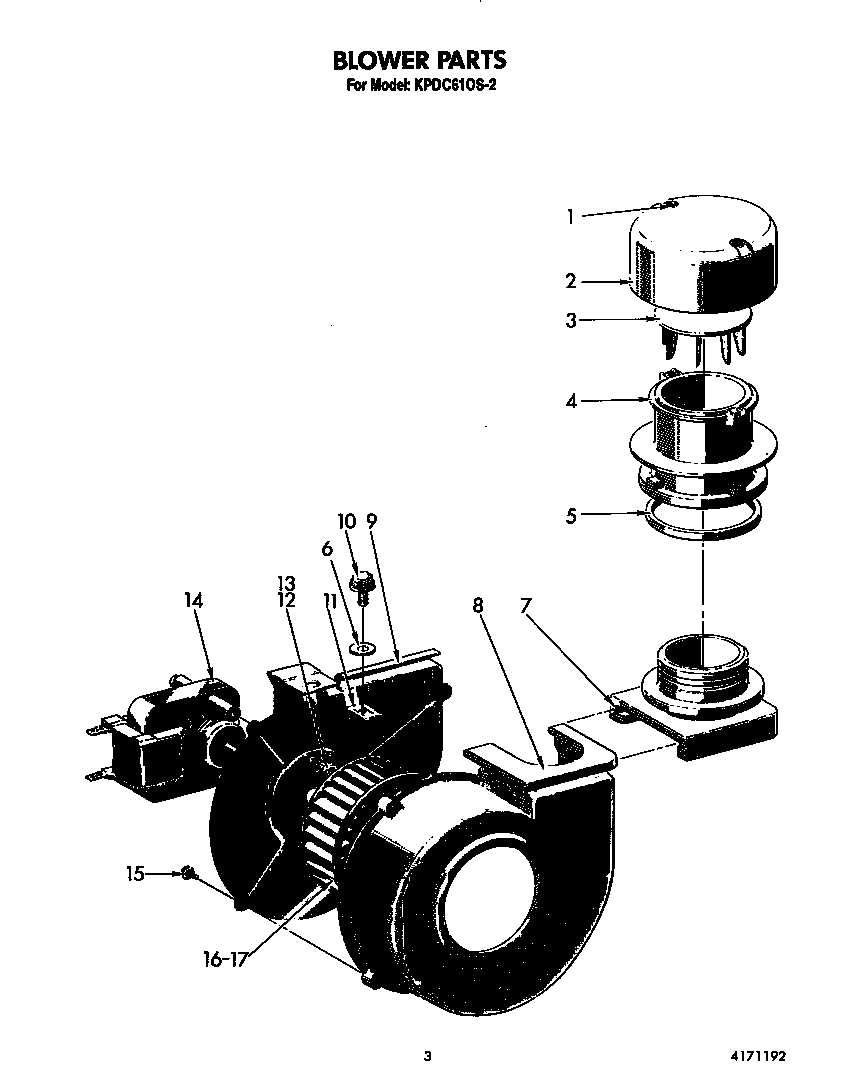

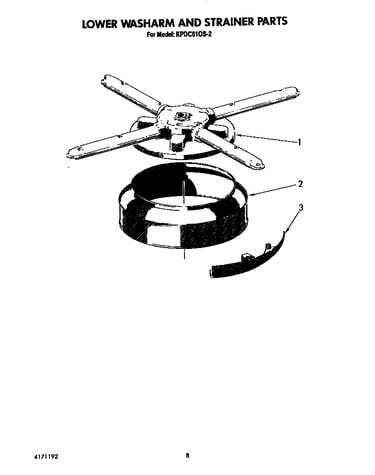

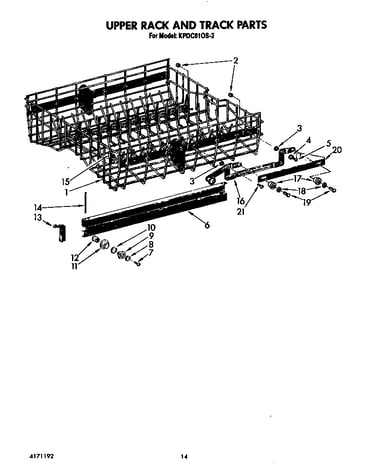

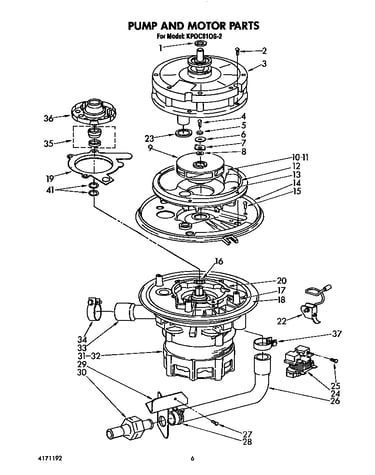

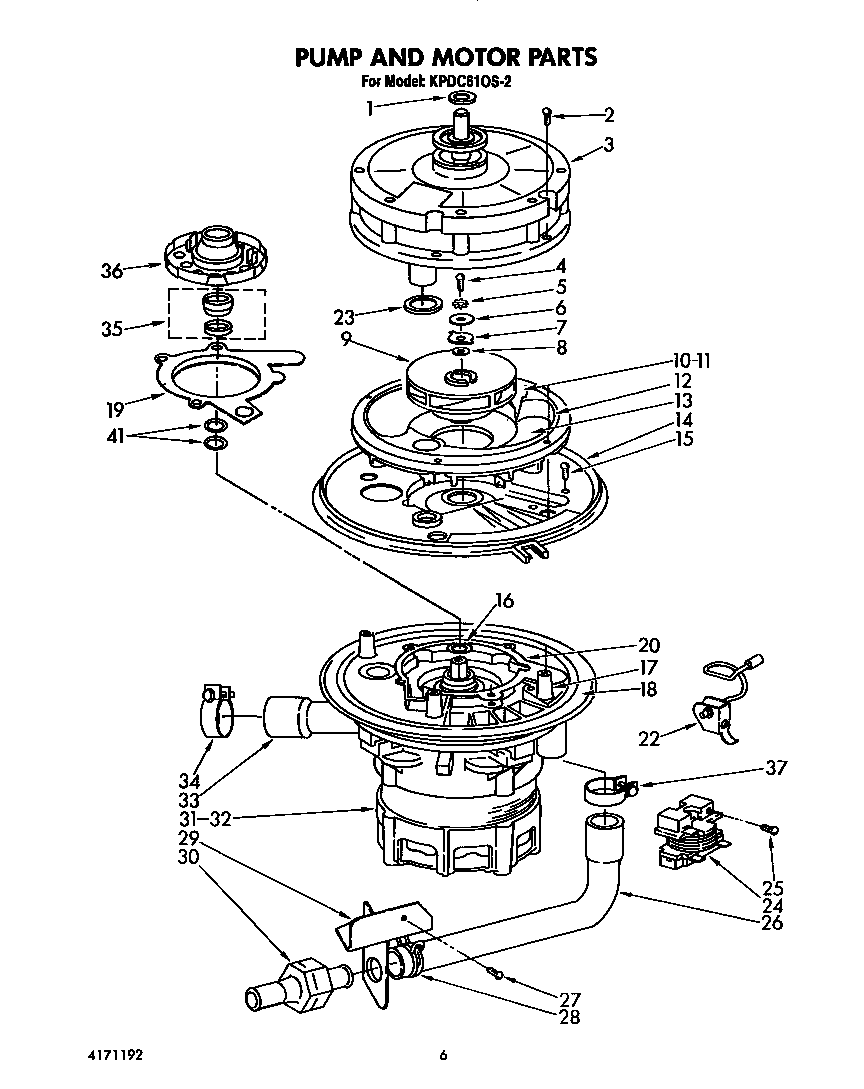

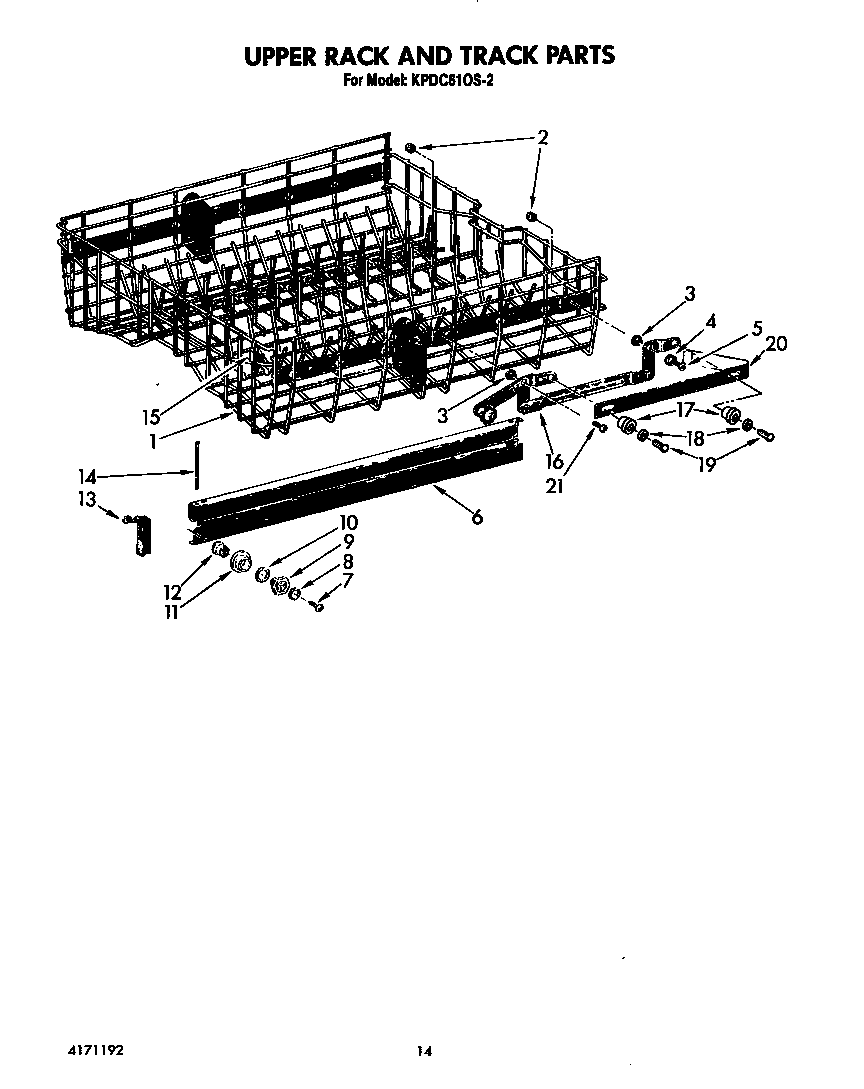

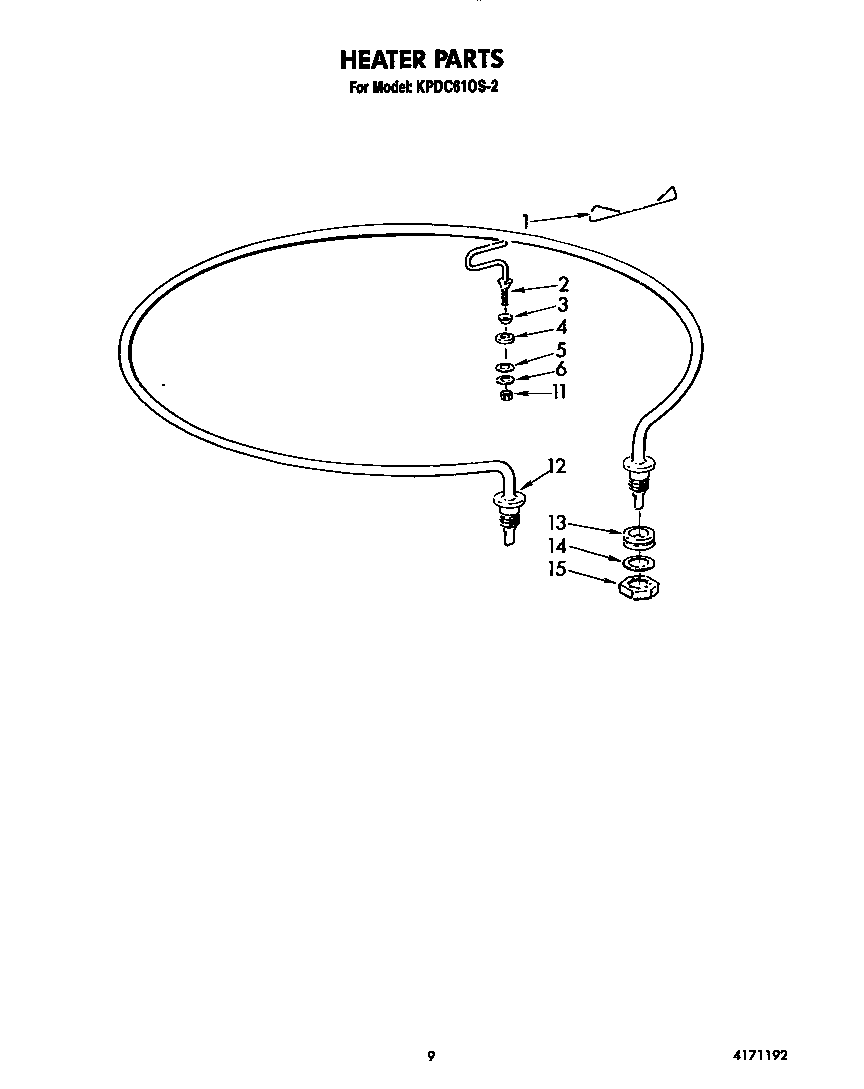

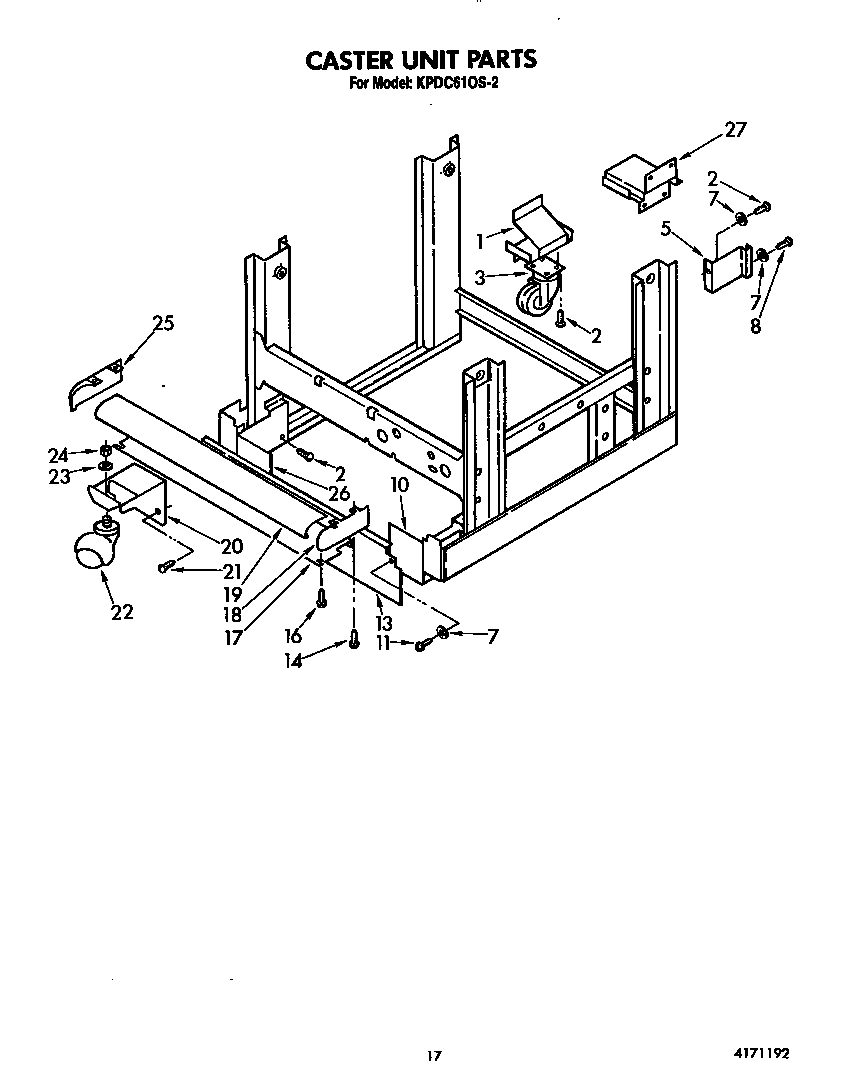

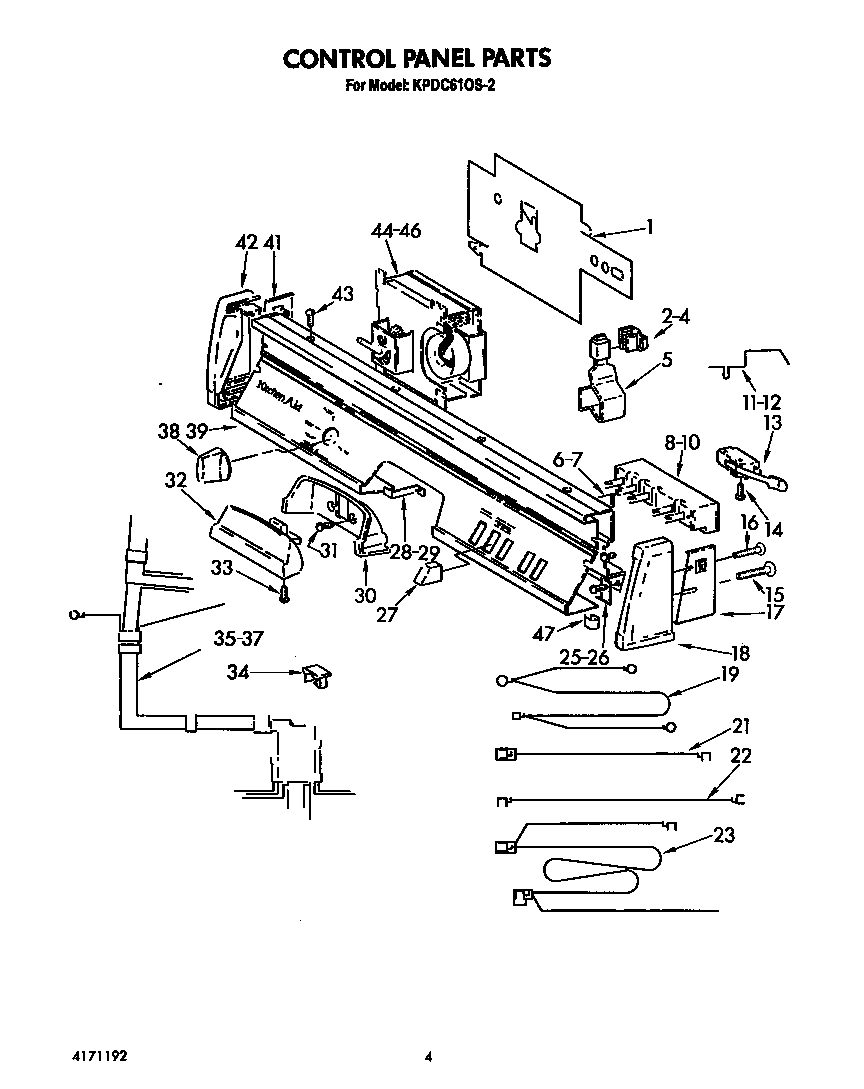

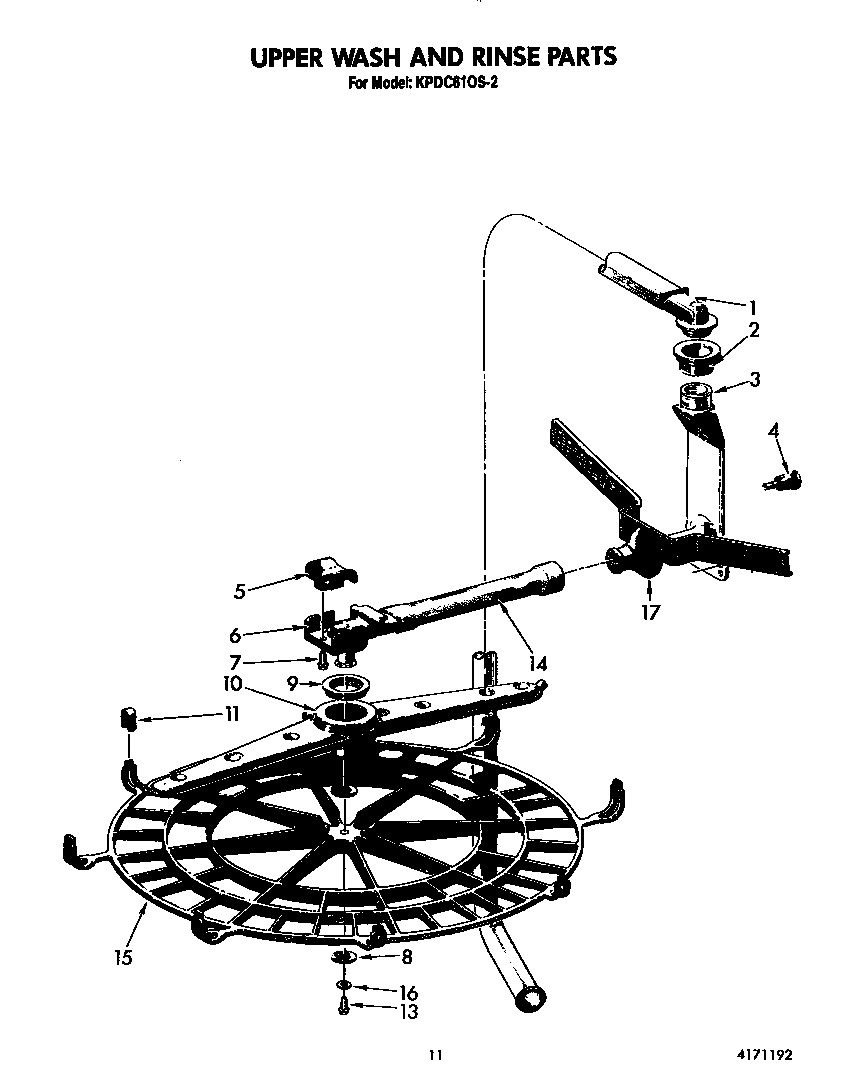

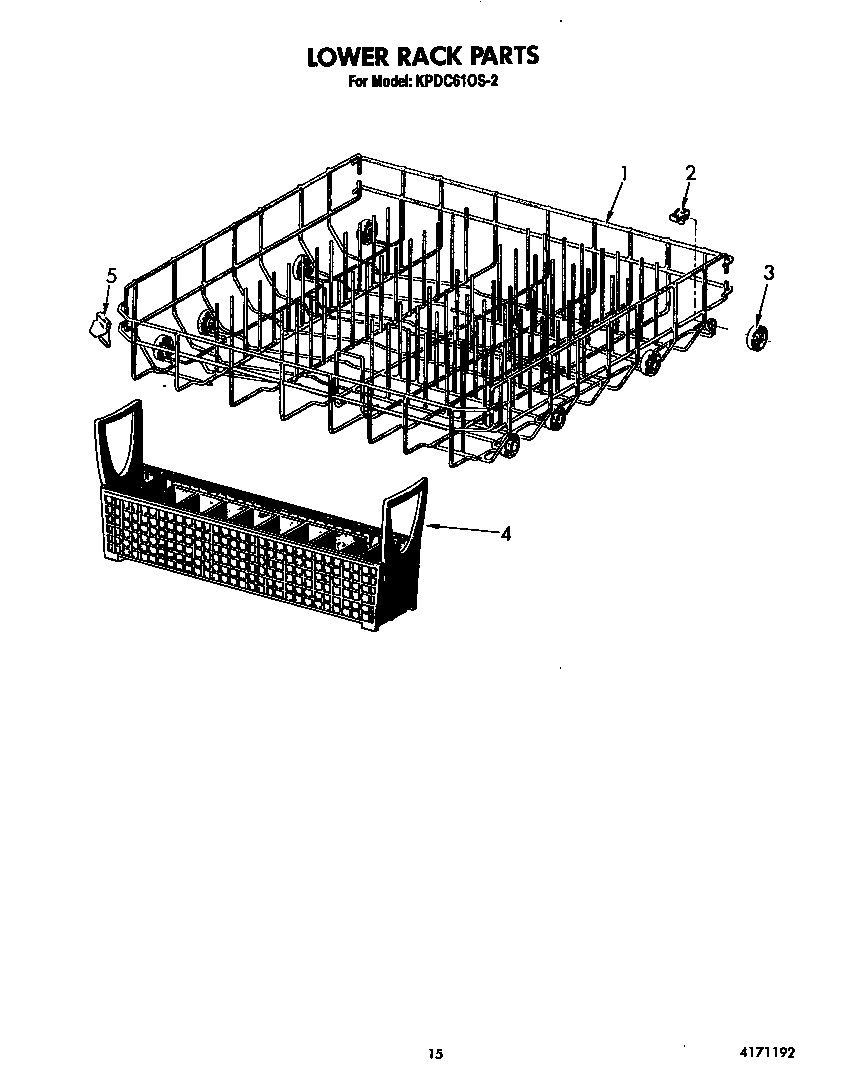

Browse Parts forKPDC610S2 Dishwasher
- #4

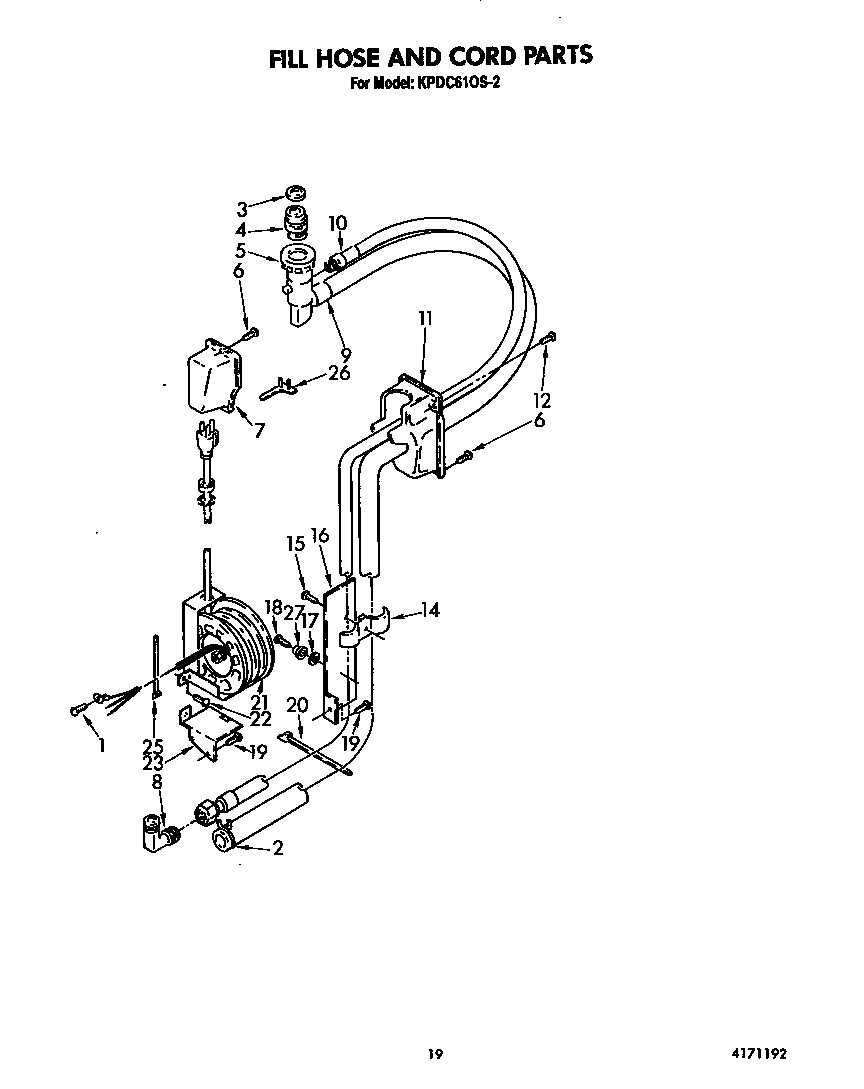

Fill hose and cord diagram
AdapterPart #4160963
Replaced by #WPW10254672
?Manufacturer substitutionThis part replaces 4160963. Substitute parts can look different from the original.$36.49 |14% OFF Phone Price : $42.49In Stock - #15

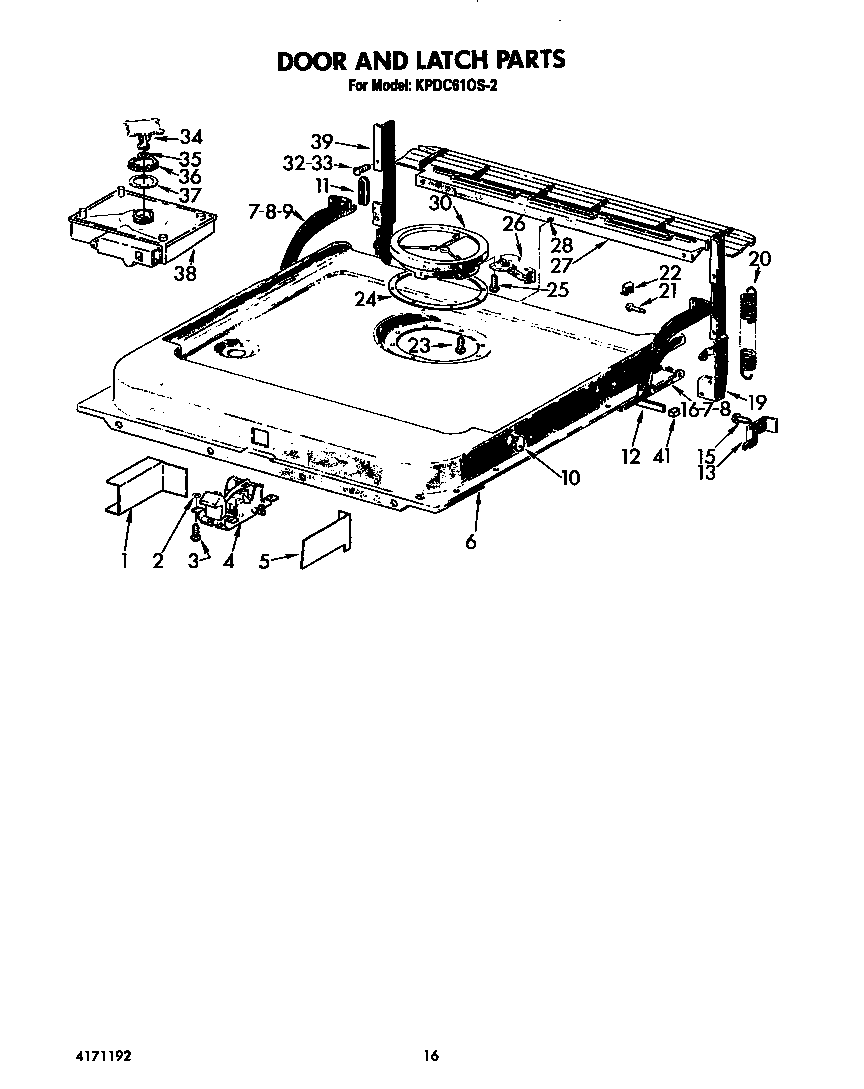

Door and latch diagram
ScrewPart #4159184
Replaced by #WP3390631
?Manufacturer substitutionThis part replaces 4159184. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock #NI
All parts diagram
Touch-up paintPart #72107
Replaced by #WP72107
?Manufacturer substitutionThis part replaces 72107. Substitute parts can look different from the original.This item is not returnable$8.07 |11% OFF Phone Price : $9.07In Stock- #20
Door and latch diagram
SpringPart #4162629
Replaced by #WP4162629
?Manufacturer substitutionThis part replaces 4162629. Substitute parts can look different from the original.This item is not returnable$17.68 |10% OFF Phone Price : $19.68In Stock #NI
All parts diagram
Paint (almond)Part #350956
Replaced by #350956
?Manufacturer substitutionThis part replaces 350956. Substitute parts can look different from the original.This item is not returnable$25.27 |19% OFF Phone Price : $31.27In Stock- #12

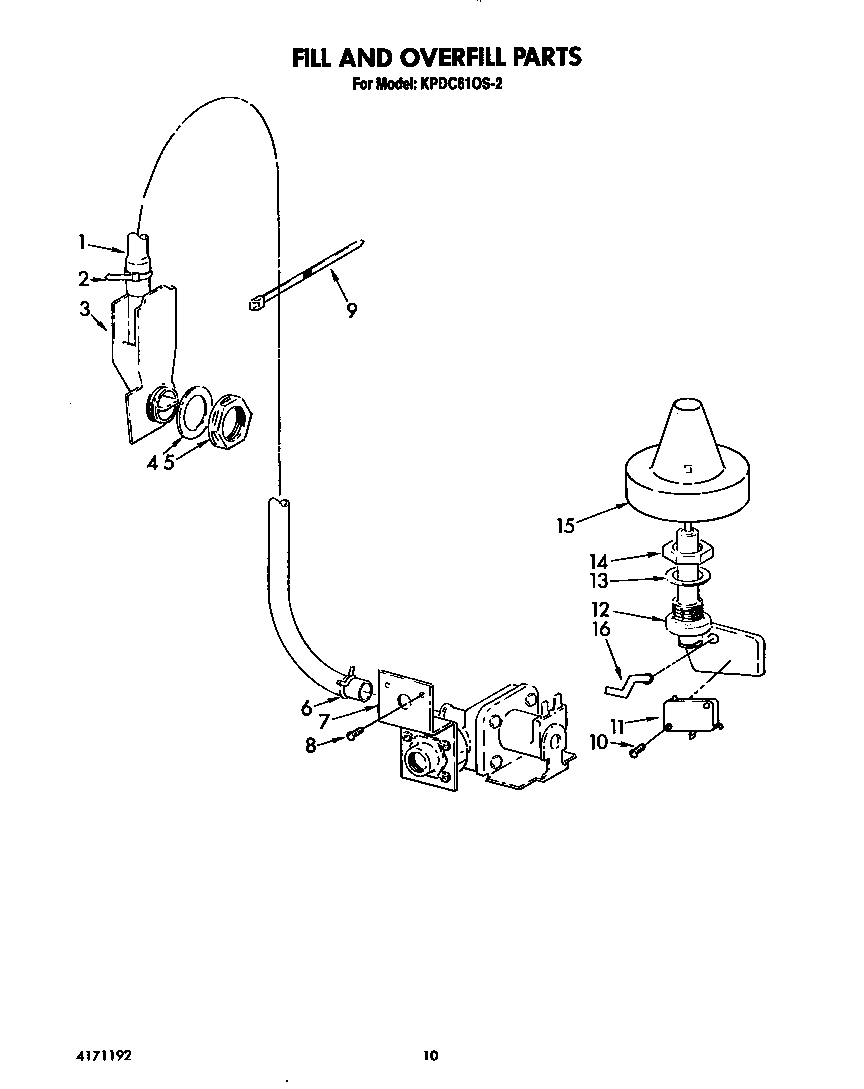

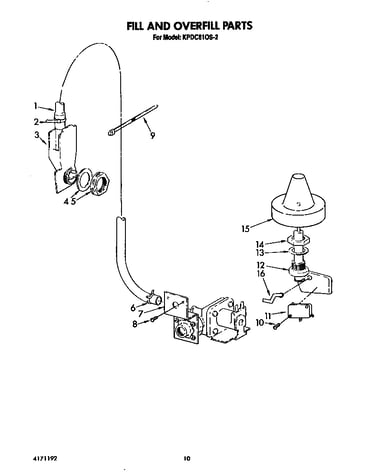

Fill and overfill diagram
StandpipePart #4161732
Replaced by #W10207863
?Manufacturer substitutionThis part replaces 4161732. Substitute parts can look different from the original.$38.37 |14% OFF Phone Price : $44.37In Stock - #15
Fill hose and cord diagram
Dishwasher screwPart #4159387
Replaced by #WP4159387
?Manufacturer substitutionThis part replaces 4159387. Substitute parts can look different from the original.$28.42In Stock #NI
All parts diagram
Spray wPart #206922
Replaced by #350942
?Manufacturer substitutionThis part replaces 206922. Substitute parts can look different from the original.$96.13In Stock- #14

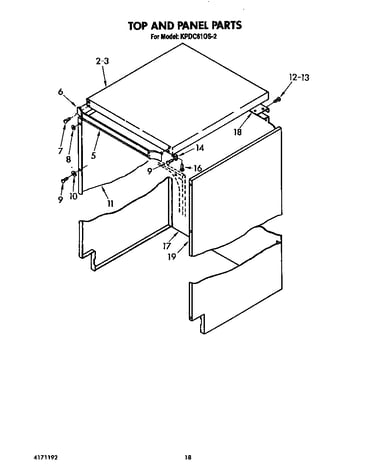

Top and panel diagram
BracketPart #4162169
Replaced by #WP9741251
?Manufacturer substitutionThis part replaces 4162169. Substitute parts can look different from the original.This item is not returnable$6.21 |14% OFF Phone Price : $7.21In Stock - #13

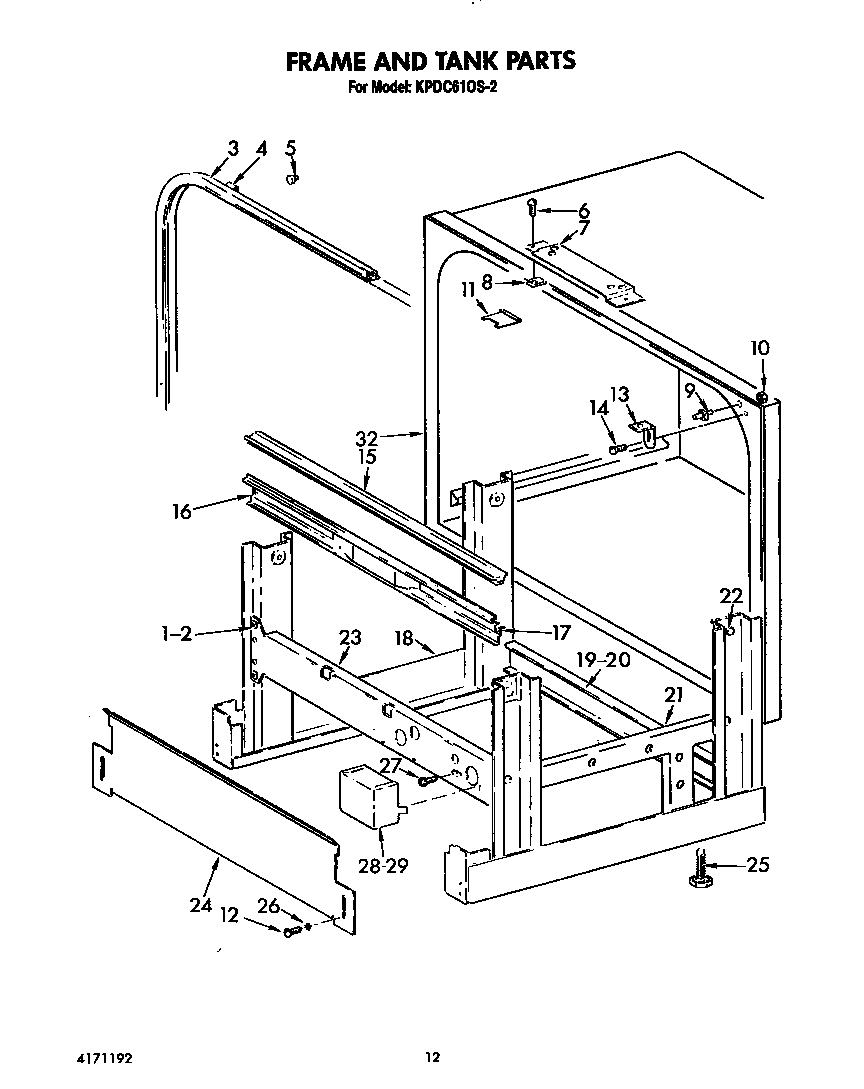

Frame and tank diagram
BracketPart #4162167
Replaced by #WP9741251
?Manufacturer substitutionThis part replaces 4162167. Substitute parts can look different from the original.This item is not returnable$6.21 |14% OFF Phone Price : $7.21In Stock
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
Parts you might be looking for
Most common symptoms to help you fix your dishwashers
Choose a symptom to see related dishwasher repairs.
Main causes: broken door spring, damaged or broken door hinge…
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracke…
Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, contro…
Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm …
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control syst…
Main cause: damaged rack height adjuster…
Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in was…
Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan f…
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure,…
Most common repair guides to help fix your dishwashers
These step-by-step repair guides will help you safely fix what’s broken on your dishwasher.
How to replace a dishwasher door latch assembly
If the dishwasher door doesn't click shut, a broken door latch is a likely cause. Follow these instructions to replace i…
Repair difficulty
Time required
30 minutes or less
How to replace a dishwasher user interface control
The user interface control houses the selection buttons and display. If it fails, you can't select the cycle and setting…
Repair difficulty
Time required
30 minutes or less
How to replace a dishwasher thermal fuse
A completely dead control panel often indicates that the thermal fuse on the electronic control board is blown; follow t…
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your dishwashers
Use the advice and tips in these articles and videos to get the most out of your dishwasher.
It could be a failed door switch, overfill float switch or water inlet valve. See how to test them.…
Find out how to clean and flush household appliances once a boil water advisory is lifted.…
See how easy replacing a broken upper dishrack roller is in this short video.…
