Model # 7EV187NYRV00 Official Whirlpool upright freezer

Here are the diagrams and repair parts for Official Whirlpool 7EV187NYRV00 upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

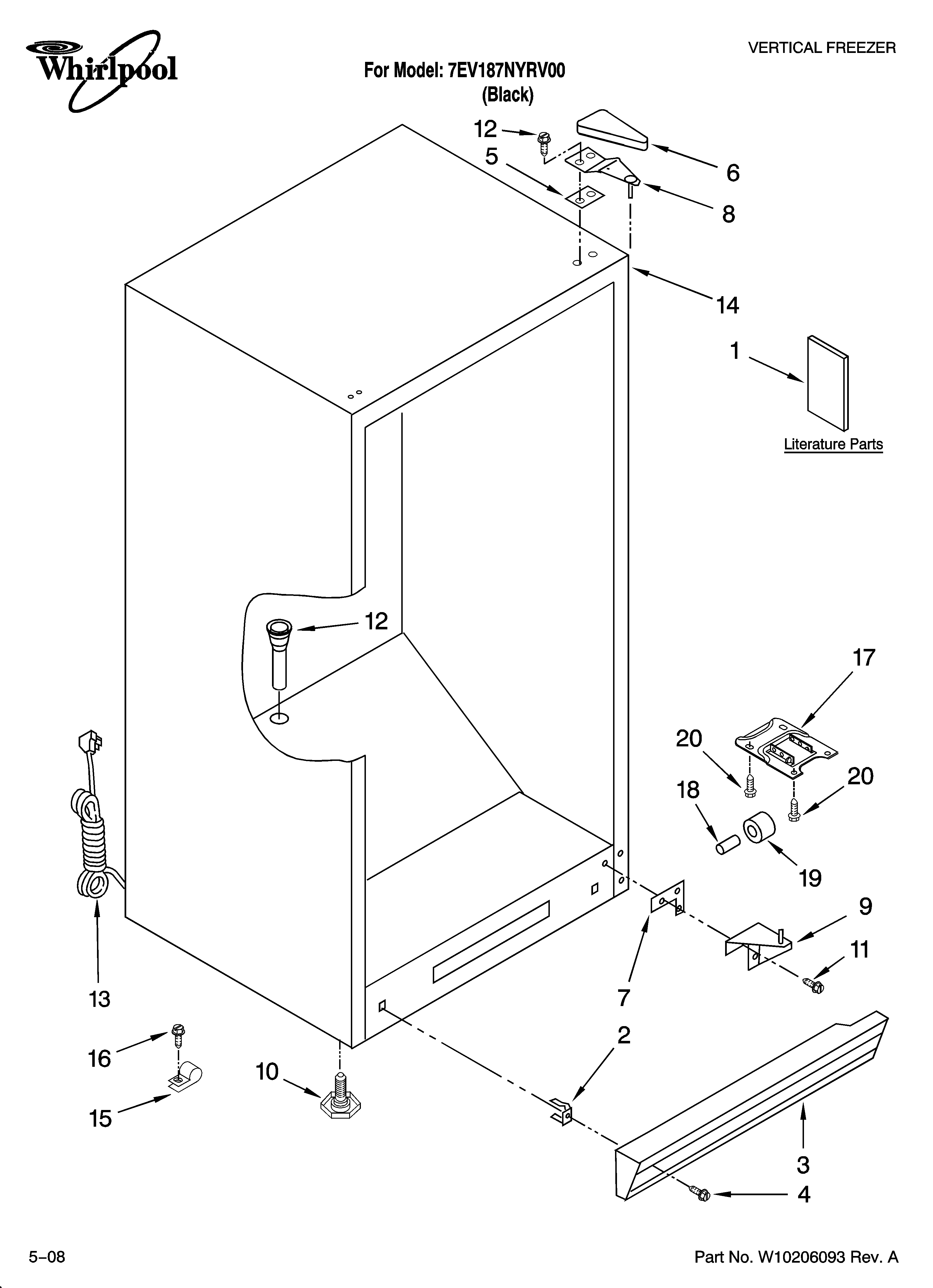

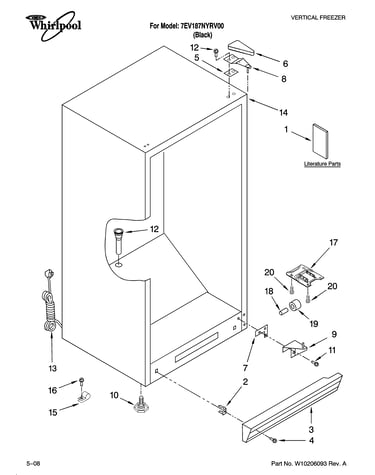

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Light Bulb 4390465
#11

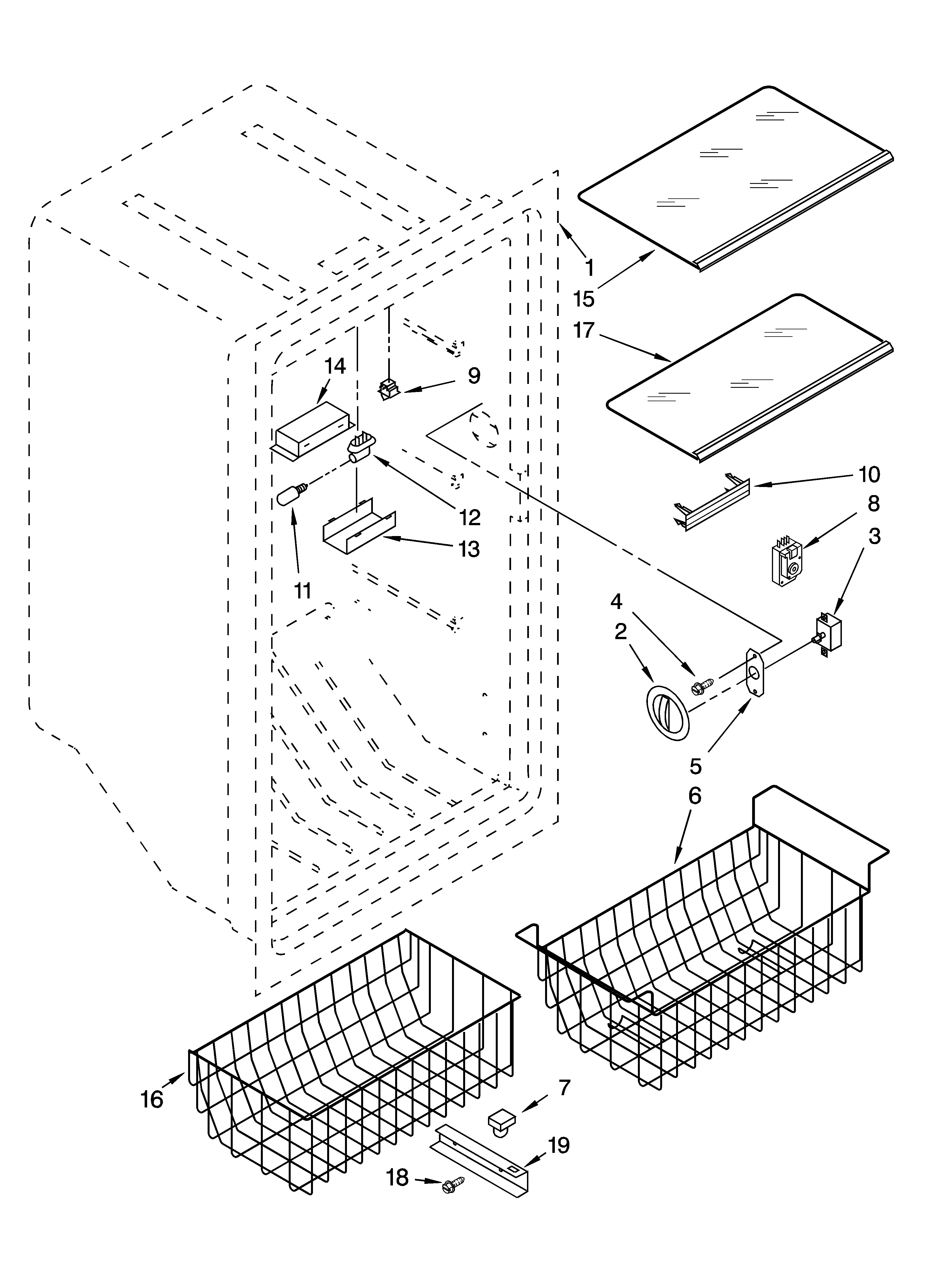

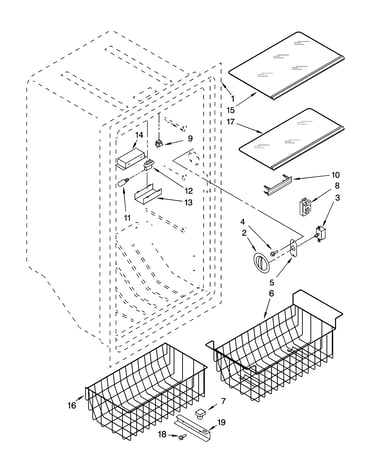

Liner parts diagram

Light bulb

Part #4390465

Replaced by #40A15

?
Manufacturer substitution
This part replaces 4390465. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Switch 4390513
#9

Liner parts diagram

Switch

Part #4390513

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 4390513. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Drier Tube 4357299
#16

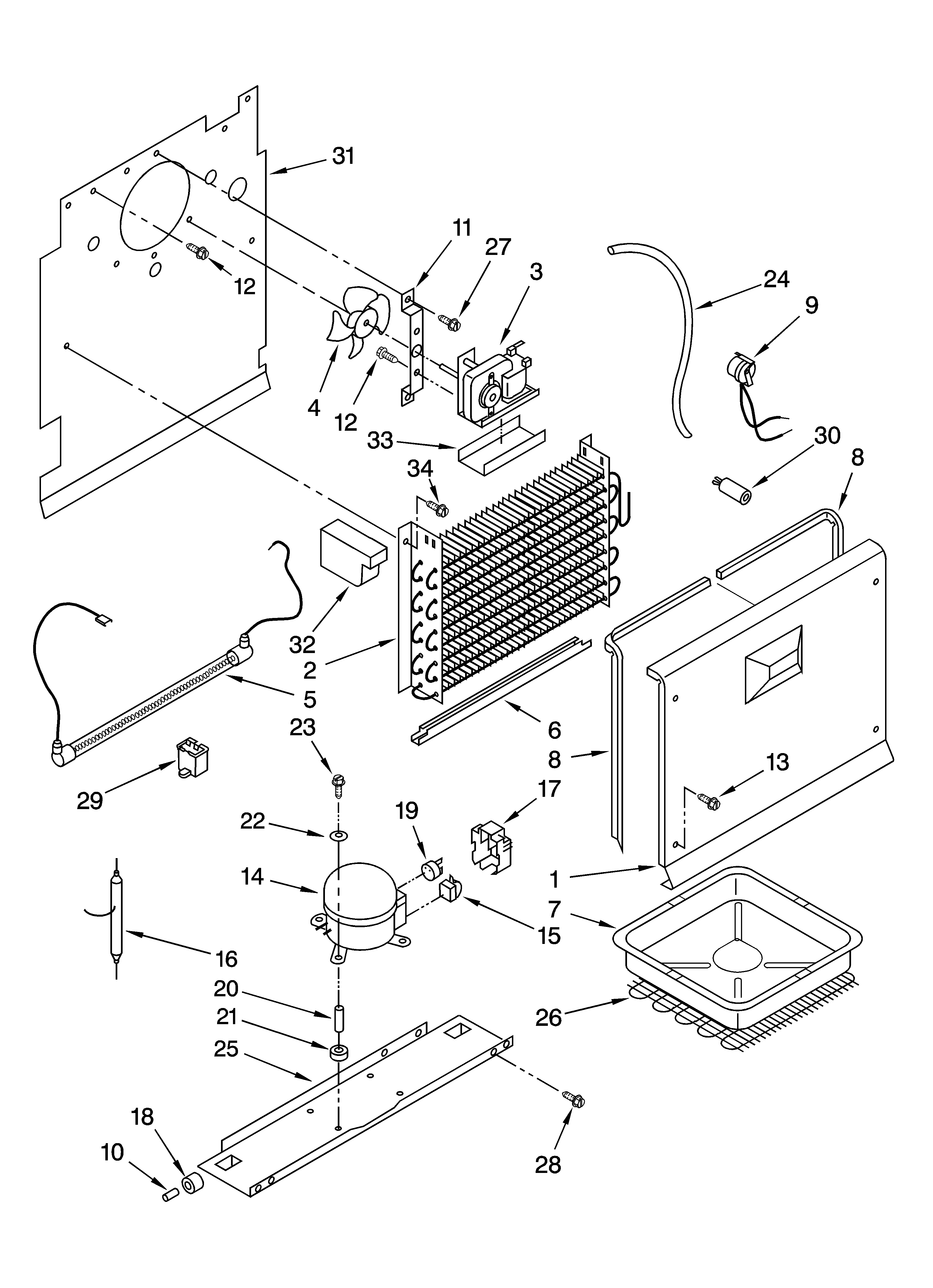

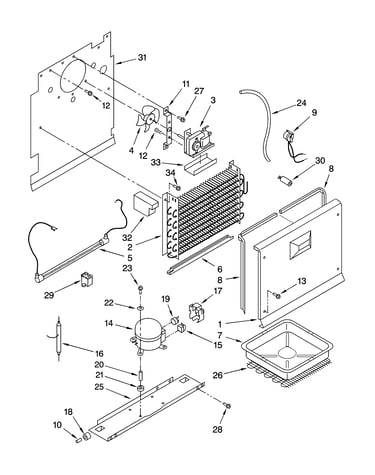

Unit parts diagram

Drier tube

Part #4357299

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4357299. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Upright Freezer Compressor 4356775
#14

Unit parts diagram

Upright freezer compressor

Part #4356775

Replaced by #W10309994

?
Manufacturer substitution
This part replaces 4356775. Substitute parts can look different from the original.
BEST SELLER
$475.80 |
$12.00 OFF Phone Price : $487.80
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

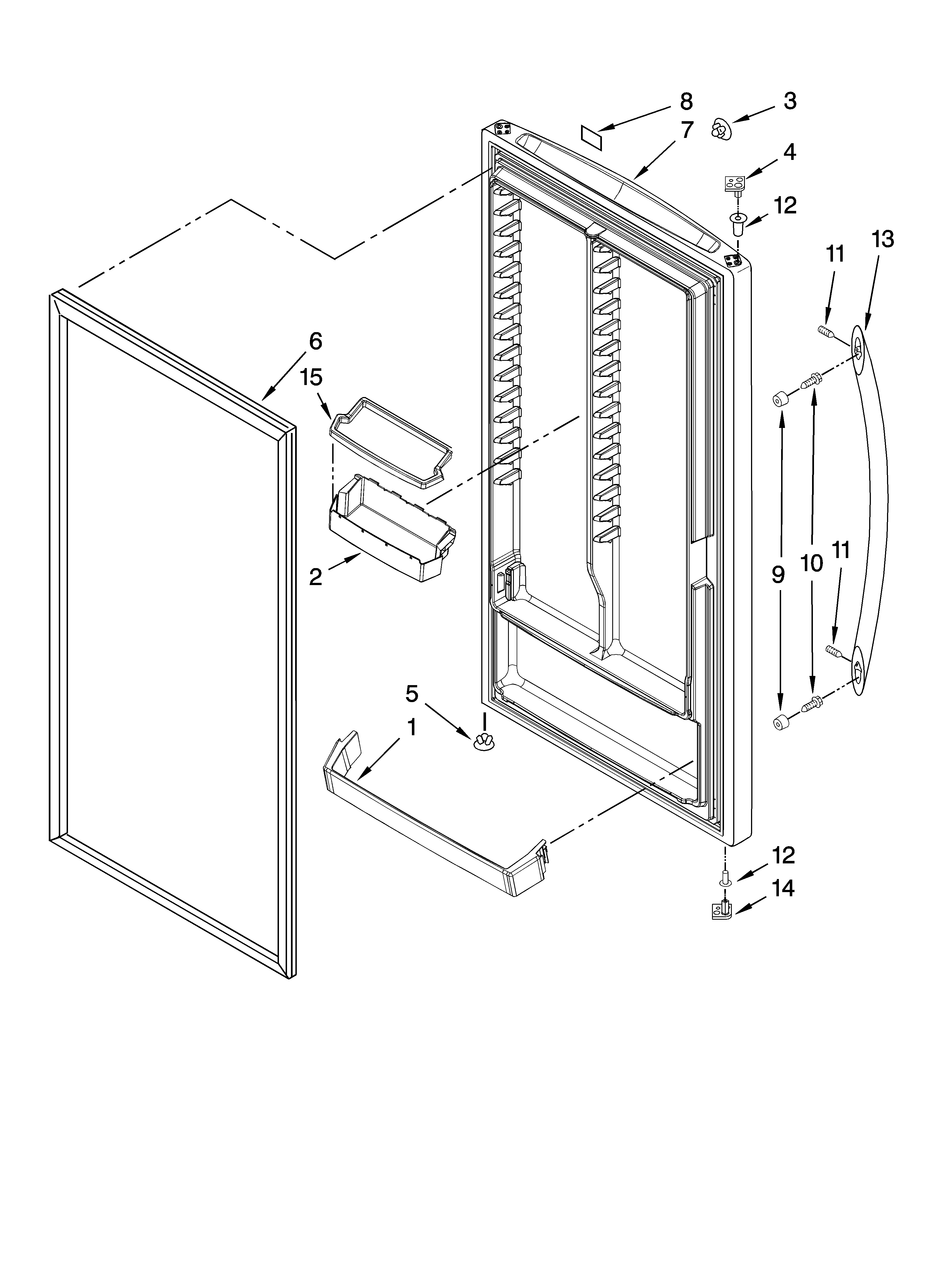

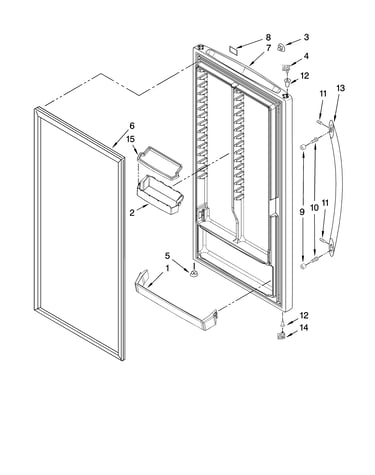

Door parts, optional parts (not included) diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray Paint (white) 350930
#NI

Door parts, optional parts (not included) diagram

Spray paint (white)

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Screw 4390821
Screw

Part #4390821

Replaced by #WP489491

?
Manufacturer substitution
This part replaces 4390821. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Defrost Timer 4357124
#8

Liner parts diagram

Defrost timer

Part #4357124

Replaced by #WP3-81329

?
Manufacturer substitution
This part replaces 4357124. Substitute parts can look different from the original.
$88.66 |
6% OFF Phone Price : $94.66
In Stock
Sears Refrigerator Permagum Sealer 212643
#NI

Door parts, optional parts (not included) diagram

Sears refrigerator permagum sealer

Part #212643

This item is not returnable
$50.09 |
11% OFF Phone Price : $56.09
In Stock
Defrost Timer 8210253
#9

Unit parts diagram

Defrost timer

Part #8210253

Replaced by #WP1-81801-001

?
Manufacturer substitution
This part replaces 8210253. Substitute parts can look different from the original.
$48.06 |
11% OFF Phone Price : $54.06
In Stock
