Kelvinator
Upright Freezer

Model # UFP212SM3W Official Kelvinator upright freezer - lk30888130

Here are the diagrams and repair parts for Official Kelvinator UFP212SM3W upright freezer - lk30888130, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Filter Drier G152474
#23

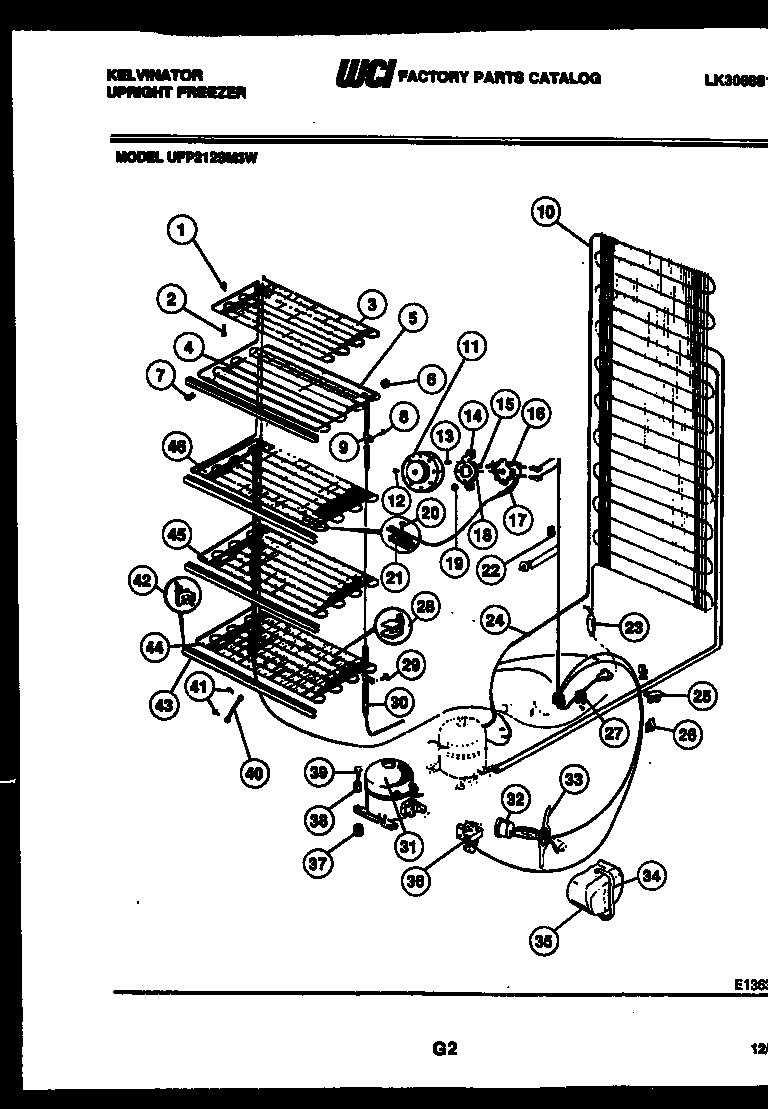

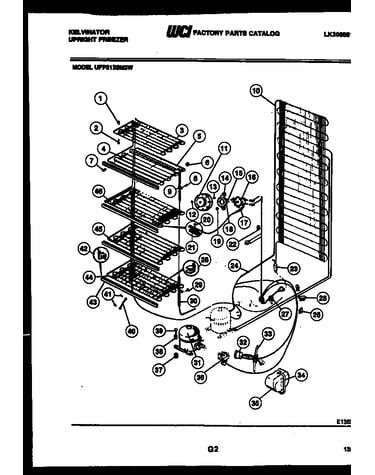

System and electrical parts diagram

Filter drier

Part #G152474

Replaced by #5303305677

?
Manufacturer substitution
This part replaces G152474. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Key F113978
#8

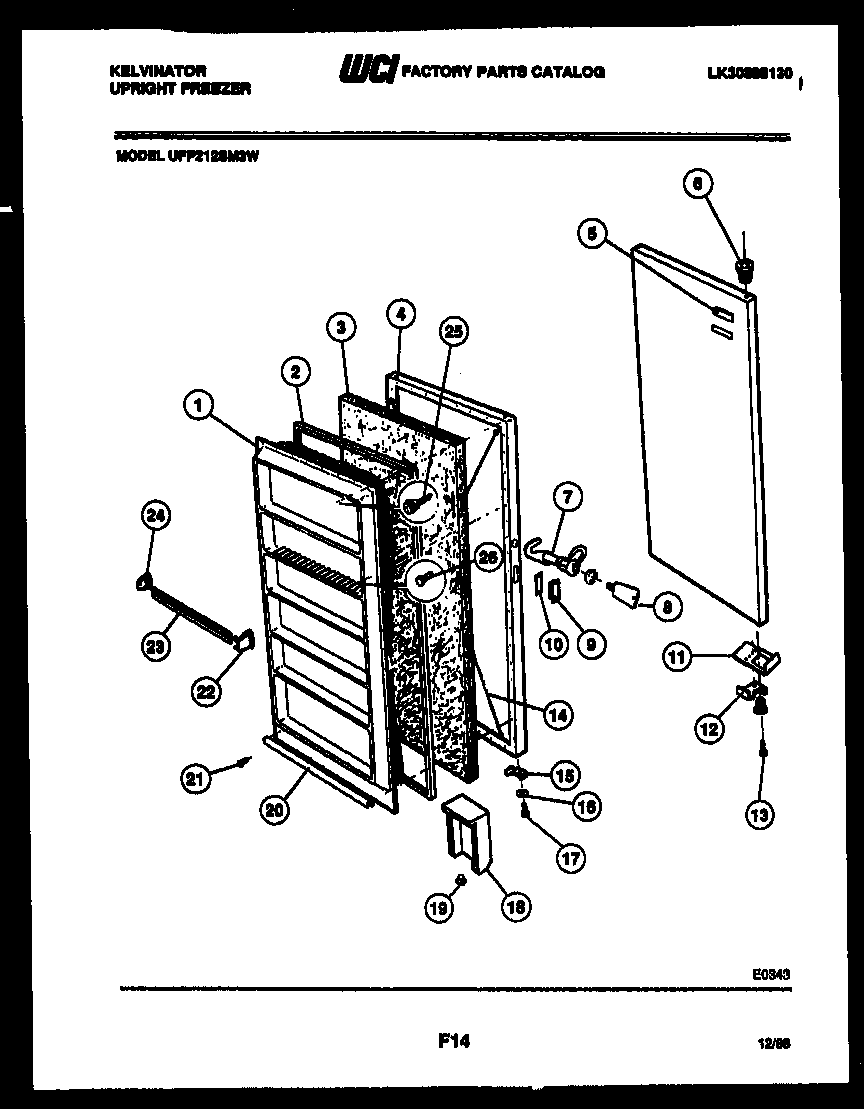

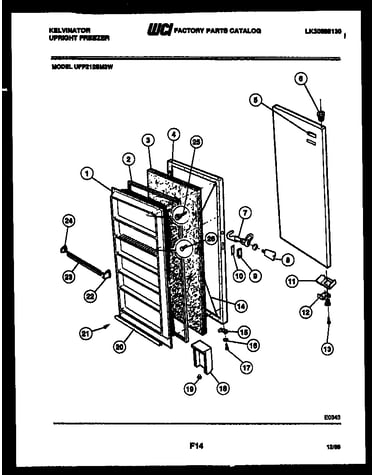

Door parts diagram

Key

Part #F113978

Replaced by #297147700

?
Manufacturer substitution
This part replaces F113978. Substitute parts can look different from the original.
BEST SELLER
$9.07 |
10% OFF Phone Price : $10.07
In Stock
Drain Plug F89354
#20

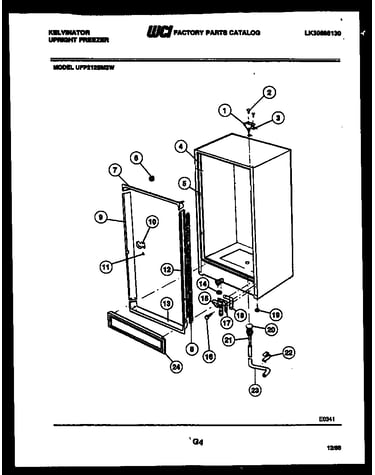

Cabinet parts diagram

Drain plug

Part #F89354

Replaced by #216502600

?
Manufacturer substitution
This part replaces F89354. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$13.04 |
13% OFF Phone Price : $15.04
In Stock
Drain F121290
#21

Cabinet parts diagram

Drain

Part #F121290

Replaced by #5304511843

?
Manufacturer substitution
This part replaces F121290. Substitute parts can look different from the original.
This item is not returnable
$13.42 |
13% OFF Phone Price : $15.42
In Stock
Shelf Support F117449
#42A

System and electrical parts diagram

Shelf support

Part #F117449

Replaced by #297001600

?
Manufacturer substitution
This part replaces F117449. Substitute parts can look different from the original.
This item is not returnable
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Shelf Support F117448
#42

System and electrical parts diagram

Shelf support

Part #F117448

Replaced by #297001600

?
Manufacturer substitution
This part replaces F117448. Substitute parts can look different from the original.
This item is not returnable
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Valve Breather F117926
#19

Door parts diagram

Valve breather

Part #F117926

Replaced by #5309950074

?
Manufacturer substitution
This part replaces F117926. Substitute parts can look different from the original.
This item is not returnable
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Screw F55160
#13

System and electrical parts diagram

Screw

Part #F55160

This item is not returnable
$2.16
In Stock
Insulation F86843-50
#8

Cabinet parts diagram

Insulation

Part #F86843-50

Replaced by #5303925098

?
Manufacturer substitution
This part replaces F86843-50. Substitute parts can look different from the original.
$98.69 |
11% OFF Phone Price : $110.69
In Stock
Screw F126260
#2

System and electrical parts diagram

Screw

Part #F126260

Replaced by #08013446

?
Manufacturer substitution
This part replaces F126260. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
