Model # 390255451 Official Craftsman high-pressure booster pump

Here are the diagrams and repair parts for Official Craftsman 390255451 high-pressure booster pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 16 parts |

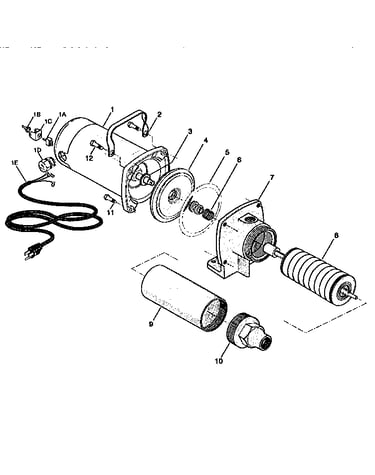

Replacement parts diagram

Slinger

Part #C69-2

Replaced by #17351-0009

This item is not returnable

$8.89 |

10% OFF Phone Price : $9.89

Back Order

Qty

Replacement parts diagram

Sta-rite seal plate

Part #N3-8

$45.82

In Stock

Qty

Replacement parts diagram

Craftsman motor

Part #A100CHL

$217.59

In Stock

Qty

Replacement parts diagram

Craftsman handle

Part #C54-21

$10.70

In Stock

Qty

Replacement parts diagram

Sta-rite gasket

Part #N20-26

$13.05

In Stock

Qty

Replacement parts diagram

Craftsman pump shaft seal

Part #U109-118

$191.99 |

6% OFF Phone Price : $203.99

In Stock

Qty

#1B

Replacement parts diagram

Switch

Part #U18-1573

The manufacturer no longer makes this part, and there's no substitute part

Capscrew, 3/8 X 16 X 1-1/2" (2) U30-76ZP

#12

Replacement parts diagram

Capscrew, 3/8 x 16 x 1-1/2" (2)

Part #U30-76ZP

The manufacturer no longer makes this part, and there's no substitute part

Replacement parts diagram

Pump shell

Part #P56-262SSL

The manufacturer no longer makes this part, and there's no substitute part

Replacement parts diagram

Pump body

Part #C2-58A

The manufacturer no longer makes this part, and there's no substitute part
