Kenmore
Electric Wall Oven

Model # 91147062100 Official Kenmore 27" electric wall oven

Here are the diagrams and repair parts for Official Kenmore 91147062100 27" electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
#158

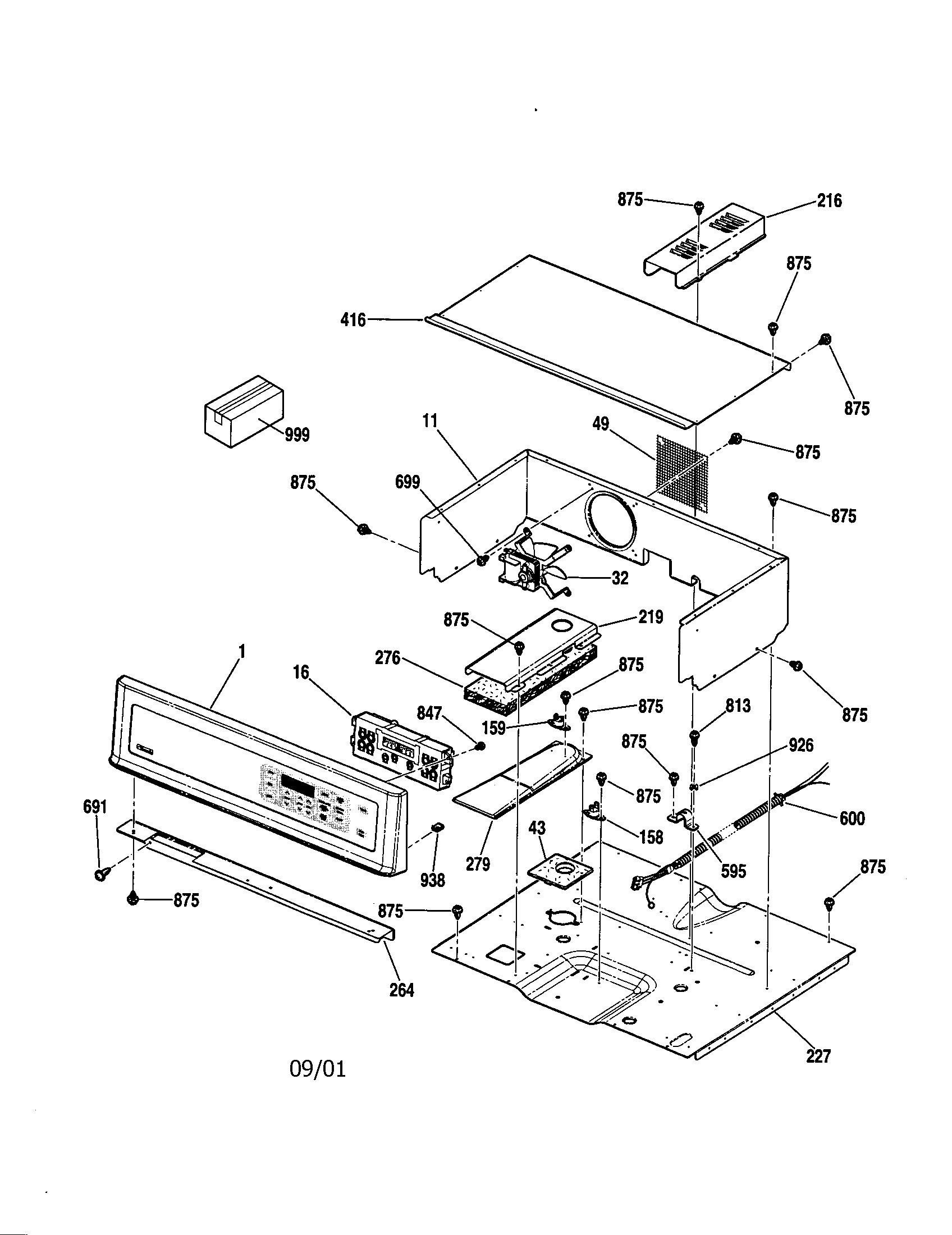

Control panel diagram

Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Bake Element WB44T10031
#251

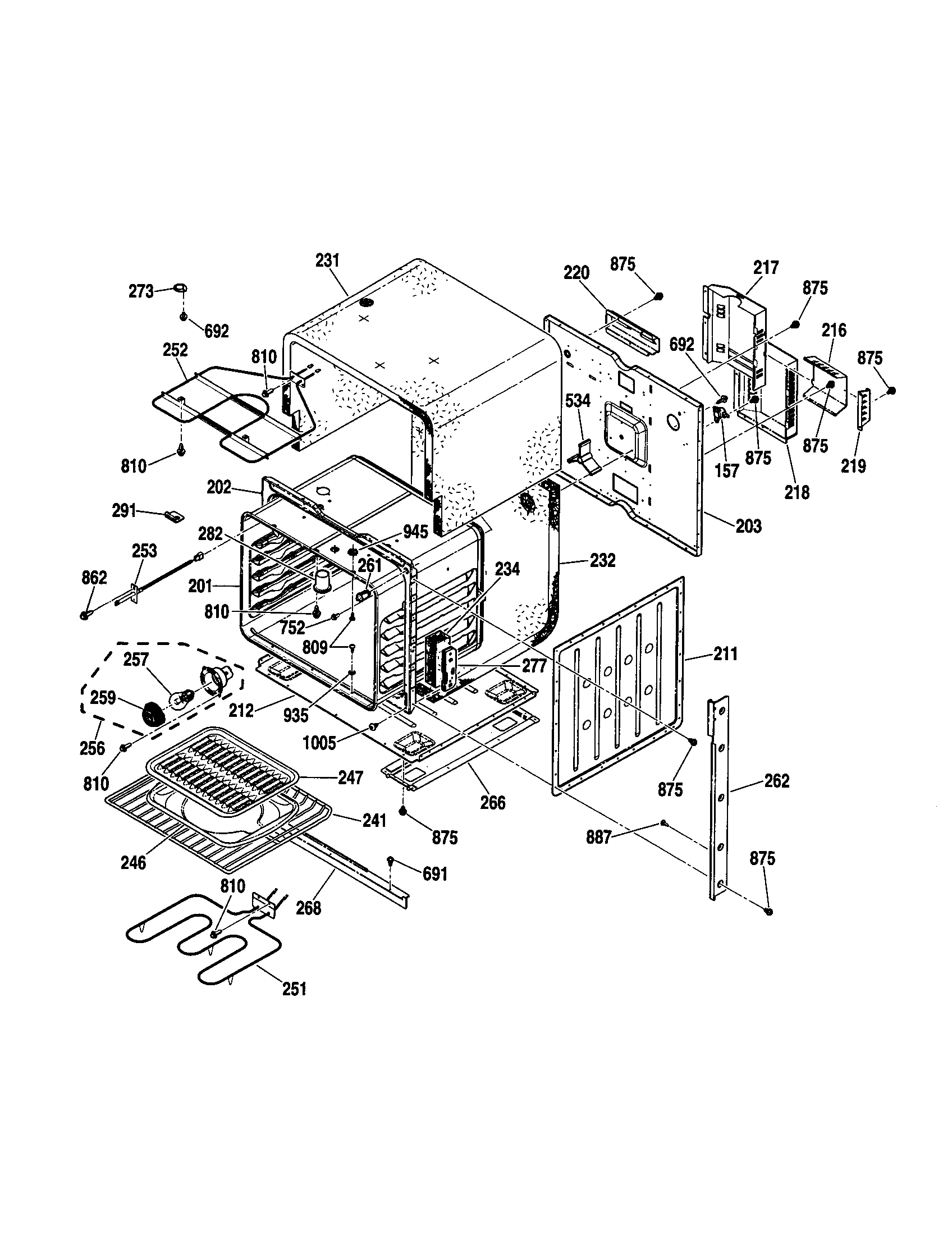

Body section diagram

Range bake element

Part #WB44T10031

BEST SELLER
$53.03 |
10% OFF Phone Price : $59.03
In Stock
Broil Element WB44T10030
#252

Body section diagram

Broil element

Part #WB44T10030

Replaced by #WB44T10051

?
Manufacturer substitution
This part replaces WB44T10030. Substitute parts can look different from the original.
BEST SELLER
$71.94 |
8% OFF Phone Price : $77.94
Back Order
Screw WB01X1137
#809

Body section diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Gasket WB32T10010
#132

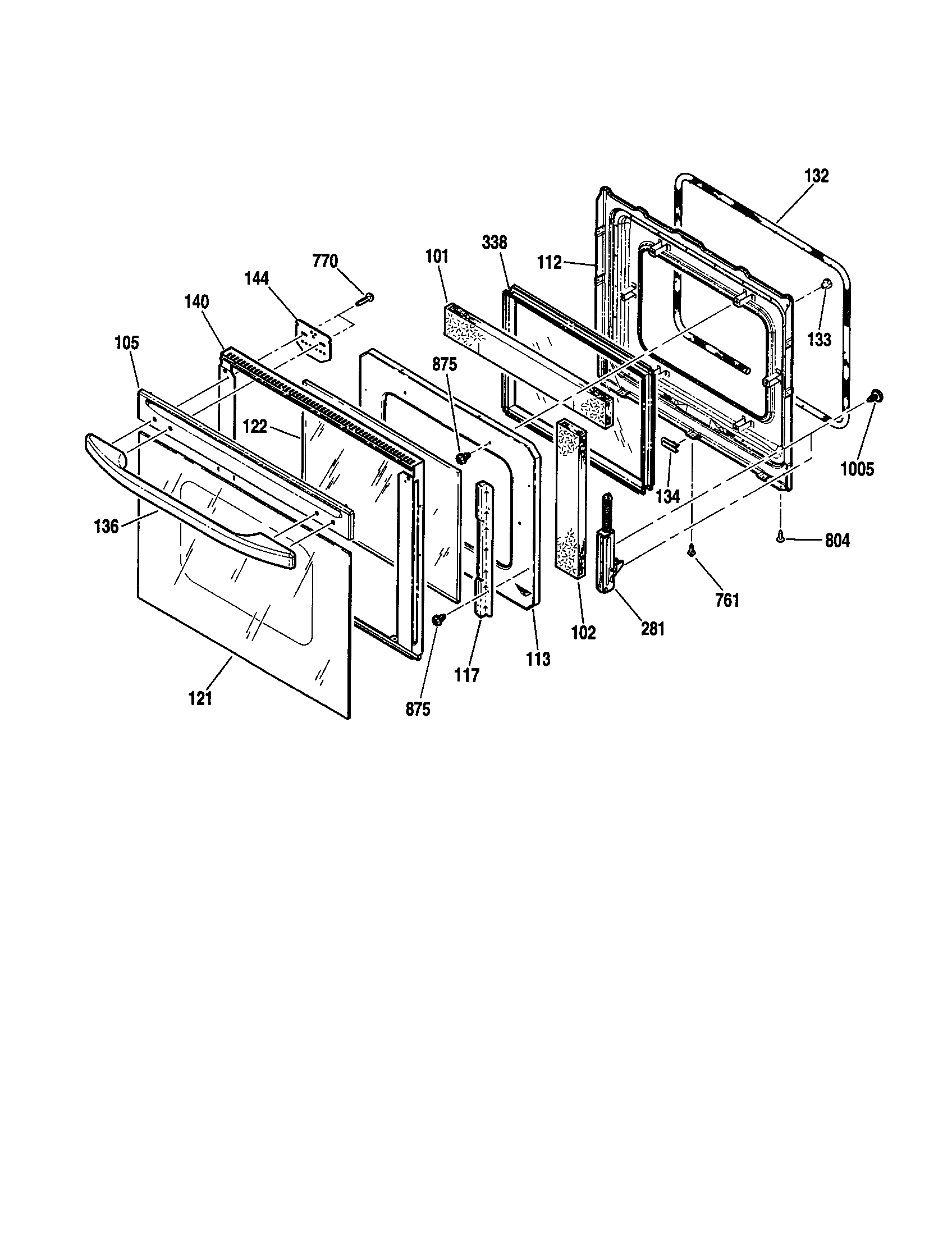

Door diagram

Range oven door gasket

Part #WB32T10010

$67.43 |
8% OFF Phone Price : $73.43
In Stock
Screw St WB01K5173
#887B

Body section diagram

Screw st

Part #WB01K5173

Replaced by #WB1K5173

?
Manufacturer substitution
This part replaces WB01K5173. Substitute parts can look different from the original.
This item is not returnable
$8.11
In Stock
Screw - Black WB01K5162
#691

Body section diagram

Screw - black

Part #WB01K5162

Replaced by #WB1K5162

?
Manufacturer substitution
This part replaces WB01K5162. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WZ04X0416
#692

Body section diagram

Screw

Part #WZ04X0416

Replaced by #WZ4X416

?
Manufacturer substitution
This part replaces WZ04X0416. Substitute parts can look different from the original.
$7.27 |
12% OFF Phone Price : $8.27
In Stock
Screw (black) WB01K5029
#761B

Door diagram

Screw (black)

Part #WB01K5029

Replaced by #WB1K5029

?
Manufacturer substitution
This part replaces WB01K5029. Substitute parts can look different from the original.
This item is not returnable
$8.11
In Stock
Oven Owner's Manual SR10472
#999B

Control panel diagram

Oven owner's manual

Part #SR10472

$8.99
In Stock
