Model # U5177900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U5177900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Hood 37253A33
#1A

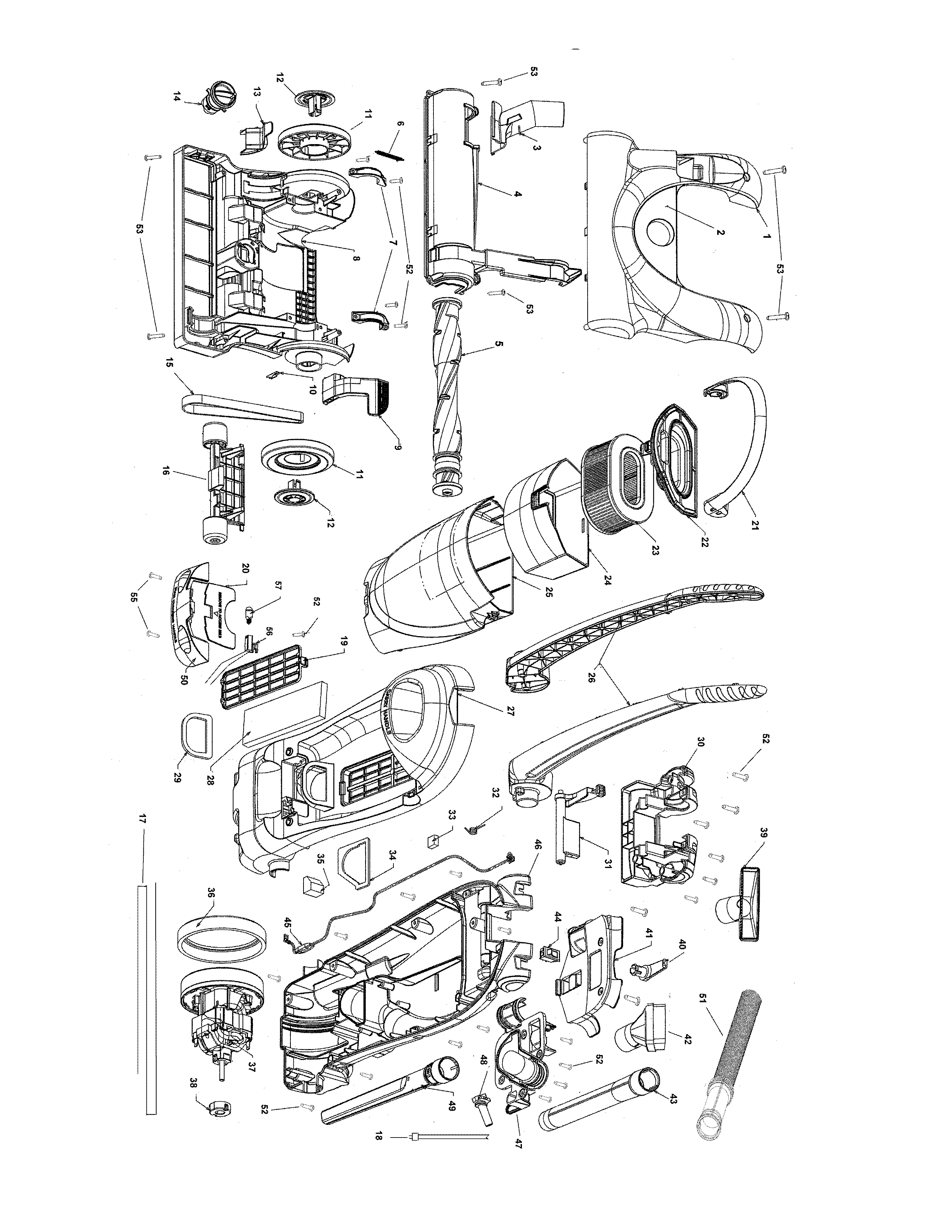

Motor, handle, hose, mainbody diagram

Hood

Part #37253A33

The manufacturer no longer makes this part, and there's no substitute part

Toolholder 36433181
#47

Motor, handle, hose, mainbody diagram

Toolholder

Part #36433181

The manufacturer no longer makes this part, and there's no substitute part

Spring 38335026
#6

Motor, handle, hose, mainbody diagram

Spring

Part #38335026

The manufacturer no longer makes this part, and there's no substitute part

Retainer Cover 37258161
#30

Motor, handle, hose, mainbody diagram

Retainer cover

Part #37258161

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Housing 37243044
#4

Motor, handle, hose, mainbody diagram

Vacuum housing

Part #37243044

The manufacturer no longer makes this part, and there's no substitute part

Adjustment Cam 38562022
#14

Motor, handle, hose, mainbody diagram

Adjustment cam

Part #38562022

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Bin Lid 37249037
#22

Motor, handle, hose, mainbody diagram

Vacuum dust bin lid

Part #37249037

The manufacturer no longer makes this part, and there's no substitute part

Dirt Cup 38775098
#25

Motor, handle, hose, mainbody diagram

Dirt cup

Part #38775098

The manufacturer no longer makes this part, and there's no substitute part

Harness 47173040
#56

Motor, handle, hose, mainbody diagram

Harness

Part #47173040

The manufacturer no longer makes this part, and there's no substitute part

Inlet Seal 38785019
#29

Motor, handle, hose, mainbody diagram

Inlet seal

Part #38785019

The manufacturer no longer makes this part, and there's no substitute part
