Model # PHU201UB1/P1130740N Official Modern Maid gas range

Here are the diagrams and repair parts for Official Modern Maid PHU201UB1-P1130740N gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

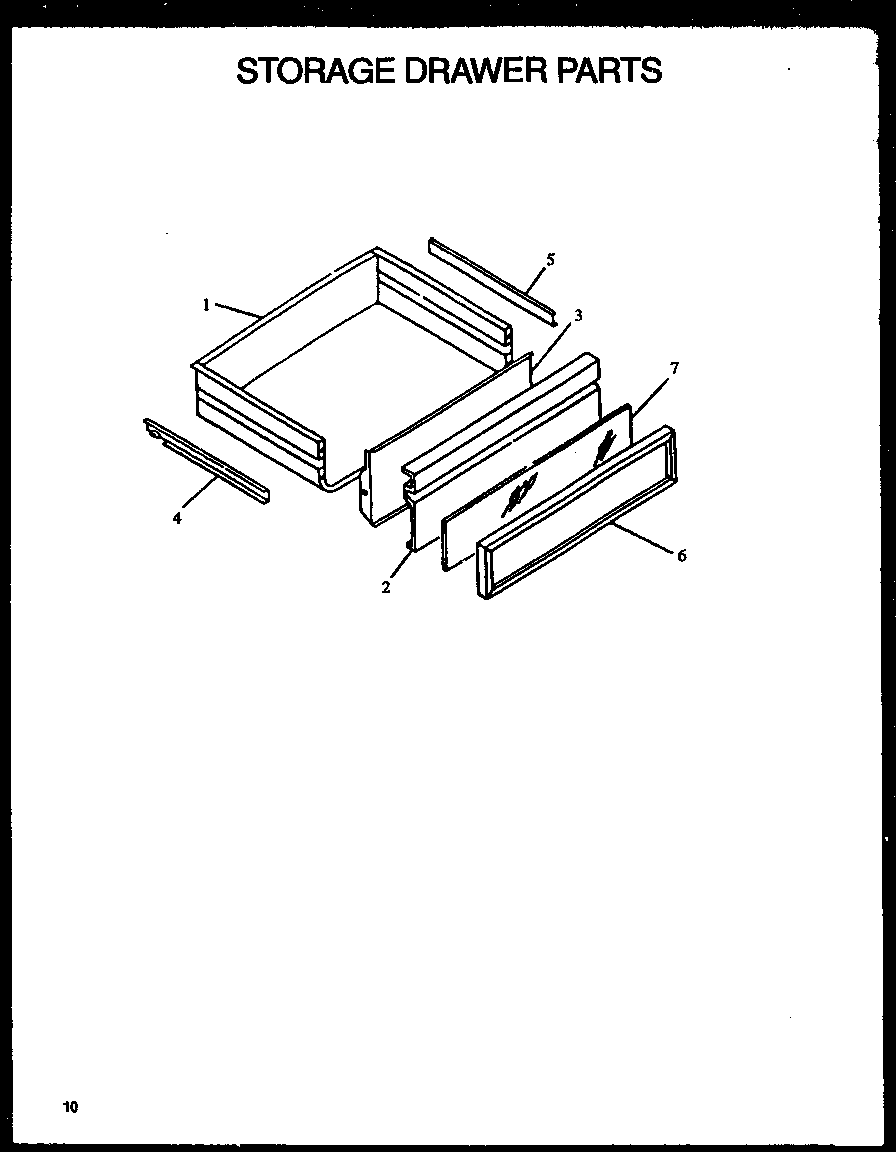

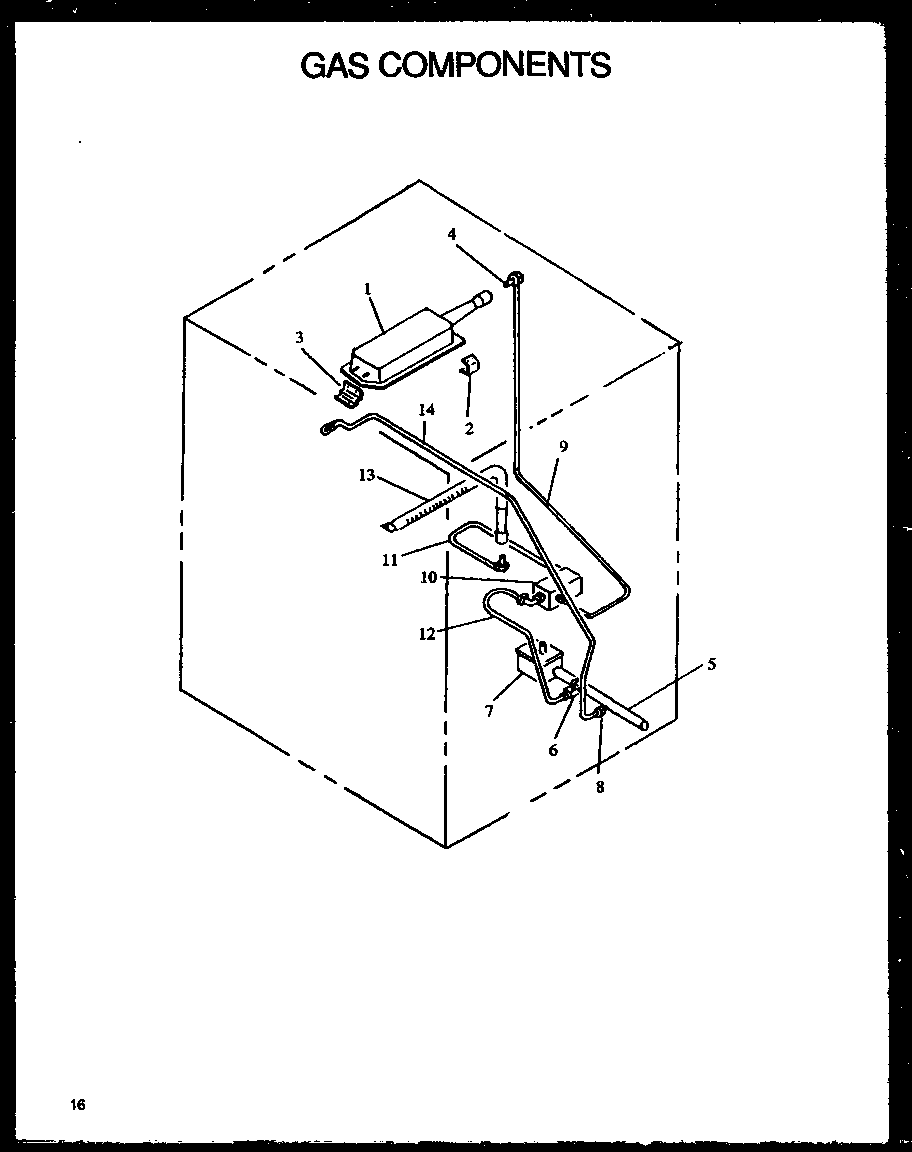

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 226 parts  |
Bracket, Oven Shelf Mounting 0058852
#21

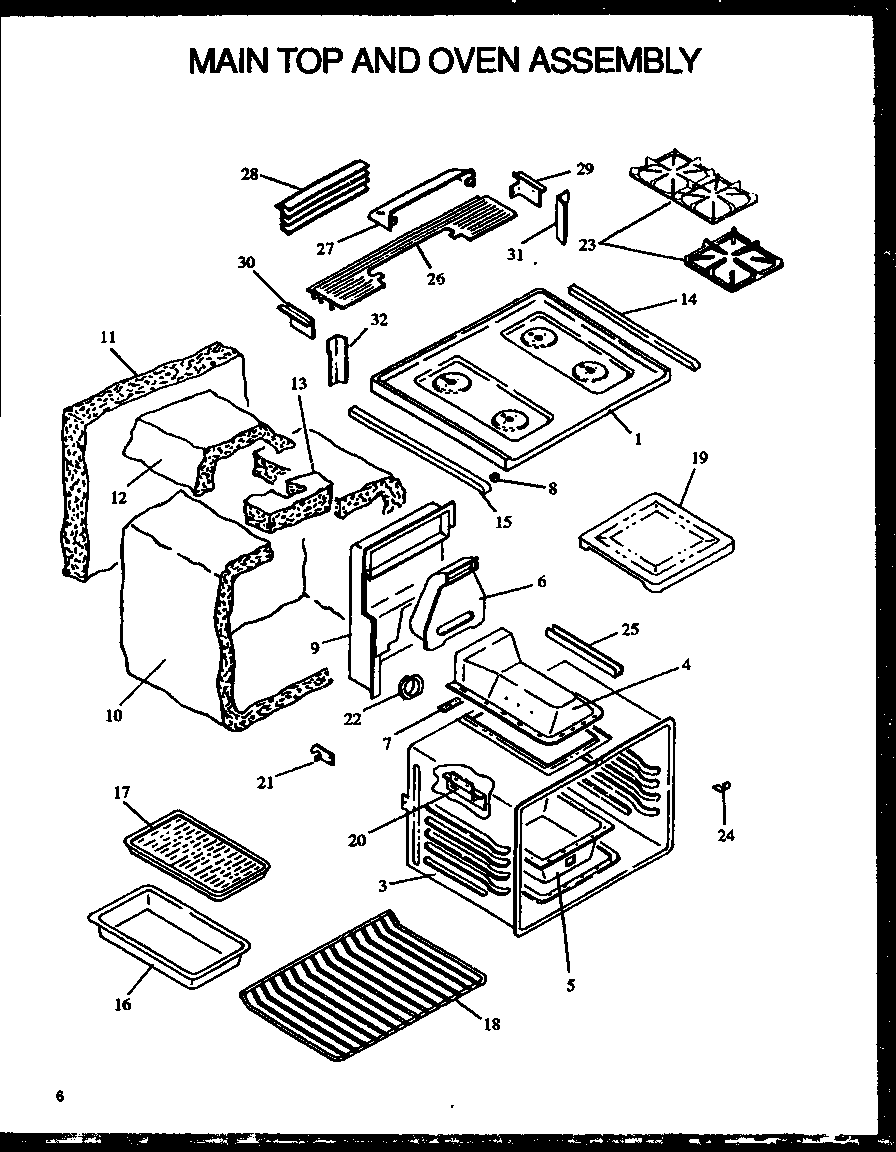

Main top and oven assembly diagram

Bracket, oven shelf mounting

Part #0058852

The manufacturer no longer makes this part, and there's no substitute part

Oven Lamp Lens 0302471
#4

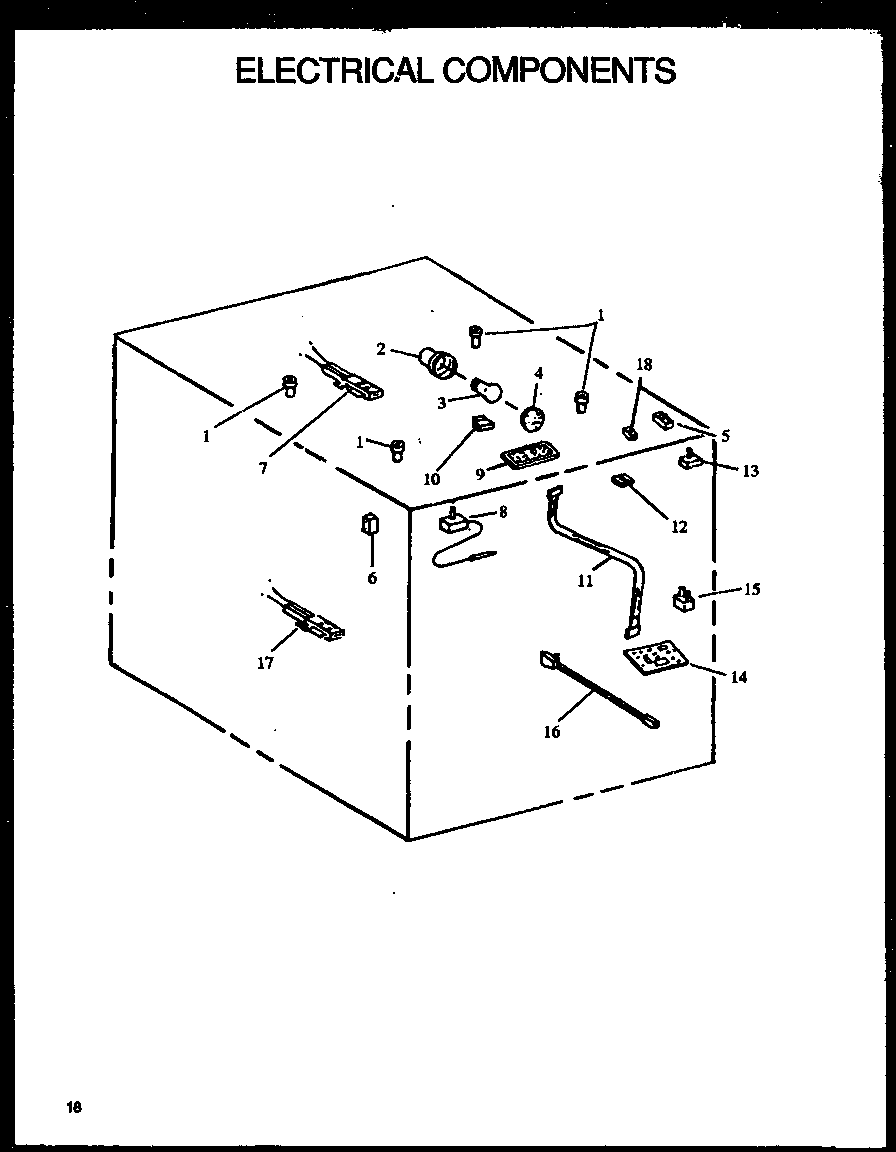

Electrical components diagram

Oven lamp lens

Part #0302471

The manufacturer no longer makes this part, and there's no substitute part

Filler, Front Frame 302380B
#24

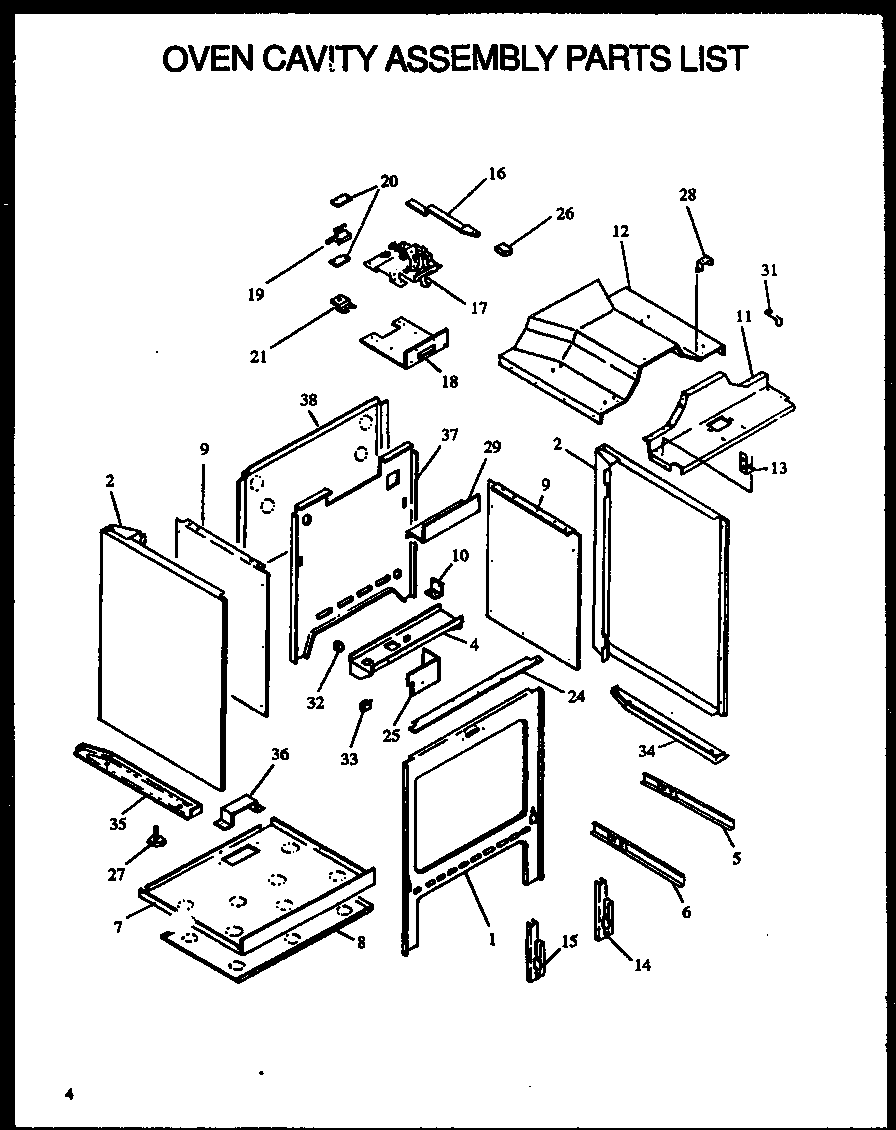

Oven cavity assembly parts list diagram

Filler, front frame

Part #302380B

The manufacturer no longer makes this part, and there's no substitute part

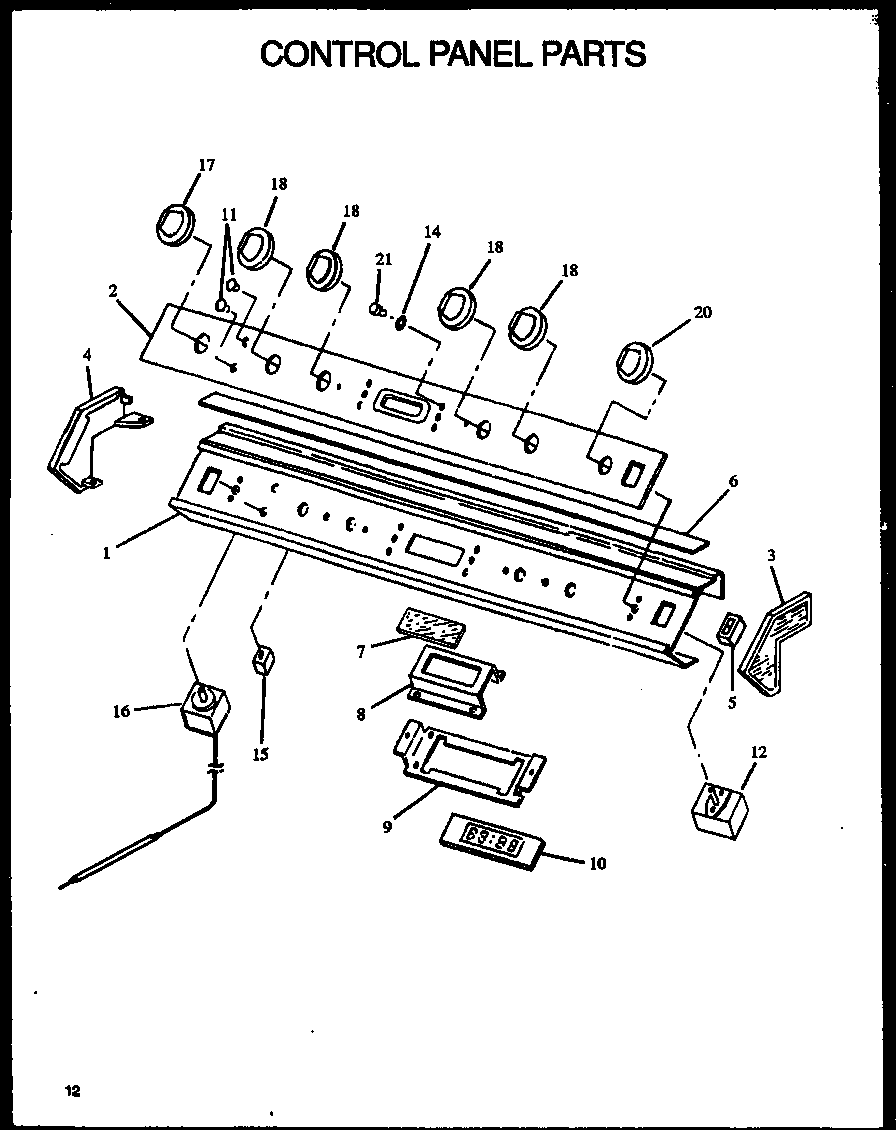

Switch, Top Burner (reignition Units) 0302242
Switch, top burner (reignition units)

Part #0302242

The manufacturer no longer makes this part, and there's no substitute part

Heat Sheild, Storage Drawer 0063706
#8

Oven cavity assembly parts list diagram

Heat sheild, storage drawer

Part #0063706

The manufacturer no longer makes this part, and there's no substitute part

Insulation Retainer, Top 0303570
Insulation retainer, top

Part #0303570

The manufacturer no longer makes this part, and there's no substitute part

Rubber Bumper 0063661
#12

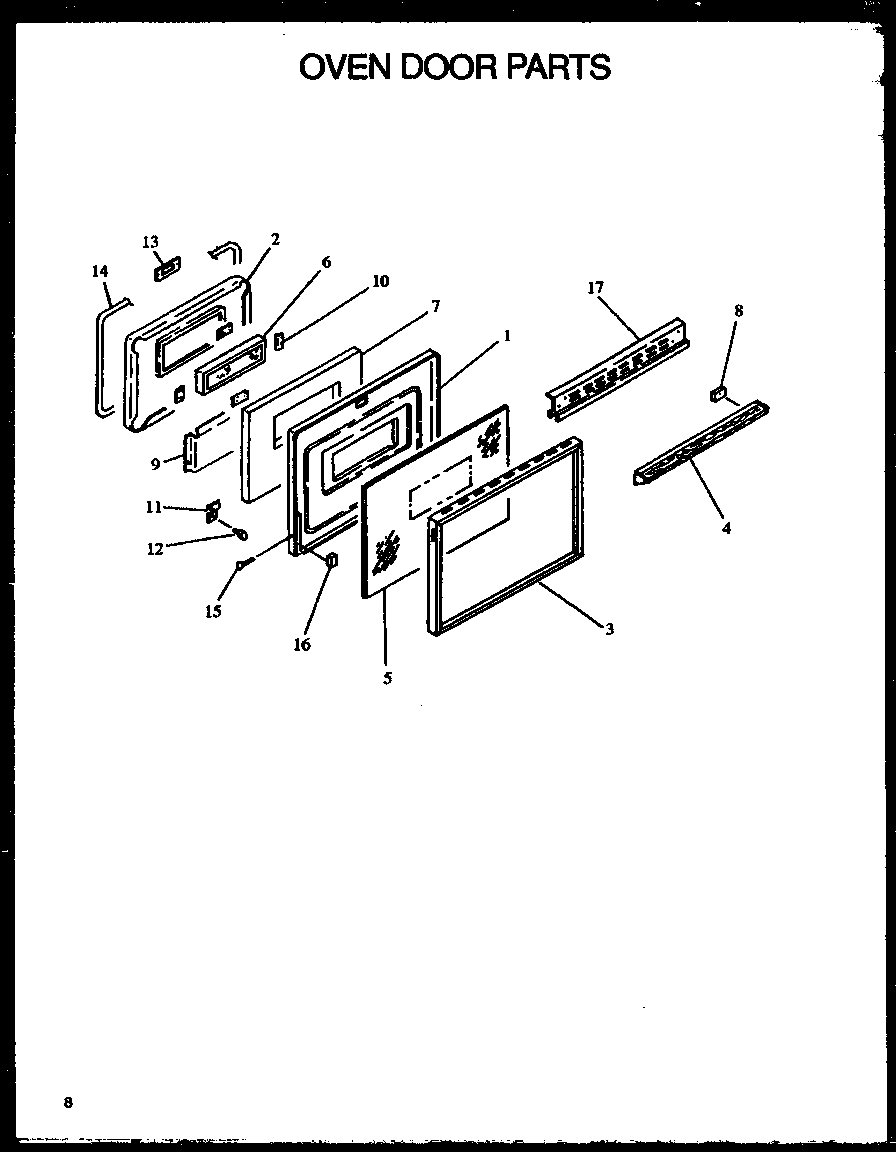

Oven door parts diagram

Rubber bumper

Part #0063661

The manufacturer no longer makes this part, and there's no substitute part

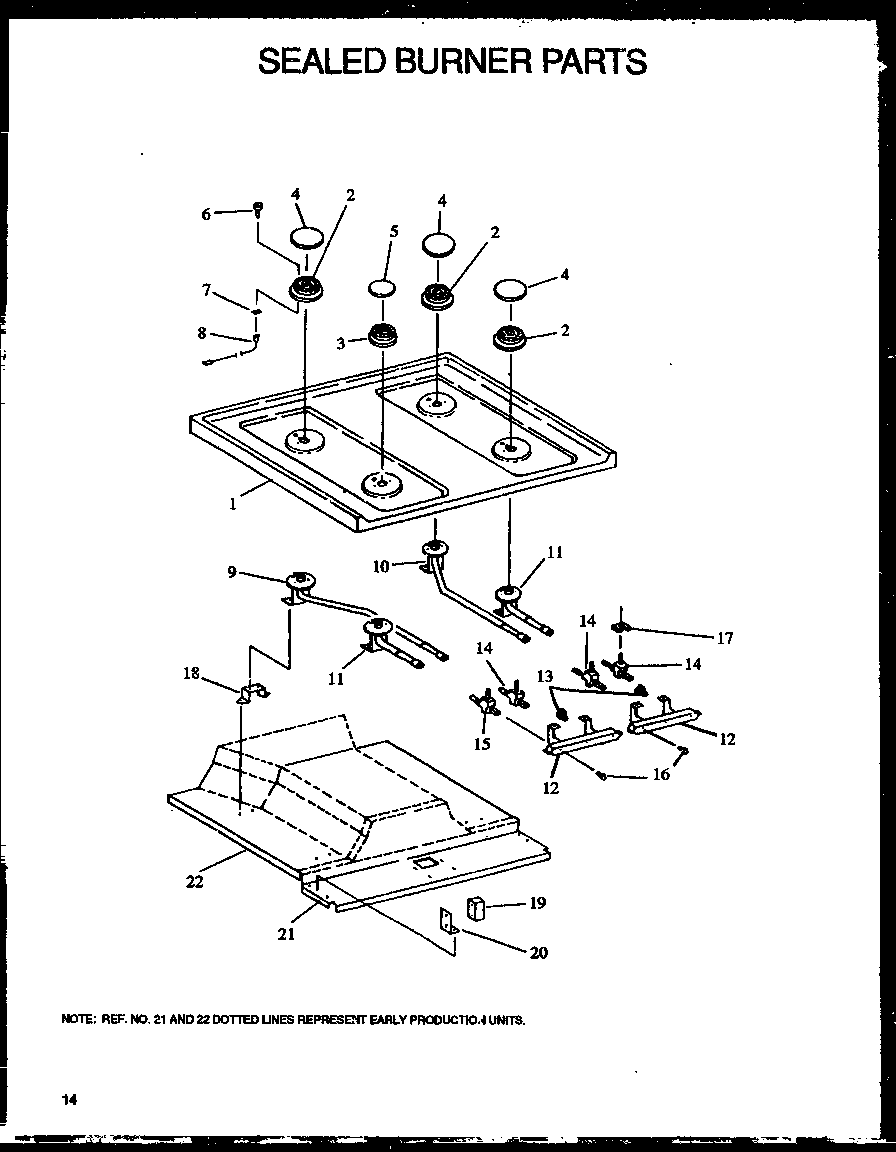

Electrode 0305975
Electrode

Part #0305975

The manufacturer no longer makes this part, and there's no substitute part

Screw, #8 - 18 X 3/8" Nickel Plate 0059445
Screw, #8 - 18 x 3/8" nickel plate

Part #0059445

The manufacturer no longer makes this part, and there's no substitute part

Switch Oven Light, Black 0300570
Switch oven light, black

Part #0300570

The manufacturer no longer makes this part, and there's no substitute part
